TECHNICAL DATA SHEET _04/06/2026

NEOS-16 24V 20W Dual Bend Neon Flex - RGB

Specifications

Beam angle	90°
Colour temperature	2100K
Cri rating	>94
Dimmable	Yes
Ip rating	IP68
Lumen output	1095lm

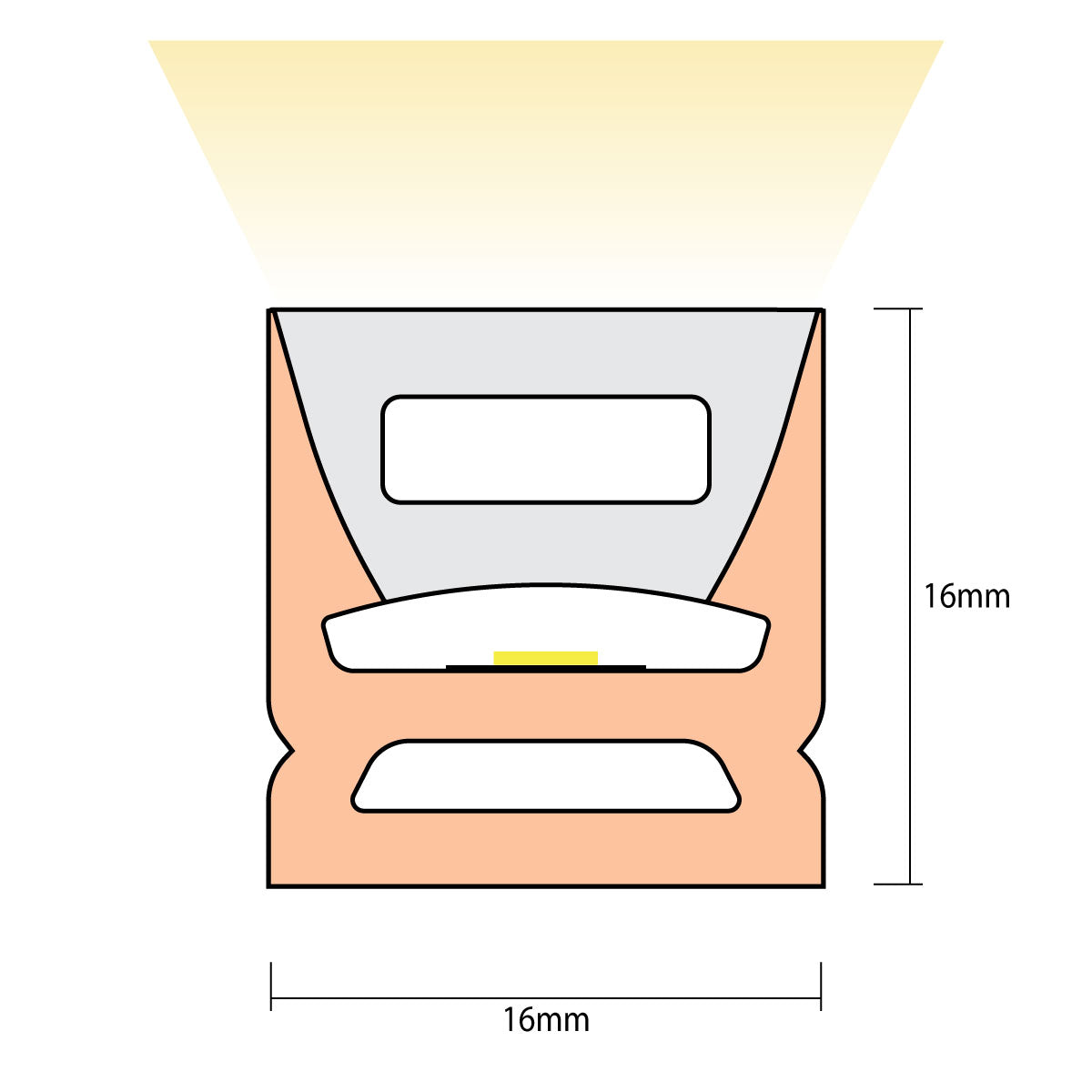

Overall height	16mm
Overall width	16mm
Rgb function	true
Voltage	24V DC
Warranty	5 Year Warranty
Wattage	20W

Specifications

Beam angle	90°
Colour temperature	2100K
Cri rating	>94
Dimmable	Yes
Ip rating	IP68
Lumen output	1095lm
Overall height	16mm
Overall width	16mm
Rgb function	true
Voltage	24V DC
Warranty	5 Year Warranty
Wattage	20W

Features

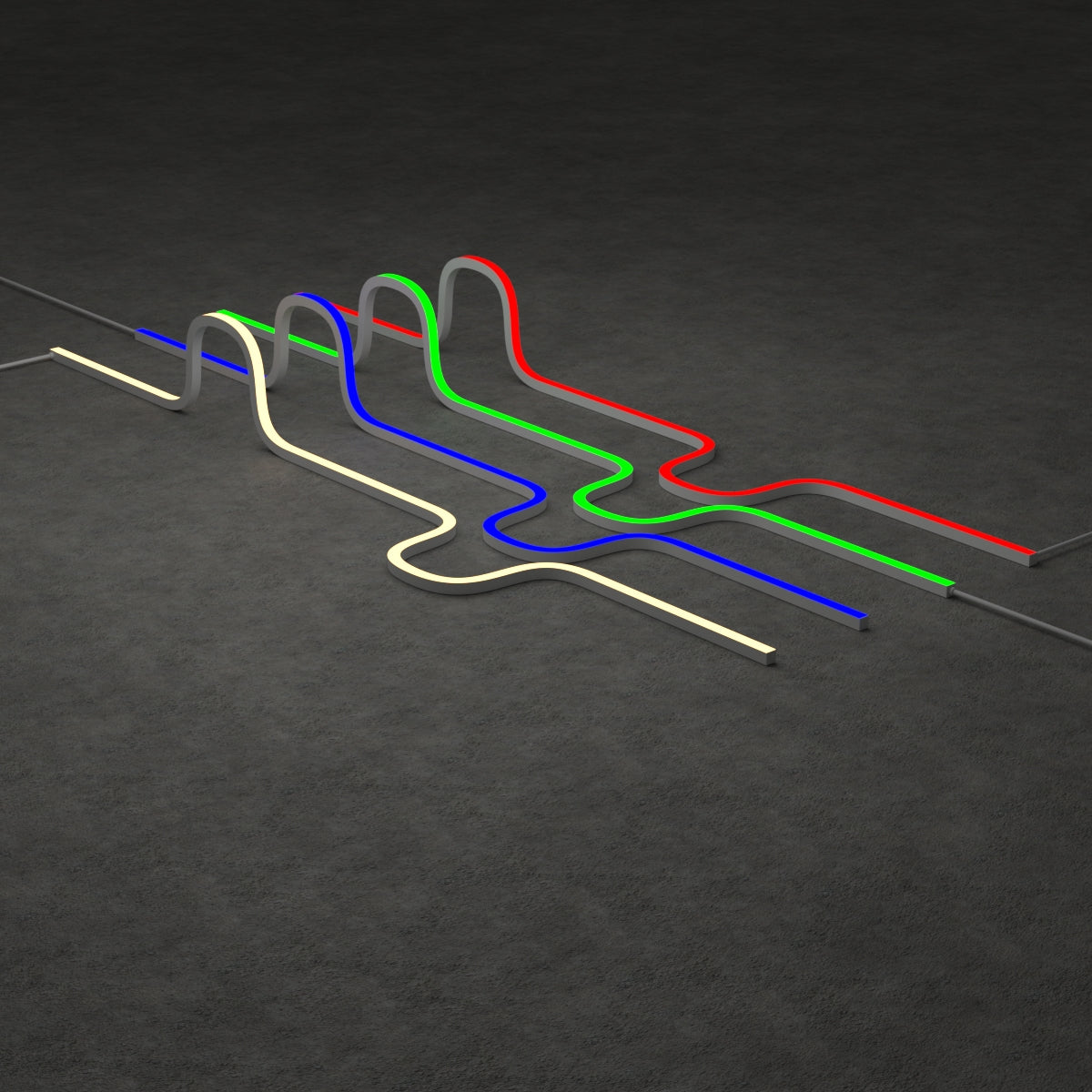

Utilises dual bend PCB technology for optimum flexibility and shaping.
Operates on 24V DC for reliable and steady power supply, must be used with a suitable driver.
Delivers 730 lumens brightness enhancing visual ambiance indoors.
Allows cutting at any point for customised length installation.
IP68 rating ensures protection against water and dust exposure.
Supports adjustable brightness control for personalised lighting.
Max length of 10m accommodates extensive lighting designs.
Consumes 20W per metre for energy-conscious illumination.
Manufactured with advanced injection moulding at Brisbane facility.
Includes a 5-year warranty guaranteeing long-term support.

Features

Utilises dual bend PCB technology for optimum flexibility and shaping.
Operates on 24V DC for reliable and steady power supply, must be used with a suitable driver.
Delivers 730 lumens brightness enhancing visual ambiance indoors.
Allows cutting at any point for customised length installation.
IP68 rating ensures protection against water and dust exposure.
Supports adjustable brightness control for personalised lighting.
Max length of 10m accommodates extensive lighting designs.
Consumes 20W per metre for energy-conscious illumination.
Manufactured with advanced injection moulding at Brisbane facility.
Includes a 5-year warranty guaranteeing long-term support.

Description

Discover the NEOS-16 neon flex with dual bending PCB technology for seamless twists and curves. It provides precise cutting at any point without issue and features vibrant RGB colours with a 24V DC input for consistent performance. Must be paired with a suitable driver.

Its IP68 waterproof rating makes it suitable for various environments while offering up to 730 lumens per metre brightness. This 20W per metre strip supports variable brightness control and is covered by a 5-year warranty, ideal for tailored indoor and outdoor lighting applications.

Description

Specifications

Beam angle	90°
Colour temperature	2100K
Cri rating	>94
Dimmable	Yes
Ip rating	IP68
Lumen output	1095lm
Overall height	16mm
Overall width	16mm
Rgb function	true
Voltage	24V DC
Warranty	5 Year Warranty
Wattage	20W

Specifications

Beam angle	90°
Colour temperature	2100K
Cri rating	>94
Dimmable	Yes
Ip rating	IP68
Lumen output	1095lm
Overall height	16mm
Overall width	16mm
Rgb function	true
Voltage	24V DC
Warranty	5 Year Warranty
Wattage	20W

Downloads

Download the Spec Sheet

NEOS-16 24V 20W Dual Bend Neon Flex - RGB

Vendor: Lampada

$69.95

$69.95 ~~$89.99~~

Colour Temperature: 2100K

2100K 2700K 3000K 4000K 6000K

✔ In stock

SKU: LA63208-21

Want a better price? Ask for a JD Deal.

Call us (07) 3809 2011 or chat with us below

Need Help? Got a Question? Contact our Trade experts.

(07) 3088 6266 - trade@jdlighting.com.au

Specifications

Beam angle	90°
Colour temperature	2100K
Cri rating	>94
Dimmable	Yes
Ip rating	IP68
Lumen output	1095lm
Overall height	16mm
Overall width	16mm
Rgb function	true
Voltage	24V DC
Warranty	5 Year Warranty
Wattage	20W

Specifications

Beam angle	90°
Colour temperature	2100K
Cri rating	>94
Dimmable	Yes
Ip rating	IP68
Lumen output	1095lm
Overall height	16mm
Overall width	16mm
Rgb function	true
Voltage	24V DC
Warranty	5 Year Warranty
Wattage	20W

Features

Utilises dual bend PCB technology for optimum flexibility and shaping.
Operates on 24V DC for reliable and steady power supply, must be used with a suitable driver.
Delivers 730 lumens brightness enhancing visual ambiance indoors.
Allows cutting at any point for customised length installation.
IP68 rating ensures protection against water and dust exposure.
Supports adjustable brightness control for personalised lighting.
Max length of 10m accommodates extensive lighting designs.
Consumes 20W per metre for energy-conscious illumination.
Manufactured with advanced injection moulding at Brisbane facility.
Includes a 5-year warranty guaranteeing long-term support.

Features

Utilises dual bend PCB technology for optimum flexibility and shaping.
Operates on 24V DC for reliable and steady power supply, must be used with a suitable driver.
Delivers 730 lumens brightness enhancing visual ambiance indoors.
Allows cutting at any point for customised length installation.
IP68 rating ensures protection against water and dust exposure.
Supports adjustable brightness control for personalised lighting.
Max length of 10m accommodates extensive lighting designs.
Consumes 20W per metre for energy-conscious illumination.
Manufactured with advanced injection moulding at Brisbane facility.
Includes a 5-year warranty guaranteeing long-term support.

Description

Specifications

Beam angle	90°
Colour temperature	2100K
Cri rating	>94
Dimmable	Yes
Ip rating	IP68
Lumen output	1095lm
Overall height	16mm
Overall width	16mm
Rgb function	true
Voltage	24V DC
Warranty	5 Year Warranty
Wattage	20W

Specifications

Beam angle	90°
Colour temperature	2100K
Cri rating	>94
Dimmable	Yes
Ip rating	IP68
Lumen output	1095lm
Overall height	16mm
Overall width	16mm
Rgb function	true
Voltage	24V DC
Warranty	5 Year Warranty
Wattage	20W

Downloads

Download the Spec Sheet

NEOS-16 24V 20W Dual Bend Neon Flex - RGB

$69.95

$69.95 ~~$89.99~~

Explore the Family

NEOS-16 neon flex offers adaptive RGB lighting with precise cut options and waterproof features for flexible installation indoors or outdoors.

Download Datasheet

Lampada

Lampada Lighting is a 100% Australian owned and operated lighting design company created to provide high quality and innovative lighting fixtures to the Australian market. Their sole mission is to create unique lighting pieces that will look superb in every customer's home.

Lampada Lighting encapsulates all the qualities to make an interior space "shine". Elegance, sophistication and smooth operation are the key features of every Lampada product. Go simple and elegant with their Scandinavian style pendants, industrial cool with the Industrial style pendants or add a touch of glamour with the modern crystal lighting. They also offer an excellent downlight series.
