TECHNICAL DATA SHEET 12/11/2026
Elettrica II 24V DC Slimline LED DriverElettrica II 24V DC Slimline LED DriverRegular price
$49.99
Sale price
$49.99
Regular price
What is an LED driver?An LED driver converts mains electricity into a stable low-voltage DC power required by compatible lighting products. A driver is needed whenever a product requires an external DC power supply; usually location in areas with full weather exposure. Common low-voltage products include spike lights, bollards, LED strip lighting and low-voltage wall lights. Always check the individual product specifications, as not every product within these categories requires an external driver. The driver’s output voltage must match the product’s required voltage (eg. 12V DC), and its wattage must be sufficient for the total connected load. The calculator below recommends a suitable 12V or 24V driver and includes the required safety margin. Find the Right LED DriverChoose the product type and required voltage, then enter the installation details. We’ll recommend a suitable driver with the required safety margin.
Calculator type
Required voltage
Check the product specifications for its required voltage. The driver voltage must match the product. This calculator is only suitable for products marked 12V DC or 24V DC. All fittings connected to one driver must have the same voltage input. For fittings with different wattages, add their individual wattages together and contact us if you need help confirming the correct driver.
inventory_quantity: 561
instock_override: true vendor_eta: vendor_soh: today: special_order: ✔ In stock Want a better price? Ask for a JD Deal. Call us (07) 3809 2011 or chat with us below Need Help? Got a Question? Contact your Account Manager Alternatively, contact our Trade experts: Couldn't load pickup availability
Specifications
Features
Specifications

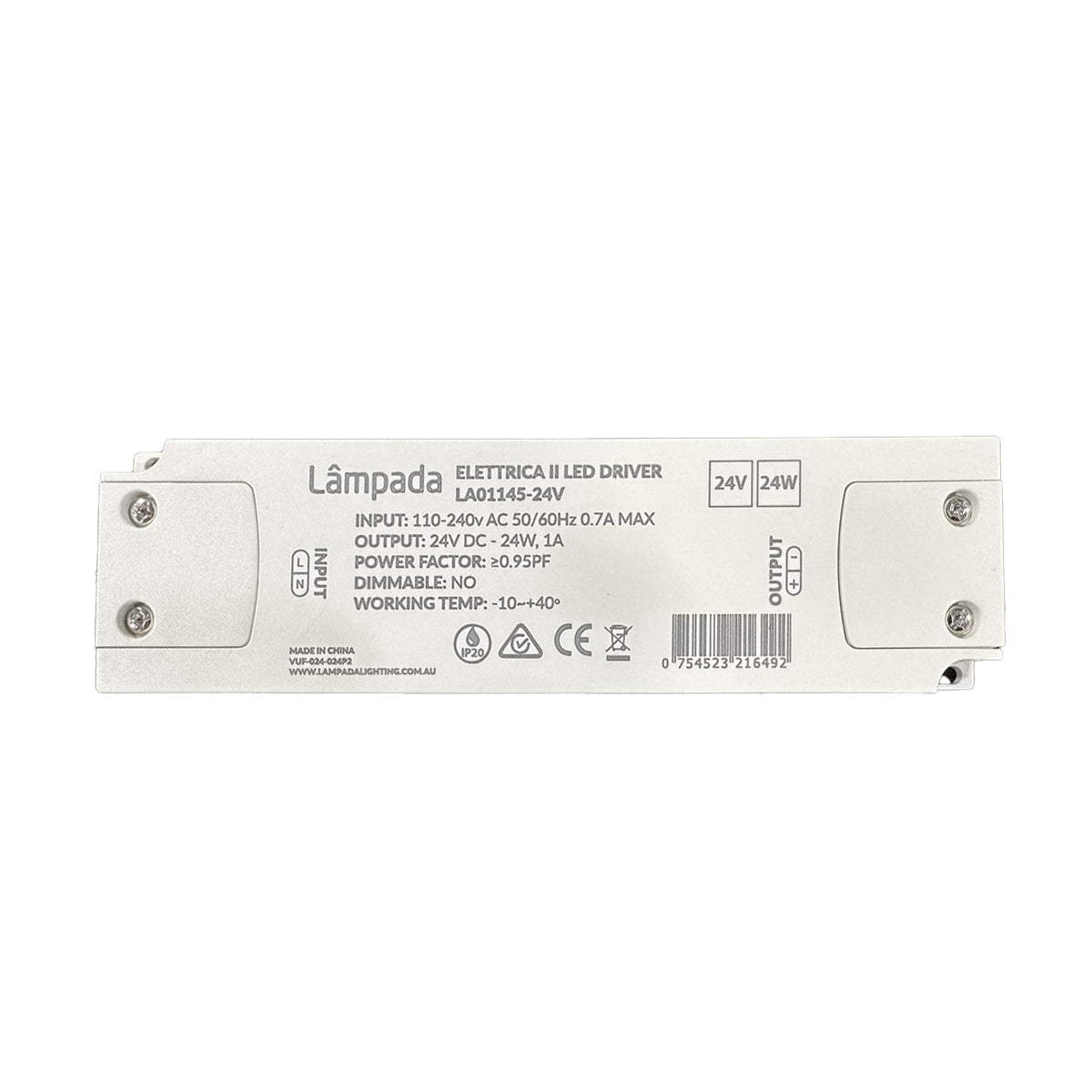

DescriptionThe Elettrica II is a slimline 24V DC constant voltage LED driver, built for LED strip lighting and other 24V DC fittings that need a compact, reliable power supply. It takes a wide 110-240V AC, 50/60Hz input and runs flicker-free, and is available in three outputs — 24W, 48W and 60W — so you can match the driver to the load of your LED strip or fitting. With an IP20 rating, this driver is suited to indoor, dry installations such as cabinetry, joinery and indoor display lighting. For outdoor or undercover locations, the weatherproof Energia IP67 DC LED Driver range is the better fit. If you need a 12V DC output instead, the Elettrica DC Slimline LED Driver covers both 12V and 24V. Features:
Specifications:

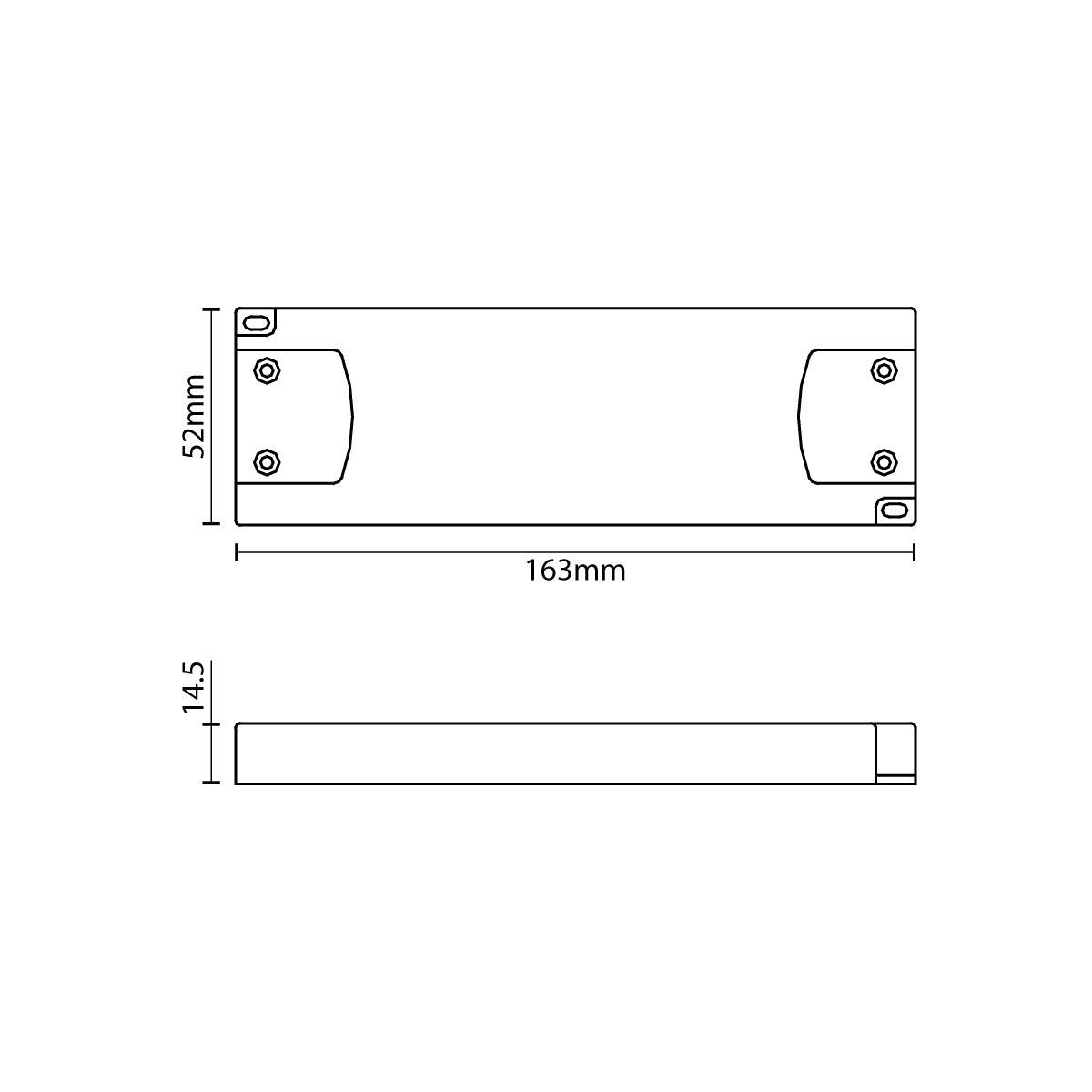

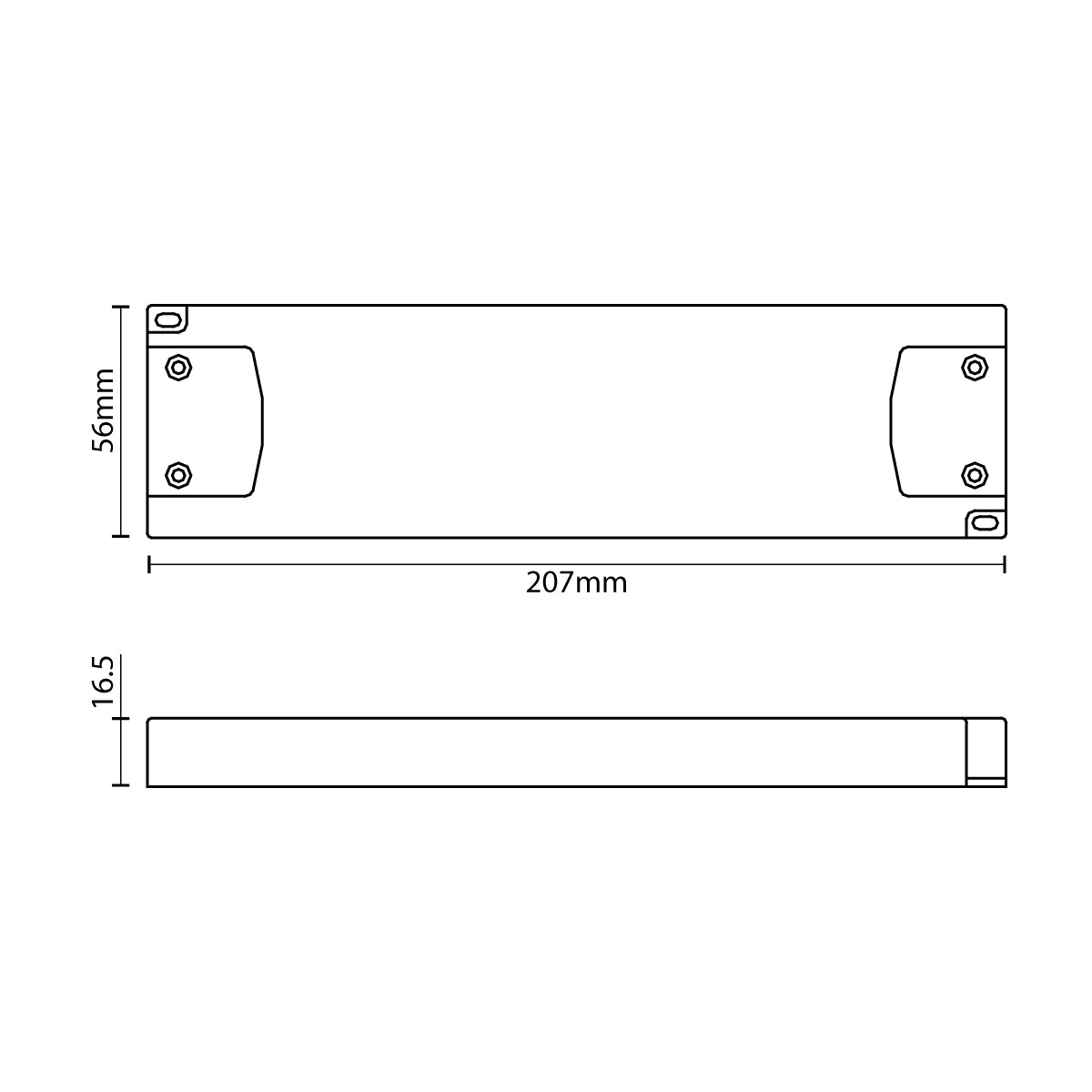

Output current and exact dimensions vary by wattage — select 24W, 48W or 60W above to see the figures for that option.
Downloads | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
