TECHNICAL DATA SHEET _06/07/2026

Wireless Family 10 Year Battery Operated Photoelectric Smoke Alarm

Specifications

Alarm indication	During normal operation a red LED flashes every 48 seconds, every 2 seconds when the smoke level is at the alarm threshold and every 0.5 seconds during fire alarm mode.
Alarm sound	Fire alarm mode is indicated by a series of three successive tones.
Colour	-
Detection method	Photoelectric
Low battery indication	A short acoustic beepâ€šâ€ž will sound and the LED will flash every 48 seconds when the voltage is below 2.85V. In this stage it will continue for minimum 30 days, and can drive the alarm for 4 minutes.
Overall height	19mm (Recessed) / 38mm (Standard)
Overall width	78mm
Warranty	10 Year Product Warranty

Specifications

Alarm indication	During normal operation a red LED flashes every 48 seconds, every 2 seconds when the smoke level is at the alarm threshold and every 0.5 seconds during fire alarm mode.
Alarm sound	Fire alarm mode is indicated by a series of three successive tones.
Colour	-
Detection method	Photoelectric
Low battery indication	A short acoustic beepâ€šâ€ž will sound and the LED will flash every 48 seconds when the voltage is below 2.85V. In this stage it will continue for minimum 30 days, and can drive the alarm for 4 minutes.
Overall height	19mm (Recessed) / 38mm (Standard)
Overall width	78mm
Warranty	10 Year Product Warranty

Features

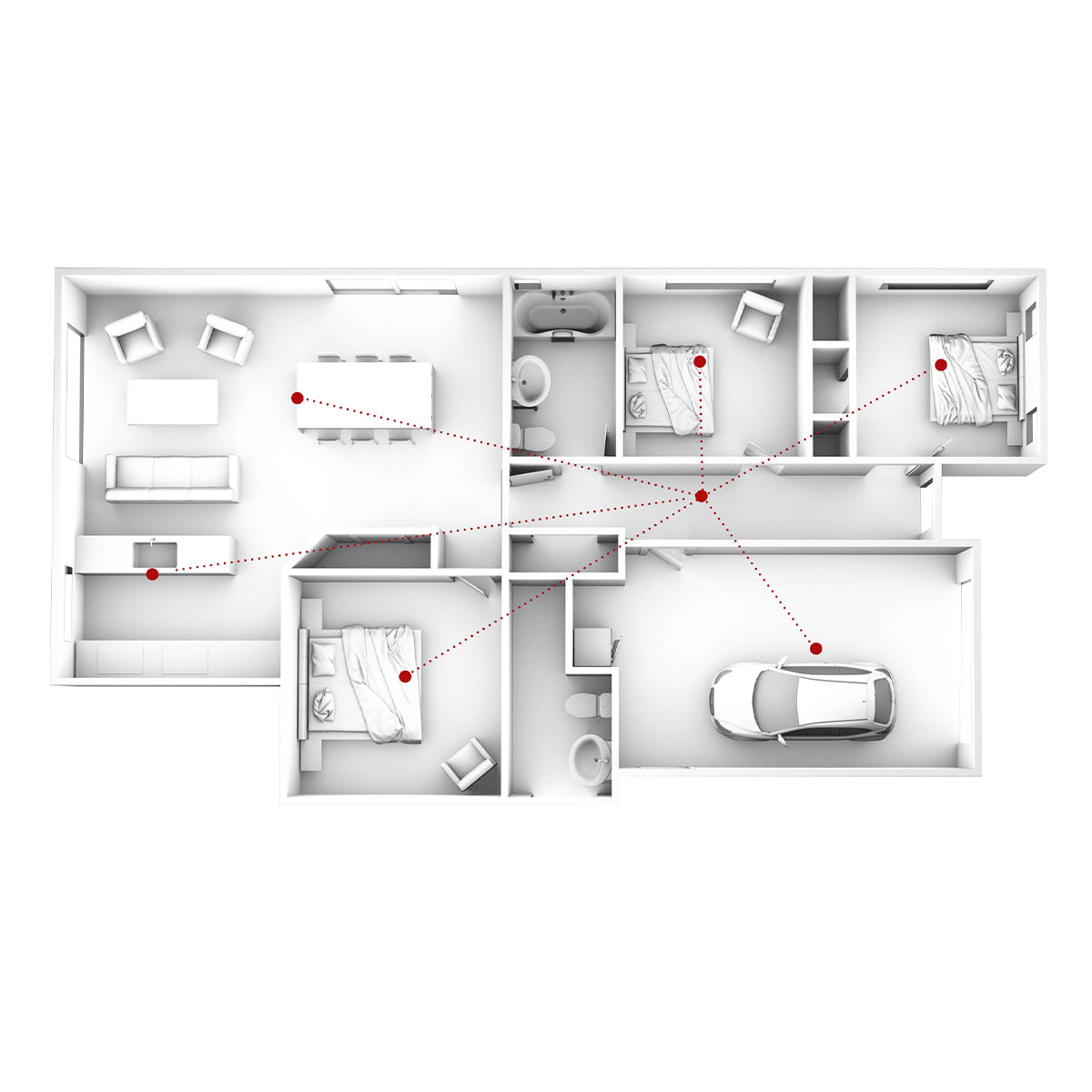

Connect up to 32 alarms
Connects to CAVIUS Smart Remote
2 x CR123A 10 Year long-life batteries (sealed)

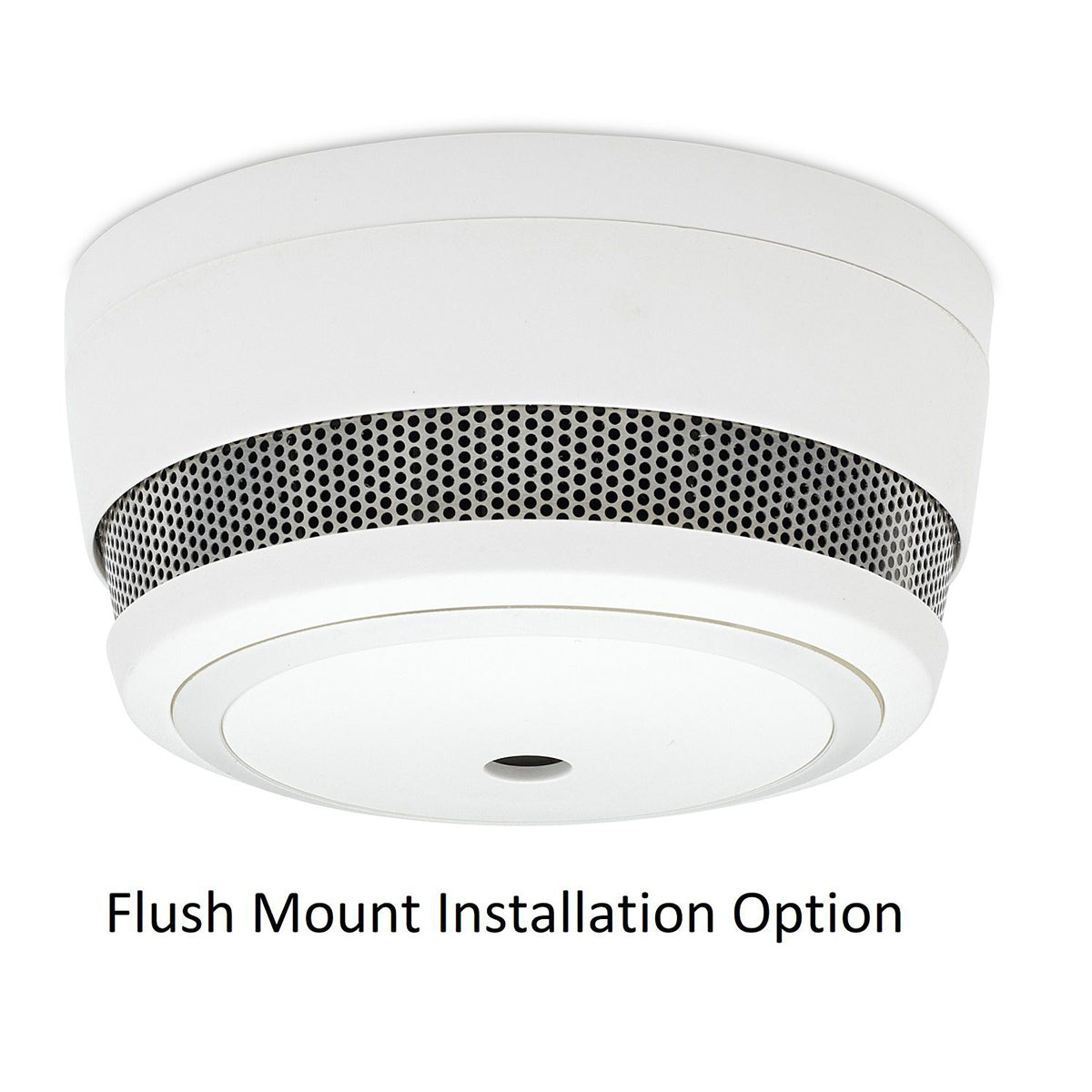

Two installation options; Recessed or Standard mounting base
85dB(A) at 3 meters
Easily accessible 10-minute hush & test button
30-day low battery alert
AS3786:2014 certified
2022 Queensland Smoke Alarm Legislation compliant
Two levels of screening to minimise insect and dust contamination
Safety Lock/tamperproof mechanism
10 Years Replacement Warranty

Features

Connect up to 32 alarms
Connects to CAVIUS Smart Remote
2 x CR123A 10 Year long-life batteries (sealed)
Two installation options; Recessed or Standard mounting base
85dB(A) at 3 meters
Easily accessible 10-minute hush & test button
30-day low battery alert
AS3786:2014 certified
2022 Queensland Smoke Alarm Legislation compliant
Two levels of screening to minimise insect and dust contamination
Safety Lock/tamperproof mechanism
10 Years Replacement Warranty

Description

Specifications

Alarm indication	During normal operation a red LED flashes every 48 seconds, every 2 seconds when the smoke level is at the alarm threshold and every 0.5 seconds during fire alarm mode.
Alarm sound	Fire alarm mode is indicated by a series of three successive tones.
Colour	-
Detection method	Photoelectric
Low battery indication	A short acoustic beepâ€šâ€ž will sound and the LED will flash every 48 seconds when the voltage is below 2.85V. In this stage it will continue for minimum 30 days, and can drive the alarm for 4 minutes.
Overall height	19mm (Recessed) / 38mm (Standard)
Overall width	78mm
Warranty	10 Year Product Warranty

Specifications

Alarm indication	During normal operation a red LED flashes every 48 seconds, every 2 seconds when the smoke level is at the alarm threshold and every 0.5 seconds during fire alarm mode.
Alarm sound	Fire alarm mode is indicated by a series of three successive tones.
Colour	-
Detection method	Photoelectric
Low battery indication	A short acoustic beepâ€šâ€ž will sound and the LED will flash every 48 seconds when the voltage is below 2.85V. In this stage it will continue for minimum 30 days, and can drive the alarm for 4 minutes.
Overall height	19mm (Recessed) / 38mm (Standard)
Overall width	78mm
Warranty	10 Year Product Warranty

Downloads

Download Datasheet

Wireless Family 10 Year Battery Operated Photoelectric Smoke Alarm

Vendor: Cavius

$96.95

$96.95 ~~$89.90~~

✔ In stock

SKU: 2107-CAV10WF

Want a better price? Ask for a JD Deal.

Call us (07) 3809 2011 or chat with us below

Need Help? Got a Question? Contact our Trade experts.

(07) 3088 6266 - trade@jdlighting.com.au

Specifications

Alarm indication	During normal operation a red LED flashes every 48 seconds, every 2 seconds when the smoke level is at the alarm threshold and every 0.5 seconds during fire alarm mode.
Alarm sound	Fire alarm mode is indicated by a series of three successive tones.
Colour	-
Detection method	Photoelectric
Low battery indication	A short acoustic beepâ€šâ€ž will sound and the LED will flash every 48 seconds when the voltage is below 2.85V. In this stage it will continue for minimum 30 days, and can drive the alarm for 4 minutes.
Overall height	19mm (Recessed) / 38mm (Standard)
Overall width	78mm
Warranty	10 Year Product Warranty

Specifications

Alarm indication	During normal operation a red LED flashes every 48 seconds, every 2 seconds when the smoke level is at the alarm threshold and every 0.5 seconds during fire alarm mode.
Alarm sound	Fire alarm mode is indicated by a series of three successive tones.
Colour	-
Detection method	Photoelectric
Low battery indication	A short acoustic beepâ€šâ€ž will sound and the LED will flash every 48 seconds when the voltage is below 2.85V. In this stage it will continue for minimum 30 days, and can drive the alarm for 4 minutes.
Overall height	19mm (Recessed) / 38mm (Standard)
Overall width	78mm
Warranty	10 Year Product Warranty

Features

Connect up to 32 alarms
Connects to CAVIUS Smart Remote
2 x CR123A 10 Year long-life batteries (sealed)
Two installation options; Recessed or Standard mounting base
85dB(A) at 3 meters
Easily accessible 10-minute hush & test button
30-day low battery alert
AS3786:2014 certified
2022 Queensland Smoke Alarm Legislation compliant
Two levels of screening to minimise insect and dust contamination
Safety Lock/tamperproof mechanism
10 Years Replacement Warranty

Features

Connect up to 32 alarms
Connects to CAVIUS Smart Remote
2 x CR123A 10 Year long-life batteries (sealed)
Two installation options; Recessed or Standard mounting base
85dB(A) at 3 meters
Easily accessible 10-minute hush & test button
30-day low battery alert
AS3786:2014 certified
2022 Queensland Smoke Alarm Legislation compliant
Two levels of screening to minimise insect and dust contamination
Safety Lock/tamperproof mechanism
10 Years Replacement Warranty

Description

Specifications

Alarm indication	During normal operation a red LED flashes every 48 seconds, every 2 seconds when the smoke level is at the alarm threshold and every 0.5 seconds during fire alarm mode.
Alarm sound	Fire alarm mode is indicated by a series of three successive tones.
Colour	-
Detection method	Photoelectric
Low battery indication	A short acoustic beepâ€šâ€ž will sound and the LED will flash every 48 seconds when the voltage is below 2.85V. In this stage it will continue for minimum 30 days, and can drive the alarm for 4 minutes.
Overall height	19mm (Recessed) / 38mm (Standard)
Overall width	78mm
Warranty	10 Year Product Warranty

Specifications

Alarm indication	During normal operation a red LED flashes every 48 seconds, every 2 seconds when the smoke level is at the alarm threshold and every 0.5 seconds during fire alarm mode.
Alarm sound	Fire alarm mode is indicated by a series of three successive tones.
Colour	-
Detection method	Photoelectric
Low battery indication	A short acoustic beepâ€šâ€ž will sound and the LED will flash every 48 seconds when the voltage is below 2.85V. In this stage it will continue for minimum 30 days, and can drive the alarm for 4 minutes.
Overall height	19mm (Recessed) / 38mm (Standard)
Overall width	78mm
Warranty	10 Year Product Warranty

Downloads

Download Datasheet

Wireless Family 10 Year Battery Operated Photoelectric Smoke Alarm

$96.95

$96.95 ~~$89.90~~

Explore the Family

Download Datasheet

Cavius

CAVIUS has been available in Australia since 2017, initially offering its Nano Range of 10-year battery-operated photoelectric smoke alarms through an appointed distributor. Following the introduction of Queensland’s updated smoke alarm legislation in 2019, CAVIUS established its own warehousing and distribution hub in Brisbane and expanded its range to include the innovative Wireless Family series of alarms.

Today, CAVIUS continues to lead in smoke alarm safety by combining advanced technology, reliability, and compliance. Their products are designed for ease of installation and long-term performance, providing homeowners and businesses with peace of mind. With a strong focus on safety, innovation, and Australian availability, CAVIUS remains a trusted choice for smoke detection solutions nationwide.
