TECHNICAL DATA SHEET _16/10/2026

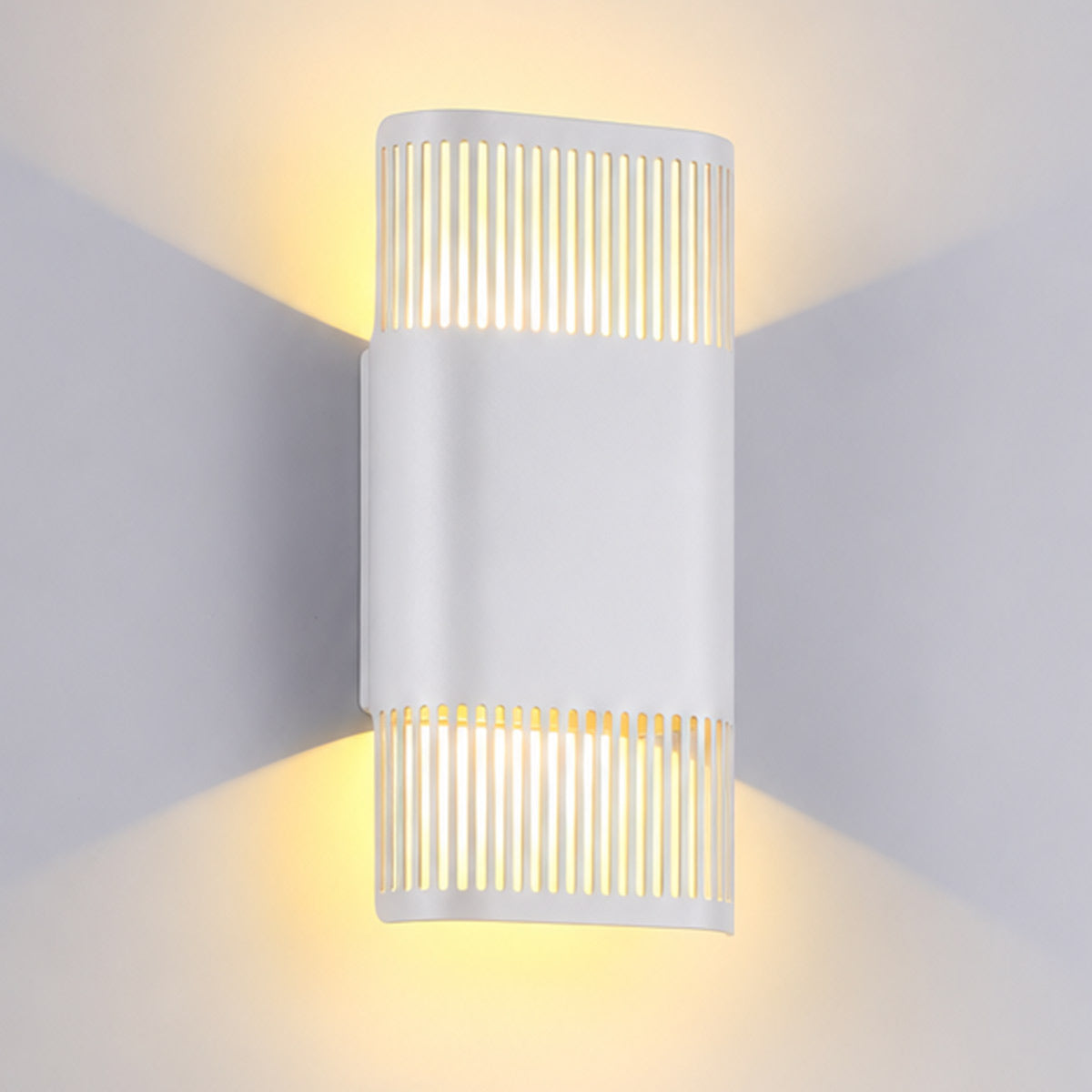

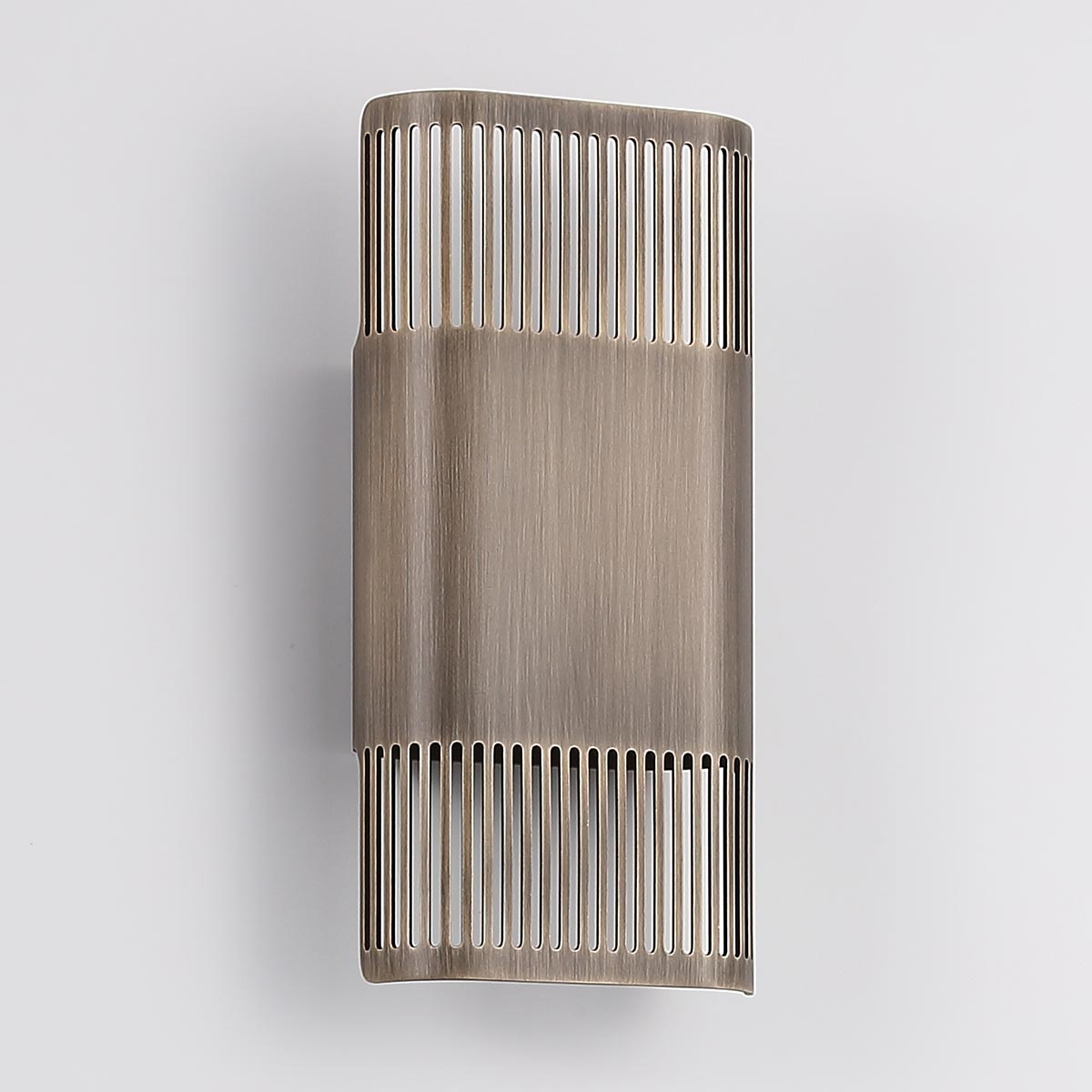

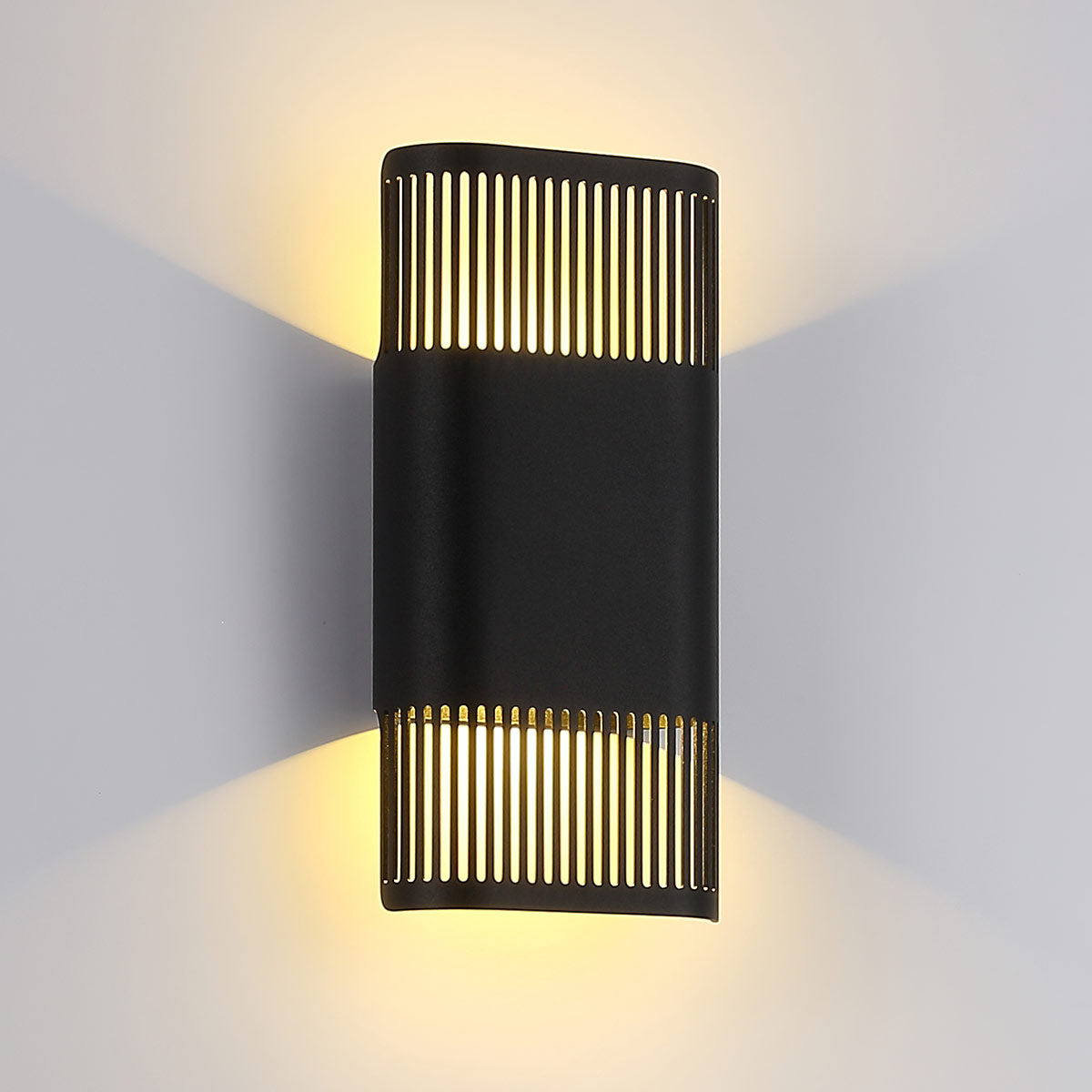

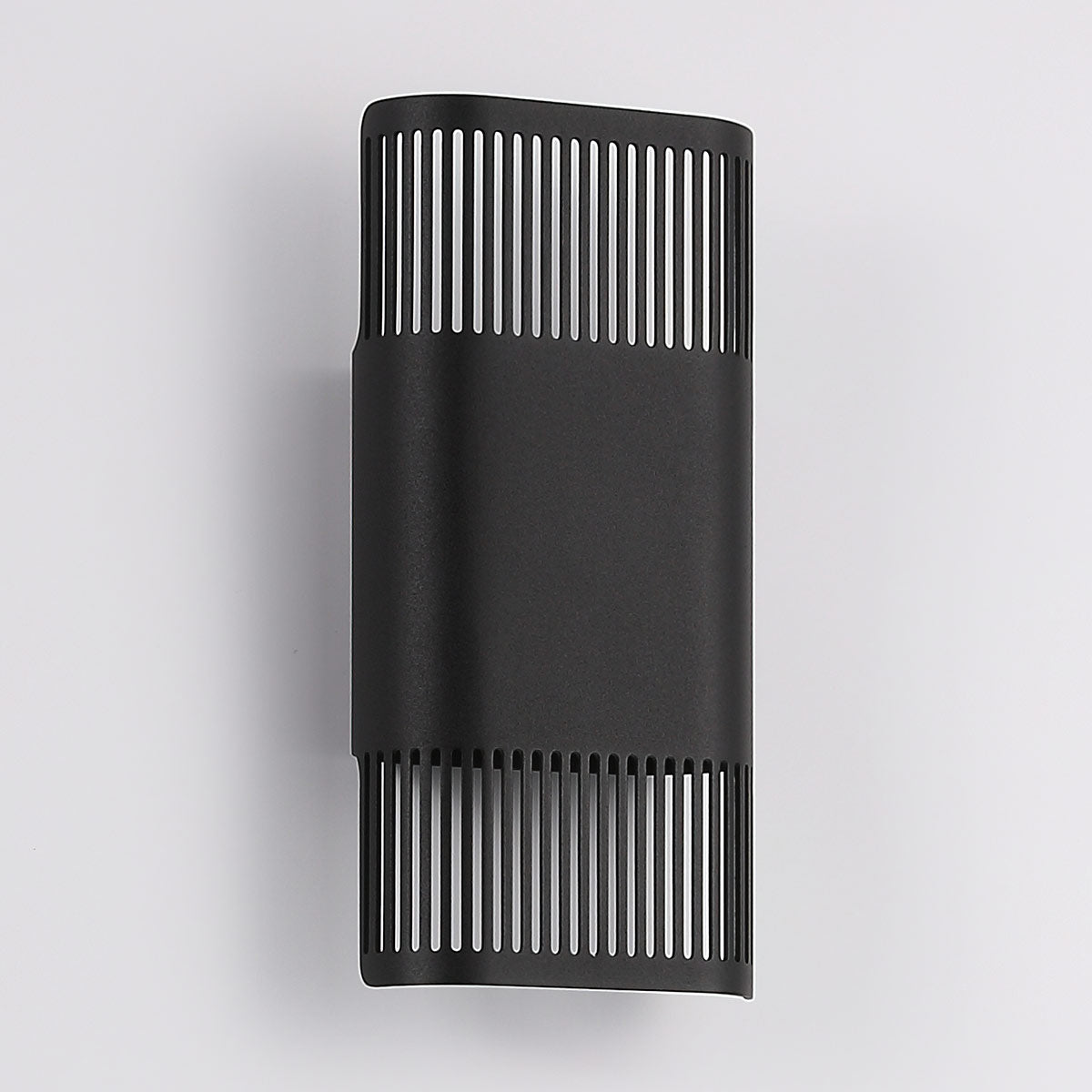

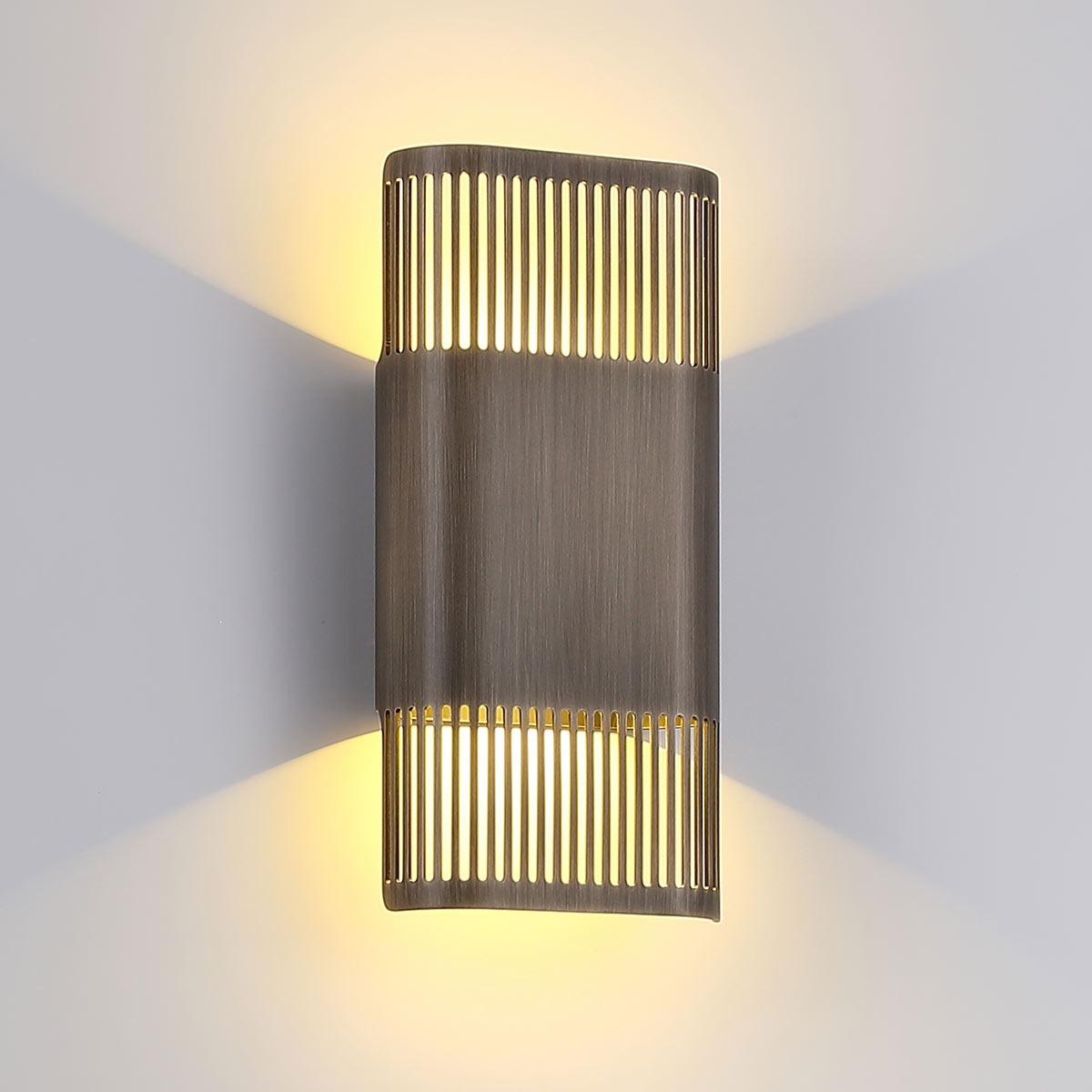

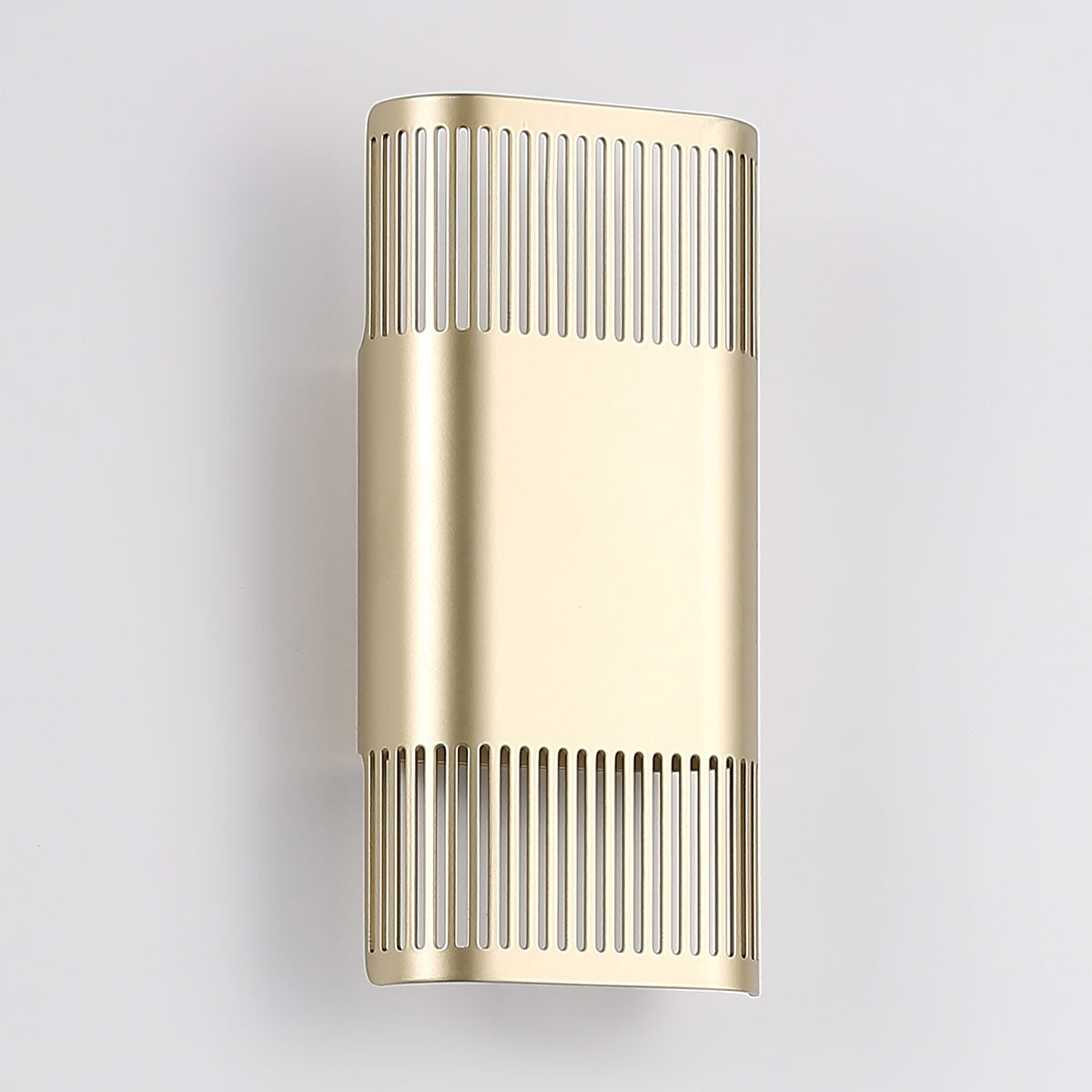

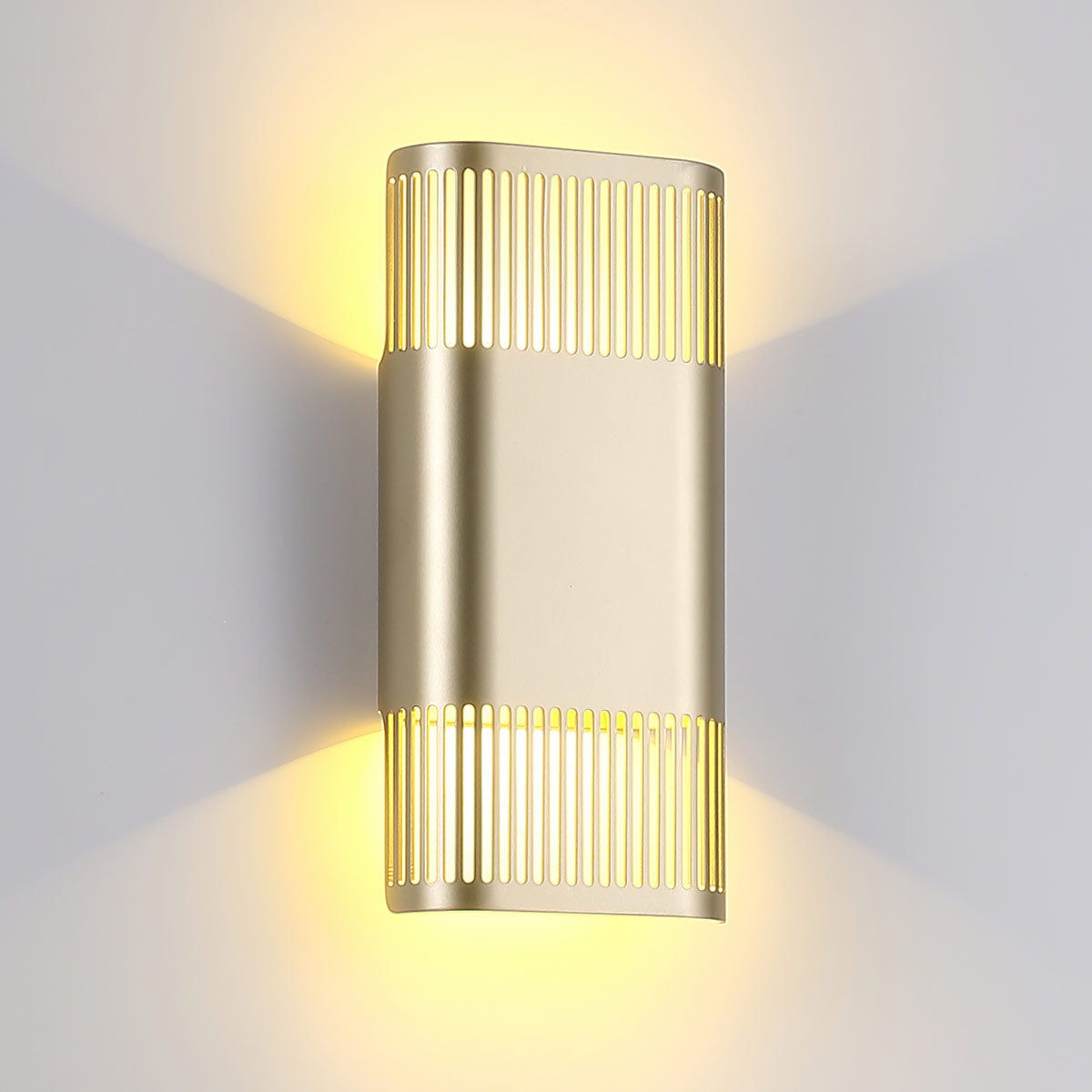

Vista Monte 260mm IP65 LED Up Down Wall Light

Specifications

Colour	Gold
Colour temperature	3000K/4000K/6000K
Cri rating	>80
Dimmable	No
Frame colour	White
Installation location	Indoor & Outdoor
Ip rating	IP65
Lamp type	LED
Lumen output	794lm

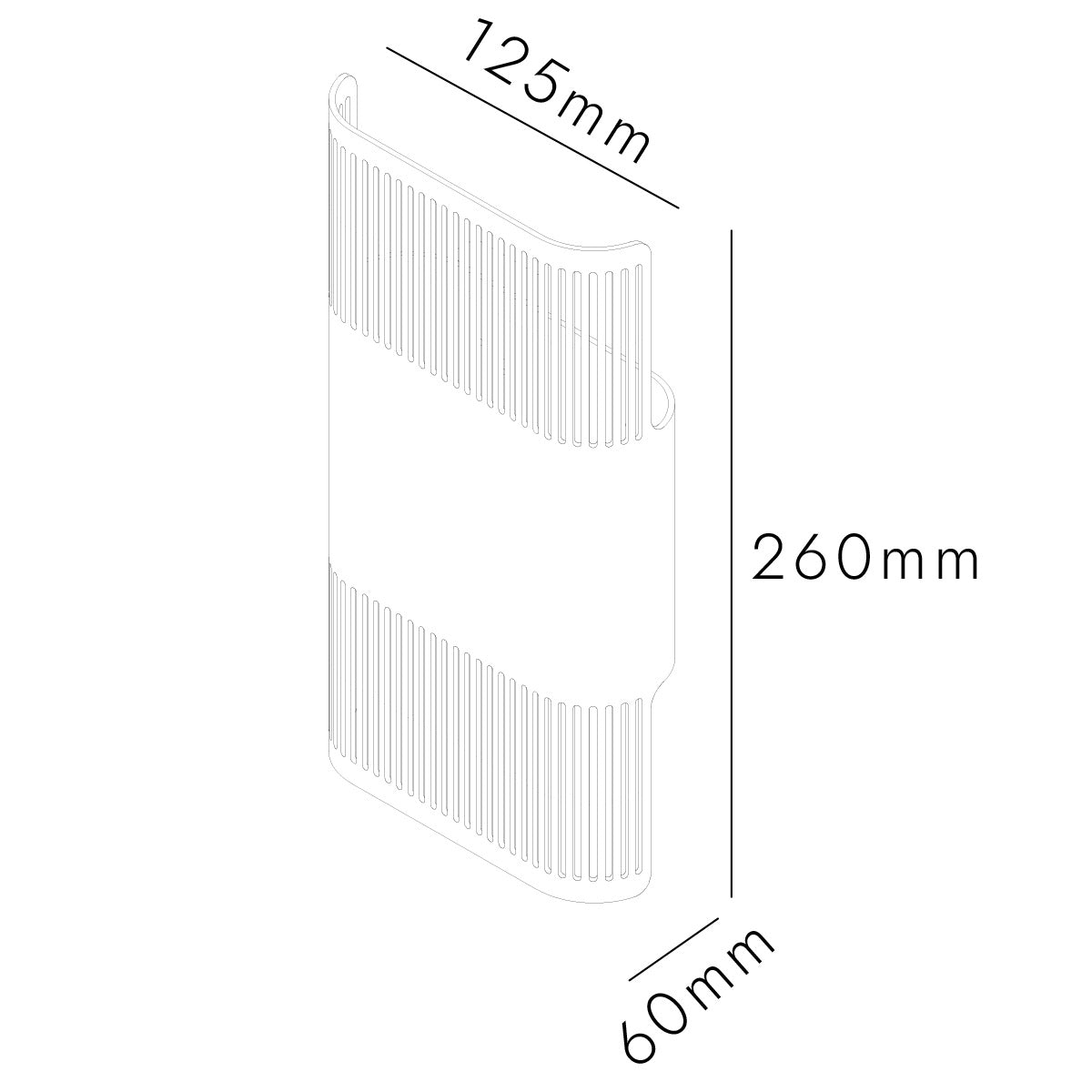

Overall height	260mm
Overall width	125mm
Shade diameter	125mm
Shade height	260mm
Shade material	Aluminium
Tri colour	true
Voltage	240V AC
Warranty	3 Year Warranty
Wattage	10W

Specifications

Colour	Gold
Colour temperature	3000K/4000K/6000K
Cri rating	>80
Dimmable	No
Frame colour	White
Installation location	Indoor & Outdoor
Ip rating	IP65
Lamp type	LED
Lumen output	794lm
Overall height	260mm
Overall width	125mm
Shade diameter	125mm
Shade height	260mm
Shade material	Aluminium
Tri colour	true
Voltage	240V AC
Warranty	3 Year Warranty
Wattage	10W

Features

Contemporary 260mm wall light with a clean architectural design.
Decorative slatted cover creates a distinctive up and down lighting effect.
Integrated 10W LED delivers up to 794 lumens of light output.
Selectable colour temperatures of 3000K, 4000K and 6000K.
IP65 rated for suitable indoor and outdoor applications.
Available in Black, White, Gold and Antique Brass finishes.
Aluminium cover provides a durable and refined exterior finish.
Flicker-free operation helps provide consistent illumination.
CRI greater than 80 provides balanced colour rendering.
Backed by a 3-year warranty for added peace of mind.

Features

Contemporary 260mm wall light with a clean architectural design.
Decorative slatted cover creates a distinctive up and down lighting effect.
Integrated 10W LED delivers up to 794 lumens of light output.
Selectable colour temperatures of 3000K, 4000K and 6000K.
IP65 rated for suitable indoor and outdoor applications.
Available in Black, White, Gold and Antique Brass finishes.
Aluminium cover provides a durable and refined exterior finish.
Flicker-free operation helps provide consistent illumination.
CRI greater than 80 provides balanced colour rendering.
Backed by a 3-year warranty for added peace of mind.

Specifications

Colour	Gold
Colour temperature	3000K/4000K/6000K
Cri rating	>80
Dimmable	No
Frame colour	White
Installation location	Indoor & Outdoor
Ip rating	IP65
Lamp type	LED
Lumen output	794lm
Overall height	260mm
Overall width	125mm
Shade diameter	125mm
Shade height	260mm
Shade material	Aluminium
Tri colour	true
Voltage	240V AC
Warranty	3 Year Warranty
Wattage	10W

Specifications

Colour	Gold
Colour temperature	3000K/4000K/6000K
Cri rating	>80
Dimmable	No
Frame colour	White
Installation location	Indoor & Outdoor
Ip rating	IP65
Lamp type	LED
Lumen output	794lm
Overall height	260mm
Overall width	125mm
Shade diameter	125mm
Shade height	260mm
Shade material	Aluminium
Tri colour	true
Voltage	240V AC
Warranty	3 Year Warranty
Wattage	10W

Description

Contemporary 260mm LED wall light with a decorative slatted cover, selectable 3CCT lighting and IP65 protection for indoor and outdoor spaces.

Downloads

Download Datasheet

Vista Monte 260mm IP65 LED Up Down Wall Light

Vendor: Aurellium

$159.90

$159.90 ~~$188.95~~

Module Colour: White

White Black

Shade Colour: Gold

Gold Antique Brass White

What is an LED driver?

An LED driver converts mains electricity into a stable low-voltage DC power required by compatible lighting products. A driver is needed whenever a product requires an external DC power supply; usually location in areas with full weather exposure.

Common low-voltage products include spike lights, bollards, LED strip lighting and low-voltage wall lights. Always check the individual product specifications, as not every product within these categories requires an external driver.

The driver’s output voltage must match the product’s required voltage (eg. 12V DC), and its wattage must be sufficient for the total connected load. The calculator below recommends a suitable 12V or 24V driver and includes the required safety margin.

Find the Right LED Driver

Choose the product type and required voltage, then enter the installation details. We’ll recommend a suitable driver with the required safety margin.

Calculator type

Required voltage

Check the product specifications for its required voltage. The driver voltage must match the product. This calculator is only suitable for products marked 12V DC or 24V DC.

Wattage per fitting (W)

Quantity

All fittings connected to one driver must have the same voltage input. For fittings with different wattages, add their individual wattages together and contact us if you need help confirming the correct driver.

View driver capacity chart

Max Connected Load	12V Driver	24V Driver
25W	30W	30W
50W	60W	60W
83W	100W	100W
125W	150W	150W
166W	200W	200W
250W	300W	300W

✔ Special Order: 8-12 Weeks

SKU: VISTA-MONTE-WHGD260

Want a better price? Ask for a JD Deal.

Call us (07) 3809 2011 or chat with us below

Need Help? Got a Question? Contact your Account Manager

Alternatively, contact our Trade experts:
(07) 3088 6266 - trade@jdlighting.com.au
