TECHNICAL DATA SHEET _06/07/2026

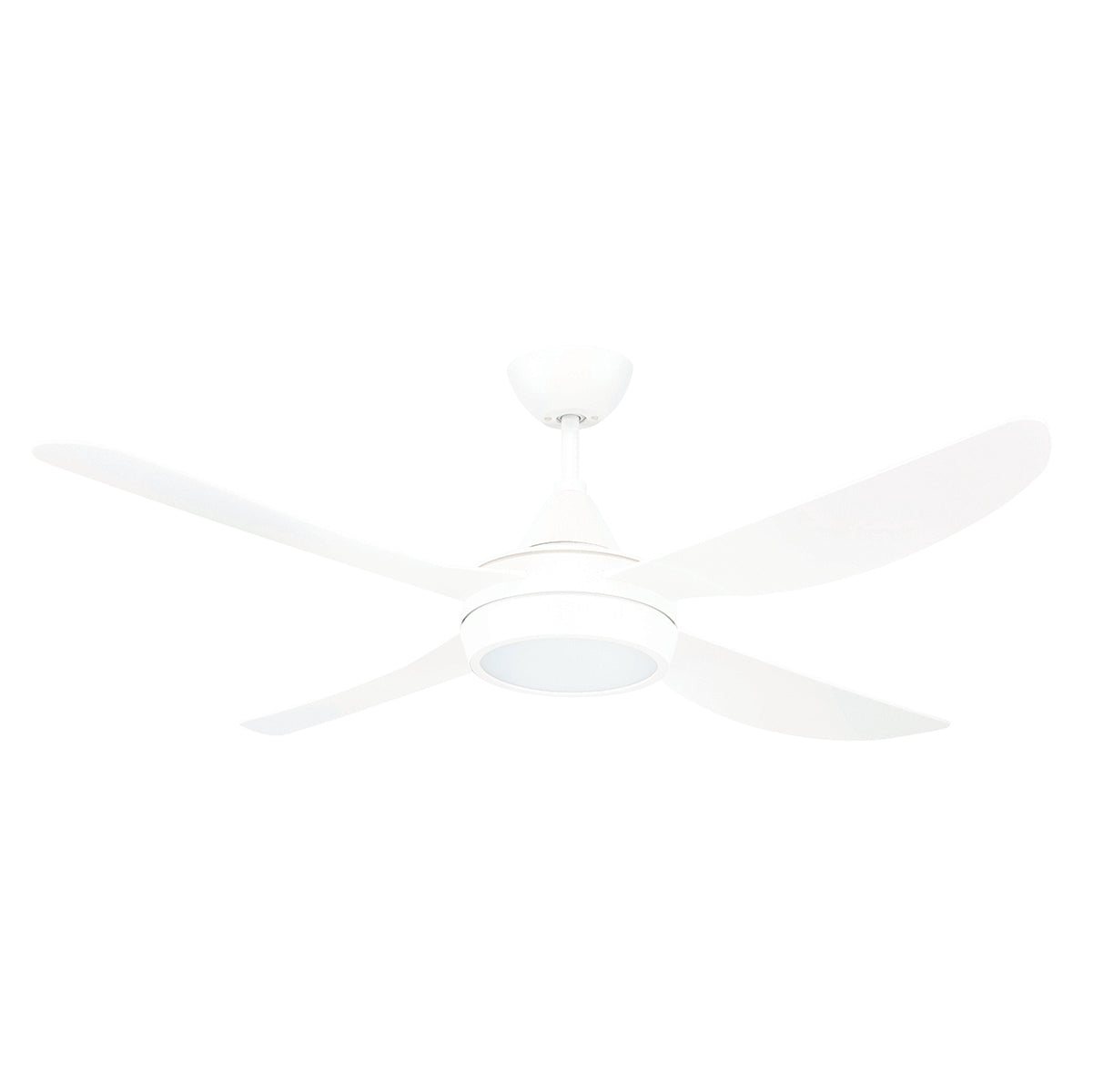

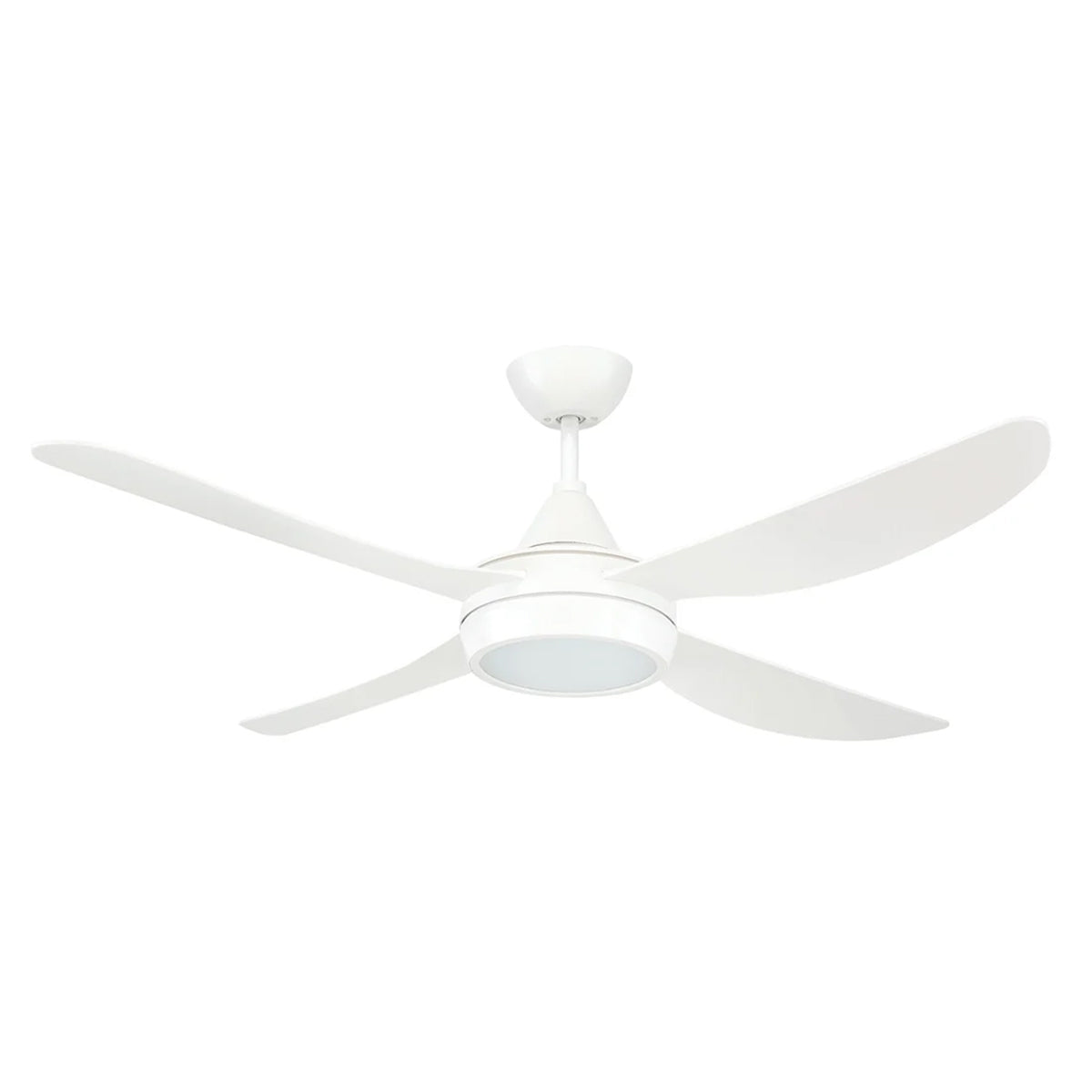

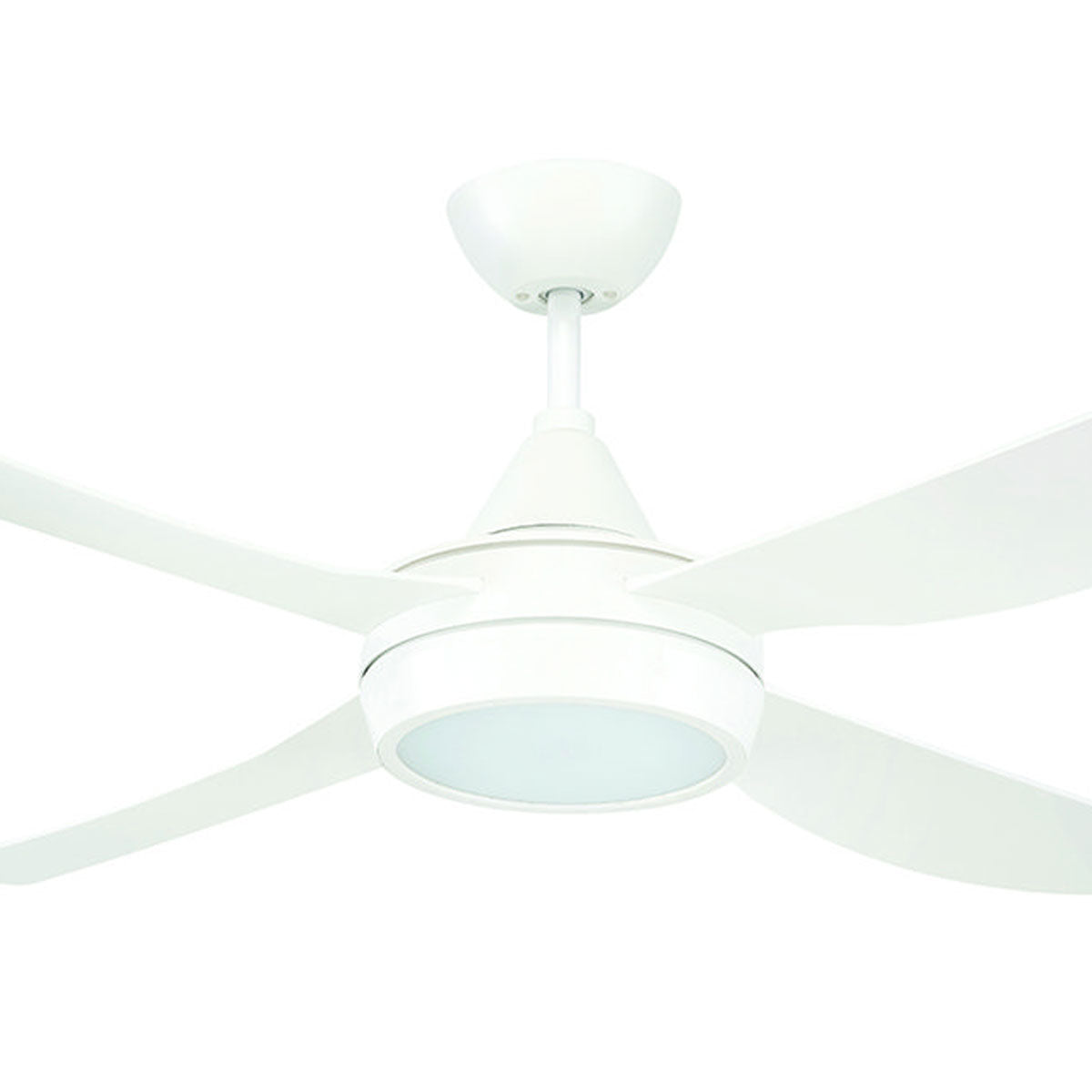

Vector DC Ceiling Fan with Light & Remote

Specifications

Blade material	ABS Moulded Plastic
Blade span	52"
Ceiling to bottom of fan	376mm
Colour	White
Colour temperature	4000K
Globe included	Integrated
Installation location	Indoor & Outdoor Undercover
Lumen output	1000lm
Max airflow	10,804m/hr
Max ceiling pitch	15°
Motor colour	White
Motor material	ABS Plastic
Motor type	AC
Motor wattage	50W
Number of blades	4
Number of lights	1
Remote control	Not Included
Sloped ceiling compatible	true
Summer winder mode	Yes
Tri colour	N
Wattage	18W

Specifications

Blade material	ABS Moulded Plastic
Blade span	52"
Ceiling to bottom of fan	376mm
Colour	White
Colour temperature	4000K
Globe included	Integrated
Installation location	Indoor & Outdoor Undercover
Lumen output	1000lm
Max airflow	10,804m/hr
Max ceiling pitch	15°
Motor colour	White
Motor material	ABS Plastic
Motor type	AC
Motor wattage	50W
Number of blades	4
Number of lights	1
Remote control	Not Included
Sloped ceiling compatible	true
Summer winder mode	Yes
Tri colour	N
Wattage	18W

Features

Maximum airflow: 10,804m³/hr
Patended Ezi-Fit blades reduce fan assembly and installation time
Durable corrosion and UV resistant body and canopy construction with high strength moulded ABS blades
3 speed wall control with switch included
20W LED
4000K Cool White colour temperature
Brightness output: 1000lm
Black & Off White options available
Reversible All-Seasons technology for use all year round
85% pre-assembled out of the box for fast installation
Powerful 50W AC motor
Suitable for indoor or outdoor undercover areas
6 Year Warranty (3 Year In-Home Warranty + 3 Year Replacement Warranty)

Features

Maximum airflow: 10,804m³/hr
Patended Ezi-Fit blades reduce fan assembly and installation time
Durable corrosion and UV resistant body and canopy construction with high strength moulded ABS blades
3 speed wall control with switch included
20W LED
4000K Cool White colour temperature
Brightness output: 1000lm
Black & Off White options available
Reversible All-Seasons technology for use all year round
85% pre-assembled out of the box for fast installation
Powerful 50W AC motor
Suitable for indoor or outdoor undercover areas
6 Year Warranty (3 Year In-Home Warranty + 3 Year Replacement Warranty)

Description

The Brilliant Vector ceiling fans are made from rust and UV resistant ABS plastic and can be installed in any indoor locations or under cover outdoor areas not exposed to the weather around the home. Its Ezy-Fit blade system reduces fan assembly and installation time.

This fan features a beautiful black or off-white colour that brings a bit of warmth into your space.

The simple modern design will compliment any space whilst giving you a great airflow. This model comes with a 20W LED that provides up to 1000 lumen output in 4000K Cool White.

Speed	RPM	Power	Airflow (m³/hr)
1	111	15W	5049
2	155	26W	7365
3	214	50W	10804

*As per manufacturer's claimed airflow.

Description

This fan features a beautiful black or off-white colour that brings a bit of warmth into your space.

The simple modern design will compliment any space whilst giving you a great airflow. This model comes with a 20W LED that provides up to 1000 lumen output in 4000K Cool White.

Speed	RPM	Power	Airflow (m³/hr)
1	111	15W	5049
2	155	26W	7365
3	214	50W	10804

*As per manufacturer's claimed airflow.
