TECHNICAL DATA SHEET _05/06/2026

Supernova II Exhaust Fan with LED & Infra-Red Heat

Specifications

Colour	White
Colour temperature	3000K/5000K

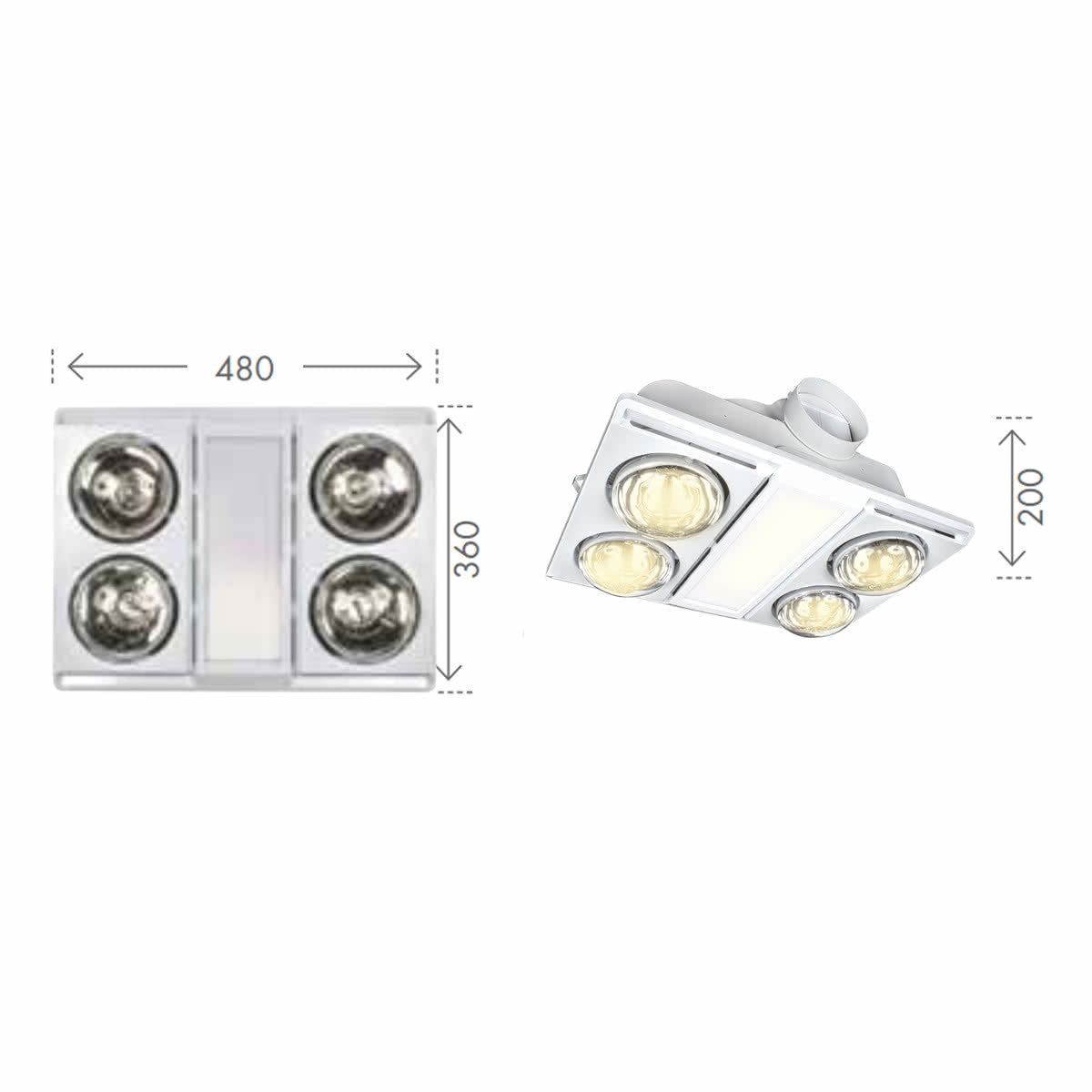

Cut out size	430mm x 270mm
Dimmable	No
Ducting included	Yes
Ducting size	150mm
Exhaust type	Ball Bearing
Fan noise	45 dB
Lamp type	LED
Lumen output	1000lm (3000K) / 1100lm (5000K)
Remote control	Not Included
Warranty	3 Year Replacement Warranty

Specifications

Colour	White
Colour temperature	3000K/5000K
Cut out size	430mm x 270mm
Dimmable	No
Ducting included	Yes
Ducting size	150mm
Exhaust type	Ball Bearing
Fan noise	45 dB
Lamp type	LED
Lumen output	1000lm (3000K) / 1100lm (5000K)
Remote control	Not Included
Warranty	3 Year Replacement Warranty

Features

Maximum airflow: 500 mÂ³/hr
Low ceiling profile
Light: Energy efficient 14W LED CCT panel (Switchable between 3000K Warm White or 5000K Daylight)
Heat: 4 275W R125 E27 infra-red heat lamps provide instant heat
Exhaust: High velocity500 mÂ³/hr exhaust fan with ball bearing motor and anti-backdraft stopper
Noise rating: 45 dB
Includes wall switch, 3m flexible aluminium ducting and exterior grille and clamps
Thermostat switch fitted will automatically turn on the fan if the internal temperature exceeds 80Â°C
IPX2 Rated
3 year replacement warranty

Features

Maximum airflow: 500 mÂ³/hr
Low ceiling profile
Light: Energy efficient 14W LED CCT panel (Switchable between 3000K Warm White or 5000K Daylight)
Heat: 4 275W R125 E27 infra-red heat lamps provide instant heat
Exhaust: High velocity500 mÂ³/hr exhaust fan with ball bearing motor and anti-backdraft stopper
Noise rating: 45 dB
Includes wall switch, 3m flexible aluminium ducting and exterior grille and clamps
Thermostat switch fitted will automatically turn on the fan if the internal temperature exceeds 80Â°C
IPX2 Rated
3 year replacement warranty

Description

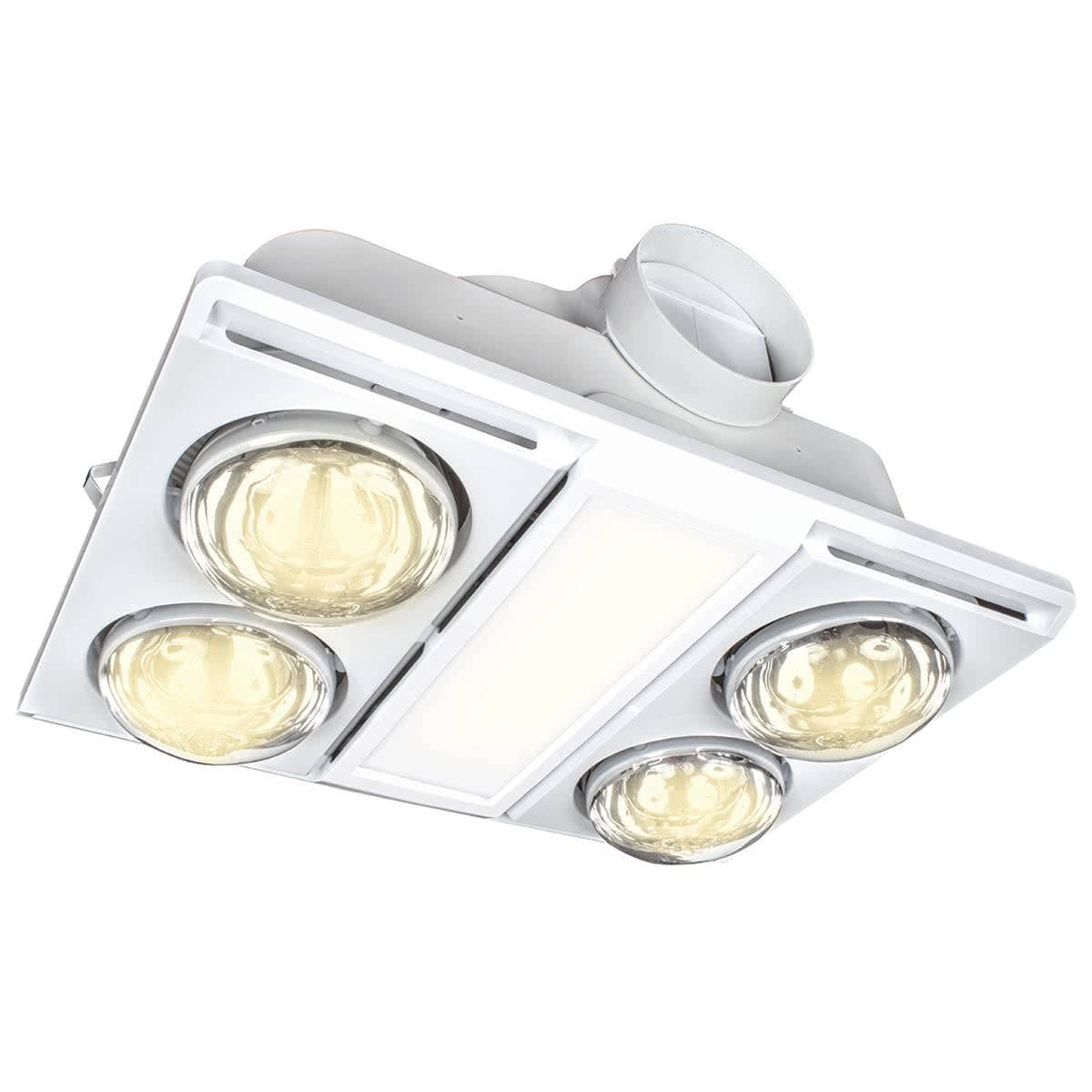

The Supernova II Exhaust Fan offers powerful ventilation for optimal home comfort. With a remarkable airflow capacity of 500 mÂ³/hr and a low ceiling profile, it's ideal for kitchens and bathrooms. The integrated energy-efficient 14W LED panel is switchable between 3000K Warm White and 5000K Daylight to suit your lighting needs. This fan features four 275W infra-red heat lamps for instant warmth, and includes a wall switch, 3m flexible aluminium ducting, and an exterior grille. Enhance your home with the Supernova II Exhaust Fan today.

Description

Specifications

Colour	White
Colour temperature	3000K/5000K
Cut out size	430mm x 270mm
Dimmable	No
Ducting included	Yes
Ducting size	150mm
Exhaust type	Ball Bearing
Fan noise	45 dB
Lamp type	LED
Lumen output	1000lm (3000K) / 1100lm (5000K)
Remote control	Not Included
Warranty	3 Year Replacement Warranty

Specifications

Colour	White
Colour temperature	3000K/5000K
Cut out size	430mm x 270mm
Dimmable	No
Ducting included	Yes
Ducting size	150mm
Exhaust type	Ball Bearing
Fan noise	45 dB
Lamp type	LED
Lumen output	1000lm (3000K) / 1100lm (5000K)
Remote control	Not Included
Warranty	3 Year Replacement Warranty

Downloads

Download the Spec Sheet
