TECHNICAL DATA SHEET _28/08/2026

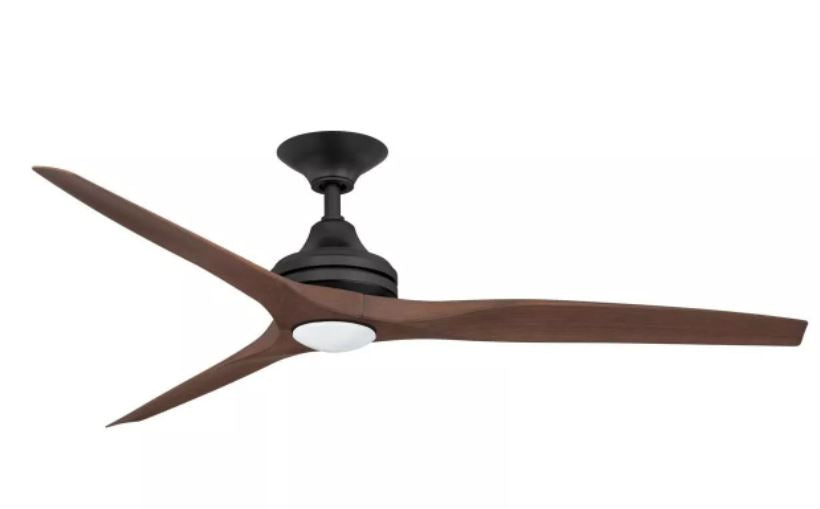

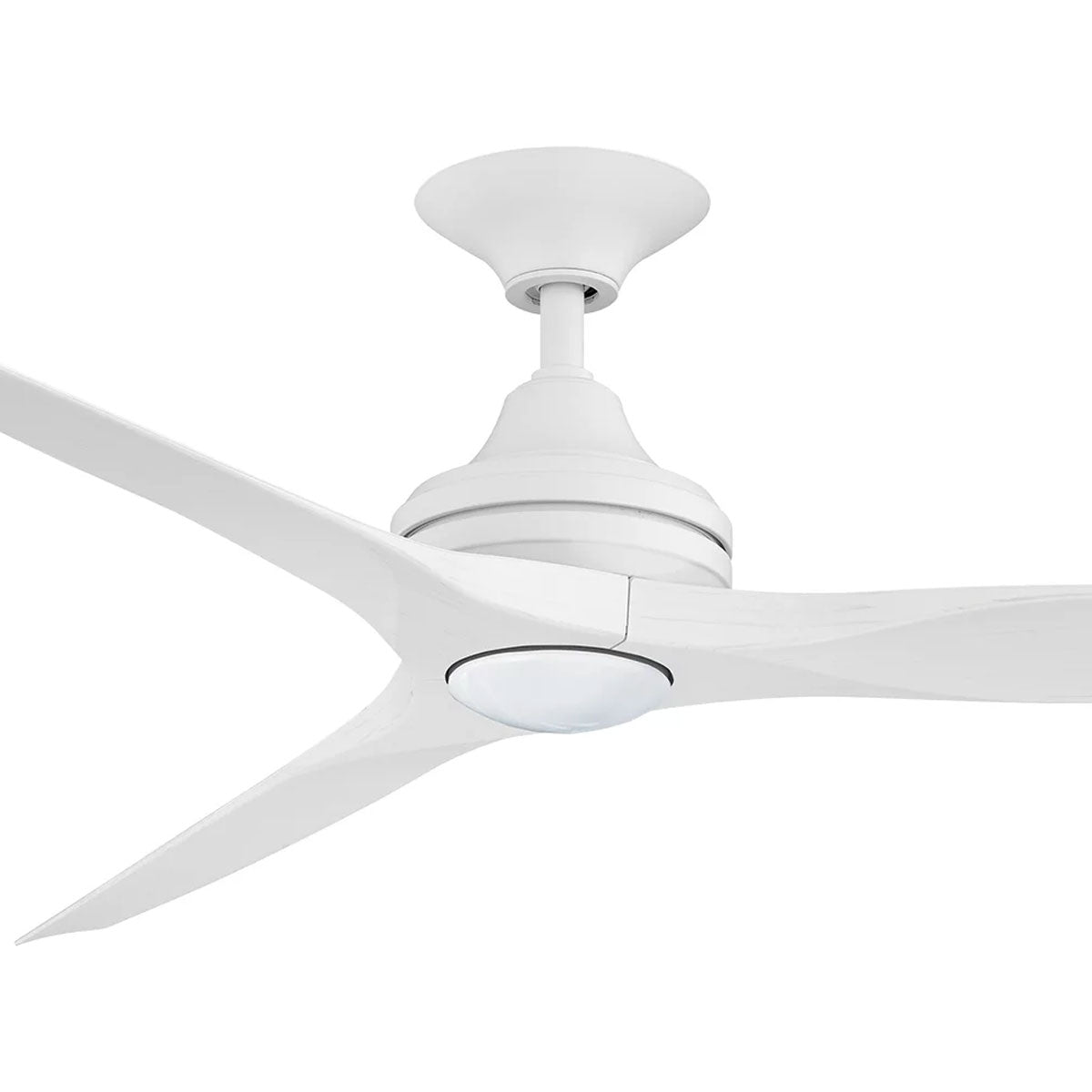

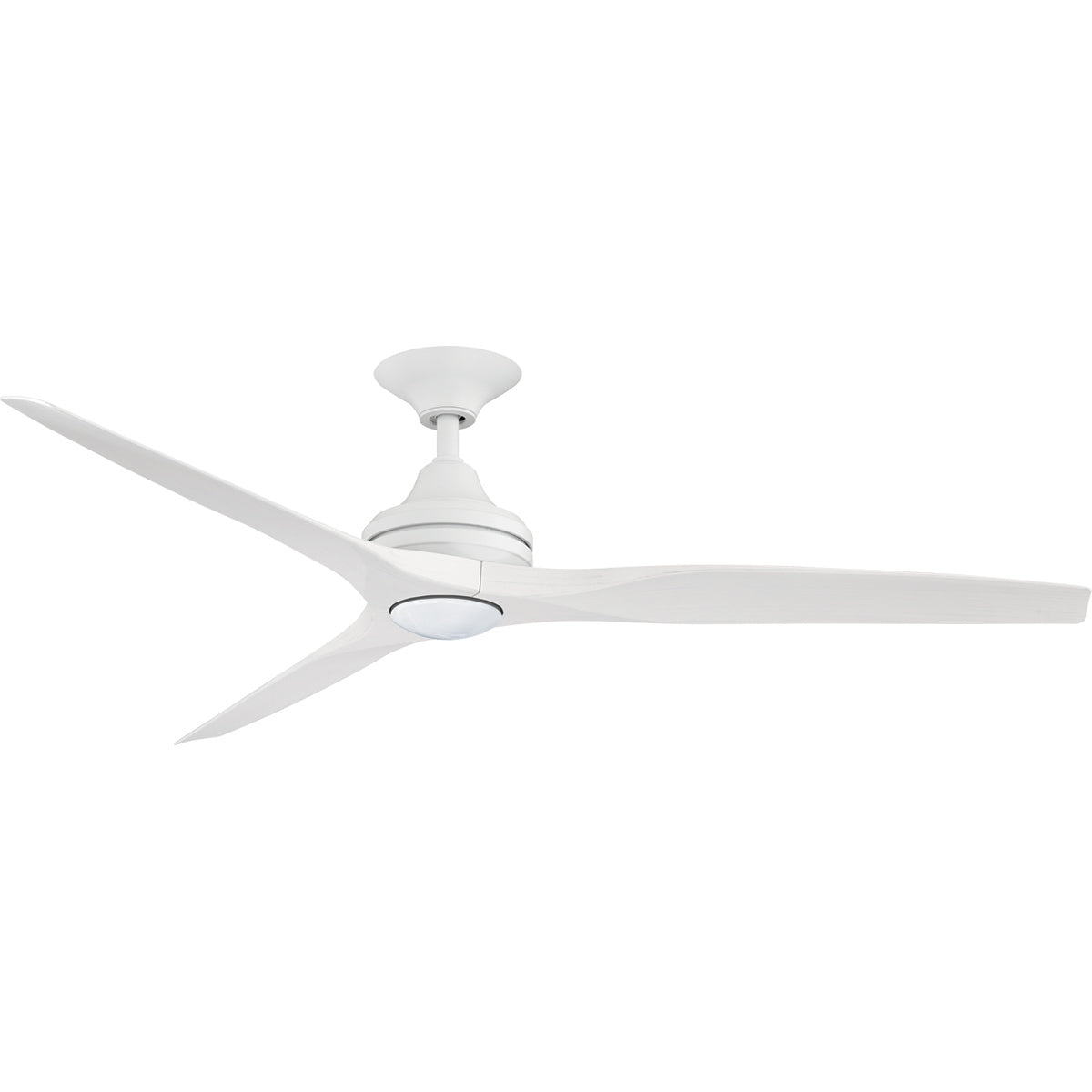

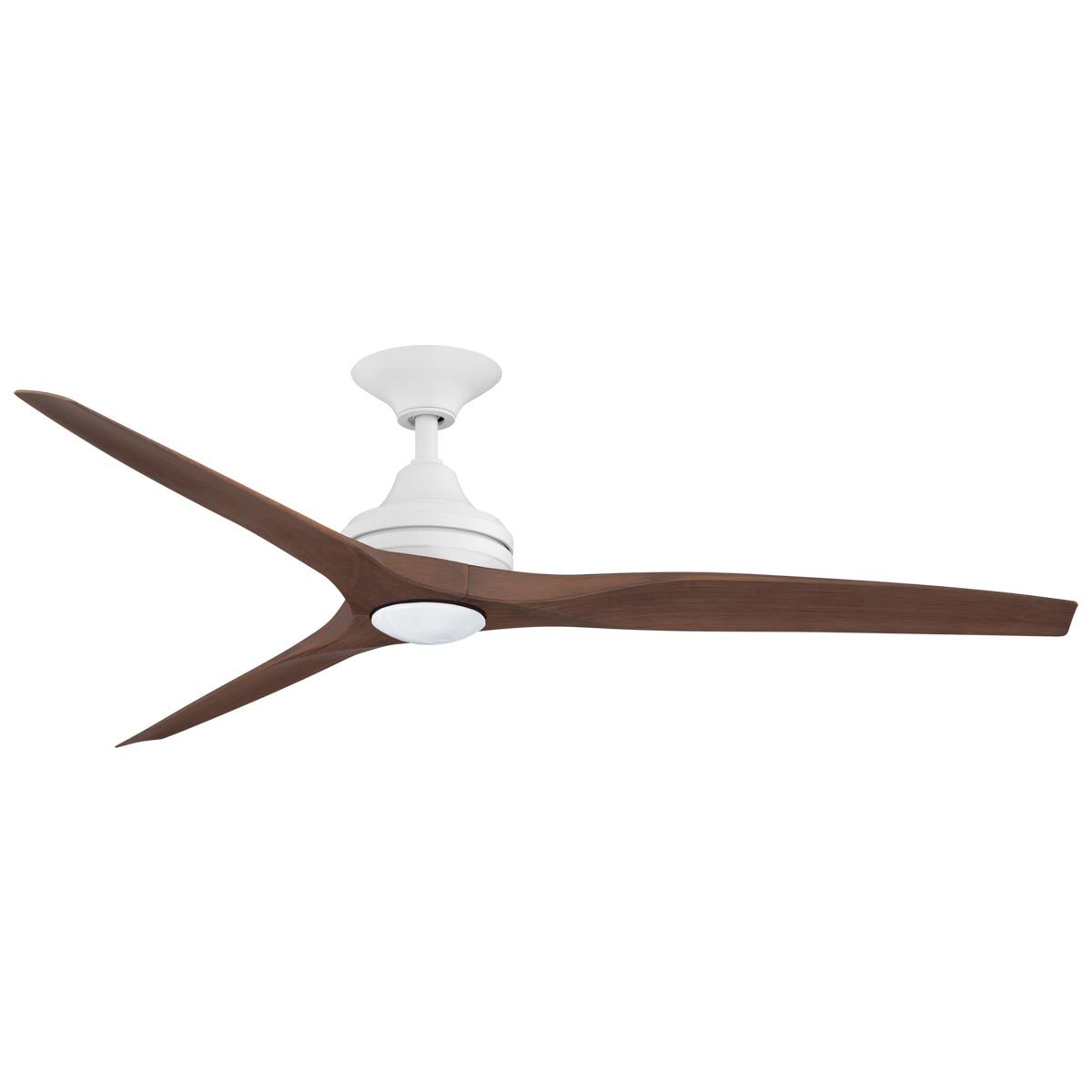

Spitfire 2 60" AC Ceiling Fan with Light

Specifications

Blade material	ABS Moulded Plastic
Blade span	60"
Ceiling to blades	310mm
Ceiling to bottom of fan	310mm
Colour	Matt White
Colour temperature	3000K
Globe included	Integrated
Installation location	Indoor & Outdoor Undercover
Lumen output	1100lm
Max airflow	13,972 m3/hr
Max ceiling pitch	30°
Motor colour	White
Motor material	Metal
Motor type	AC
Motor wattage	80W
Number of blades	3
Remote control	Not Included
Sloped ceiling compatible	true
Summer winder mode	Yes

Specifications

Blade material	ABS Moulded Plastic
Blade span	60"
Ceiling to blades	310mm
Ceiling to bottom of fan	310mm
Colour	Matt White
Colour temperature	3000K
Globe included	Integrated
Installation location	Indoor & Outdoor Undercover
Lumen output	1100lm
Max airflow	13,972 m3/hr
Max ceiling pitch	30°
Motor colour	White
Motor material	Metal
Motor type	AC
Motor wattage	80W
Number of blades	3
Remote control	Not Included
Sloped ceiling compatible	true
Summer winder mode	Yes

Features

Maximum airflow: 13,972 mÂ³/hr
Aerodynamic all-weather polymer blades
Powerful 80W motor for optimal performance
Improved airflow over V1 version
17W LED light included
3000K Warm White
Brightness output: 1100lm
Dimmable
Three speed wall control included
Summer/Winter reversible operation
120mm downrod included (Longer lengths sold separately)
Hanging ball & bracket design allows for angled ceilings up to 13Â° slope
LED light adaptable (Sold separately)
Suitable for indoor & outdoor undercover use
3 Year In-Home Warranty

Features

Maximum airflow: 13,972 mÂ³/hr
Aerodynamic all-weather polymer blades
Powerful 80W motor for optimal performance
Improved airflow over V1 version
17W LED light included
3000K Warm White
Brightness output: 1100lm
Dimmable
Three speed wall control included
Summer/Winter reversible operation
120mm downrod included (Longer lengths sold separately)
Hanging ball & bracket design allows for angled ceilings up to 13Â° slope
LED light adaptable (Sold separately)
Suitable for indoor & outdoor undercover use
3 Year In-Home Warranty

Specifications

Blade material	ABS Moulded Plastic
Blade span	60"
Ceiling to blades	310mm
Ceiling to bottom of fan	310mm
Colour	Matt White
Colour temperature	3000K
Globe included	Integrated
Installation location	Indoor & Outdoor Undercover
Lumen output	1100lm
Max airflow	13,972 m3/hr
Max ceiling pitch	30°
Motor colour	White
Motor material	Metal
Motor type	AC
Motor wattage	80W
Number of blades	3
Remote control	Not Included
Sloped ceiling compatible	true
Summer winder mode	Yes

Specifications

Blade material	ABS Moulded Plastic
Blade span	60"
Ceiling to blades	310mm
Ceiling to bottom of fan	310mm
Colour	Matt White
Colour temperature	3000K
Globe included	Integrated
Installation location	Indoor & Outdoor Undercover
Lumen output	1100lm
Max airflow	13,972 m3/hr
Max ceiling pitch	30°
Motor colour	White
Motor material	Metal
Motor type	AC
Motor wattage	80W
Number of blades	3
Remote control	Not Included
Sloped ceiling compatible	true
Summer winder mode	Yes

Downloads

Download Datasheet

Spitfire 2 60" AC Ceiling Fan with Light

Vendor: ThreeSixty Fans

$435.00

$435.00 ~~$499.00~~

Blade Size: 60"

60"

Colour: Matt White

What is an LED driver?

An LED driver converts mains electricity into a stable low-voltage DC power required by compatible lighting products. A driver is needed whenever a product requires an external DC power supply; usually location in areas with full weather exposure.

Common low-voltage products include spike lights, bollards, LED strip lighting and low-voltage wall lights. Always check the individual product specifications, as not every product within these categories requires an external driver.

The driver’s output voltage must match the product’s required voltage (eg. 12V DC), and its wattage must be sufficient for the total connected load. The calculator below recommends a suitable 12V or 24V driver and includes the required safety margin.

Find the Right LED Driver

Choose the product type and required voltage, then enter the installation details. We’ll recommend a suitable driver with the required safety margin.

Calculator type

Required voltage

Check the product specifications for its required voltage. The driver voltage must match the product. This calculator is only suitable for products marked 12V DC or 24V DC.

Wattage per fitting (W)

Quantity

All fittings connected to one driver must have the same voltage input. For fittings with different wattages, add their individual wattages together and contact us if you need help confirming the correct driver.

View driver capacity chart

Max Connected Load	12V Driver	24V Driver
25W	30W	30W
50W	60W	60W
83W	100W	100W
125W	150W	150W
166W	200W	200W
250W	300W	300W

✔ Available to Order: In-Stock at ThreeSixty Fans

SKU: SPI60MWWWLED

Want a better price? Ask for a JD Deal.

Call us (07) 3809 2011 or chat with us below

Need Help? Got a Question? Contact your Account Manager

Alternatively, contact our Trade experts:
(07) 3088 6266 - trade@jdlighting.com.au

Specifications

Blade material	ABS Moulded Plastic
Blade span	60"
Ceiling to blades	310mm
Ceiling to bottom of fan	310mm
Colour	Matt White
Colour temperature	3000K
Globe included	Integrated
Installation location	Indoor & Outdoor Undercover
Lumen output	1100lm
Max airflow	13,972 m3/hr
Max ceiling pitch	30°
Motor colour	White
Motor material	Metal
Motor type	AC
Motor wattage	80W
Number of blades	3
Remote control	Not Included
Sloped ceiling compatible	true
Summer winder mode	Yes

Specifications

Blade material	ABS Moulded Plastic
Blade span	60"
Ceiling to blades	310mm
Ceiling to bottom of fan	310mm
Colour	Matt White
Colour temperature	3000K
Globe included	Integrated
Installation location	Indoor & Outdoor Undercover
Lumen output	1100lm
Max airflow	13,972 m3/hr
Max ceiling pitch	30°
Motor colour	White
Motor material	Metal
Motor type	AC
Motor wattage	80W
Number of blades	3
Remote control	Not Included
Sloped ceiling compatible	true
Summer winder mode	Yes

Features

Maximum airflow: 13,972 mÂ³/hr
Aerodynamic all-weather polymer blades
Powerful 80W motor for optimal performance
Improved airflow over V1 version
17W LED light included
3000K Warm White
Brightness output: 1100lm
Dimmable
Three speed wall control included
Summer/Winter reversible operation
120mm downrod included (Longer lengths sold separately)
Hanging ball & bracket design allows for angled ceilings up to 13Â° slope
LED light adaptable (Sold separately)
Suitable for indoor & outdoor undercover use
3 Year In-Home Warranty

Features

Maximum airflow: 13,972 mÂ³/hr
Aerodynamic all-weather polymer blades
Powerful 80W motor for optimal performance
Improved airflow over V1 version
17W LED light included
3000K Warm White
Brightness output: 1100lm
Dimmable
Three speed wall control included
Summer/Winter reversible operation
120mm downrod included (Longer lengths sold separately)
Hanging ball & bracket design allows for angled ceilings up to 13Â° slope
LED light adaptable (Sold separately)
Suitable for indoor & outdoor undercover use
3 Year In-Home Warranty

Specifications

Blade material	ABS Moulded Plastic
Blade span	60"
Ceiling to blades	310mm
Ceiling to bottom of fan	310mm
Colour	Matt White
Colour temperature	3000K
Globe included	Integrated
Installation location	Indoor & Outdoor Undercover
Lumen output	1100lm
Max airflow	13,972 m3/hr
Max ceiling pitch	30°
Motor colour	White
Motor material	Metal
Motor type	AC
Motor wattage	80W
Number of blades	3
Remote control	Not Included
Sloped ceiling compatible	true
Summer winder mode	Yes

Specifications

Blade material	ABS Moulded Plastic
Blade span	60"
Ceiling to blades	310mm
Ceiling to bottom of fan	310mm
Colour	Matt White
Colour temperature	3000K
Globe included	Integrated
Installation location	Indoor & Outdoor Undercover
Lumen output	1100lm
Max airflow	13,972 m3/hr
Max ceiling pitch	30°
Motor colour	White
Motor material	Metal
Motor type	AC
Motor wattage	80W
Number of blades	3
Remote control	Not Included
Sloped ceiling compatible	true
Summer winder mode	Yes

Downloads

Download Datasheet

51976455422233: { "blade_material": "ABS Moulded Plastic", "blade_span": "60\"", "ceiling_to_blades": "310mm", "ceiling_to_bottom_of_fan": "310mm", "colour": "Matt White", "colour_temperature": "3000K", "globe_included": "Integrated", "installation_location": "Indoor \u0026 Outdoor Undercover", "lumen_output": "1100lm", "max_airflow": "13,972 m3\/hr", "max_ceiling_pitch": "30°", "motor_colour": "White", "motor_material": "Metal", "motor_type": "AC", "motor_wattage": "80W", "number_of_blades": 3, "remote_control": "Not Included", "sloped_ceiling_compatible": "true", "summer_winder_mode": "Yes", }, 51976455455001: { "blade_span": "60\"", "colour": "Walnut", "colour_temperature": "3000K", }, 51976455487769: { "blade_span": "60\"", "colour": "Black", "colour_temperature": "3000K", }, 51976455520537: { "blade_span": "60\"", "colour": "Black\/Natural", "colour_temperature": "3000K", "number_of_lights": 1, "wattage": "17W", }, 51976455553305: { "blade_span": "60\"", "colour": "Black\/Walnut", "colour_temperature": "3000K", "number_of_lights": 1, "wattage": "17W", },

Spitfire 2 60" AC Ceiling Fan with Light

$435.00

$435.00 ~~$499.00~~

Explore the Family

Spitfire 2 Polymer - Better than ever

The Spitfire 2 ceiling fan is the next iteration of the highly successful Spitfire range â€œ now with more powerful cooling, reversing function and an 17WÂ LED light. Cleverly crafted all-weather polymer blades offer luxury timber-look finishes while being easy to maintain, weather resistant and long wearing.

Modern, Sleek Design

kit. Sleek and elegant, the Spitfire ceiling fan blends modern styling with aerodynamic efficiency to create the perfect cooling solution for your contemporary decor.

LED Light Kit Adaptable

For locations that need a ceiling fan to also serve as a light source, the Spitfire 2 has a sleek and stylish 17W dimmable LED light kit available (sold separately).

Speed	Power	RPM	Airflow (mÂ³/hr)
1	14W	44	5944
2	38W	100	9767
3	80W	166	13972

Download Datasheet

ThreeSixty Fans

ThreeSixty Fans, originally established as Crestwind Fans in 2003, is dedicated to crafting high-end ceiling fans that combine exquisite design with practicality. Focused on enhancing the Australian lifestyle, ThreeSixty Fans delivers products that go beyond ordinary cooling solutions, appealing to customers who value style, innovation, and performance.

With over a decade of collective industry experience, ThreeSixty Fans emphasizes quality craftsmanship, using premium components and rigorous engineering standards. Their ceiling fans are designed for durability, reliability, and lasting aesthetic appeal, making them a trusted choice for discerning homeowners.
