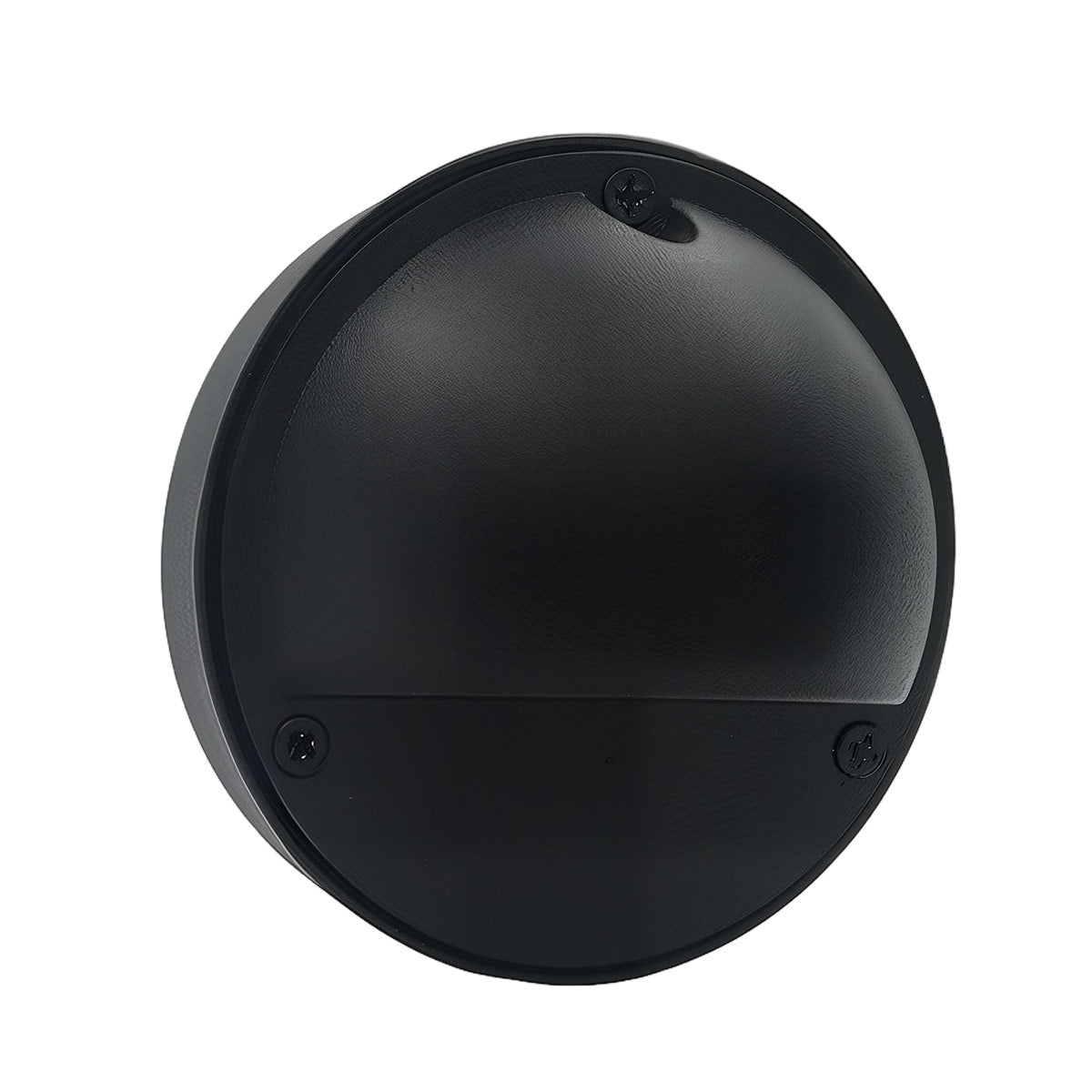

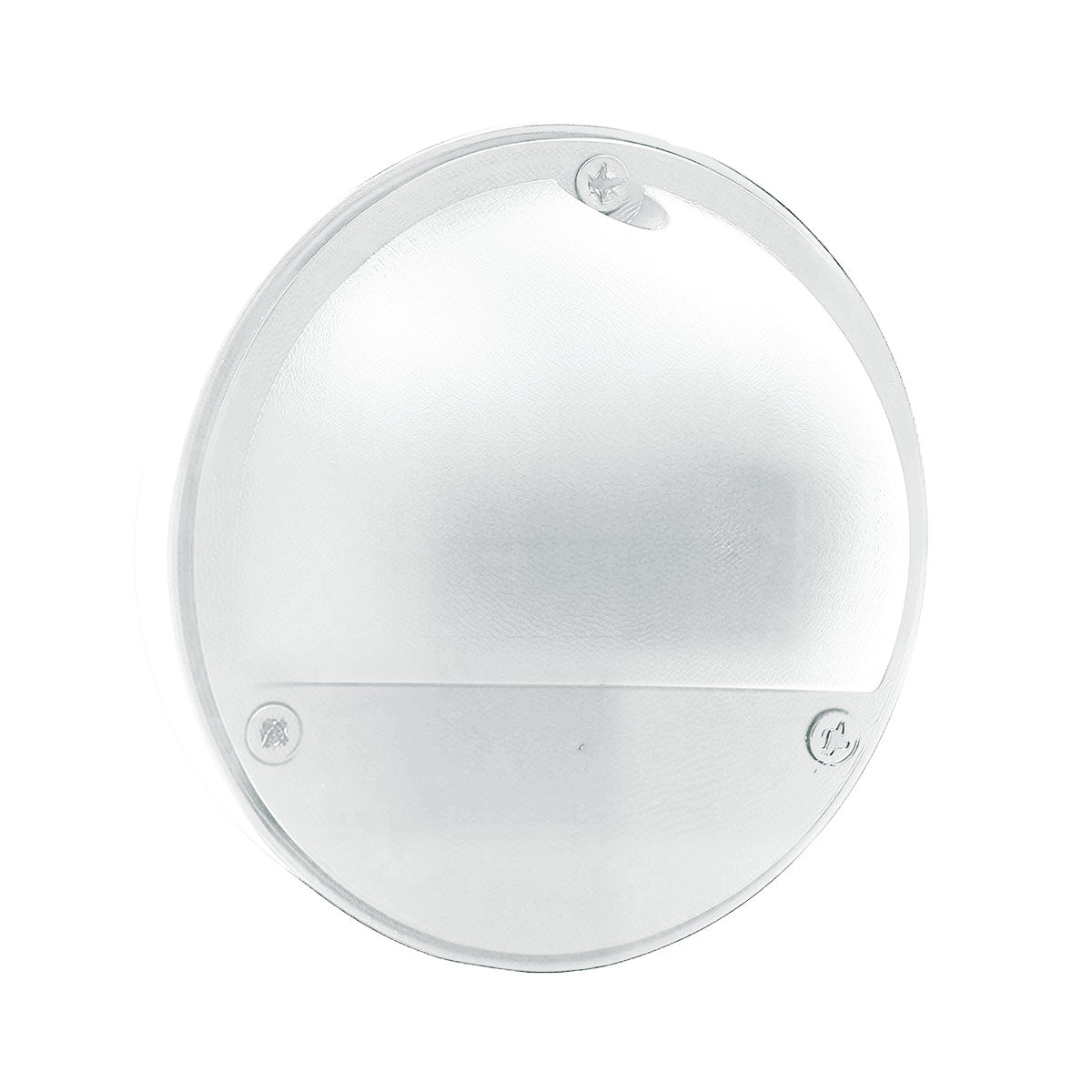

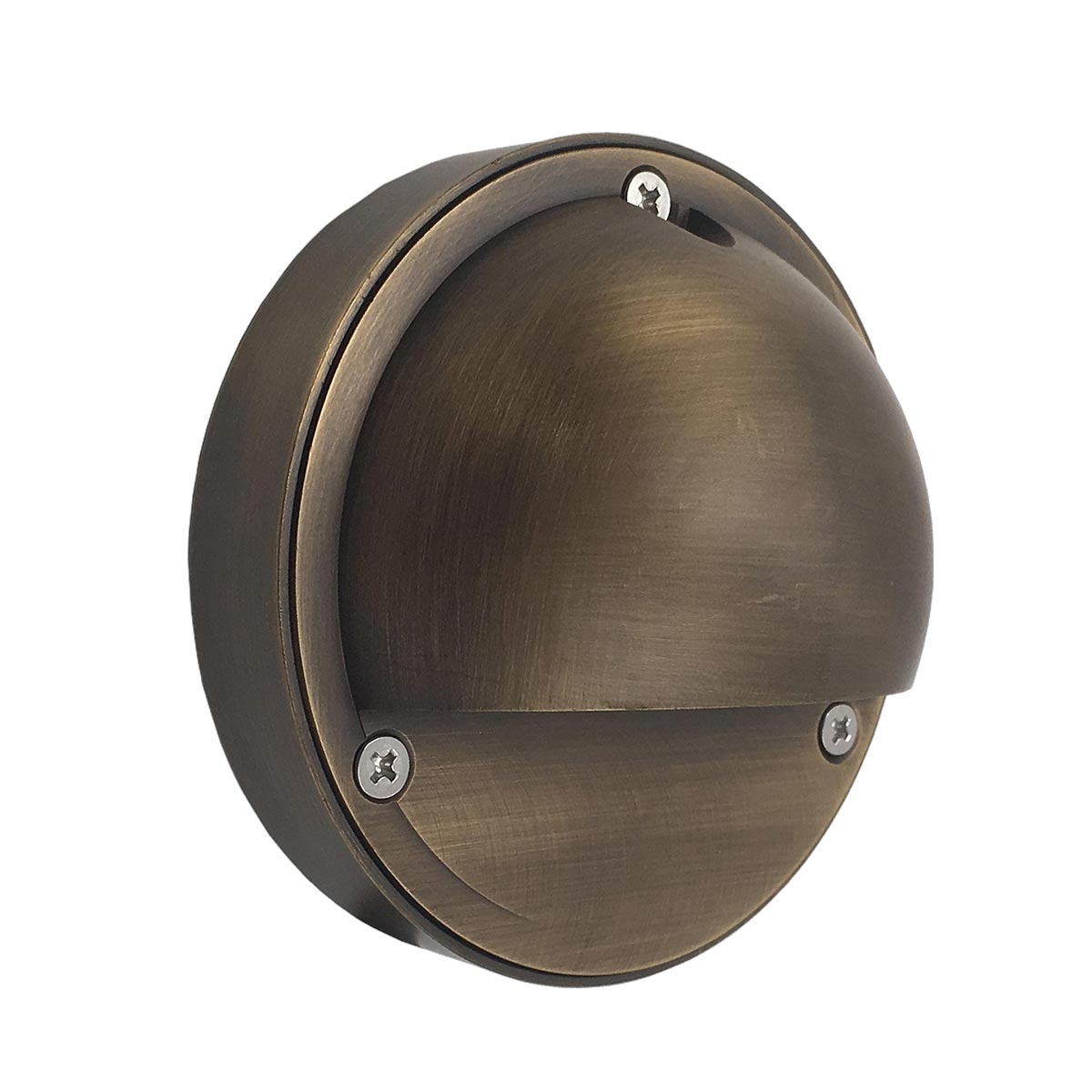

Sines Round Surface Mount 24V Step Light

Specifications

Beam angle	60°
Colour	Antique Brass
Colour temperature	3000K/4000K/5500K
Cri rating	>80
Dimmable	Yes
Globe included	Built In
Installation location	Outdoor
Ip rating	IP54
Lumen output	150lm

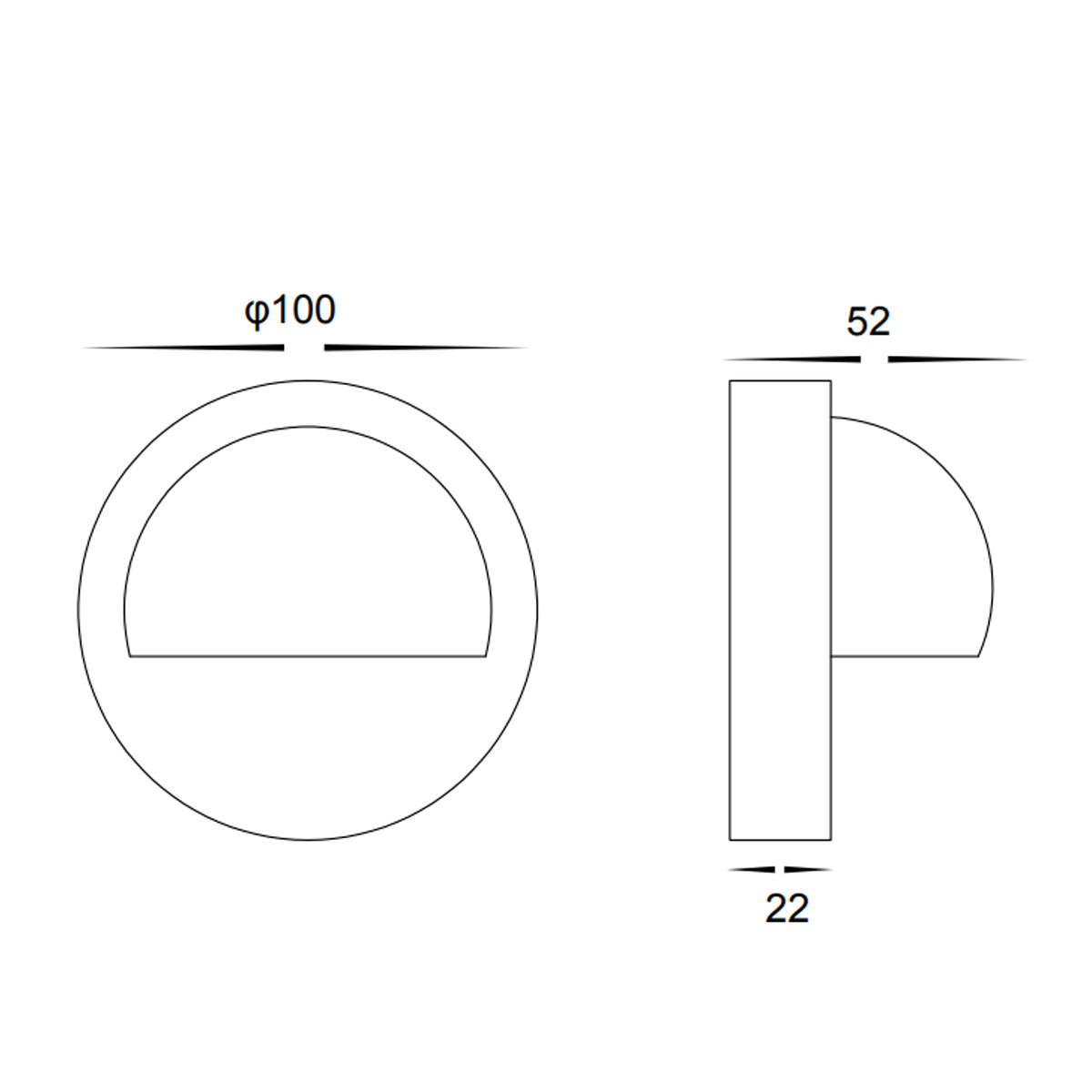

Overall height	98mm
Overall width	50mm
Voltage	24V DC
Warranty	3 Year Warranty
Wattage	3W

Specifications

Beam angle	60°
Colour	Antique Brass
Colour temperature	3000K/4000K/5500K
Cri rating	>80
Dimmable	Yes
Globe included	Built In
Installation location	Outdoor
Ip rating	IP54
Lumen output	150lm
Overall height	98mm
Overall width	50mm
Voltage	24V DC
Warranty	3 Year Warranty
Wattage	3W

Features

Provide 150lm brightness from an energy-saving 3W LED light source.
Operate safely on 24V DC power suitable for outdoor use.
Deliver precise illumination with a 60° focused beam angle.
Use IP54 rating for protection against dust and water ingress.
Choose from 3000K, 4000K, or 5500K colour temperatures.
Select aluminium or solid brass materials for varied finishes.
Control brightness easily with integrated dimming capabilities.
Install compact light sizing at 98mm length and 50mm width.
Enhance outdoor areas with a discreet design for steps.
Benefit from a 3-year warranty ensuring product reliability.

Features

Provide 150lm brightness from an energy-saving 3W LED light source.
Operate safely on 24V DC power suitable for outdoor use.
Deliver precise illumination with a 60° focused beam angle.
Use IP54 rating for protection against dust and water ingress.
Choose from 3000K, 4000K, or 5500K colour temperatures.
Select aluminium or solid brass materials for varied finishes.
Control brightness easily with integrated dimming capabilities.
Install compact light sizing at 98mm length and 50mm width.
Enhance outdoor areas with a discreet design for steps.
Benefit from a 3-year warranty ensuring product reliability.

Description

Improve outdoor safety with the Sines Round Surface Mount Step Light. Its 3W LED produces focused light within a 60° beam angle, delivering 150 lumens for clear visibility. Operating at 24V DC with IP54 protection, it suits external locations well. Available in three colour temperatures—3000K, 4000K, and 5500K—this light offers tailored illumination options.

The aluminium or solid brass construction suits varied installations, while dimming ability lets users manage light levels effectively. Its compact dimensions make it a discreet yet practical addition. Supported by a 3-year warranty, this step light offers reliable performance and essential outdoor lighting. Upgrade your space with efficient, adaptable lighting now.

Description

Specifications

Beam angle	60°
Colour	Antique Brass
Colour temperature	3000K/4000K/5500K
Cri rating	>80
Dimmable	Yes
Globe included	Built In
Installation location	Outdoor
Ip rating	IP54
Lumen output	150lm
Overall height	98mm
Overall width	50mm
Voltage	24V DC
Warranty	3 Year Warranty
Wattage	3W

Specifications

Beam angle	60°
Colour	Antique Brass
Colour temperature	3000K/4000K/5500K
Cri rating	>80
Dimmable	Yes
Globe included	Built In
Installation location	Outdoor
Ip rating	IP54
Lumen output	150lm
Overall height	98mm
Overall width	50mm
Voltage	24V DC
Warranty	3 Year Warranty
Wattage	3W

Downloads

Download the Spec Sheet

Sines Round Surface Mount 24V Step Light

Vendor: Delessi

$129.95

$129.95 ~~$153.00~~

Colour: Antique Brass

✔ Pre-Order: ETA 30/06/2026

SKU: DL30022-AB
