TECHNICAL DATA SHEET _01/09/2026

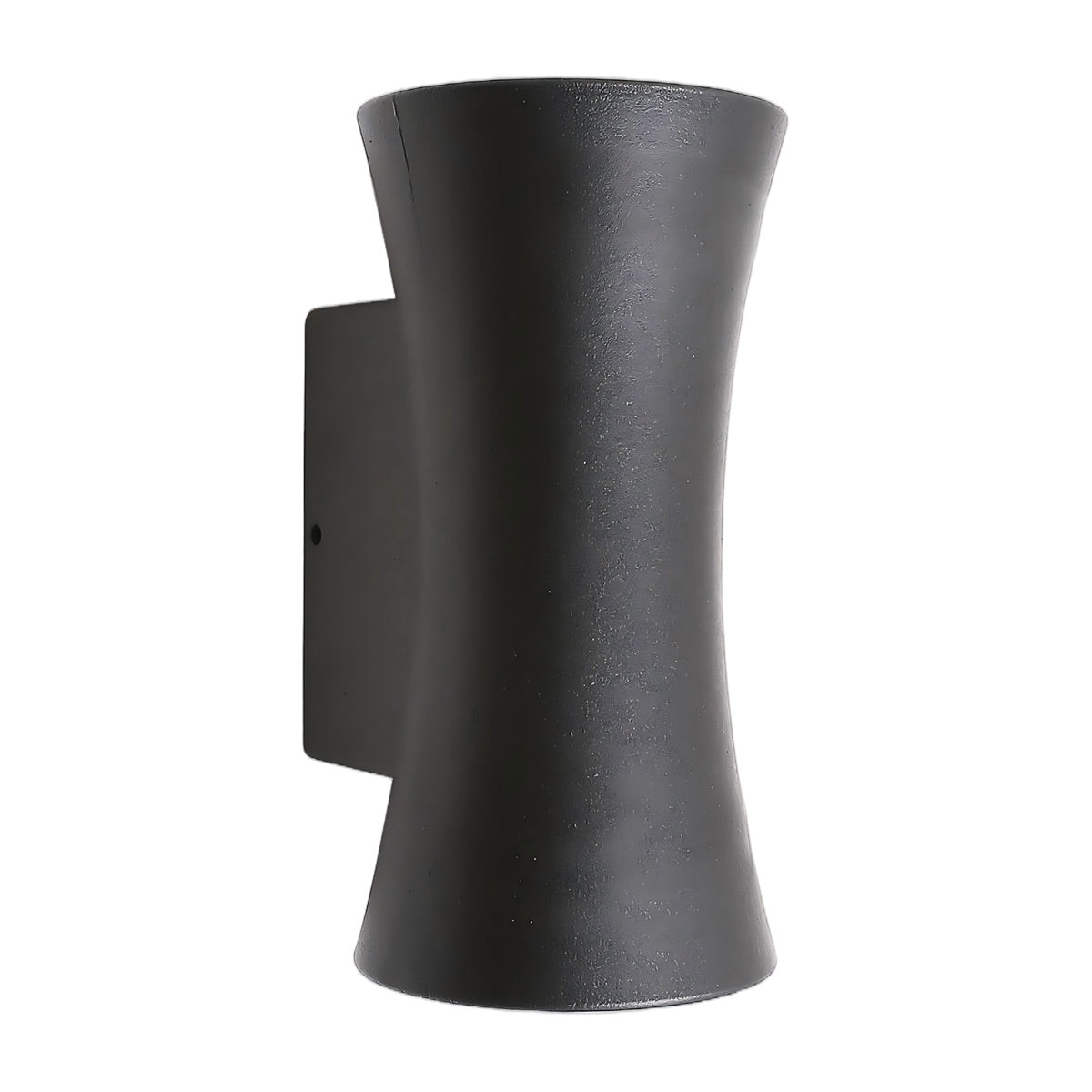

Seville Curved Rectangle LED Outdoor Wall Light

Specifications

Beam angle	30°
Colour	Black
Colour temperature	3000K/4000K/5500K
Cri rating	>80
Dimmable	No
Globe included	Built In
Installation location	Outdoor
Ip rating	IP54
Lumen output	480lm

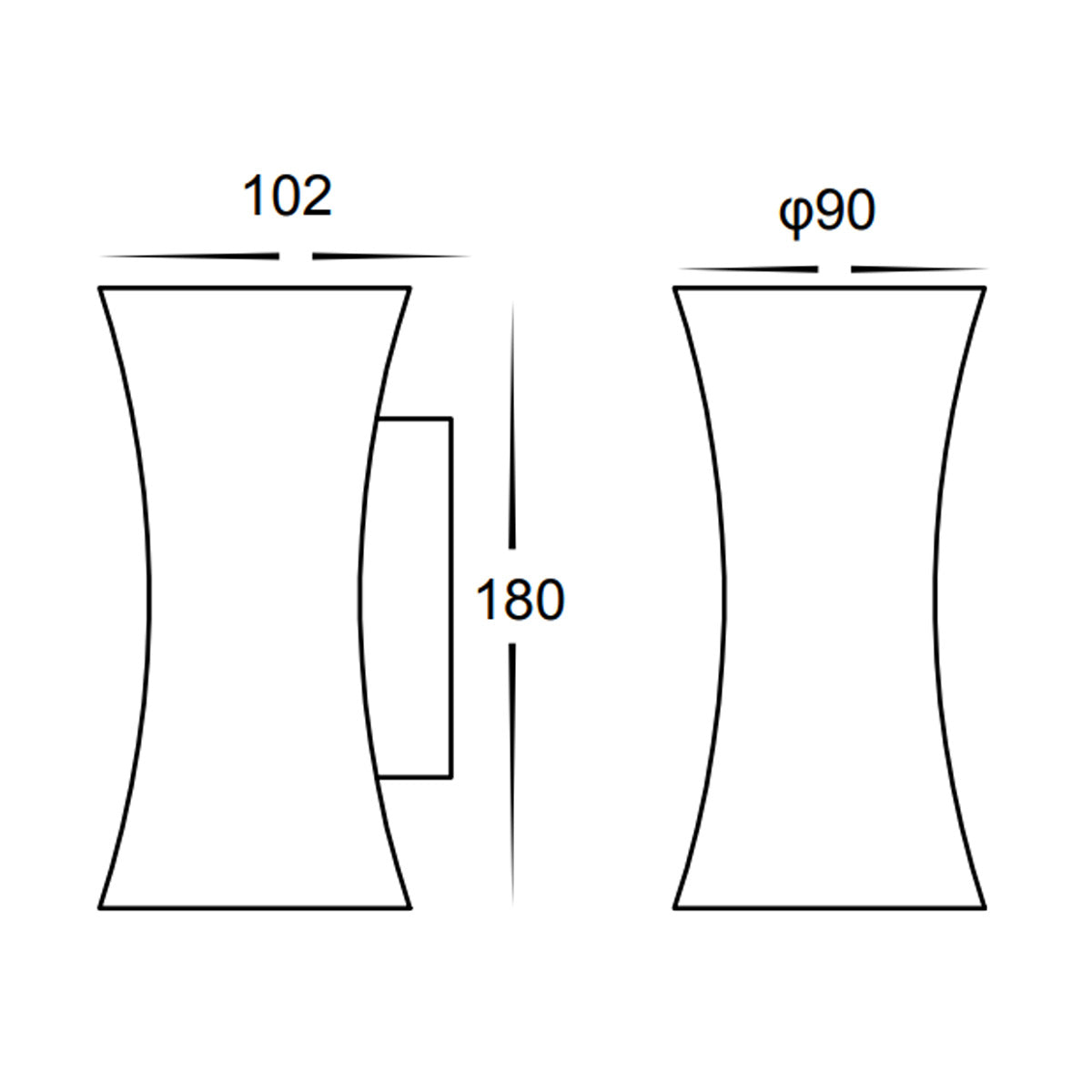

Overall height	180mm
Overall width	102mm
Tri colour	true
Voltage	240V AC
Warranty	3 Year Warranty
Wattage	10W

Specifications

Beam angle	30°
Colour	Black
Colour temperature	3000K/4000K/5500K
Cri rating	>80
Dimmable	No
Globe included	Built In
Installation location	Outdoor
Ip rating	IP54
Lumen output	480lm
Overall height	180mm
Overall width	102mm
Tri colour	true
Voltage	240V AC
Warranty	3 Year Warranty
Wattage	10W

Features

Deliver bright 10W LED output of 480lm to illuminate outdoor spaces clearly.
Provide precise lighting with a focused 30° beam angle.
Use aluminium material suited to outdoor use and weather exposure.
Benefit from IP54 rating protecting against rain and dust ingress.
Choose from 3000K, 4000K, or 5500K colour temperatures to customise.
Install easily with compact 90mm length and 102mm width dimensions.
Enjoy a sleek curved rectangle shape for appealing outdoor lighting.
Non-dimmable design ensures steady light output without fluctuations.
Ideal for exterior walls requiring efficient up and down illumination.
Access reliable lighting backed by a 3-year manufacturer warranty.

Features

Deliver bright 10W LED output of 480lm to illuminate outdoor spaces clearly.
Provide precise lighting with a focused 30° beam angle.
Use aluminium material suited to outdoor use and weather exposure.
Benefit from IP54 rating protecting against rain and dust ingress.
Choose from 3000K, 4000K, or 5500K colour temperatures to customise.
Install easily with compact 90mm length and 102mm width dimensions.
Enjoy a sleek curved rectangle shape for appealing outdoor lighting.
Non-dimmable design ensures steady light output without fluctuations.
Ideal for exterior walls requiring efficient up and down illumination.
Access reliable lighting backed by a 3-year manufacturer warranty.

Specifications

Beam angle	30°
Colour	Black
Colour temperature	3000K/4000K/5500K
Cri rating	>80
Dimmable	No
Globe included	Built In
Installation location	Outdoor
Ip rating	IP54
Lumen output	480lm
Overall height	180mm
Overall width	102mm
Tri colour	true
Voltage	240V AC
Warranty	3 Year Warranty
Wattage	10W

Specifications

Beam angle	30°
Colour	Black
Colour temperature	3000K/4000K/5500K
Cri rating	>80
Dimmable	No
Globe included	Built In
Installation location	Outdoor
Ip rating	IP54
Lumen output	480lm
Overall height	180mm
Overall width	102mm
Tri colour	true
Voltage	240V AC
Warranty	3 Year Warranty
Wattage	10W

Description

An outdoor wall light with focused LED brightness and weather protection for practical exterior illumination.

Downloads

Download Datasheet

Seville Curved Rectangle LED Outdoor Wall Light

Vendor: Delessi

$109.95

$109.95 ~~$129.00~~

Colour: Black

What is an LED driver?

An LED driver converts mains electricity into a stable low-voltage DC power required by compatible lighting products. A driver is needed whenever a product requires an external DC power supply; usually location in areas with full weather exposure.

Common low-voltage products include spike lights, bollards, LED strip lighting and low-voltage wall lights. Always check the individual product specifications, as not every product within these categories requires an external driver.

The driver’s output voltage must match the product’s required voltage (eg. 12V DC), and its wattage must be sufficient for the total connected load. The calculator below recommends a suitable 12V or 24V driver and includes the required safety margin.

Find the Right LED Driver

Choose the product type and required voltage, then enter the installation details. We’ll recommend a suitable driver with the required safety margin.

Calculator type

Required voltage

Check the product specifications for its required voltage. The driver voltage must match the product. This calculator is only suitable for products marked 12V DC or 24V DC.

Wattage per fitting (W)

Quantity

All fittings connected to one driver must have the same voltage input. For fittings with different wattages, add their individual wattages together and contact us if you need help confirming the correct driver.

View driver capacity chart

Max Connected Load	12V Driver	24V Driver
25W	30W	30W
50W	60W	60W
83W	100W	100W
125W	150W	150W
166W	200W	200W
250W	300W	300W

✔ In stock

SKU: DL30019-BK

Want a better price? Ask for a JD Deal.

Call us (07) 3809 2011 or chat with us below

Need Help? Got a Question? Contact your Account Manager

Alternatively, contact our Trade experts:
(07) 3088 6266 - trade@jdlighting.com.au

Specifications

Beam angle	30°
Colour	Black
Colour temperature	3000K/4000K/5500K
Cri rating	>80
Dimmable	No
Globe included	Built In
Installation location	Outdoor
Ip rating	IP54
Lumen output	480lm
Overall height	180mm
Overall width	102mm
Tri colour	true
Voltage	240V AC
Warranty	3 Year Warranty
Wattage	10W

Specifications

Beam angle	30°
Colour	Black
Colour temperature	3000K/4000K/5500K
Cri rating	>80
Dimmable	No
Globe included	Built In
Installation location	Outdoor
Ip rating	IP54
Lumen output	480lm
Overall height	180mm
Overall width	102mm
Tri colour	true
Voltage	240V AC
Warranty	3 Year Warranty
Wattage	10W

Features

Deliver bright 10W LED output of 480lm to illuminate outdoor spaces clearly.
Provide precise lighting with a focused 30° beam angle.
Use aluminium material suited to outdoor use and weather exposure.
Benefit from IP54 rating protecting against rain and dust ingress.
Choose from 3000K, 4000K, or 5500K colour temperatures to customise.
Install easily with compact 90mm length and 102mm width dimensions.
Enjoy a sleek curved rectangle shape for appealing outdoor lighting.
Non-dimmable design ensures steady light output without fluctuations.
Ideal for exterior walls requiring efficient up and down illumination.
Access reliable lighting backed by a 3-year manufacturer warranty.

Features

Deliver bright 10W LED output of 480lm to illuminate outdoor spaces clearly.
Provide precise lighting with a focused 30° beam angle.
Use aluminium material suited to outdoor use and weather exposure.
Benefit from IP54 rating protecting against rain and dust ingress.
Choose from 3000K, 4000K, or 5500K colour temperatures to customise.
Install easily with compact 90mm length and 102mm width dimensions.
Enjoy a sleek curved rectangle shape for appealing outdoor lighting.
Non-dimmable design ensures steady light output without fluctuations.
Ideal for exterior walls requiring efficient up and down illumination.
Access reliable lighting backed by a 3-year manufacturer warranty.

Specifications

Beam angle	30°
Colour	Black
Colour temperature	3000K/4000K/5500K
Cri rating	>80
Dimmable	No
Globe included	Built In
Installation location	Outdoor
Ip rating	IP54
Lumen output	480lm
Overall height	180mm
Overall width	102mm
Tri colour	true
Voltage	240V AC
Warranty	3 Year Warranty
Wattage	10W

Specifications

Beam angle	30°
Colour	Black
Colour temperature	3000K/4000K/5500K
Cri rating	>80
Dimmable	No
Globe included	Built In
Installation location	Outdoor
Ip rating	IP54
Lumen output	480lm
Overall height	180mm
Overall width	102mm
Tri colour	true
Voltage	240V AC
Warranty	3 Year Warranty
Wattage	10W

Description

An outdoor wall light with focused LED brightness and weather protection for practical exterior illumination.

Downloads

Download Datasheet

52500415709465: { "beam_angle": "30°", "colour": "Black", "colour_temperature": "3000K\/4000K\/5500K", "cri_rating": "\u0026gt;80", "dimmable": "No", "globe_included": "Built In", "installation_location": "Outdoor", "ip_rating": "IP54", "lumen_output": "480lm", "overall_height": "180mm", "overall_width": "102mm", "tri_colour": true, "voltage": "240V AC", "warranty": "3 Year Warranty", "wattage": "10W", }, 52500415742233: { "beam_angle": "30°", "colour": "White", "colour_temperature": "3000K\/4000K\/5500K", "cri_rating": "\u0026gt;80", "dimmable": "No", "globe_included": "Built In", "installation_location": "Outdoor", "ip_rating": "IP54", "lumen_output": "480lm", "overall_height": "180mm", "overall_width": "102mm", "tri_colour": true, "voltage": "240V AC", "warranty": "3 Year Warranty", "wattage": "10W", },

Seville Curved Rectangle LED Outdoor Wall Light

$109.95

$109.95 ~~$129.00~~

Explore the Family

Improve your outdoor areas with the Seville Curved Rectangle Wall Light, featuring reliable 10W LED power producing 480lm of focused illumination. Its 30° beam angle directs light precisely to highlight your exterior spaces while adding visual interest.

Constructed from aluminium and rated IP54, this fixture handles outdoor conditions effectively. Choose from three colour temperatures—3000K, 4000K, or 5500K—to tailor the lighting atmosphere. Supported by a 3-year warranty, it provides consistent lighting performance for your outdoor walls.

Enhance your outdoor spaces with this practical and stylish wall light that combines focused lighting and weather resistance.

Download Datasheet

Delessi

Delessi views lighting as more than just a functional necessity — it’s an art form. Specialising in chandeliers and pendants, Delessi creates pieces that transform spaces into elegant, sophisticated environments.

Each Delessi product is meticulously crafted to showcase timeless beauty and intricate design details, combining style and quality to enhance the ambiance of any room. The brand’s focus on artistry ensures every lighting fixture is a statement piece as well as a practical solution.
