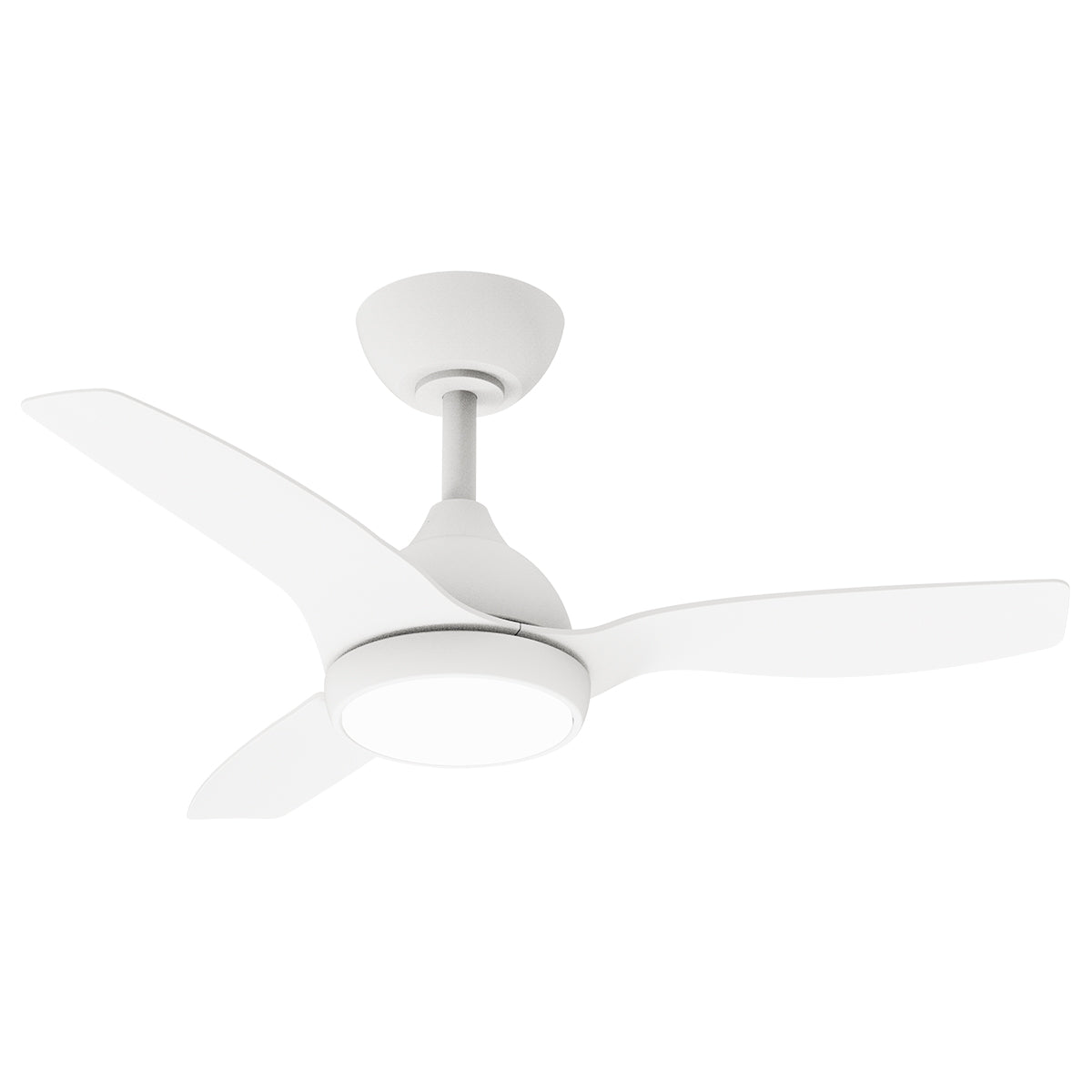

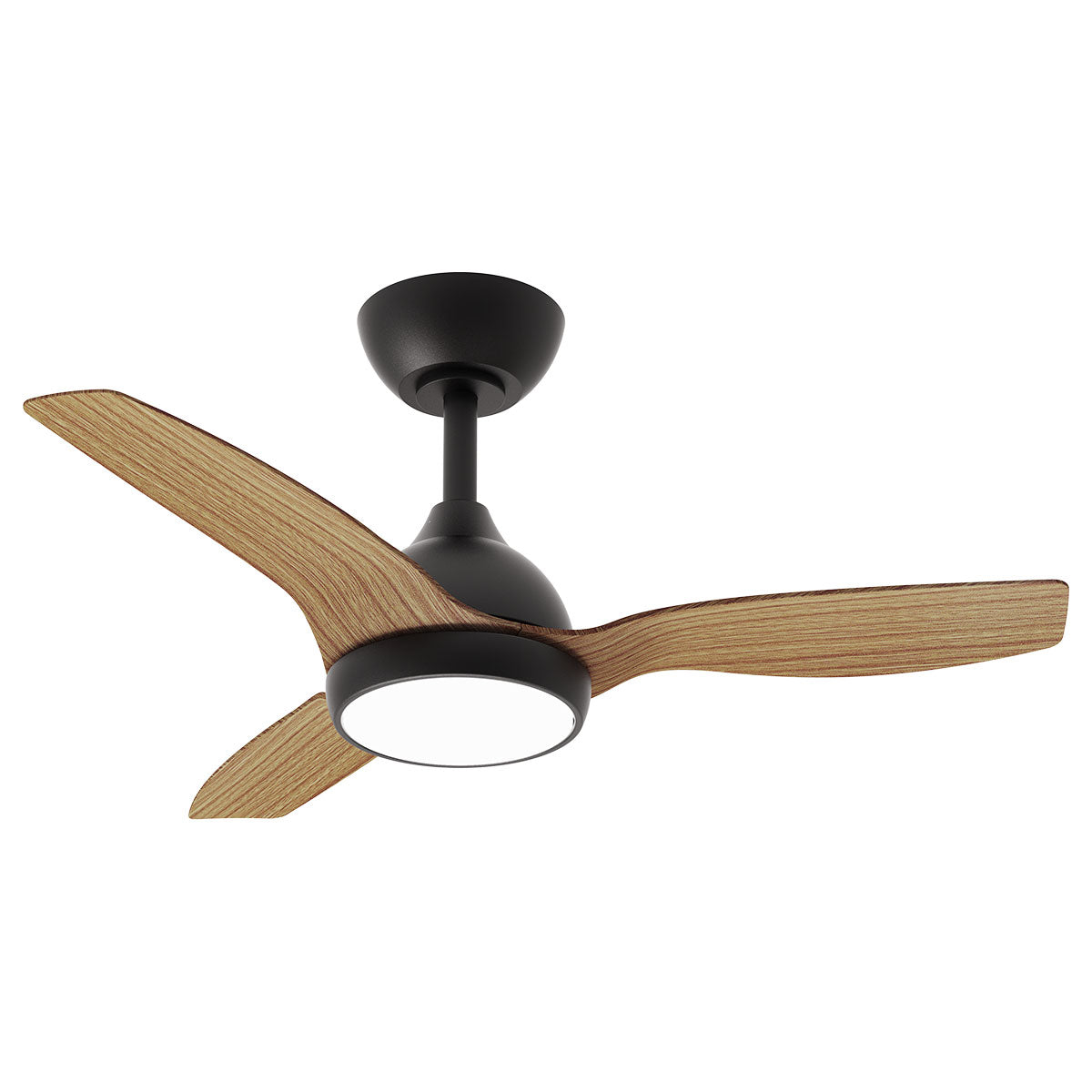

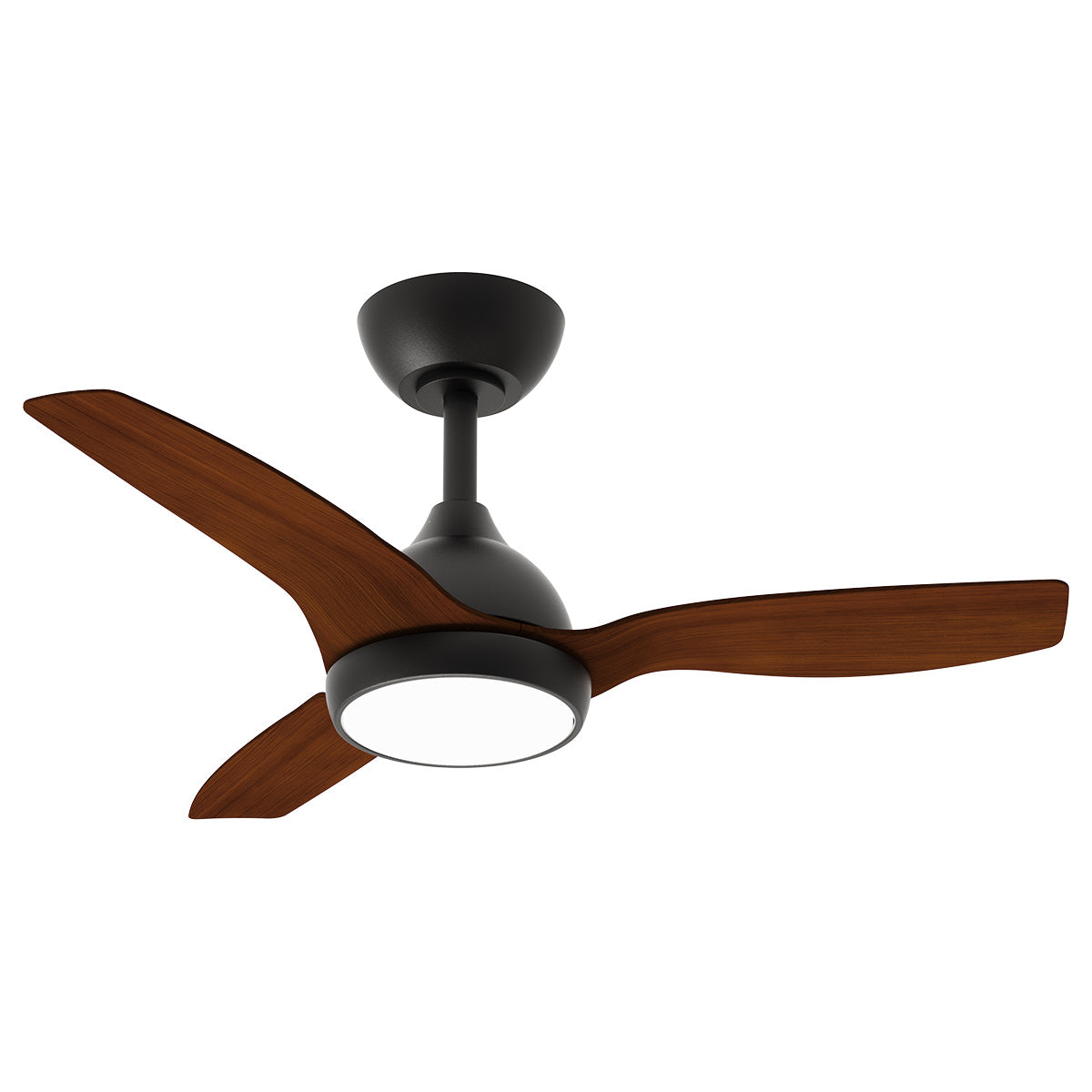

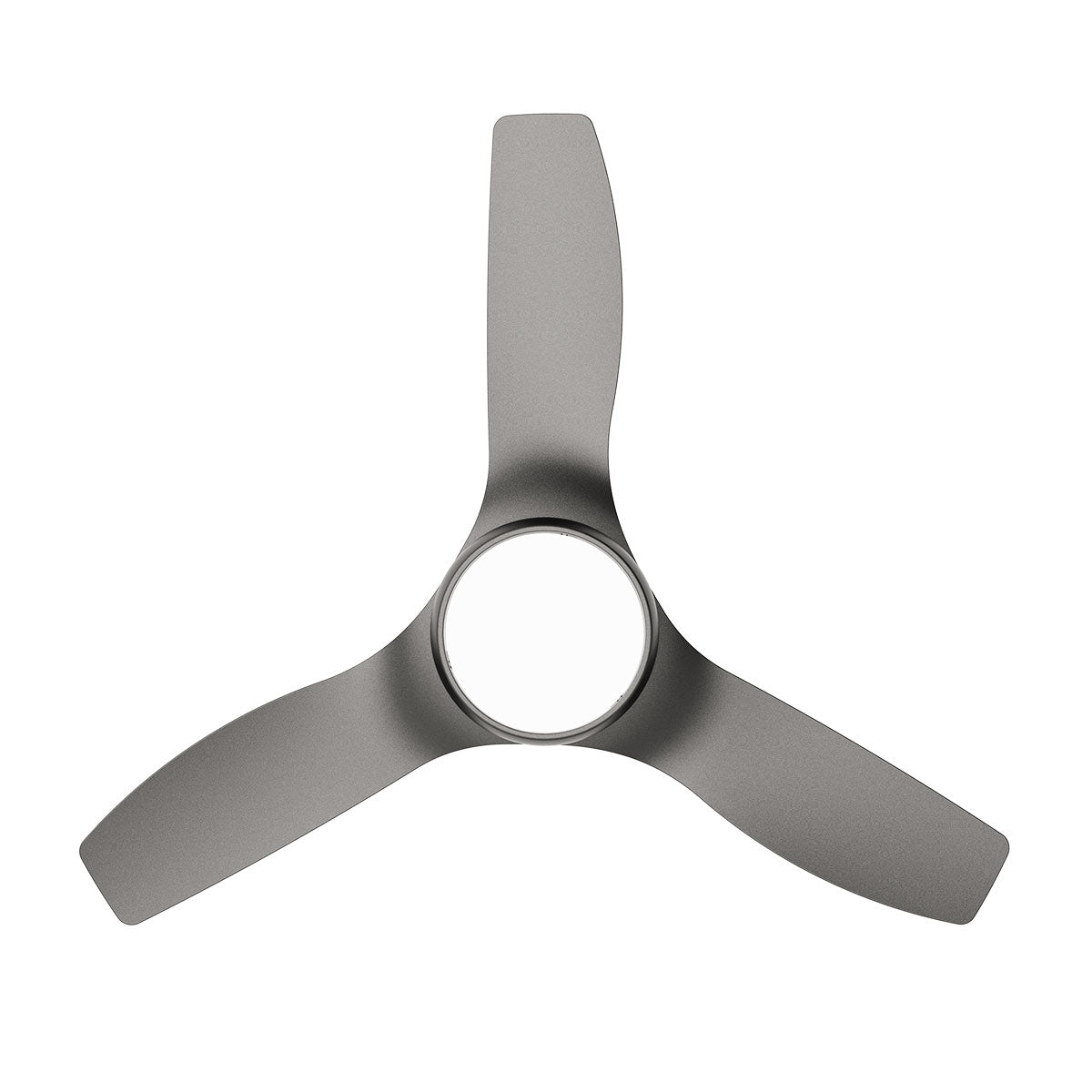

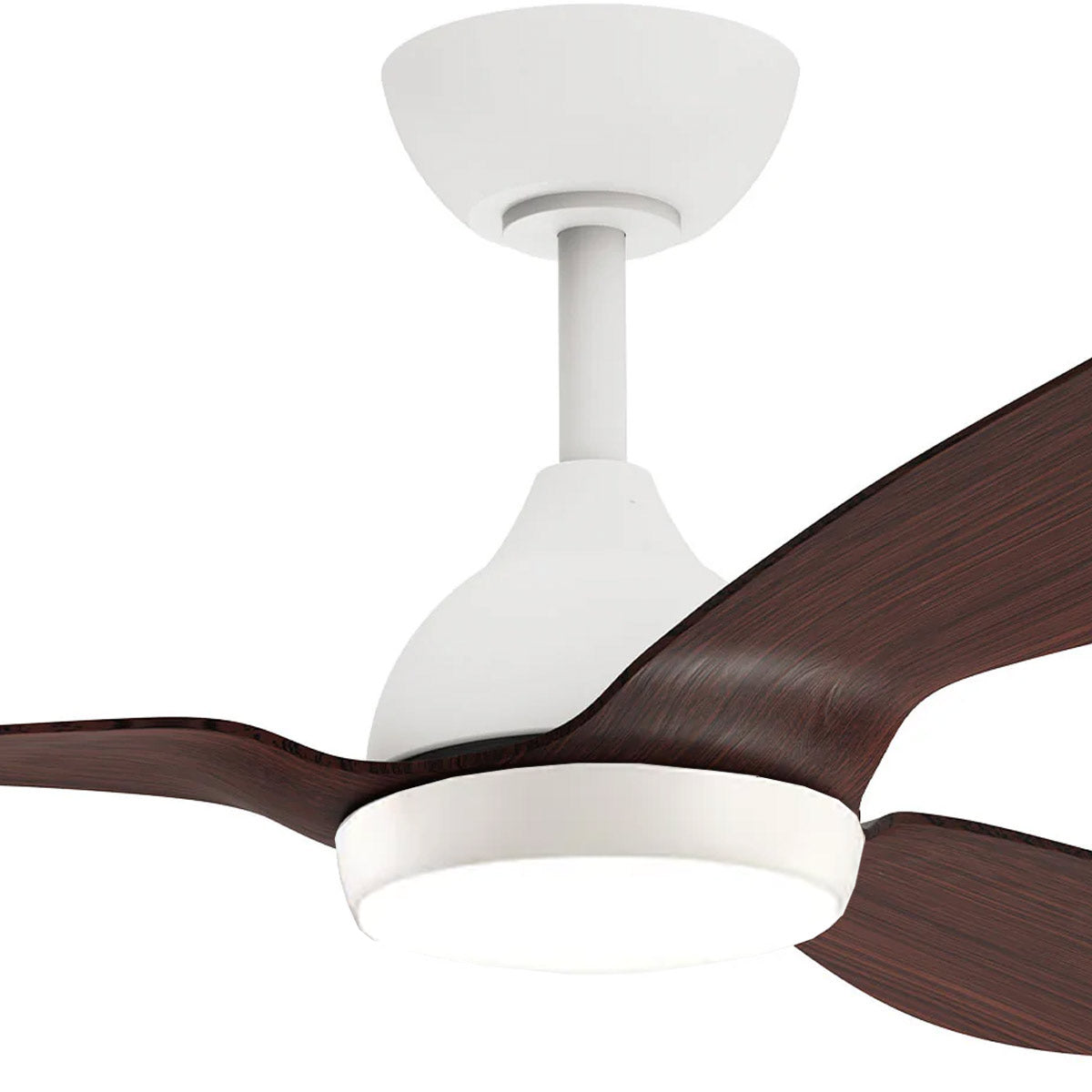

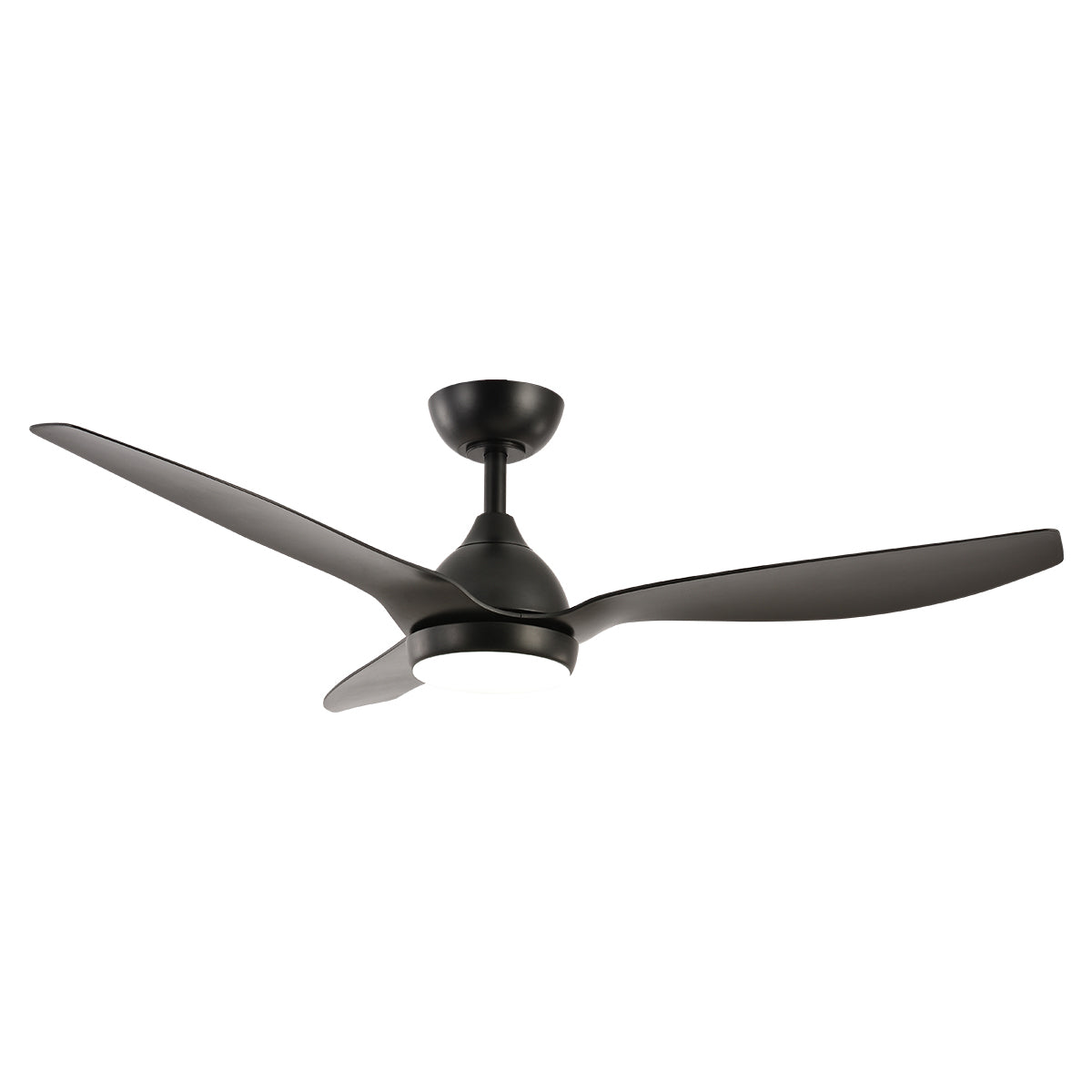

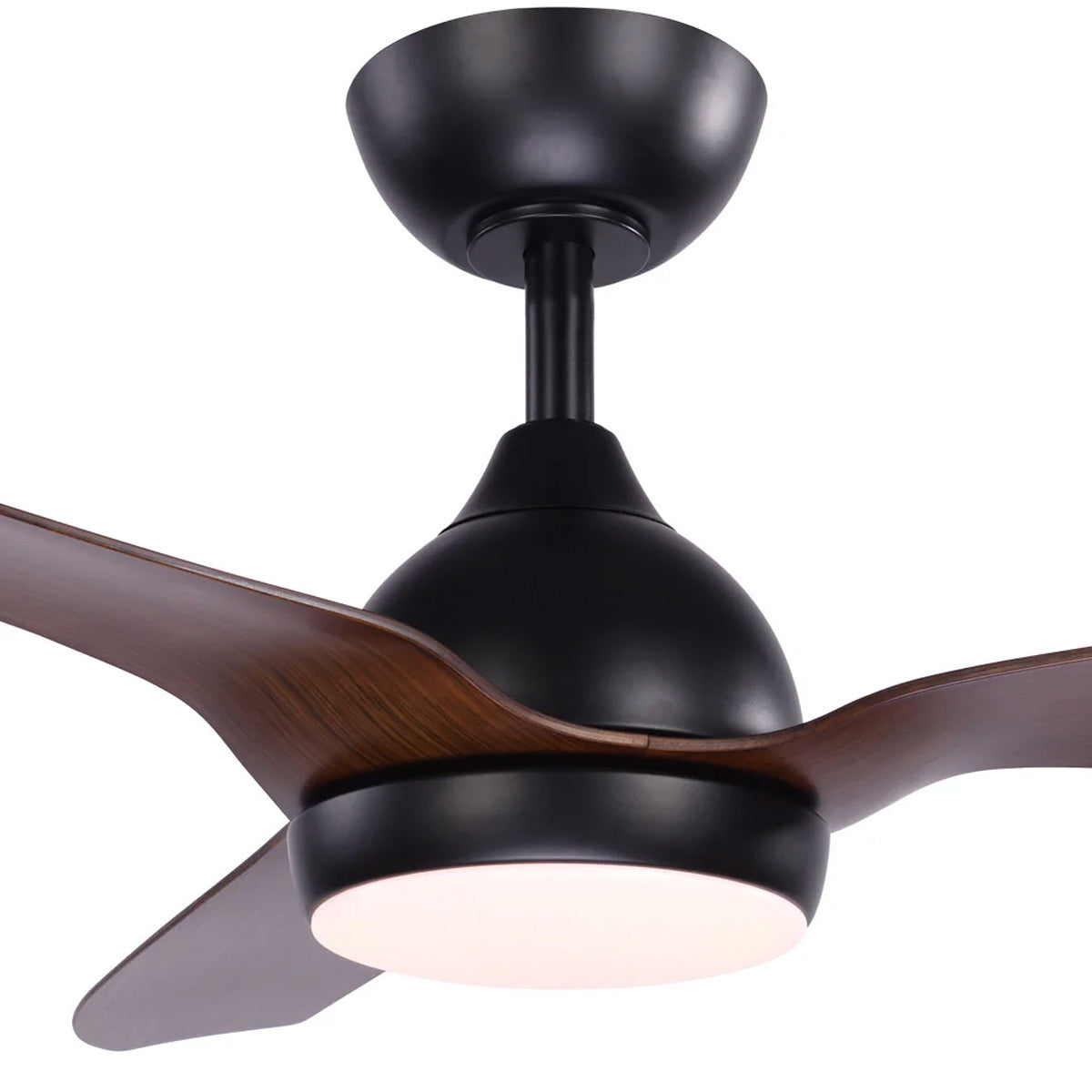

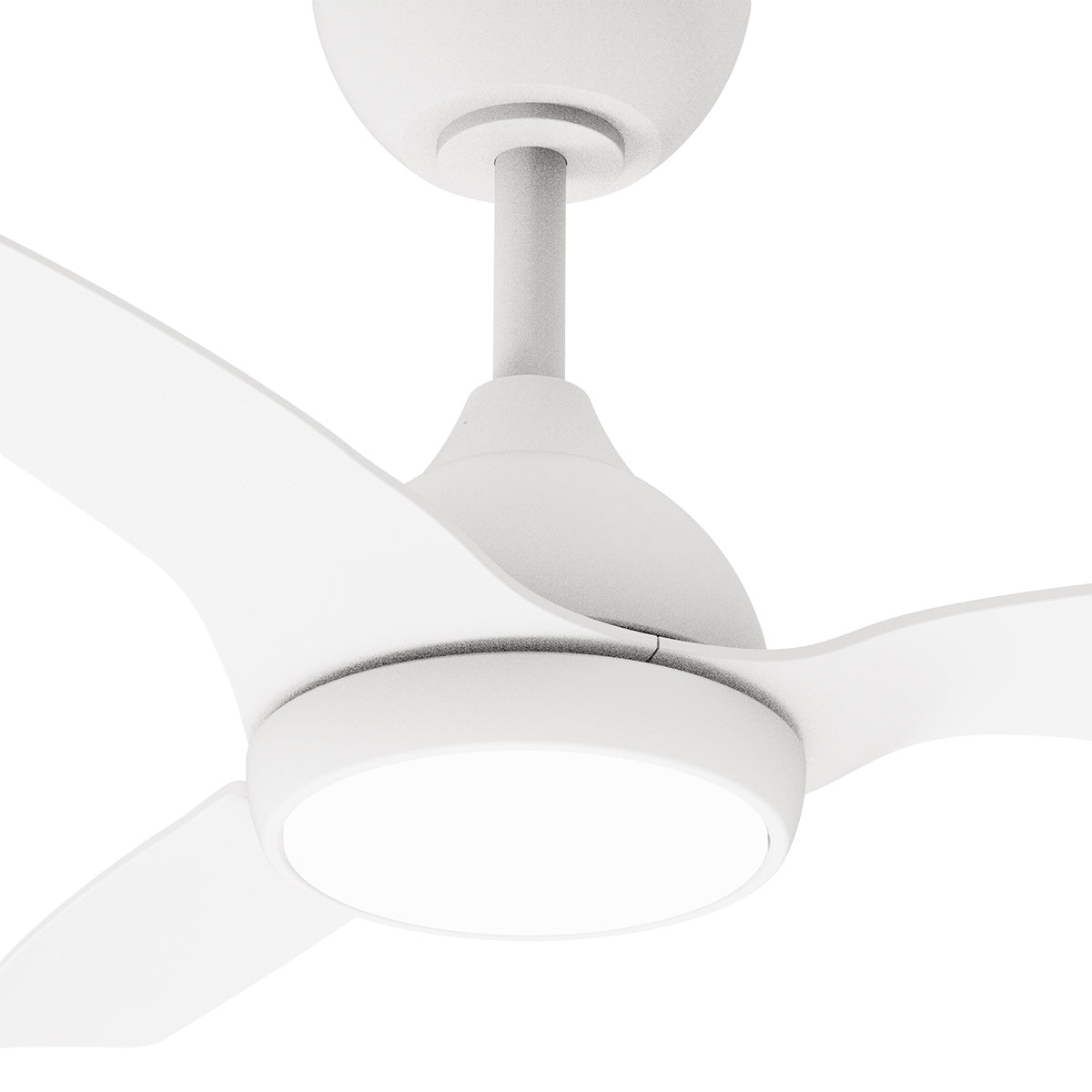

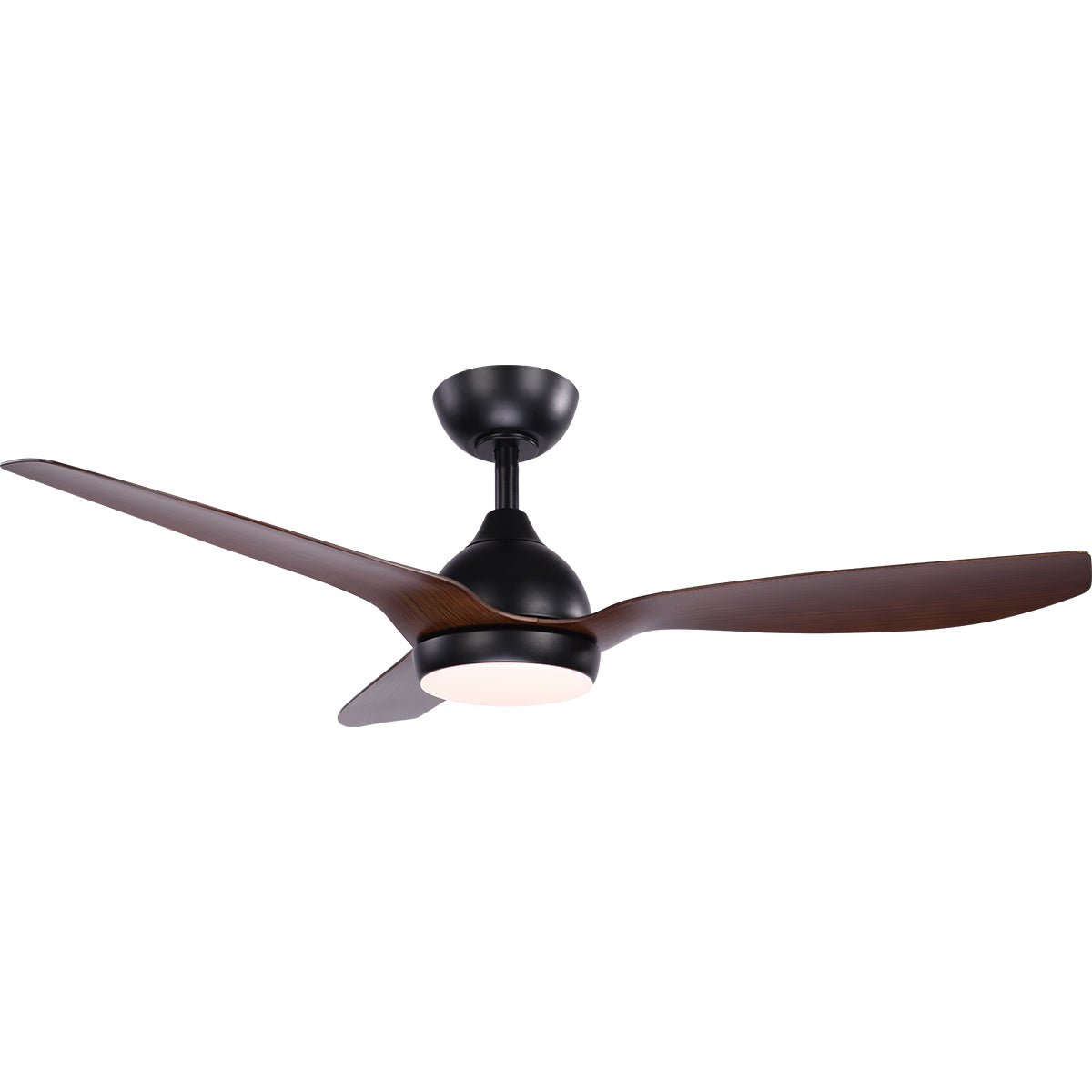

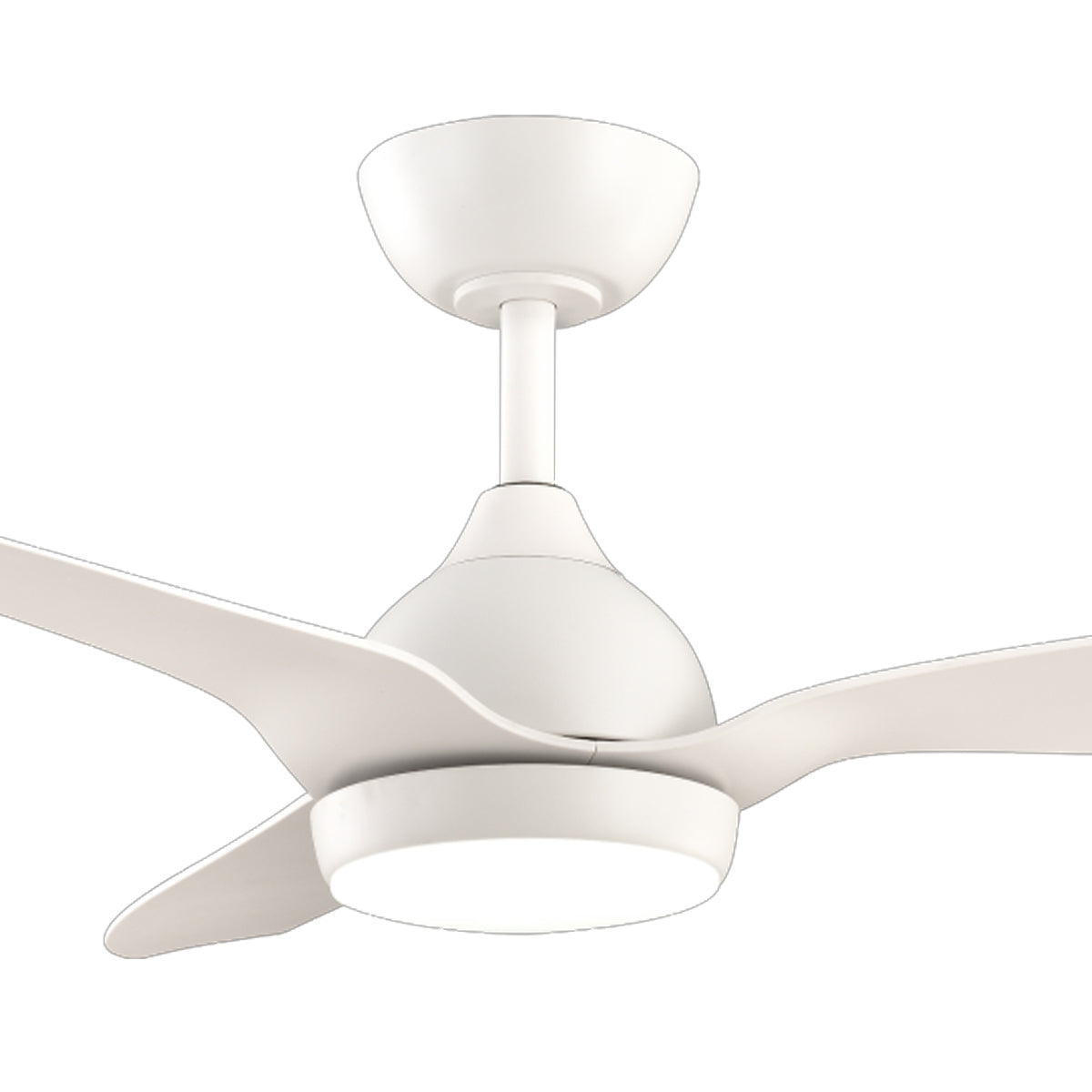

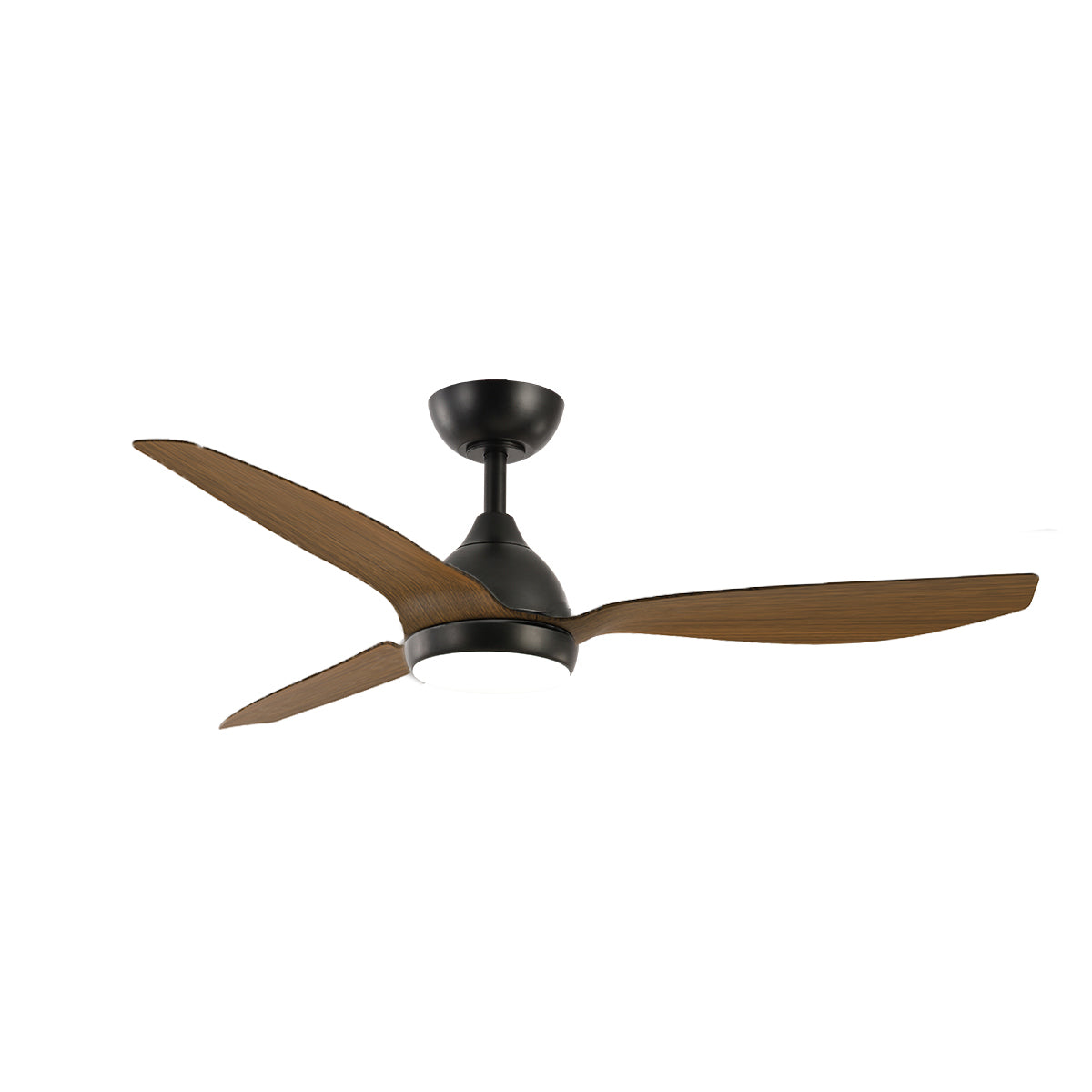

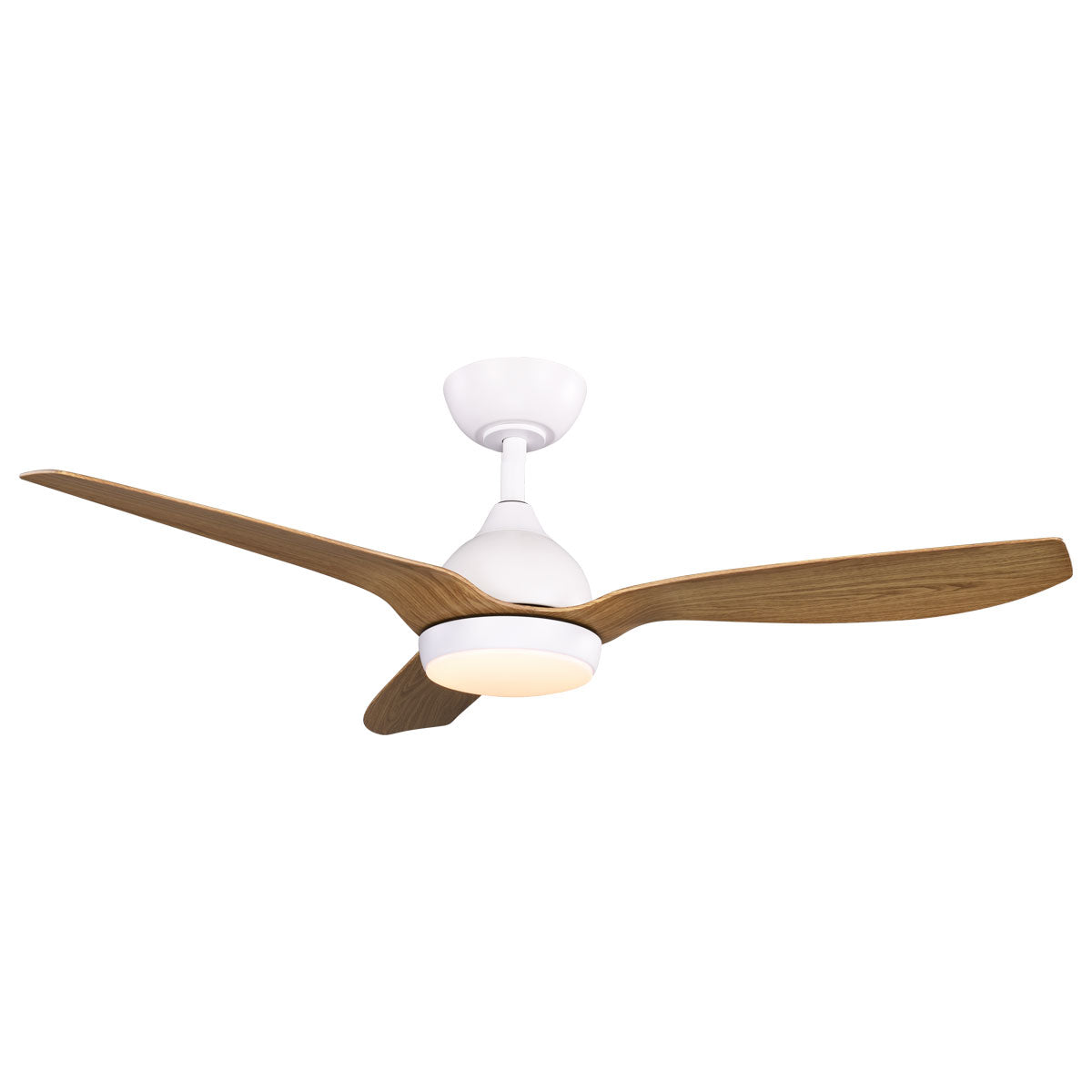

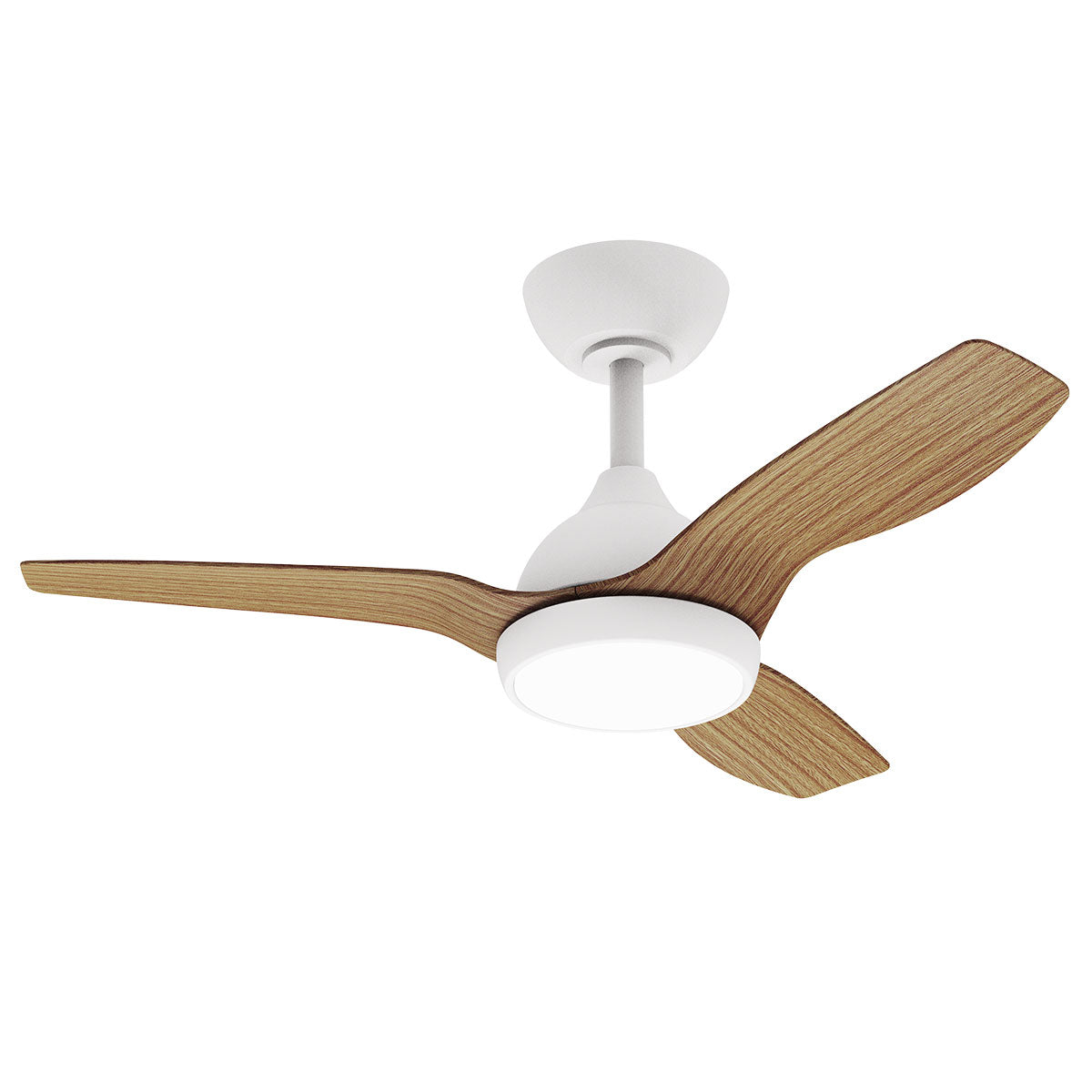

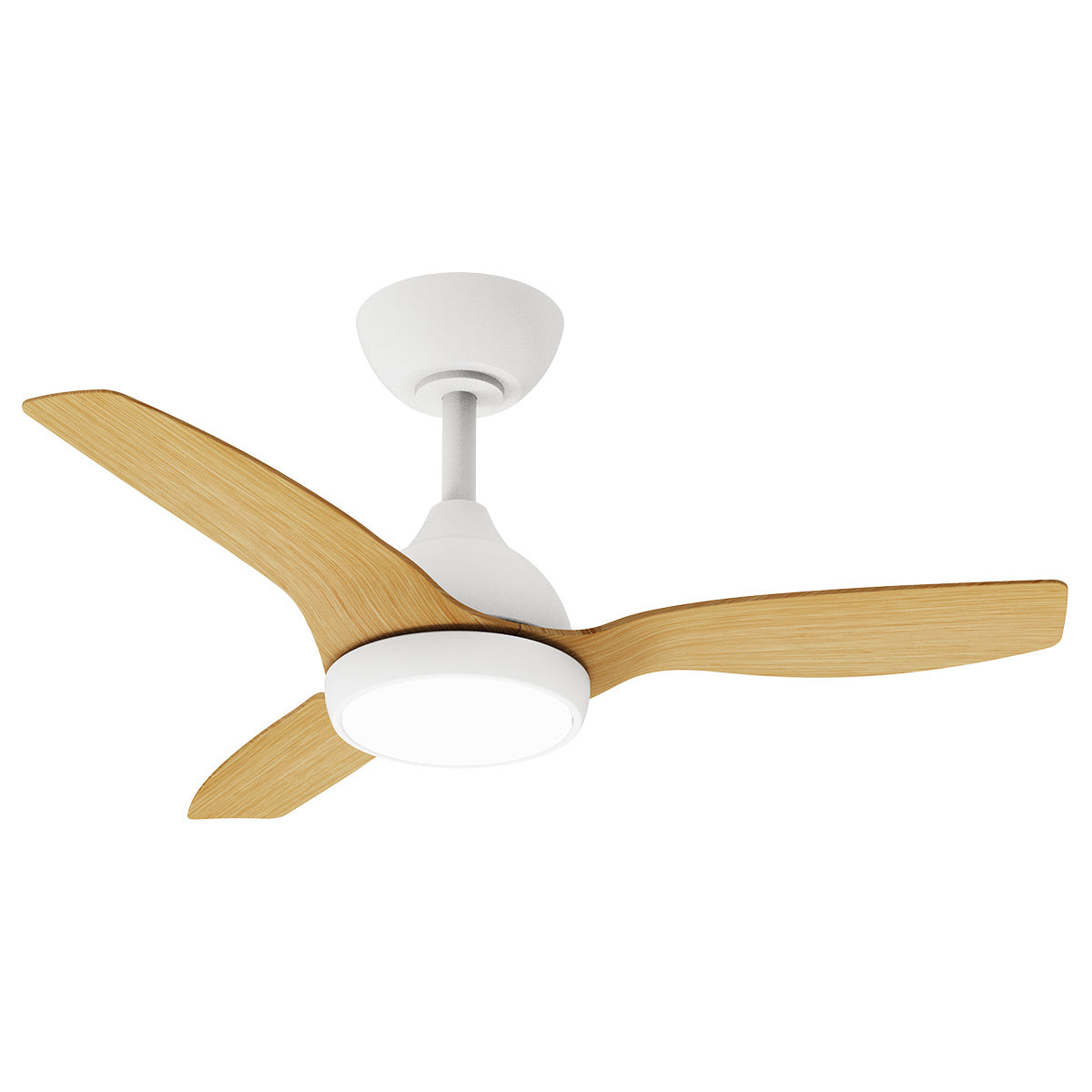

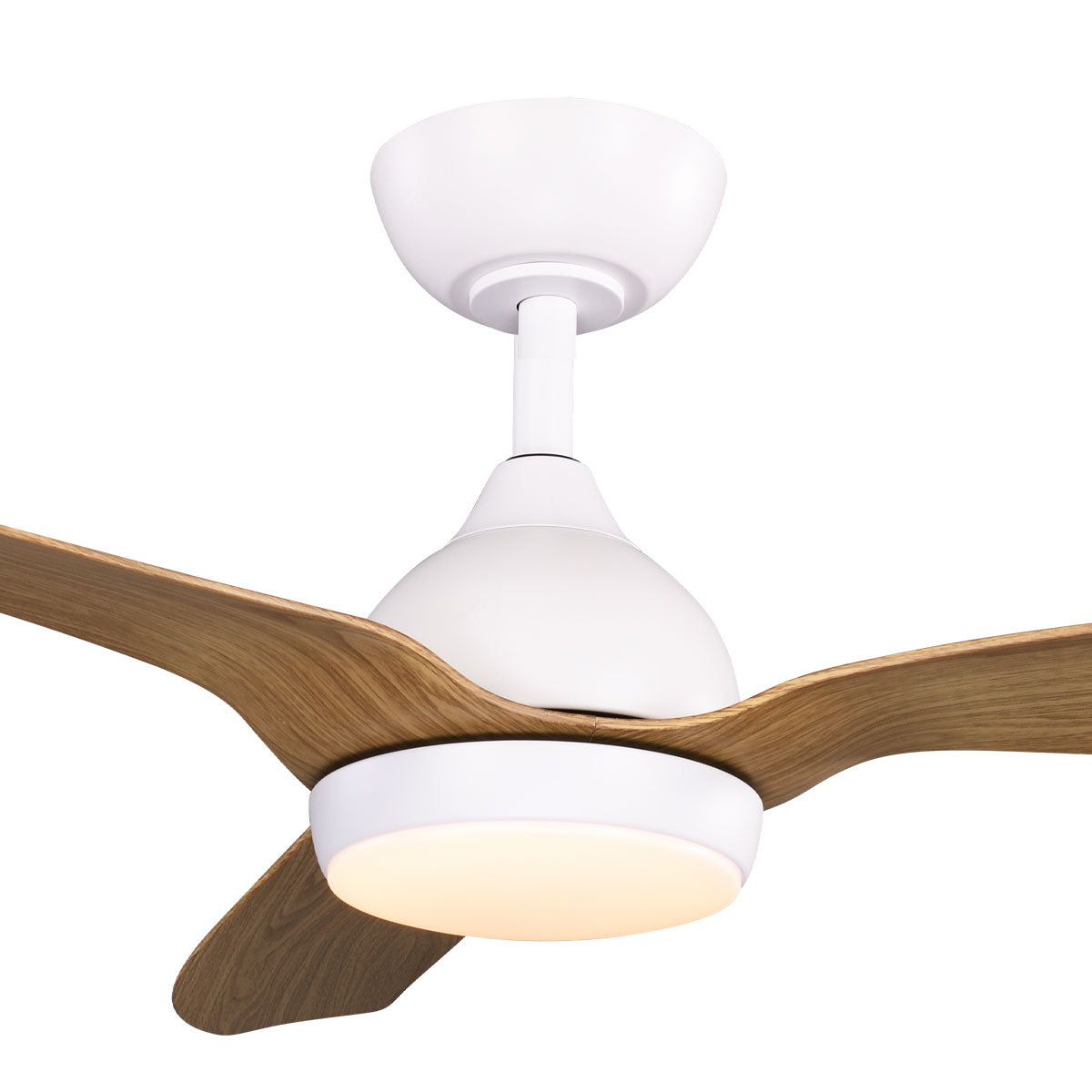

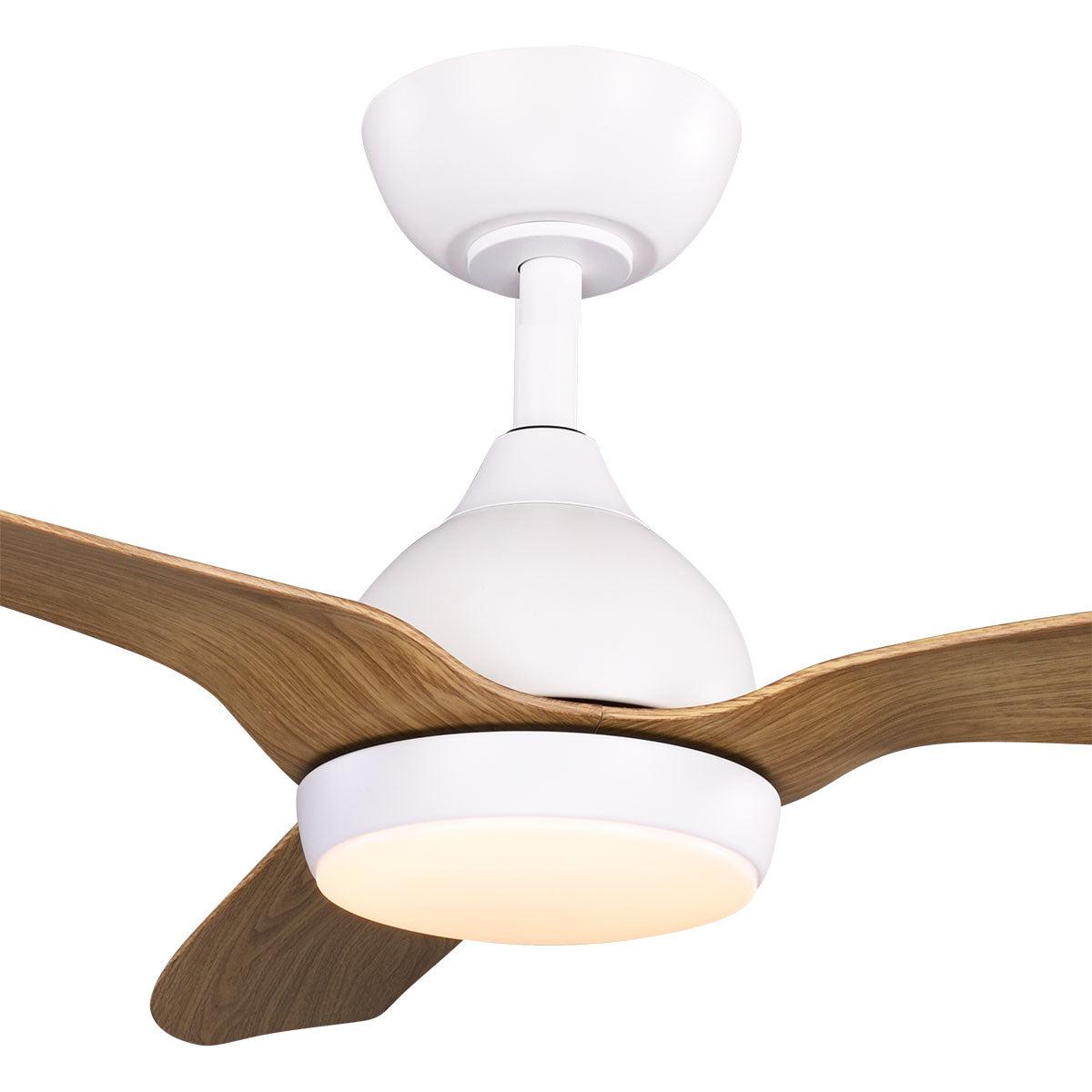

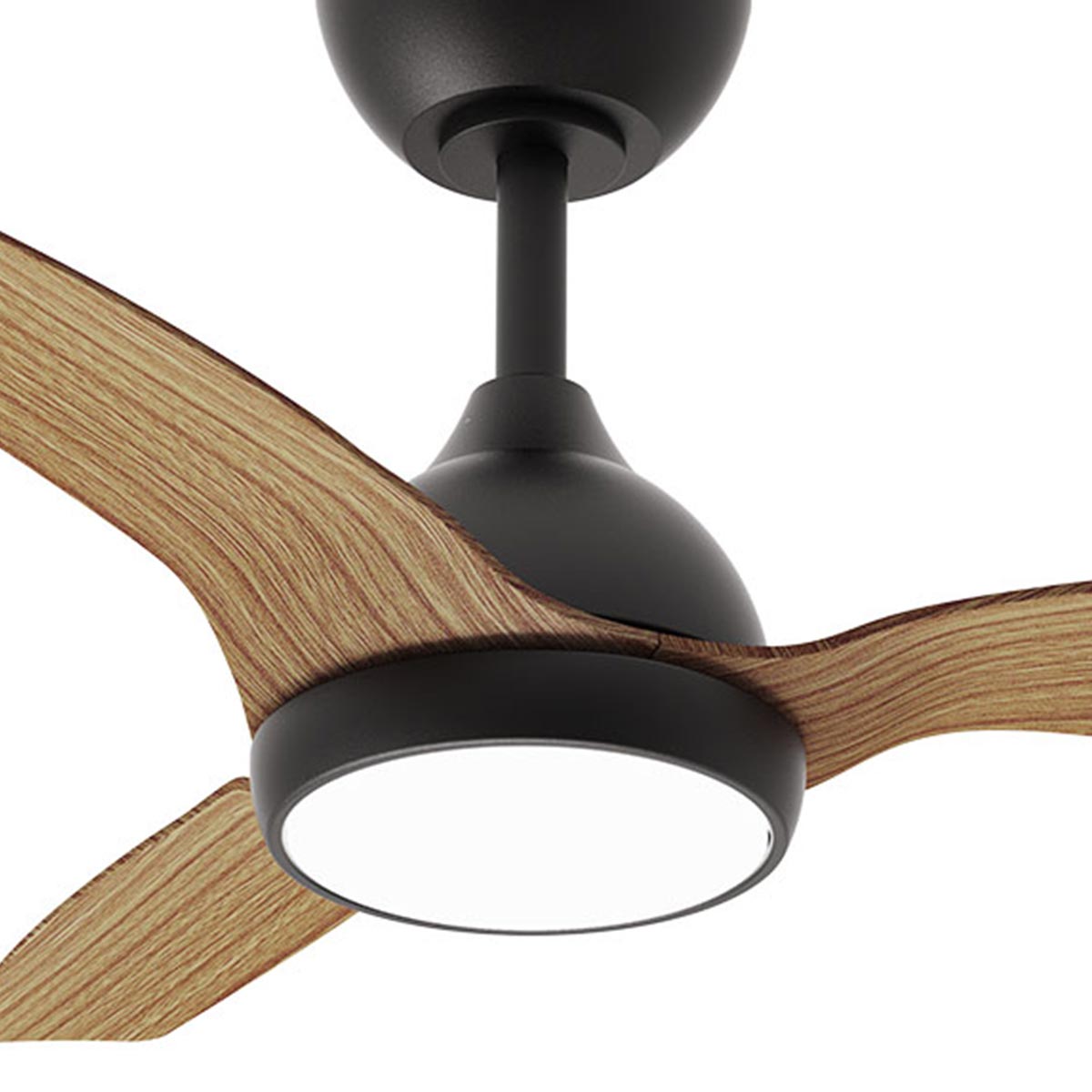

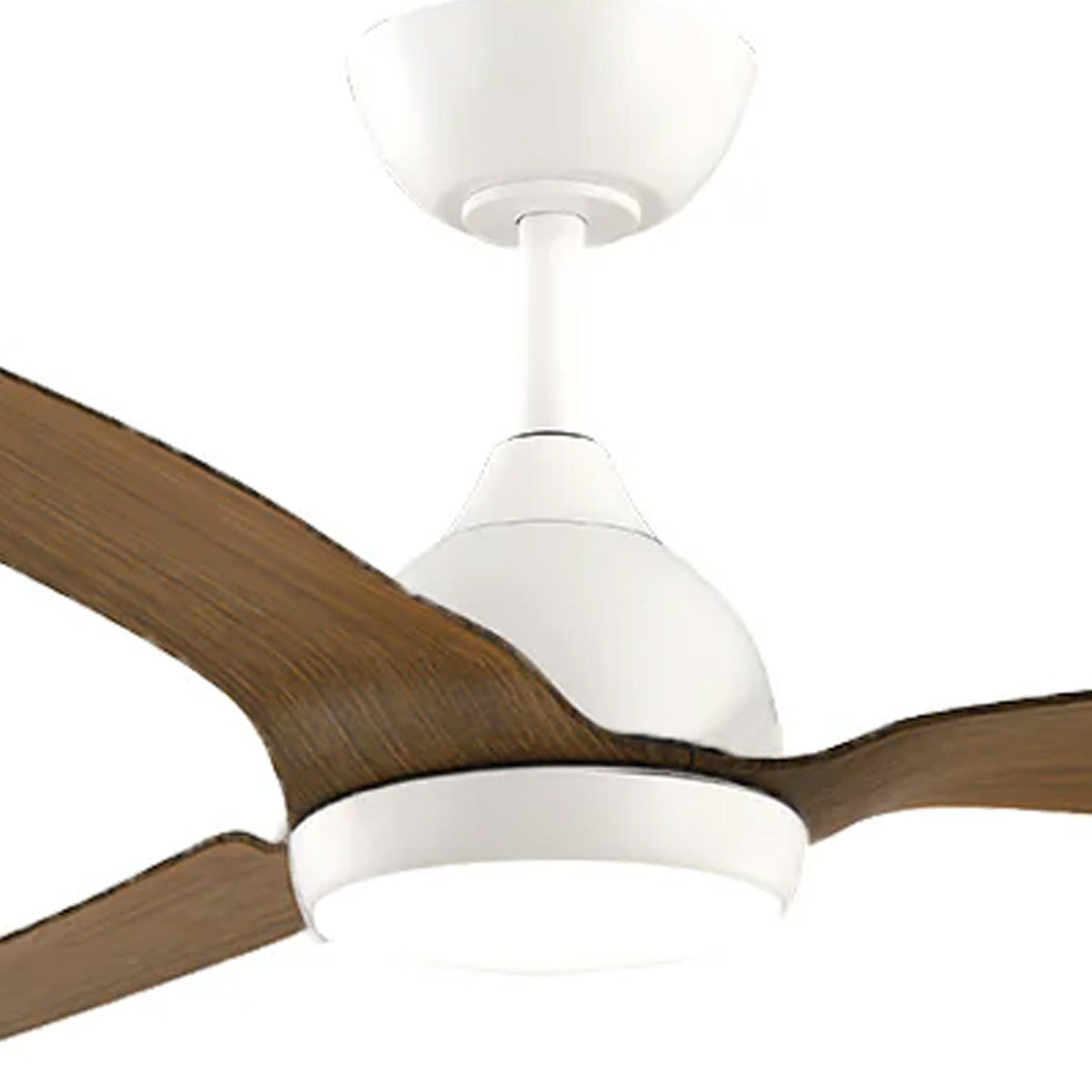

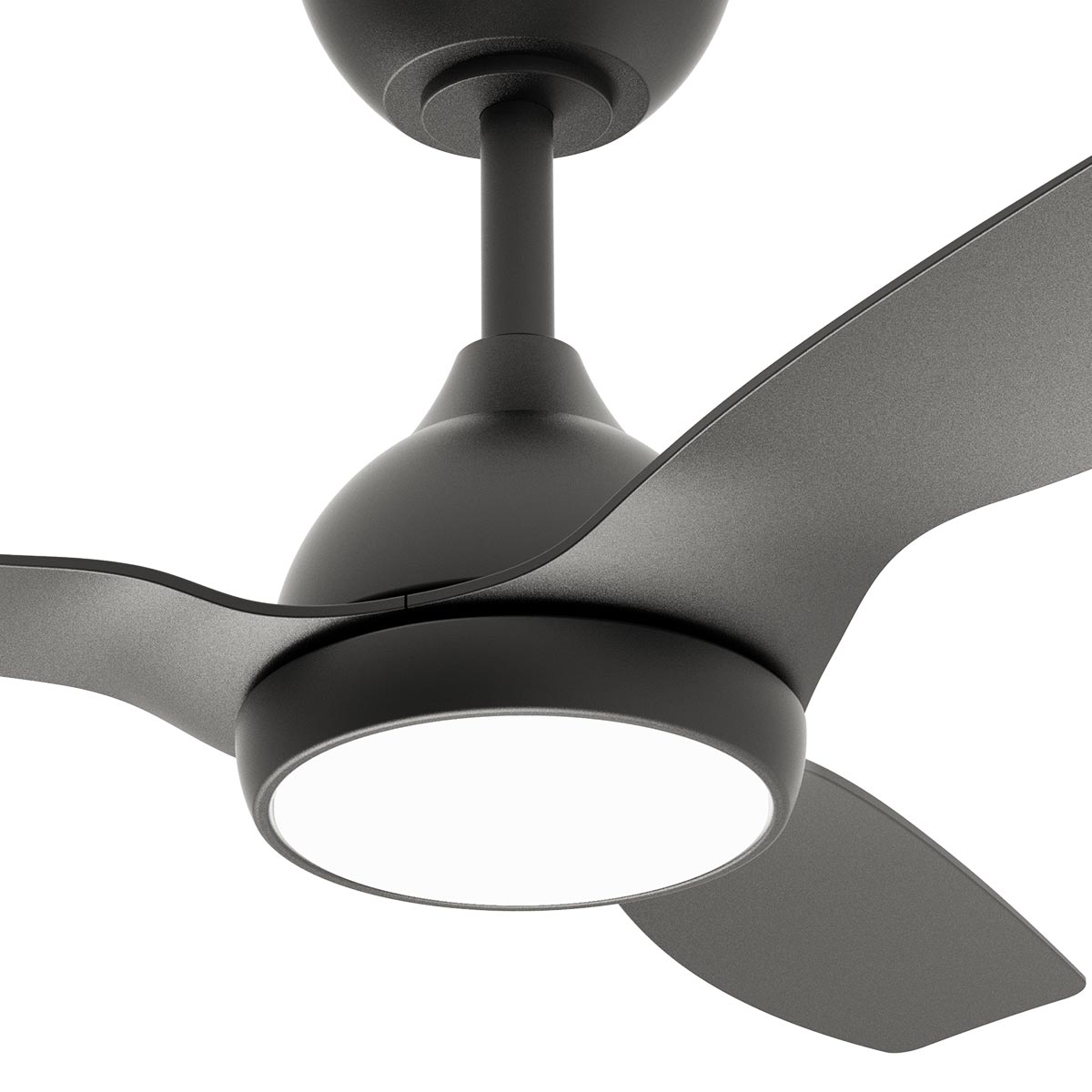

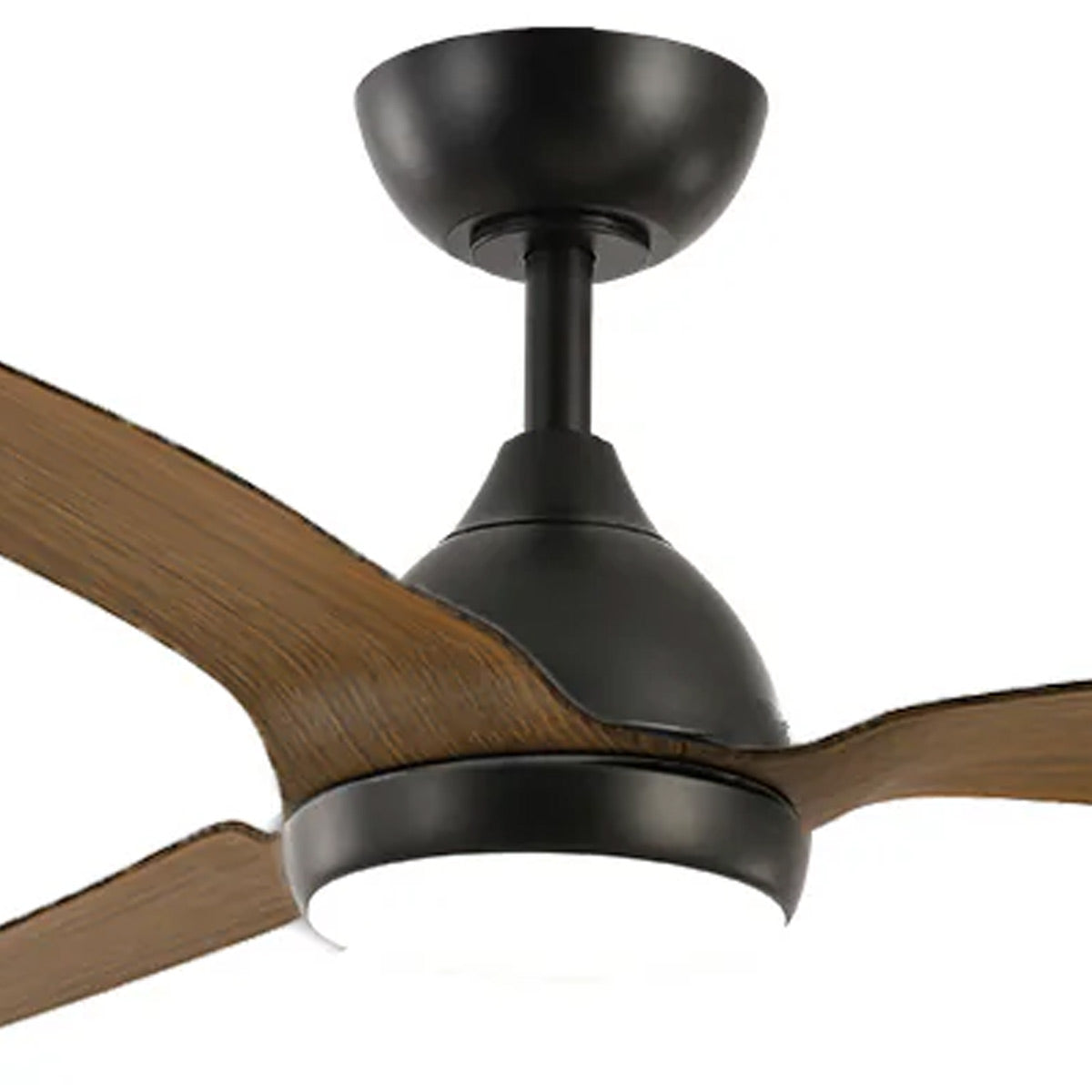

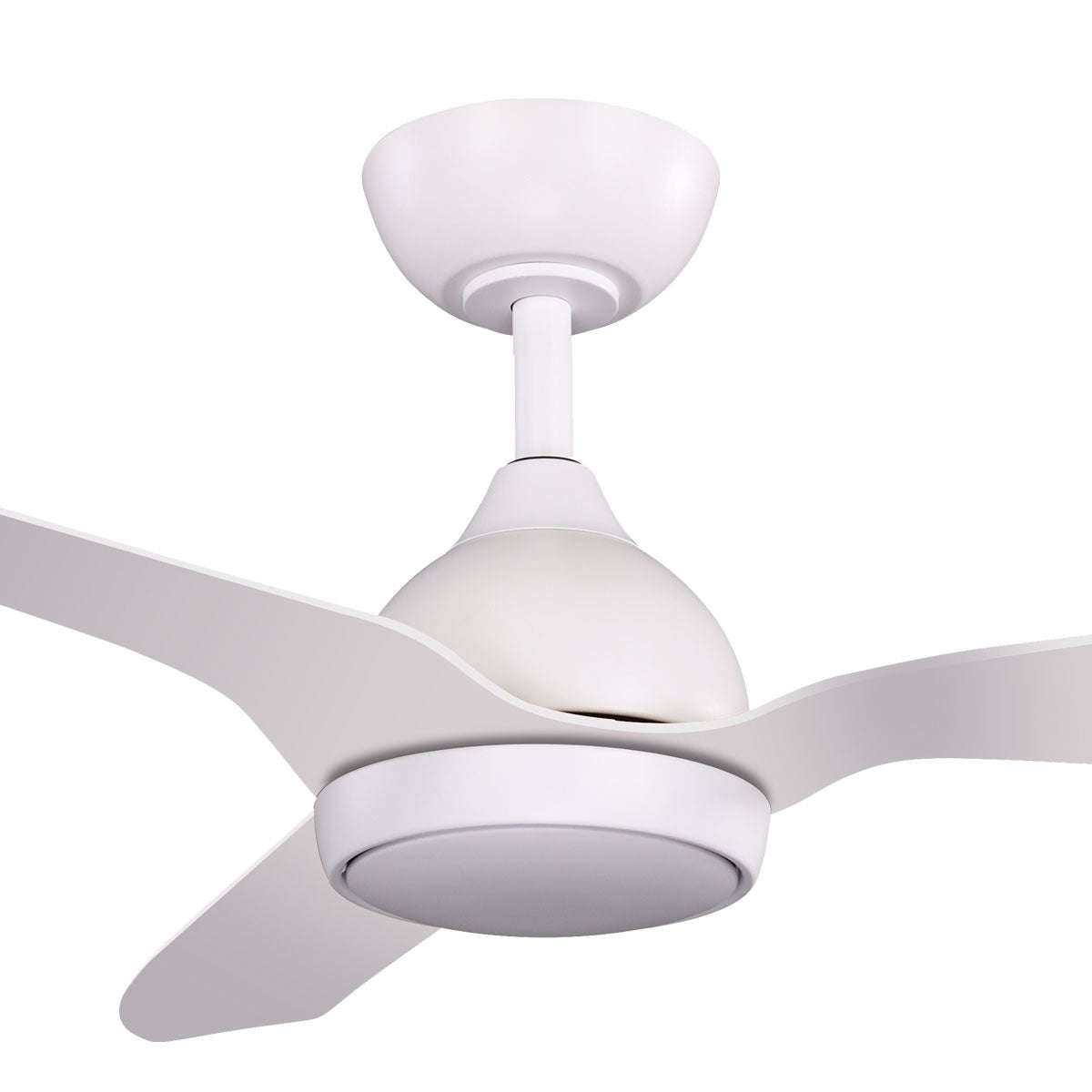

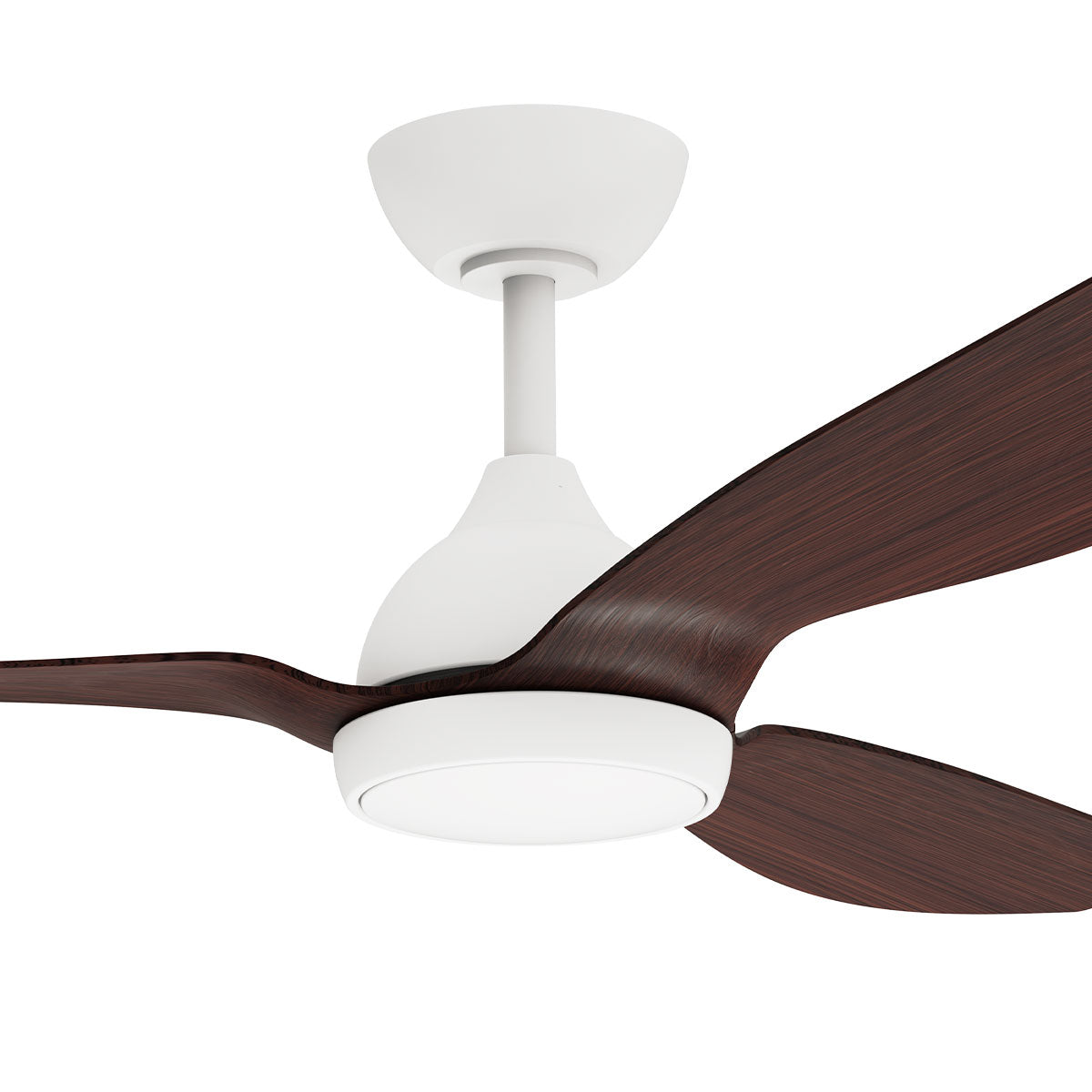

Revo Smart DC Ceiling Fan with LED Light & Remote

Revo Smart DC Ceiling Fan with LED Light & Remote

Revo Smart DC Ceiling Fan with LED Light & Remote

Revo Smart DC Ceiling Fan with LED Light & Remote

Revo Smart DC Ceiling Fan with LED Light & Remote

Revo Smart DC Ceiling Fan with LED Light & Remote

Revo Smart DC Ceiling Fan with LED Light & Remote

Revo Smart DC Ceiling Fan with LED Light & Remote

Revo Smart DC Ceiling Fan with LED Light & Remote

Revo Smart DC Ceiling Fan with LED Light & Remote

Revo Smart DC Ceiling Fan with LED Light & Remote

Revo Smart DC Ceiling Fan with LED Light & Remote

Revo Smart DC Ceiling Fan with LED Light & Remote

Revo Smart DC Ceiling Fan with LED Light & Remote

Revo Smart DC Ceiling Fan with LED Light & Remote

Revo Smart DC Ceiling Fan with LED Light & Remote

Revo Smart DC Ceiling Fan with LED Light & Remote

Revo Smart DC Ceiling Fan with LED Light & Remote

Revo Smart DC Ceiling Fan with LED Light & Remote

Revo Smart DC Ceiling Fan with LED Light & Remote

Revo Smart DC Ceiling Fan with LED Light & Remote

Revo Smart DC Ceiling Fan with LED Light & Remote

Revo Smart DC Ceiling Fan with LED Light & Remote

Revo Smart DC Ceiling Fan with LED Light & Remote

Revo Smart DC Ceiling Fan with LED Light & Remote

Revo Smart DC Ceiling Fan with LED Light & Remote

Revo Smart DC Ceiling Fan with LED Light & Remote

Revo Smart DC Ceiling Fan with LED Light & Remote

Revo Smart DC Ceiling Fan with LED Light & Remote

Revo Smart DC Ceiling Fan with LED Light & Remote

Revo Smart DC Ceiling Fan with LED Light & Remote

Revo Smart DC Ceiling Fan with LED Light & Remote

Revo Smart DC Ceiling Fan with LED Light & Remote

Revo Smart DC Ceiling Fan with LED Light & Remote

Revo Smart DC Ceiling Fan with LED Light & Remote

Revo Smart DC Ceiling Fan with LED Light & Remote

Revo Smart DC Ceiling Fan with LED Light & Remote

Revo Smart DC Ceiling Fan with LED Light & Remote

Revo Smart DC Ceiling Fan with LED Light & Remote

Revo Smart DC Ceiling Fan with LED Light & Remote

Specifications

Blade colour	White
Blade material	UV-Stabilized ABS
Blade pitch	14°
Blade span	52"
Ceiling to blades	280mm
Ceiling to bottom of fan	340mm
Colour	White
Colour temperature	3000K \| 4000K \| 6500K
Controller type	Remote
Dimmable	Yes
Globe included	Built In
Installation location	Indoor & Outdoor Undercover
Lumen output	2600lm
Max airflow	15,300m³/hr
Max ceiling pitch	14°
Motor colour	White
Motor type	DC
Motor wattage	35W
Natural wind mode	Yes
Number of blades	3
Number of lights	1
Number of speeds	6 Speed
Remote control	Included
Smart enabled	true
Summer winder mode	Yes
Warranty	6 Year Warranty (3 Year In-Home + 3 Year Motor Replacement)

Specifications

Blade colour	White
Blade material	UV-Stabilized ABS
Blade pitch	14°
Blade span	52"
Ceiling to blades	280mm
Ceiling to bottom of fan	340mm
Colour	White
Colour temperature	3000K \| 4000K \| 6500K
Controller type	Remote
Dimmable	Yes
Globe included	Built In
Installation location	Indoor & Outdoor Undercover
Lumen output	2600lm
Max airflow	15,300m³/hr
Max ceiling pitch	14°
Motor colour	White
Motor type	DC
Motor wattage	35W
Natural wind mode	Yes
Number of blades	3
Number of lights	1
Number of speeds	6 Speed
Remote control	Included
Smart enabled	true
Summer winder mode	Yes
Warranty	6 Year Warranty (3 Year In-Home + 3 Year Motor Replacement)

Features

A compact DC ceiling fan with an integrated tri-colour LED light, Remote Control and Tuya Wi-Fi app control.

Sized For Smaller Rooms
Available in 36", 48" and 52" blade spans, so you can fit a properly proportioned fan in a room where a larger one would dominate the space.

Light And Airflow From One Fitting
The included 24W tri-colour LED light switches between three colour temperatures — warmer for a bedroom, cooler for a study — with no globe to change.

Quiet, Efficient Airflow
The DC motor runs quietly and uses less power than a traditional AC fan. Six speeds plus Wind Mode let you set anything from gentle circulation to full airflow.

Control It From Your Chair Or Your Phone
Operate both the fan and the light using the included Remote Control, or through the Tuya Wi-Fi app.

Comfortable Through Every Season
Summer and Winter reverse circulates cool air in the warmer months and redistributes warm air in winter, so the fan stays useful all year.

Install Indoors Or Outdoors Undercover
Suitable for indoor rooms and outdoor undercover areas where the fan is not exposed to rain or getting wet, on ceilings pitched up to 14°.

Backed By A 6 Year Warranty
A 3 Year In-Home Warranty plus a further 3 Year Motor Warranty, with a 2 Year Warranty on the LED light kit.

Features

A compact DC ceiling fan with an integrated tri-colour LED light, Remote Control and Tuya Wi-Fi app control.

Sized For Smaller Rooms
Available in 36", 48" and 52" blade spans, so you can fit a properly proportioned fan in a room where a larger one would dominate the space.

Light And Airflow From One Fitting
The included 24W tri-colour LED light switches between three colour temperatures — warmer for a bedroom, cooler for a study — with no globe to change.

Quiet, Efficient Airflow
The DC motor runs quietly and uses less power than a traditional AC fan. Six speeds plus Wind Mode let you set anything from gentle circulation to full airflow.

Control It From Your Chair Or Your Phone
Operate both the fan and the light using the included Remote Control, or through the Tuya Wi-Fi app.

Comfortable Through Every Season
Summer and Winter reverse circulates cool air in the warmer months and redistributes warm air in winter, so the fan stays useful all year.

Install Indoors Or Outdoors Undercover
Suitable for indoor rooms and outdoor undercover areas where the fan is not exposed to rain or getting wet, on ceilings pitched up to 14°.

Backed By A 6 Year Warranty
A 3 Year In-Home Warranty plus a further 3 Year Motor Warranty, with a 2 Year Warranty on the LED light kit.

Specifications

Blade colour	White
Blade material	UV-Stabilized ABS
Blade pitch	14°
Blade span	52"
Ceiling to blades	280mm
Ceiling to bottom of fan	340mm
Colour	White
Colour temperature	3000K \| 4000K \| 6500K
Controller type	Remote
Dimmable	Yes
Globe included	Built In
Installation location	Indoor & Outdoor Undercover
Lumen output	2600lm
Max airflow	15,300m³/hr
Max ceiling pitch	14°
Motor colour	White
Motor type	DC
Motor wattage	35W
Natural wind mode	Yes
Number of blades	3
Number of lights	1
Number of speeds	6 Speed
Remote control	Included
Smart enabled	true
Summer winder mode	Yes
Warranty	6 Year Warranty (3 Year In-Home + 3 Year Motor Replacement)

Specifications

Blade colour	White
Blade material	UV-Stabilized ABS
Blade pitch	14°
Blade span	52"
Ceiling to blades	280mm
Ceiling to bottom of fan	340mm
Colour	White
Colour temperature	3000K \| 4000K \| 6500K
Controller type	Remote
Dimmable	Yes
Globe included	Built In
Installation location	Indoor & Outdoor Undercover
Lumen output	2600lm
Max airflow	15,300m³/hr
Max ceiling pitch	14°
Motor colour	White
Motor type	DC
Motor wattage	35W
Natural wind mode	Yes
Number of blades	3
Number of lights	1
Number of speeds	6 Speed
Remote control	Included
Smart enabled	true
Summer winder mode	Yes
Warranty	6 Year Warranty (3 Year In-Home + 3 Year Motor Replacement)

Best suited for

36" — small bedrooms, studies, nurseries and narrow covered outdoor areas.
48" — standard bedrooms, and a common choice when replacing an existing 48" fan.
52" — larger bedrooms and standard living areas.
Rooms with a single ceiling point, where one fitting needs to provide both air movement and light.
New builds and renovations where integrated lighting is preferred over a separate light fitting.
Upgrading an older AC fan — the DC motor runs more quietly, draws less power, and adds Remote Control and app control.
Rooms with high ceilings, paired with the Extension Rod for FanForce Ceiling Fans.
Ceilings pitched up to 14°.
Indoor rooms and outdoor undercover areas — covered patios, alfresco spaces and verandahs.
Final suitability depends on room dimensions, ceiling height and layout, so please ask if you are unsure.

Best suited for

36" — small bedrooms, studies, nurseries and narrow covered outdoor areas.
48" — standard bedrooms, and a common choice when replacing an existing 48" fan.
52" — larger bedrooms and standard living areas.
Rooms with a single ceiling point, where one fitting needs to provide both air movement and light.
New builds and renovations where integrated lighting is preferred over a separate light fitting.
Upgrading an older AC fan — the DC motor runs more quietly, draws less power, and adds Remote Control and app control.
Rooms with high ceilings, paired with the Extension Rod for FanForce Ceiling Fans.
Ceilings pitched up to 14°.
Indoor rooms and outdoor undercover areas — covered patios, alfresco spaces and verandahs.
Final suitability depends on room dimensions, ceiling height and layout, so please ask if you are unsure.

Before you buy

The tri-colour LED light kit is included. For the fan on its own, choose the Revo Smart DC Ceiling Fan with Remote Control.
The Remote Control is included and Tuya Wi-Fi app control is built in.
Performance varies with size. The 36" runs an 18W motor at 7,480m³/hr, while the 48" and 52" both run a 35W motor at 12,300m³/hr and 15,300m³/hr. For a standard bedroom, the 48" is generally the more suitable choice.
Maximum ceiling pitch is 14°.
It is suitable for indoor and outdoor undercover areas where it is not exposed to rain or getting wet. There is no IP rating, so it is not suitable for a fully exposed position.
The fan carries a 6 Year Warranty and the LED light kit a 2 Year Warranty.
Installation must be completed by a licensed electrician.

Before you buy

The tri-colour LED light kit is included. For the fan on its own, choose the Revo Smart DC Ceiling Fan with Remote Control.
The Remote Control is included and Tuya Wi-Fi app control is built in.
Performance varies with size. The 36" runs an 18W motor at 7,480m³/hr, while the 48" and 52" both run a 35W motor at 12,300m³/hr and 15,300m³/hr. For a standard bedroom, the 48" is generally the more suitable choice.
Maximum ceiling pitch is 14°.
It is suitable for indoor and outdoor undercover areas where it is not exposed to rain or getting wet. There is no IP rating, so it is not suitable for a fully exposed position.
The fan carries a 6 Year Warranty and the LED light kit a 2 Year Warranty.
Installation must be completed by a licensed electrician.

Description

The FanForce Revo is a compact DC ceiling fan with an integrated tri-colour LED light, designed for rooms where a single fitting needs to provide both air movement and light. Available in 36", 48" and 52" sizes, the smaller blade spans suit bedrooms, studies and narrower covered outdoor areas, while the 52" is well suited to standard living spaces.

The tri-colour LED light switches between three colour temperatures, so the same fitting can provide warmer light in a bedroom or cooler, clearer light in a study, with no globe to change. Operate both the fan and the light using the included Remote Control, or through the Tuya Wi-Fi app.

The quiet DC motor offers six speed settings along with a Wind Mode that varies airflow rather than holding one constant speed, and reverses for Summer and Winter use. Motor wattage and airflow vary by size — 18W and 7,480m³/hr at 36", and 35W at both 48" and 52", delivering 12,300m³/hr and 15,300m³/hr respectively.

The Revo is suitable for indoor and outdoor undercover areas where it is not exposed to rain or getting wet, and suits ceilings pitched up to 14°. For higher ceilings, pair it with the Extension Rod for FanForce Ceiling Fans.

The Revo Smart DC Ceiling Fan with Remote Control is the same fan supplied without the light kit, and the Revo 24W LED Dimmable Light Kit is also available separately. You can browse the wider selection under ceiling fans with a light.

Best Suited For

36" — small bedrooms, studies, nurseries and narrow covered outdoor areas.
48" — standard bedrooms, and a common choice when replacing an existing 48" fan.
52" — larger bedrooms and standard living areas.
Rooms with a single ceiling point, where one fitting needs to provide both air movement and light.
New builds and renovations where integrated lighting is preferred over a separate light fitting.
Upgrading an older AC fan — the DC motor runs more quietly, draws less power, and adds Remote Control and app control.
Rooms with high ceilings, paired with the Extension Rod for FanForce Ceiling Fans.
Ceilings pitched up to 14°.
Indoor rooms and outdoor undercover areas — covered patios, alfresco spaces and verandahs.
Final suitability depends on room dimensions, ceiling height and layout, so please ask if you are unsure.

Before You Buy

The tri-colour LED light kit is included. For the fan on its own, choose the Revo Smart DC Ceiling Fan with Remote Control.
The Remote Control is included and Tuya Wi-Fi app control is built in.
Performance varies with size. The 36" runs an 18W motor at 7,480m³/hr, while the 48" and 52" both run a 35W motor at 12,300m³/hr and 15,300m³/hr. For a standard bedroom, the 48" is generally the more suitable choice.
Maximum ceiling pitch is 14°.
It is suitable for indoor and outdoor undercover areas where it is not exposed to rain or getting wet. There is no IP rating, so it is not suitable for a fully exposed position.
The fan carries a 6 Year Warranty and the LED light kit a 2 Year Warranty.
Installation must be completed by a licensed electrician.

Compare Within the FanForce Range

Revo Smart DC Ceiling Fan with Remote Control — the same fan supplied without the light kit.
Within the FanForce range, the Revo is the only model available in a 36" blade span.
Capri II Smart DC Ceiling Fan with Remote Control — available in 52", 64" and 72" for larger rooms.
Cumulus — a four-blade design in 48" and 52".
Ares 52" Low Profile — a low-profile design for rooms with limited ceiling height.

Specifications

Brand	FanForce
Model	Revo
Motor Type	DC
Motor Wattage	18W (36"), 35W (48"), 35W (52")
Max Airflow	7,480m³/hr (36"), 12,300m³/hr (48"), 15,300m³/hr (52")
Blade Material	ABS Plastic
Blade Pitch	14°
Light	24W tri-colour LED, included
Light Colour Temperature	Tri-Colour
Speed Settings	6 speed + Wind Mode
Reverse Mode	Yes — Summer and Winter settings
Controller Type	Remote Control (included) + Tuya Wi-Fi app
Smart Connectivity	Wi-Fi, Tuya app
Ceiling to Blades	280mm
Max Ceiling Pitch	14°
Installation Location	Indoor and outdoor undercover areas
Warranty	6 Year Warranty — 3 Year In-Home Warranty plus 3 Year Motor Warranty. The LED light kit is covered by a 2 Year Warranty.

Description

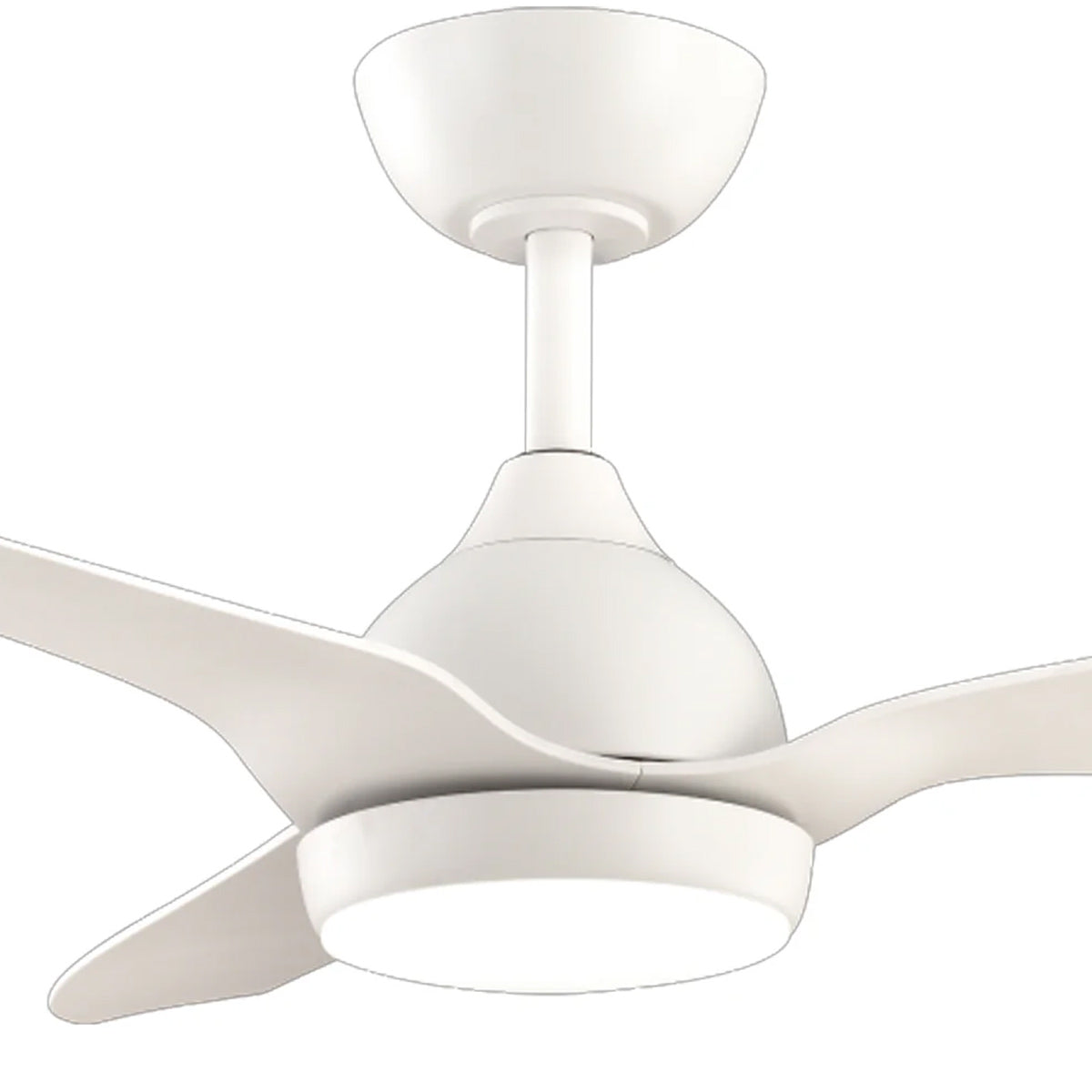

The FanForce Revo is a compact DC ceiling fan with an integrated tri-colour LED light, designed for rooms where a single fitting needs to provide both air movement and light. Available in 36", 48" and 52" sizes, the smaller blade spans suit bedrooms, studies and narrower covered outdoor areas, while the 52" is well suited to standard living spaces.

The tri-colour LED light switches between three colour temperatures, so the same fitting can provide warmer light in a bedroom or cooler, clearer light in a study, with no globe to change. Operate both the fan and the light using the included Remote Control, or through the Tuya Wi-Fi app.

The quiet DC motor offers six speed settings along with a Wind Mode that varies airflow rather than holding one constant speed, and reverses for Summer and Winter use. Motor wattage and airflow vary by size — 18W and 7,480m³/hr at 36", and 35W at both 48" and 52", delivering 12,300m³/hr and 15,300m³/hr respectively.

The Revo is suitable for indoor and outdoor undercover areas where it is not exposed to rain or getting wet, and suits ceilings pitched up to 14°. For higher ceilings, pair it with the Extension Rod for FanForce Ceiling Fans.

The Revo Smart DC Ceiling Fan with Remote Control is the same fan supplied without the light kit, and the Revo 24W LED Dimmable Light Kit is also available separately. You can browse the wider selection under ceiling fans with a light.

Best Suited For

36" — small bedrooms, studies, nurseries and narrow covered outdoor areas.
48" — standard bedrooms, and a common choice when replacing an existing 48" fan.
52" — larger bedrooms and standard living areas.
Rooms with a single ceiling point, where one fitting needs to provide both air movement and light.
New builds and renovations where integrated lighting is preferred over a separate light fitting.
Upgrading an older AC fan — the DC motor runs more quietly, draws less power, and adds Remote Control and app control.
Rooms with high ceilings, paired with the Extension Rod for FanForce Ceiling Fans.
Ceilings pitched up to 14°.
Indoor rooms and outdoor undercover areas — covered patios, alfresco spaces and verandahs.
Final suitability depends on room dimensions, ceiling height and layout, so please ask if you are unsure.

Before You Buy

The tri-colour LED light kit is included. For the fan on its own, choose the Revo Smart DC Ceiling Fan with Remote Control.
The Remote Control is included and Tuya Wi-Fi app control is built in.
Performance varies with size. The 36" runs an 18W motor at 7,480m³/hr, while the 48" and 52" both run a 35W motor at 12,300m³/hr and 15,300m³/hr. For a standard bedroom, the 48" is generally the more suitable choice.
Maximum ceiling pitch is 14°.
It is suitable for indoor and outdoor undercover areas where it is not exposed to rain or getting wet. There is no IP rating, so it is not suitable for a fully exposed position.
The fan carries a 6 Year Warranty and the LED light kit a 2 Year Warranty.
Installation must be completed by a licensed electrician.

Compare Within the FanForce Range

Revo Smart DC Ceiling Fan with Remote Control — the same fan supplied without the light kit.
Within the FanForce range, the Revo is the only model available in a 36" blade span.
Capri II Smart DC Ceiling Fan with Remote Control — available in 52", 64" and 72" for larger rooms.
Cumulus — a four-blade design in 48" and 52".
Ares 52" Low Profile — a low-profile design for rooms with limited ceiling height.

Specifications

Brand	FanForce
Model	Revo
Motor Type	DC
Motor Wattage	18W (36"), 35W (48"), 35W (52")
Max Airflow	7,480m³/hr (36"), 12,300m³/hr (48"), 15,300m³/hr (52")
Blade Material	ABS Plastic
Blade Pitch	14°
Light	24W tri-colour LED, included
Light Colour Temperature	Tri-Colour
Speed Settings	6 speed + Wind Mode
Reverse Mode	Yes — Summer and Winter settings
Controller Type	Remote Control (included) + Tuya Wi-Fi app
Smart Connectivity	Wi-Fi, Tuya app
Ceiling to Blades	280mm
Max Ceiling Pitch	14°
Installation Location	Indoor and outdoor undercover areas
Warranty	6 Year Warranty — 3 Year In-Home Warranty plus 3 Year Motor Warranty. The LED light kit is covered by a 2 Year Warranty.

Downloads

Download Datasheet

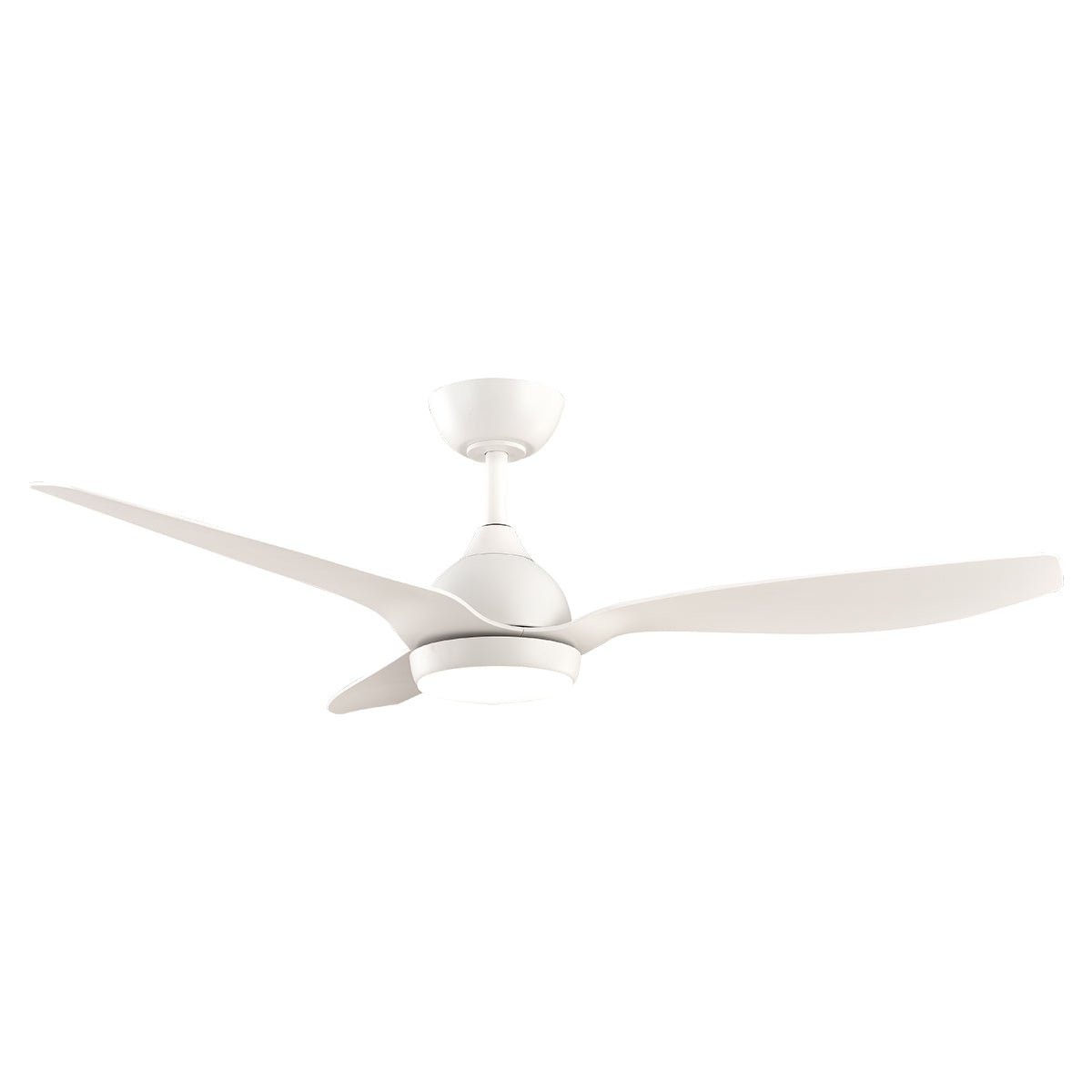

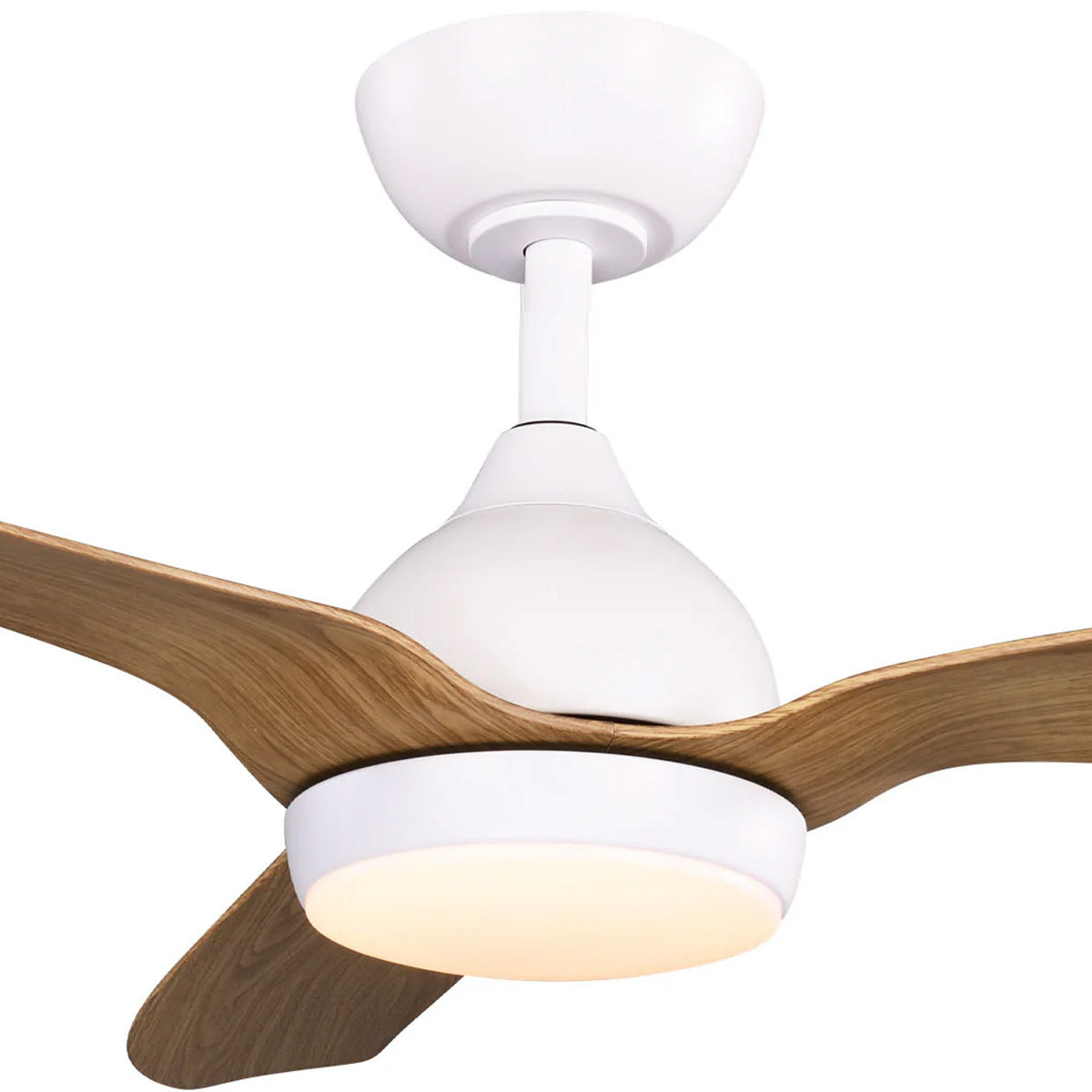

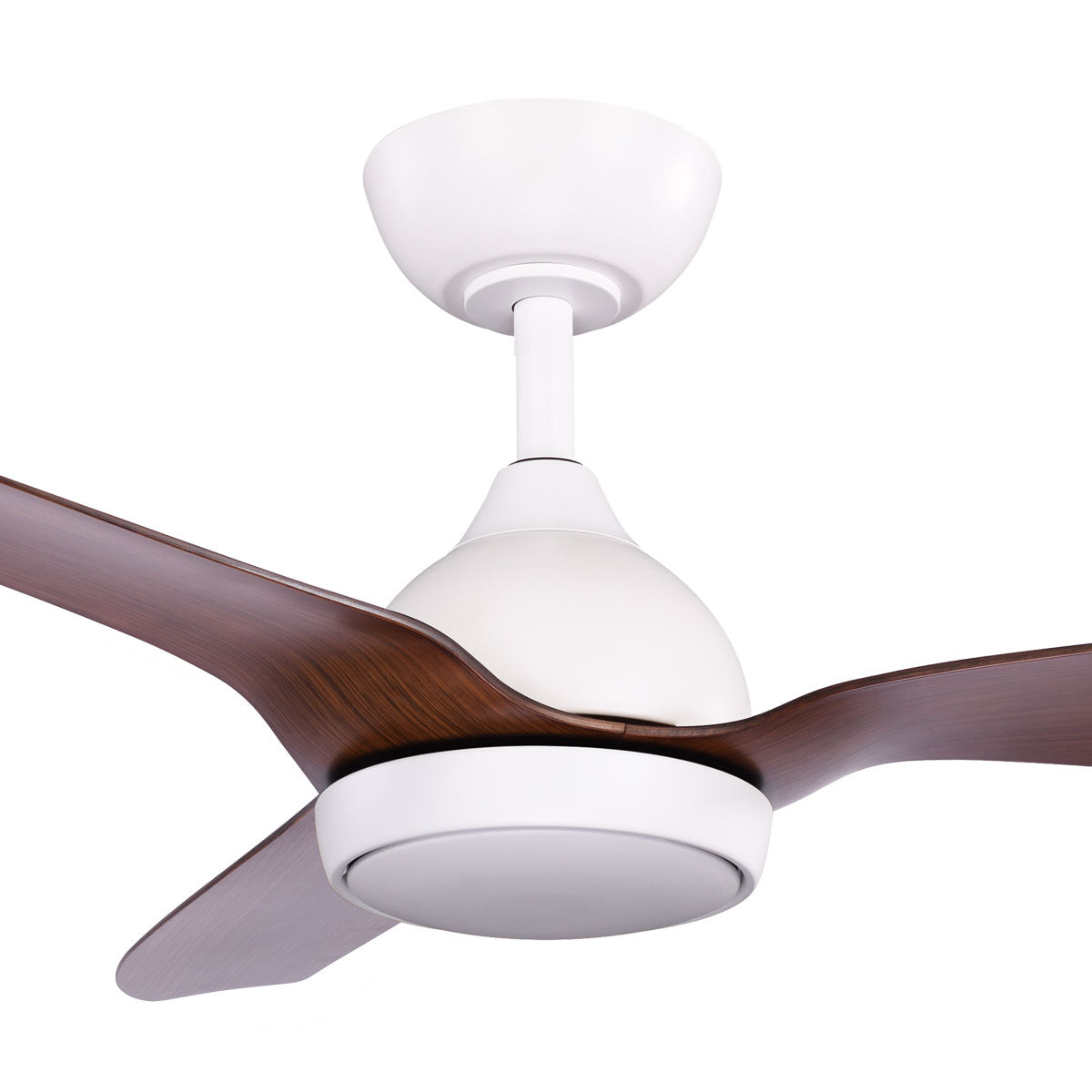

Revo Smart DC Ceiling Fan with LED Light & Remote

Revo Smart DC Ceiling Fan with LED Light & Remote

Vendor: FanForce

$218.95

$218.95 ~~$398.95~~

Blade Size: 52"

52" 48" 36"

Motor Colour: White

White Black

Blade Colour: White

✔ In stock

SKU: FF10416WH

Want a better price? Ask for a JD Deal.

Call us (07) 3809 2011 or chat with us below

Need Help? Got a Question? Contact our Trade experts.

(07) 3088 6266 - trade@jdlighting.com.au

Specifications

Blade colour	White
Blade material	UV-Stabilized ABS
Blade pitch	14°
Blade span	52"
Ceiling to blades	280mm
Ceiling to bottom of fan	340mm
Colour	White
Colour temperature	3000K \| 4000K \| 6500K
Controller type	Remote
Dimmable	Yes
Globe included	Built In
Installation location	Indoor & Outdoor Undercover
Lumen output	2600lm
Max airflow	15,300m³/hr
Max ceiling pitch	14°
Motor colour	White
Motor type	DC
Motor wattage	35W
Natural wind mode	Yes
Number of blades	3
Number of lights	1
Number of speeds	6 Speed
Remote control	Included
Smart enabled	true
Summer winder mode	Yes
Warranty	6 Year Warranty (3 Year In-Home + 3 Year Motor Replacement)

Specifications

Blade colour	White
Blade material	UV-Stabilized ABS
Blade pitch	14°
Blade span	52"
Ceiling to blades	280mm
Ceiling to bottom of fan	340mm
Colour	White
Colour temperature	3000K \| 4000K \| 6500K
Controller type	Remote
Dimmable	Yes
Globe included	Built In
Installation location	Indoor & Outdoor Undercover
Lumen output	2600lm
Max airflow	15,300m³/hr
Max ceiling pitch	14°
Motor colour	White
Motor type	DC
Motor wattage	35W
Natural wind mode	Yes
Number of blades	3
Number of lights	1
Number of speeds	6 Speed
Remote control	Included
Smart enabled	true
Summer winder mode	Yes
Warranty	6 Year Warranty (3 Year In-Home + 3 Year Motor Replacement)

Features

A compact DC ceiling fan with an integrated tri-colour LED light, Remote Control and Tuya Wi-Fi app control.

Sized For Smaller Rooms
Available in 36", 48" and 52" blade spans, so you can fit a properly proportioned fan in a room where a larger one would dominate the space.

Light And Airflow From One Fitting
The included 24W tri-colour LED light switches between three colour temperatures — warmer for a bedroom, cooler for a study — with no globe to change.

Quiet, Efficient Airflow
The DC motor runs quietly and uses less power than a traditional AC fan. Six speeds plus Wind Mode let you set anything from gentle circulation to full airflow.

Control It From Your Chair Or Your Phone
Operate both the fan and the light using the included Remote Control, or through the Tuya Wi-Fi app.

Comfortable Through Every Season
Summer and Winter reverse circulates cool air in the warmer months and redistributes warm air in winter, so the fan stays useful all year.

Install Indoors Or Outdoors Undercover
Suitable for indoor rooms and outdoor undercover areas where the fan is not exposed to rain or getting wet, on ceilings pitched up to 14°.

Backed By A 6 Year Warranty
A 3 Year In-Home Warranty plus a further 3 Year Motor Warranty, with a 2 Year Warranty on the LED light kit.

Features

A compact DC ceiling fan with an integrated tri-colour LED light, Remote Control and Tuya Wi-Fi app control.

Sized For Smaller Rooms
Available in 36", 48" and 52" blade spans, so you can fit a properly proportioned fan in a room where a larger one would dominate the space.

Light And Airflow From One Fitting
The included 24W tri-colour LED light switches between three colour temperatures — warmer for a bedroom, cooler for a study — with no globe to change.

Quiet, Efficient Airflow
The DC motor runs quietly and uses less power than a traditional AC fan. Six speeds plus Wind Mode let you set anything from gentle circulation to full airflow.

Control It From Your Chair Or Your Phone
Operate both the fan and the light using the included Remote Control, or through the Tuya Wi-Fi app.

Comfortable Through Every Season
Summer and Winter reverse circulates cool air in the warmer months and redistributes warm air in winter, so the fan stays useful all year.

Install Indoors Or Outdoors Undercover
Suitable for indoor rooms and outdoor undercover areas where the fan is not exposed to rain or getting wet, on ceilings pitched up to 14°.

Backed By A 6 Year Warranty
A 3 Year In-Home Warranty plus a further 3 Year Motor Warranty, with a 2 Year Warranty on the LED light kit.

Specifications

Blade colour	White
Blade material	UV-Stabilized ABS
Blade pitch	14°
Blade span	52"
Ceiling to blades	280mm
Ceiling to bottom of fan	340mm
Colour	White
Colour temperature	3000K \| 4000K \| 6500K
Controller type	Remote
Dimmable	Yes
Globe included	Built In
Installation location	Indoor & Outdoor Undercover
Lumen output	2600lm
Max airflow	15,300m³/hr
Max ceiling pitch	14°
Motor colour	White
Motor type	DC
Motor wattage	35W
Natural wind mode	Yes
Number of blades	3
Number of lights	1
Number of speeds	6 Speed
Remote control	Included
Smart enabled	true
Summer winder mode	Yes
Warranty	6 Year Warranty (3 Year In-Home + 3 Year Motor Replacement)

Specifications

Blade colour	White
Blade material	UV-Stabilized ABS
Blade pitch	14°
Blade span	52"
Ceiling to blades	280mm
Ceiling to bottom of fan	340mm
Colour	White
Colour temperature	3000K \| 4000K \| 6500K
Controller type	Remote
Dimmable	Yes
Globe included	Built In
Installation location	Indoor & Outdoor Undercover
Lumen output	2600lm
Max airflow	15,300m³/hr
Max ceiling pitch	14°
Motor colour	White
Motor type	DC
Motor wattage	35W
Natural wind mode	Yes
Number of blades	3
Number of lights	1
Number of speeds	6 Speed
Remote control	Included
Smart enabled	true
Summer winder mode	Yes
Warranty	6 Year Warranty (3 Year In-Home + 3 Year Motor Replacement)

Best suited for

36" — small bedrooms, studies, nurseries and narrow covered outdoor areas.
48" — standard bedrooms, and a common choice when replacing an existing 48" fan.
52" — larger bedrooms and standard living areas.
Rooms with a single ceiling point, where one fitting needs to provide both air movement and light.
New builds and renovations where integrated lighting is preferred over a separate light fitting.
Upgrading an older AC fan — the DC motor runs more quietly, draws less power, and adds Remote Control and app control.
Rooms with high ceilings, paired with the Extension Rod for FanForce Ceiling Fans.
Ceilings pitched up to 14°.
Indoor rooms and outdoor undercover areas — covered patios, alfresco spaces and verandahs.
Final suitability depends on room dimensions, ceiling height and layout, so please ask if you are unsure.

Best suited for

36" — small bedrooms, studies, nurseries and narrow covered outdoor areas.
48" — standard bedrooms, and a common choice when replacing an existing 48" fan.
52" — larger bedrooms and standard living areas.
Rooms with a single ceiling point, where one fitting needs to provide both air movement and light.
New builds and renovations where integrated lighting is preferred over a separate light fitting.
Upgrading an older AC fan — the DC motor runs more quietly, draws less power, and adds Remote Control and app control.
Rooms with high ceilings, paired with the Extension Rod for FanForce Ceiling Fans.
Ceilings pitched up to 14°.
Indoor rooms and outdoor undercover areas — covered patios, alfresco spaces and verandahs.
Final suitability depends on room dimensions, ceiling height and layout, so please ask if you are unsure.

Before you buy

The tri-colour LED light kit is included. For the fan on its own, choose the Revo Smart DC Ceiling Fan with Remote Control.
The Remote Control is included and Tuya Wi-Fi app control is built in.
Performance varies with size. The 36" runs an 18W motor at 7,480m³/hr, while the 48" and 52" both run a 35W motor at 12,300m³/hr and 15,300m³/hr. For a standard bedroom, the 48" is generally the more suitable choice.
Maximum ceiling pitch is 14°.
It is suitable for indoor and outdoor undercover areas where it is not exposed to rain or getting wet. There is no IP rating, so it is not suitable for a fully exposed position.
The fan carries a 6 Year Warranty and the LED light kit a 2 Year Warranty.
Installation must be completed by a licensed electrician.

Before you buy

The tri-colour LED light kit is included. For the fan on its own, choose the Revo Smart DC Ceiling Fan with Remote Control.
The Remote Control is included and Tuya Wi-Fi app control is built in.
Performance varies with size. The 36" runs an 18W motor at 7,480m³/hr, while the 48" and 52" both run a 35W motor at 12,300m³/hr and 15,300m³/hr. For a standard bedroom, the 48" is generally the more suitable choice.
Maximum ceiling pitch is 14°.
It is suitable for indoor and outdoor undercover areas where it is not exposed to rain or getting wet. There is no IP rating, so it is not suitable for a fully exposed position.
The fan carries a 6 Year Warranty and the LED light kit a 2 Year Warranty.
Installation must be completed by a licensed electrician.

Description

The FanForce Revo is a compact DC ceiling fan with an integrated tri-colour LED light, designed for rooms where a single fitting needs to provide both air movement and light. Available in 36", 48" and 52" sizes, the smaller blade spans suit bedrooms, studies and narrower covered outdoor areas, while the 52" is well suited to standard living spaces.

The tri-colour LED light switches between three colour temperatures, so the same fitting can provide warmer light in a bedroom or cooler, clearer light in a study, with no globe to change. Operate both the fan and the light using the included Remote Control, or through the Tuya Wi-Fi app.

The quiet DC motor offers six speed settings along with a Wind Mode that varies airflow rather than holding one constant speed, and reverses for Summer and Winter use. Motor wattage and airflow vary by size — 18W and 7,480m³/hr at 36", and 35W at both 48" and 52", delivering 12,300m³/hr and 15,300m³/hr respectively.

The Revo is suitable for indoor and outdoor undercover areas where it is not exposed to rain or getting wet, and suits ceilings pitched up to 14°. For higher ceilings, pair it with the Extension Rod for FanForce Ceiling Fans.

The Revo Smart DC Ceiling Fan with Remote Control is the same fan supplied without the light kit, and the Revo 24W LED Dimmable Light Kit is also available separately. You can browse the wider selection under ceiling fans with a light.

Best Suited For

36" — small bedrooms, studies, nurseries and narrow covered outdoor areas.
48" — standard bedrooms, and a common choice when replacing an existing 48" fan.
52" — larger bedrooms and standard living areas.
Rooms with a single ceiling point, where one fitting needs to provide both air movement and light.
New builds and renovations where integrated lighting is preferred over a separate light fitting.
Upgrading an older AC fan — the DC motor runs more quietly, draws less power, and adds Remote Control and app control.
Rooms with high ceilings, paired with the Extension Rod for FanForce Ceiling Fans.
Ceilings pitched up to 14°.
Indoor rooms and outdoor undercover areas — covered patios, alfresco spaces and verandahs.
Final suitability depends on room dimensions, ceiling height and layout, so please ask if you are unsure.

Before You Buy

The tri-colour LED light kit is included. For the fan on its own, choose the Revo Smart DC Ceiling Fan with Remote Control.
The Remote Control is included and Tuya Wi-Fi app control is built in.
Performance varies with size. The 36" runs an 18W motor at 7,480m³/hr, while the 48" and 52" both run a 35W motor at 12,300m³/hr and 15,300m³/hr. For a standard bedroom, the 48" is generally the more suitable choice.
Maximum ceiling pitch is 14°.
It is suitable for indoor and outdoor undercover areas where it is not exposed to rain or getting wet. There is no IP rating, so it is not suitable for a fully exposed position.
The fan carries a 6 Year Warranty and the LED light kit a 2 Year Warranty.
Installation must be completed by a licensed electrician.

Compare Within the FanForce Range

Revo Smart DC Ceiling Fan with Remote Control — the same fan supplied without the light kit.
Within the FanForce range, the Revo is the only model available in a 36" blade span.
Capri II Smart DC Ceiling Fan with Remote Control — available in 52", 64" and 72" for larger rooms.
Cumulus — a four-blade design in 48" and 52".
Ares 52" Low Profile — a low-profile design for rooms with limited ceiling height.

Specifications

Brand	FanForce
Model	Revo
Motor Type	DC
Motor Wattage	18W (36"), 35W (48"), 35W (52")
Max Airflow	7,480m³/hr (36"), 12,300m³/hr (48"), 15,300m³/hr (52")
Blade Material	ABS Plastic
Blade Pitch	14°
Light	24W tri-colour LED, included
Light Colour Temperature	Tri-Colour
Speed Settings	6 speed + Wind Mode
Reverse Mode	Yes — Summer and Winter settings
Controller Type	Remote Control (included) + Tuya Wi-Fi app
Smart Connectivity	Wi-Fi, Tuya app
Ceiling to Blades	280mm
Max Ceiling Pitch	14°
Installation Location	Indoor and outdoor undercover areas
Warranty	6 Year Warranty — 3 Year In-Home Warranty plus 3 Year Motor Warranty. The LED light kit is covered by a 2 Year Warranty.

Description

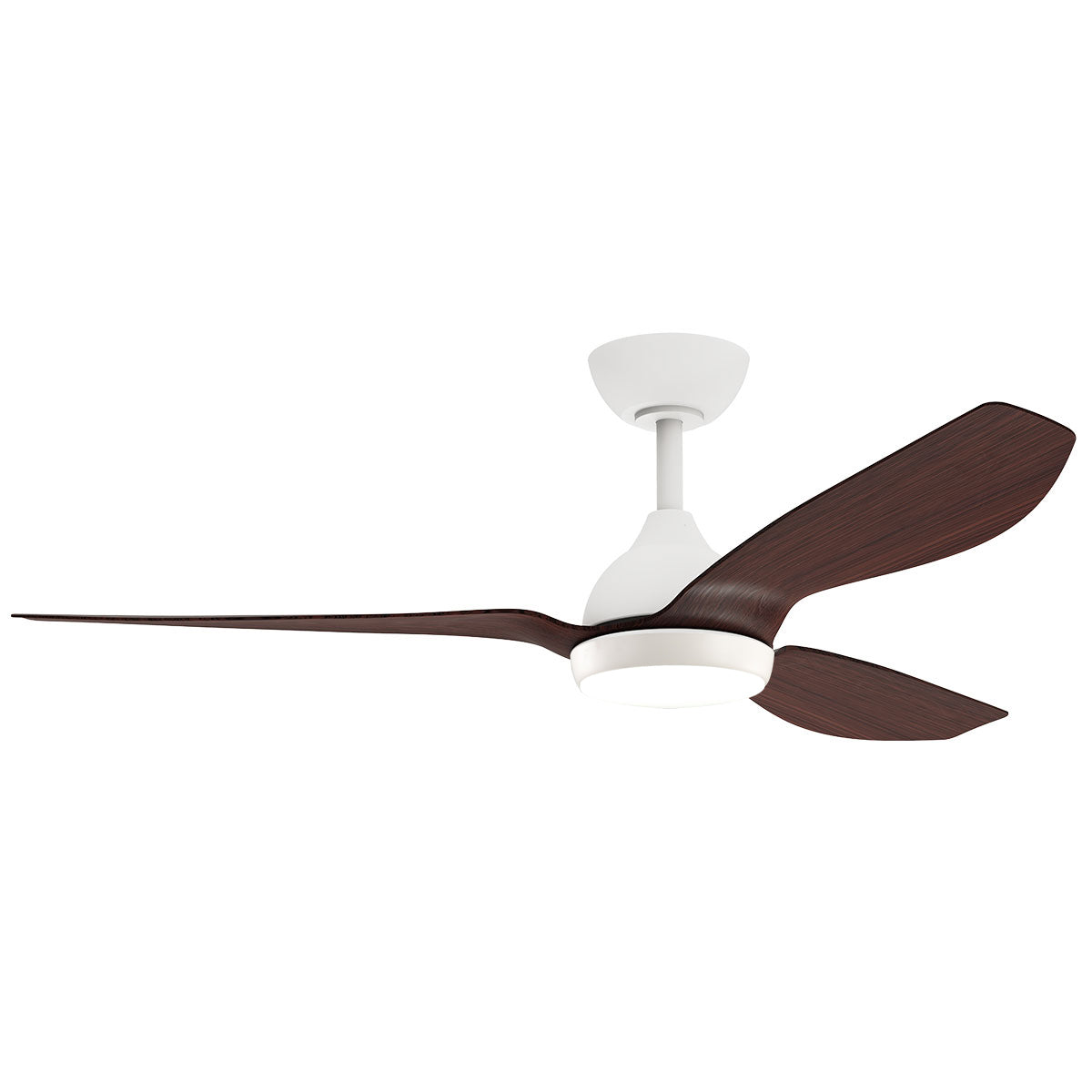

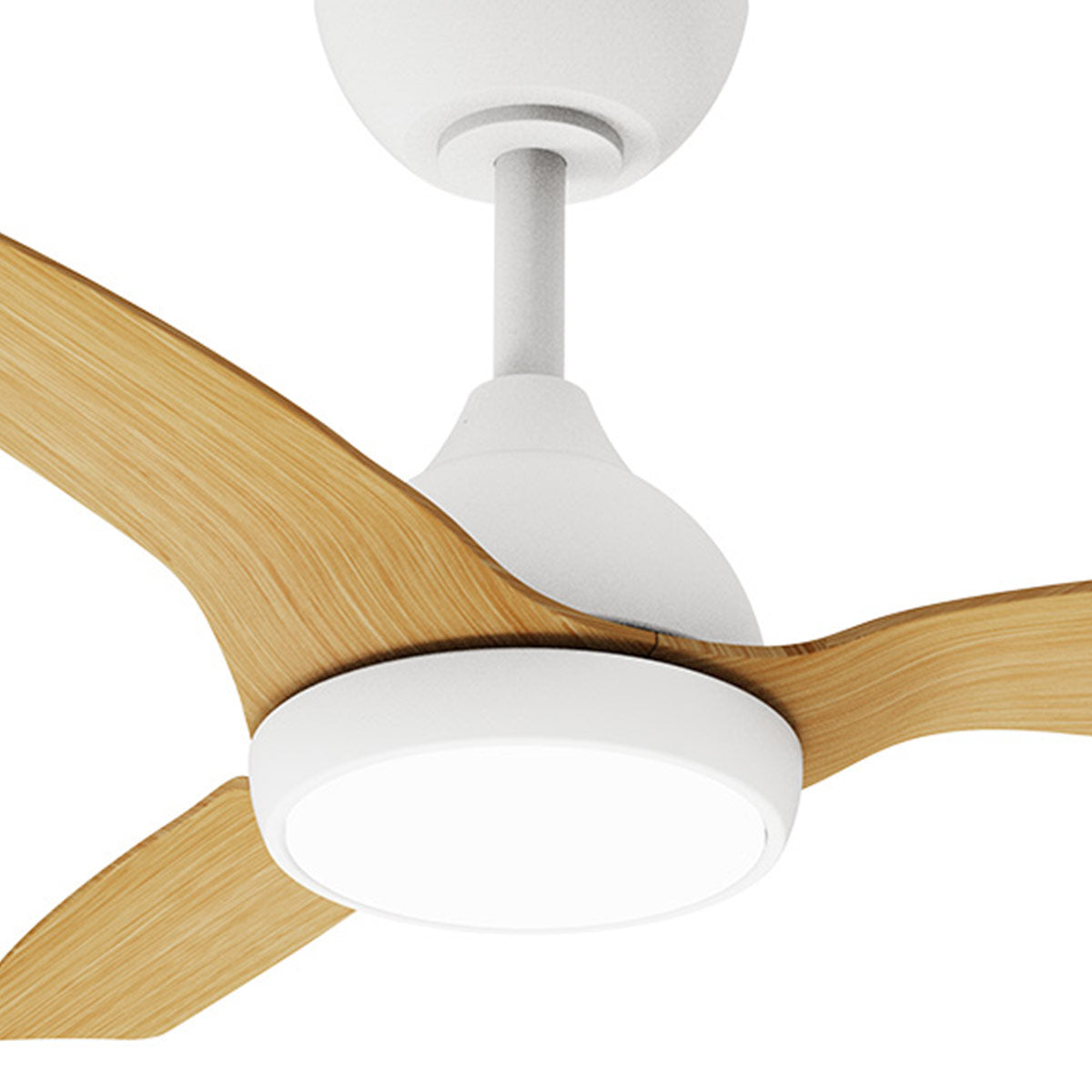

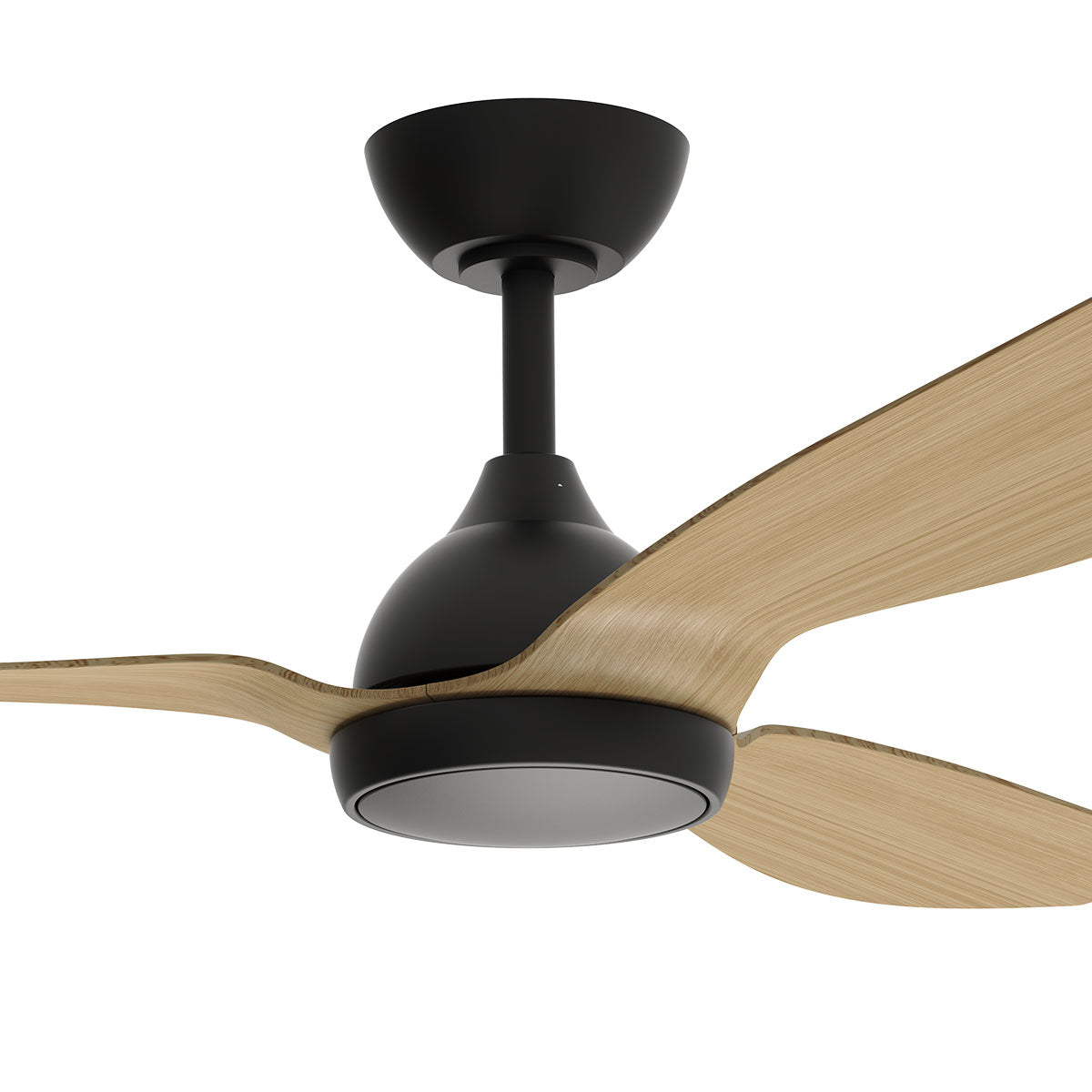

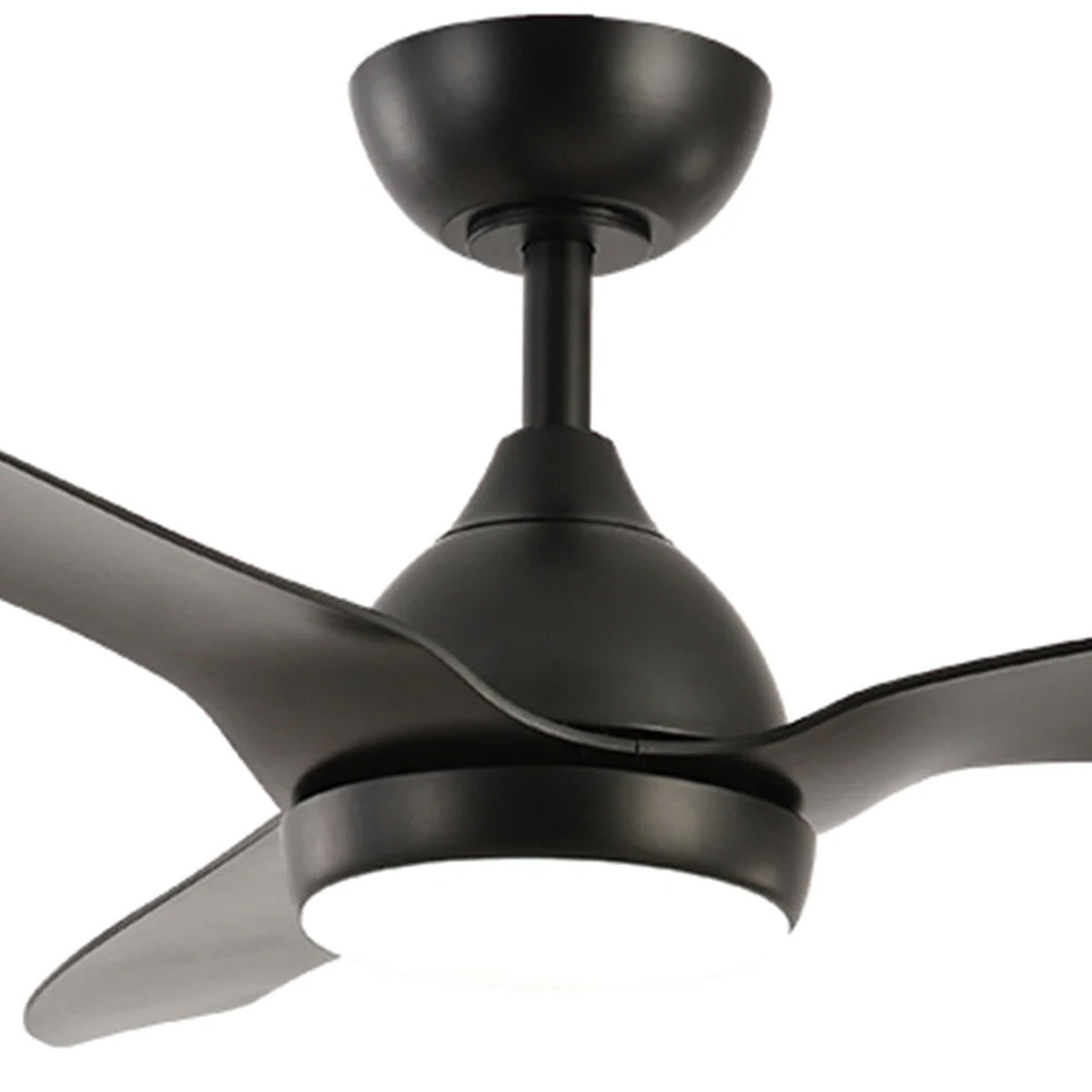

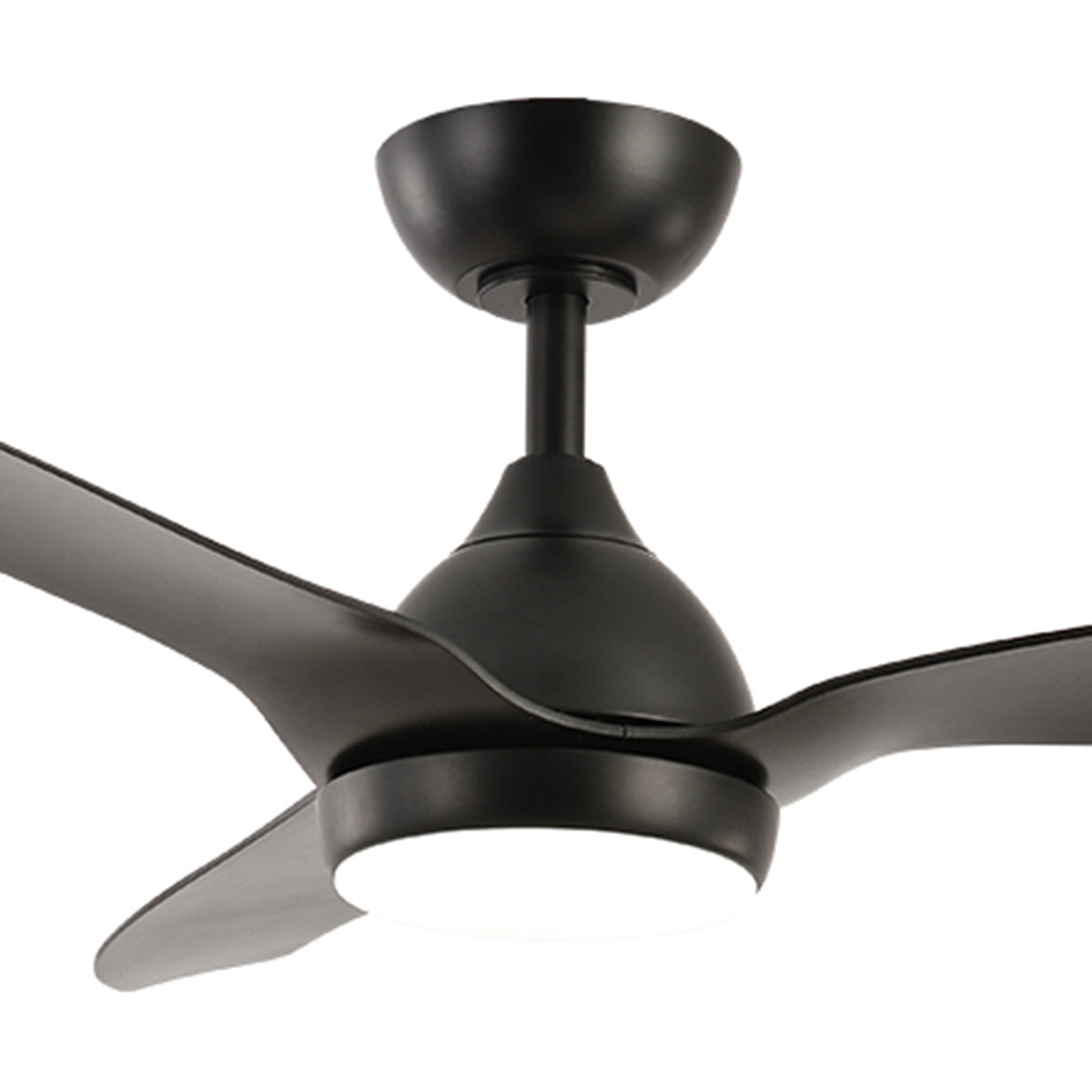

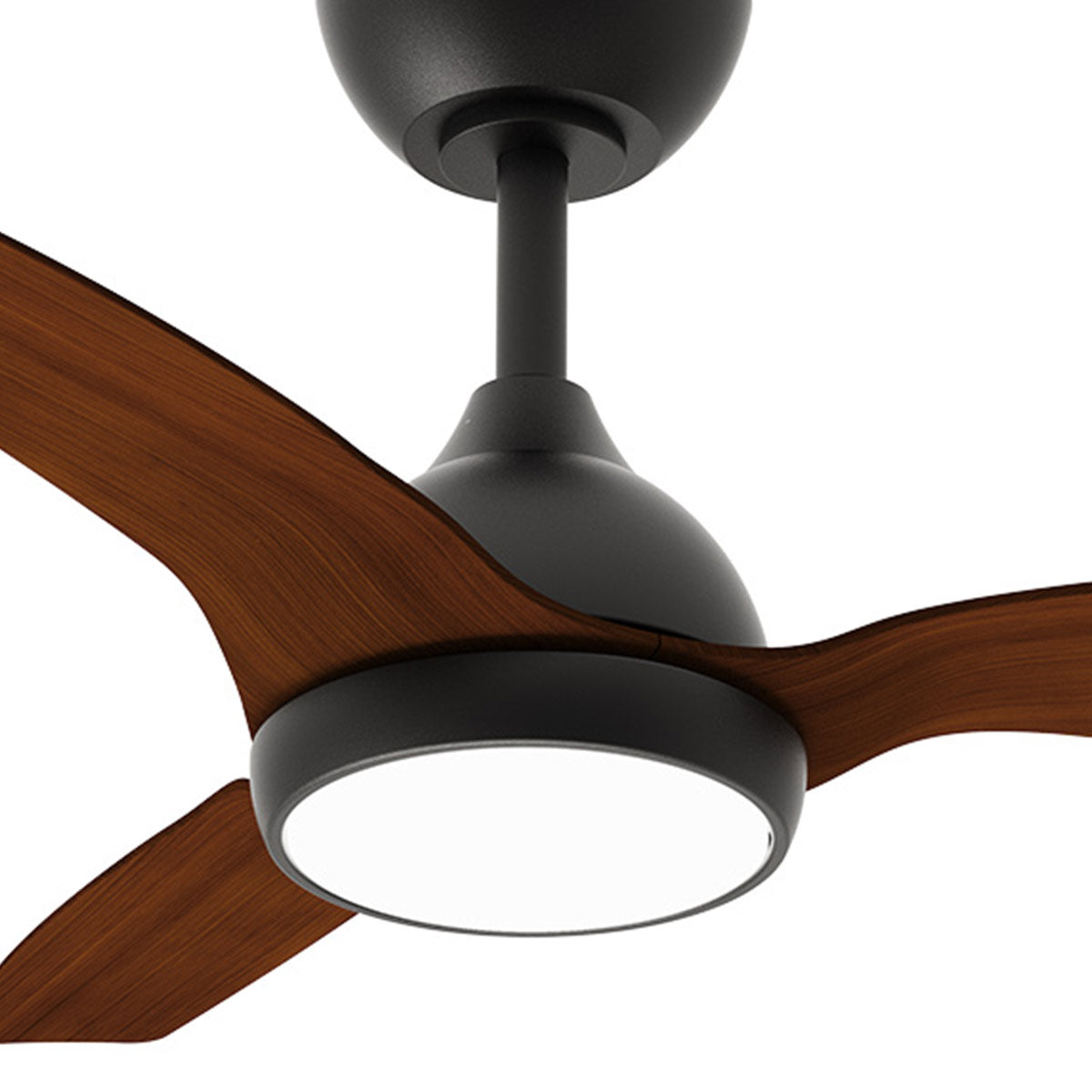

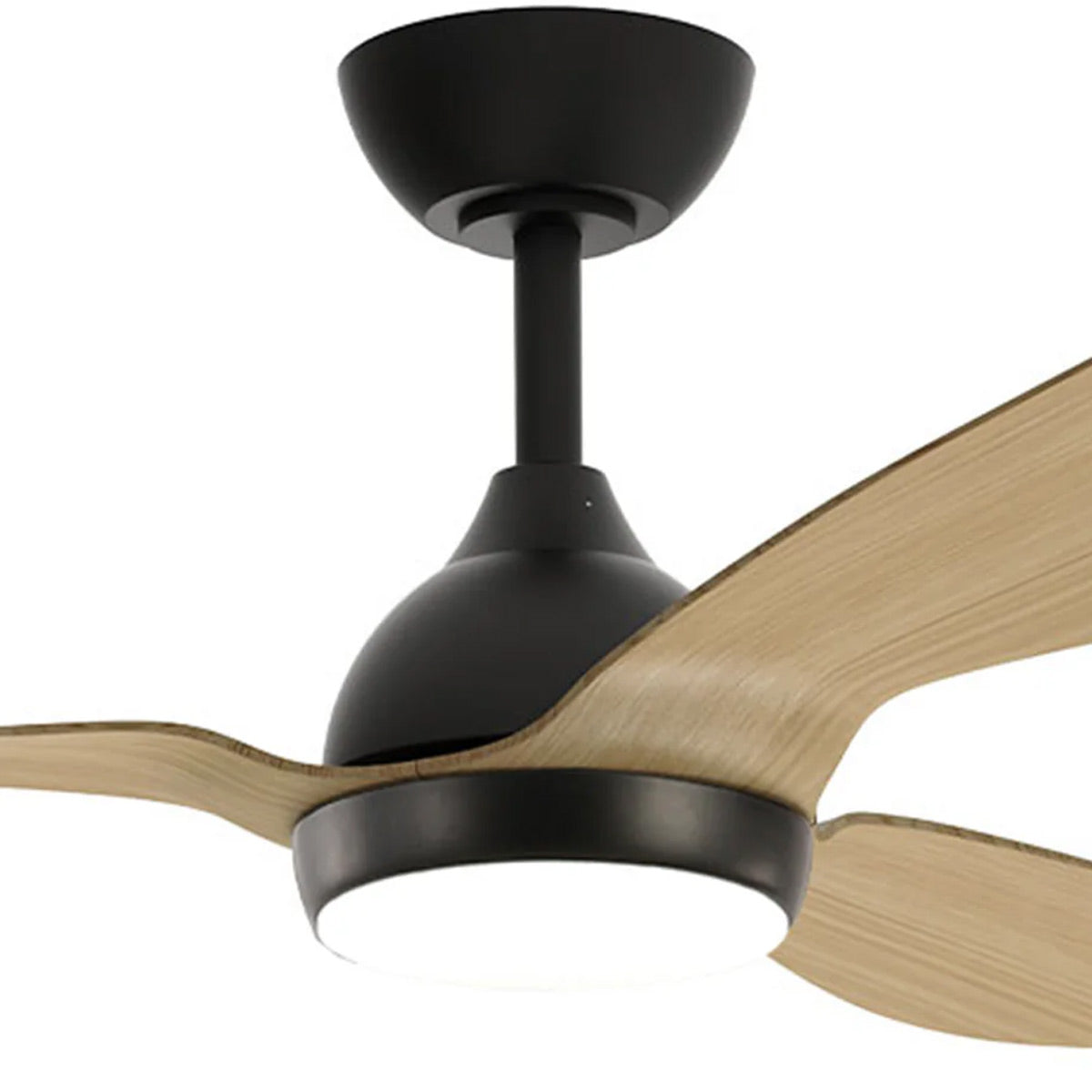

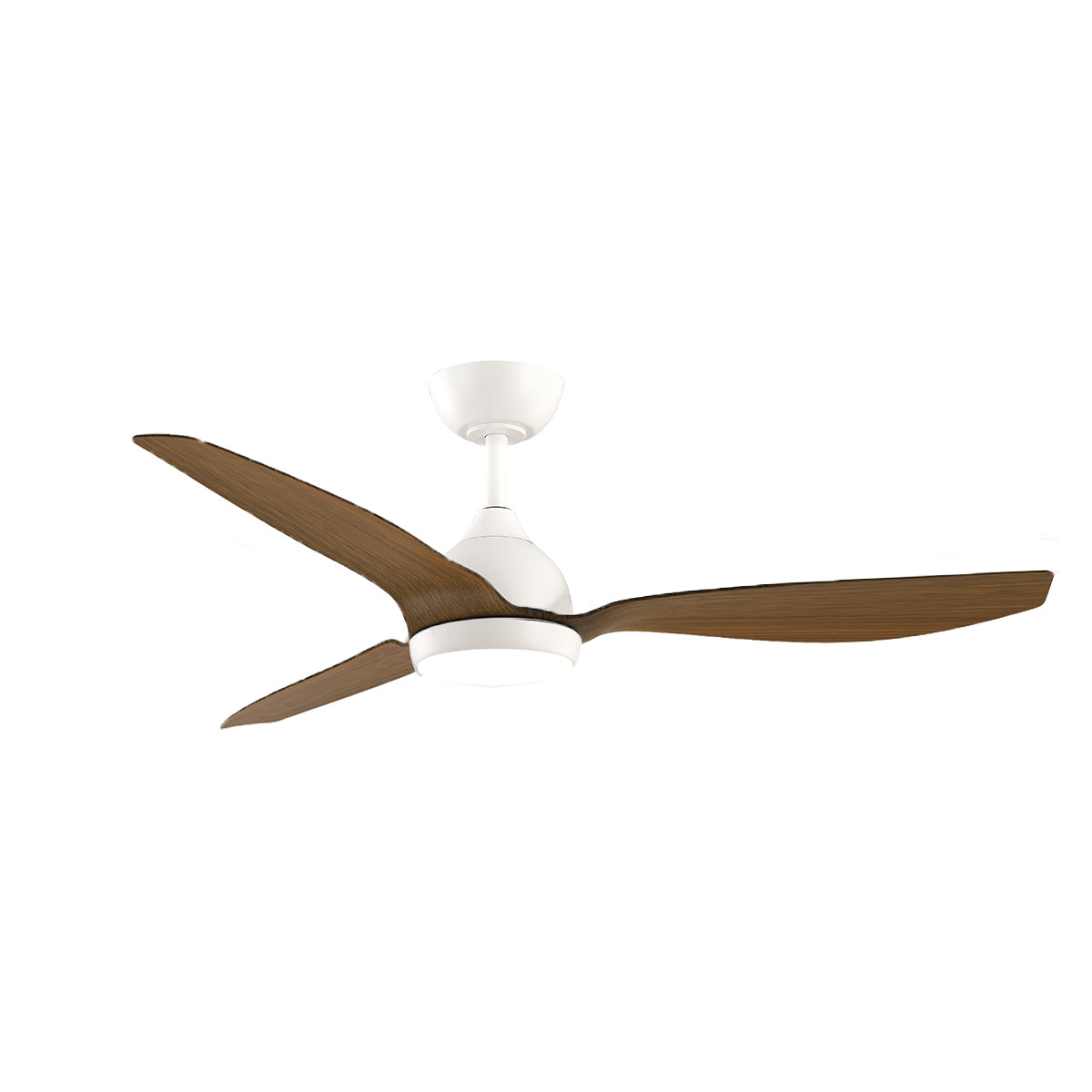

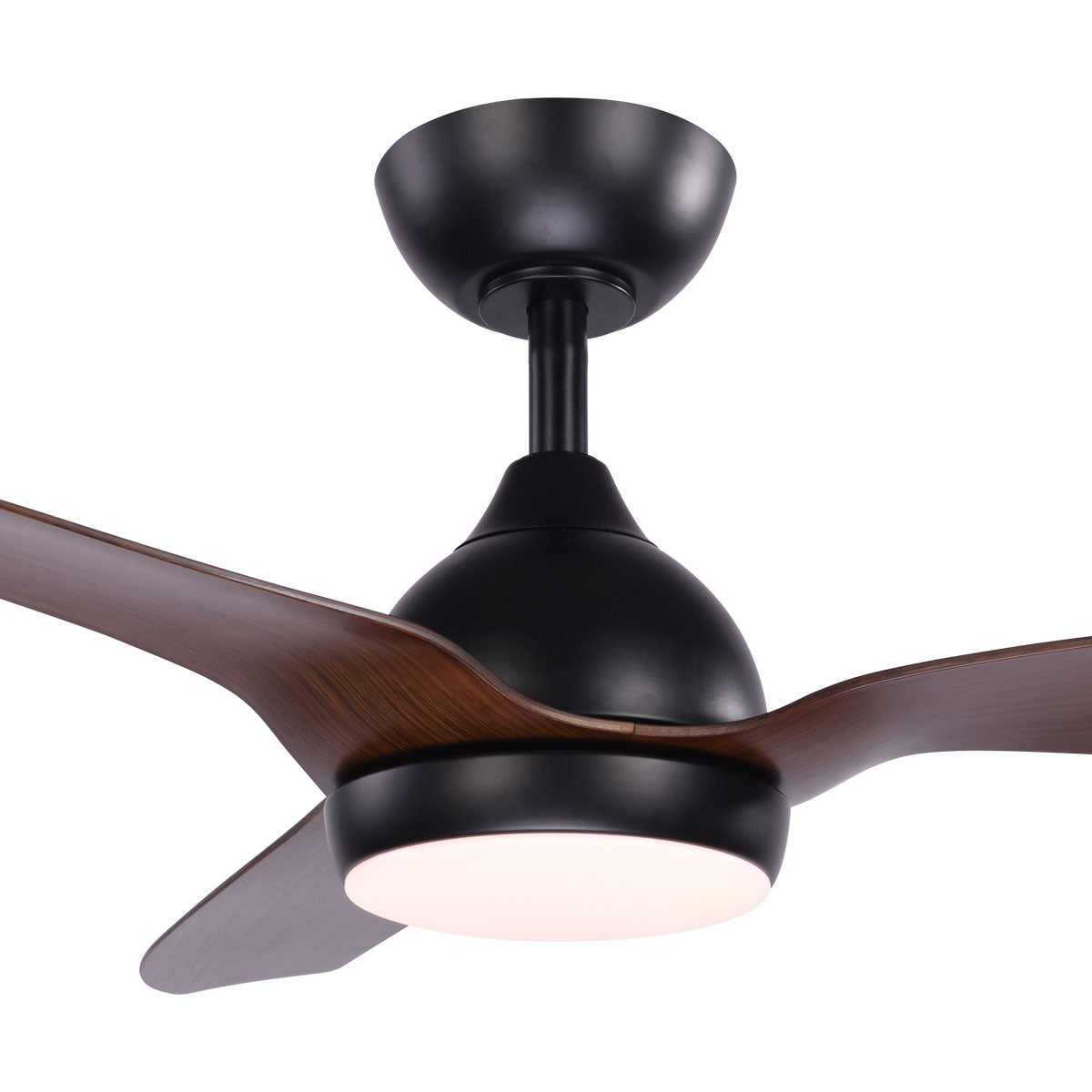

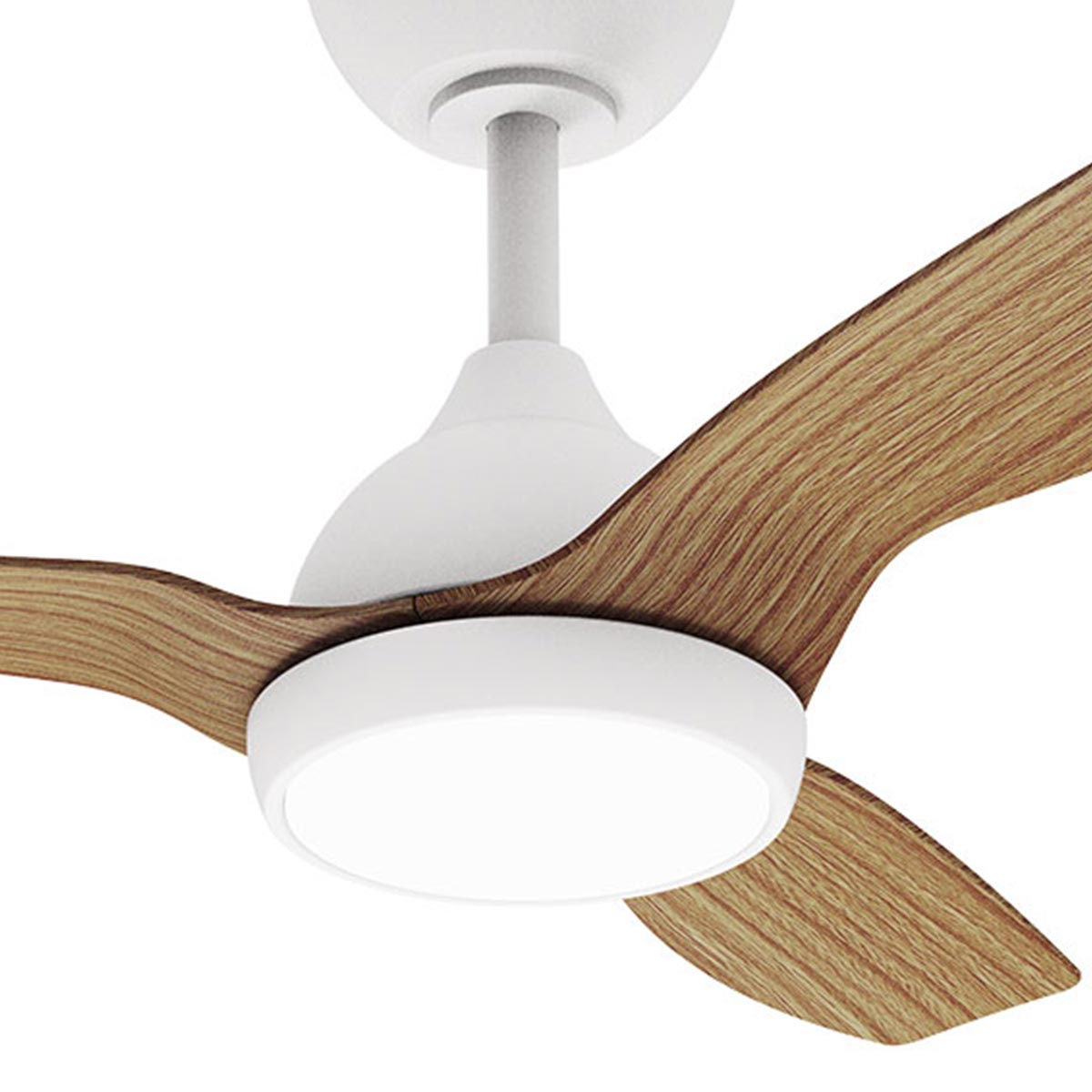

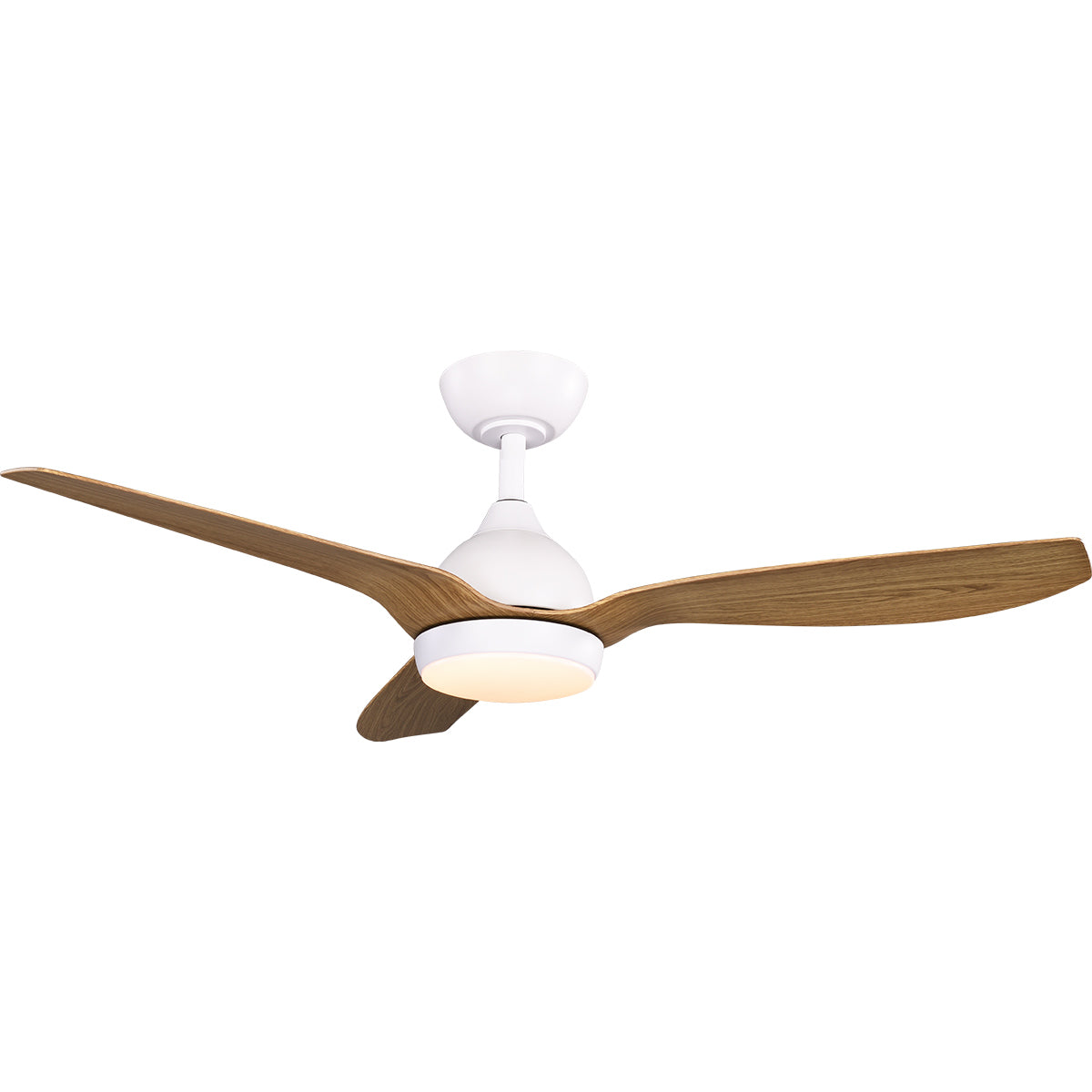

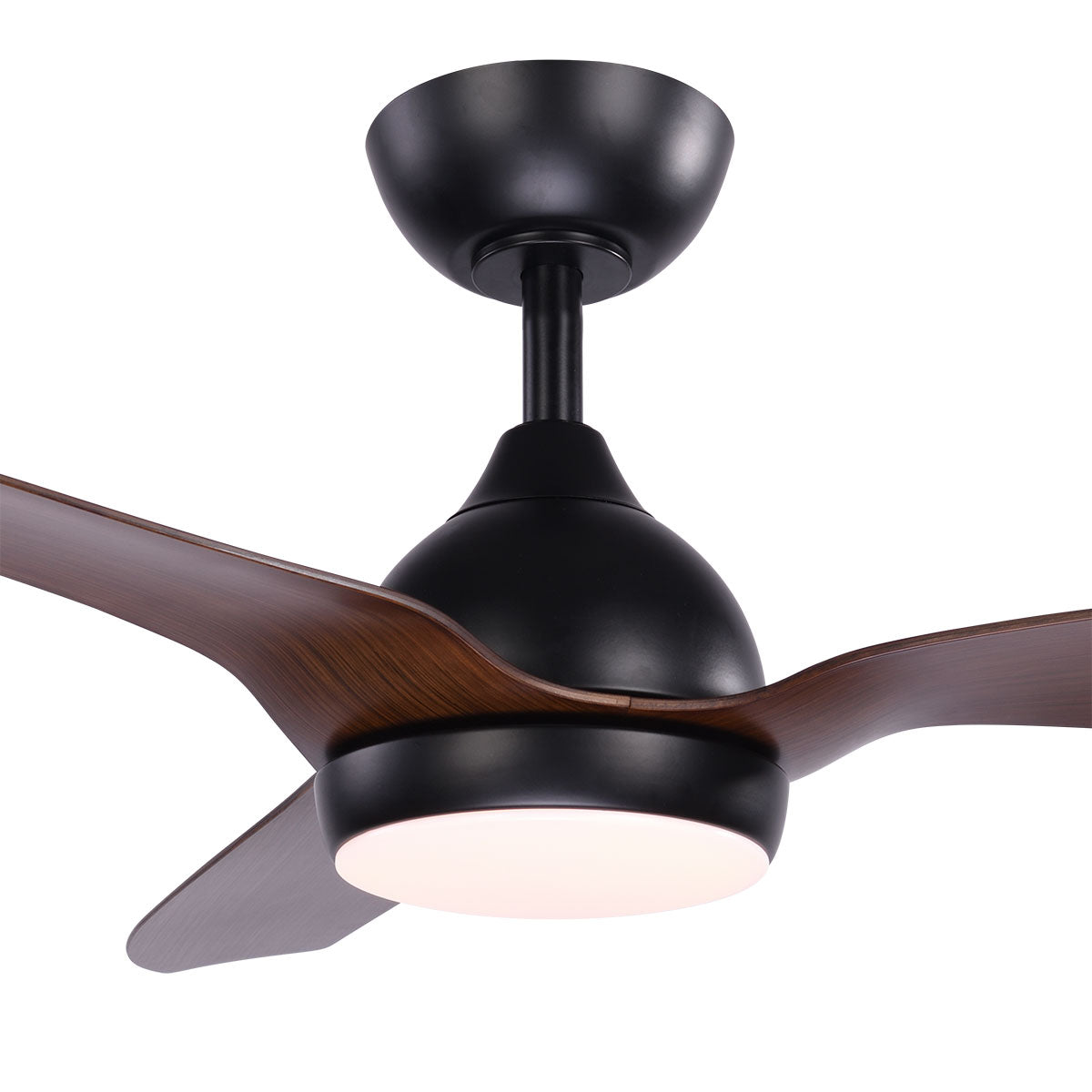

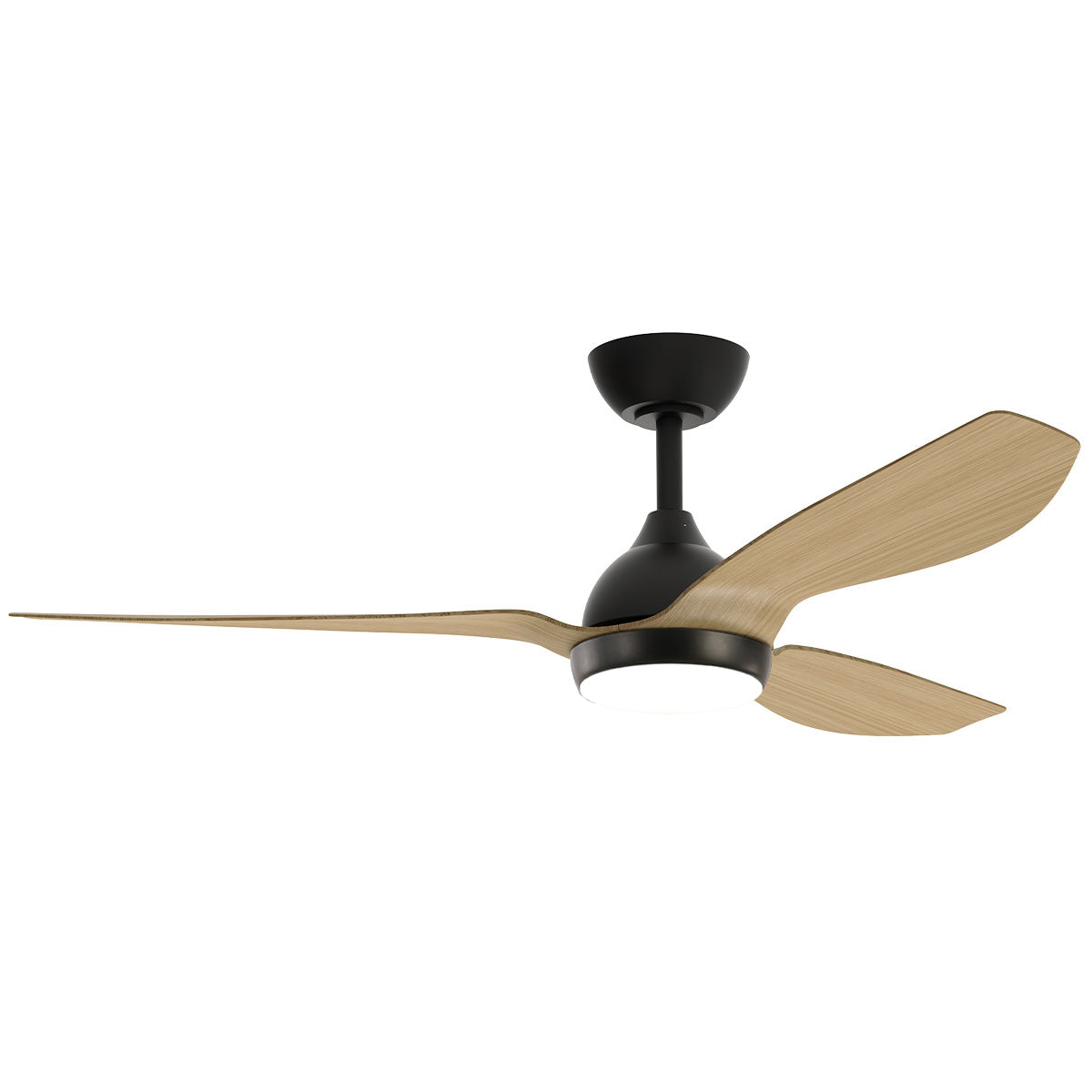

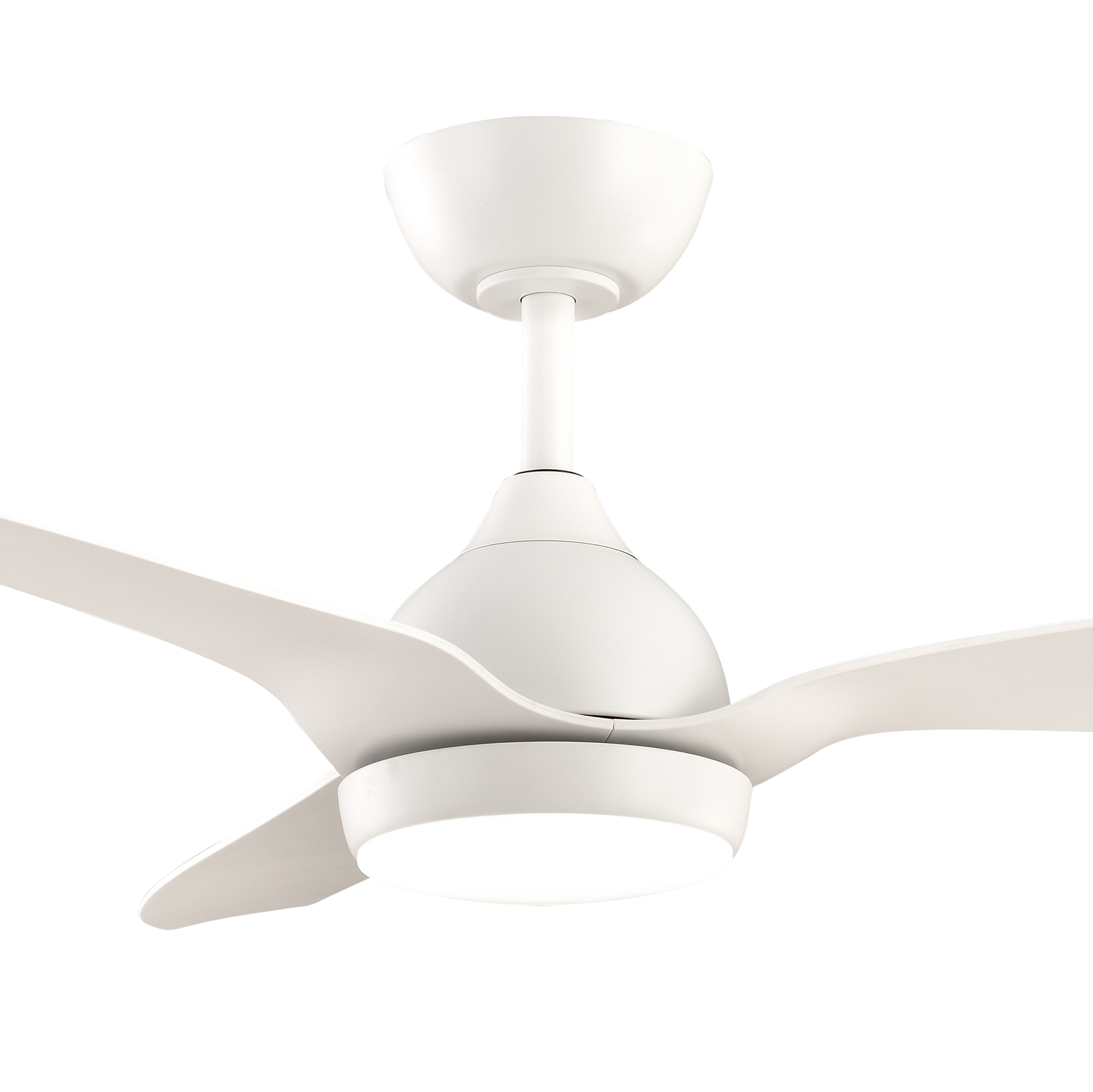

The FanForce Revo is a compact DC ceiling fan with an integrated tri-colour LED light, designed for rooms where a single fitting needs to provide both air movement and light. Available in 36", 48" and 52" sizes, the smaller blade spans suit bedrooms, studies and narrower covered outdoor areas, while the 52" is well suited to standard living spaces.

The tri-colour LED light switches between three colour temperatures, so the same fitting can provide warmer light in a bedroom or cooler, clearer light in a study, with no globe to change. Operate both the fan and the light using the included Remote Control, or through the Tuya Wi-Fi app.

The quiet DC motor offers six speed settings along with a Wind Mode that varies airflow rather than holding one constant speed, and reverses for Summer and Winter use. Motor wattage and airflow vary by size — 18W and 7,480m³/hr at 36", and 35W at both 48" and 52", delivering 12,300m³/hr and 15,300m³/hr respectively.

The Revo is suitable for indoor and outdoor undercover areas where it is not exposed to rain or getting wet, and suits ceilings pitched up to 14°. For higher ceilings, pair it with the Extension Rod for FanForce Ceiling Fans.

The Revo Smart DC Ceiling Fan with Remote Control is the same fan supplied without the light kit, and the Revo 24W LED Dimmable Light Kit is also available separately. You can browse the wider selection under ceiling fans with a light.

Best Suited For

36" — small bedrooms, studies, nurseries and narrow covered outdoor areas.
48" — standard bedrooms, and a common choice when replacing an existing 48" fan.
52" — larger bedrooms and standard living areas.
Rooms with a single ceiling point, where one fitting needs to provide both air movement and light.
New builds and renovations where integrated lighting is preferred over a separate light fitting.
Upgrading an older AC fan — the DC motor runs more quietly, draws less power, and adds Remote Control and app control.
Rooms with high ceilings, paired with the Extension Rod for FanForce Ceiling Fans.
Ceilings pitched up to 14°.
Indoor rooms and outdoor undercover areas — covered patios, alfresco spaces and verandahs.
Final suitability depends on room dimensions, ceiling height and layout, so please ask if you are unsure.

Before You Buy

The tri-colour LED light kit is included. For the fan on its own, choose the Revo Smart DC Ceiling Fan with Remote Control.
The Remote Control is included and Tuya Wi-Fi app control is built in.
Performance varies with size. The 36" runs an 18W motor at 7,480m³/hr, while the 48" and 52" both run a 35W motor at 12,300m³/hr and 15,300m³/hr. For a standard bedroom, the 48" is generally the more suitable choice.
Maximum ceiling pitch is 14°.
It is suitable for indoor and outdoor undercover areas where it is not exposed to rain or getting wet. There is no IP rating, so it is not suitable for a fully exposed position.
The fan carries a 6 Year Warranty and the LED light kit a 2 Year Warranty.
Installation must be completed by a licensed electrician.

Compare Within the FanForce Range

Revo Smart DC Ceiling Fan with Remote Control — the same fan supplied without the light kit.
Within the FanForce range, the Revo is the only model available in a 36" blade span.
Capri II Smart DC Ceiling Fan with Remote Control — available in 52", 64" and 72" for larger rooms.
Cumulus — a four-blade design in 48" and 52".
Ares 52" Low Profile — a low-profile design for rooms with limited ceiling height.

Specifications

Brand	FanForce
Model	Revo
Motor Type	DC
Motor Wattage	18W (36"), 35W (48"), 35W (52")
Max Airflow	7,480m³/hr (36"), 12,300m³/hr (48"), 15,300m³/hr (52")
Blade Material	ABS Plastic
Blade Pitch	14°
Light	24W tri-colour LED, included
Light Colour Temperature	Tri-Colour
Speed Settings	6 speed + Wind Mode
Reverse Mode	Yes — Summer and Winter settings
Controller Type	Remote Control (included) + Tuya Wi-Fi app
Smart Connectivity	Wi-Fi, Tuya app
Ceiling to Blades	280mm
Max Ceiling Pitch	14°
Installation Location	Indoor and outdoor undercover areas
Warranty	6 Year Warranty — 3 Year In-Home Warranty plus 3 Year Motor Warranty. The LED light kit is covered by a 2 Year Warranty.

Downloads

Download Datasheet

51940423106841: { "blade_colour": "White", "blade_material": "UV-Stabilized ABS", "blade_pitch": "14°", "blade_span": "52\"", "ceiling_to_blades": "280mm", "ceiling_to_bottom_of_fan": "340mm", "colour": "White", "colour_temperature": "3000K | 4000K | 6500K", "controller_type": "Remote", "dimmable": "Yes", "globe_included": "Built In", "installation_location": "Indoor \u0026 Outdoor Undercover", "lumen_output": "2600lm", "max_airflow": "15,300m³\/hr", "max_ceiling_pitch": "14°", "motor_colour": "White", "motor_type": "DC", "motor_wattage": "35W", "natural_wind_mode": "Yes", "number_of_blades": 3, "number_of_lights": 1, "number_of_speeds": "6 Speed", "remote_control": "Included", "smart_enabled": true, "summer_winder_mode": "Yes", "warranty": "6 Year Warranty (3 Year In-Home + 3 Year Motor Replacement)", }, 51940423139609: { "blade_colour": "Black", "blade_material": "UV-Stabilized ABS", "blade_pitch": "14°", "blade_span": "52\"", "ceiling_to_blades": "280mm", "ceiling_to_bottom_of_fan": "340mm", "colour": "Black \/ Black", "colour_temperature": "3000K | 4000K | 6500K", "controller_type": "Remote", "dimmable": "Yes", "globe_included": "Built In", "installation_location": "Indoor \u0026 Outdoor Undercover", "lumen_output": "2600lm", "max_airflow": "15,300m³\/hr", "max_ceiling_pitch": "14°", "motor_colour": "Black", "motor_type": "DC", "motor_wattage": "35W", "natural_wind_mode": "Yes", "number_of_blades": 3, "number_of_lights": 1, "number_of_speeds": "6 Speed", "remote_control": "Included", "smart_enabled": true, "summer_winder_mode": "Yes", "warranty": "6 Year Warranty (3 Year In-Home + 3 Year Motor Replacement)", }, 51940423172377: { "blade_colour": "Oak", "blade_material": "ABS Plastic", "blade_pitch": "14°", "blade_span": "48\"", "ceiling_to_blades": "280mm", "ceiling_to_bottom_of_fan": "335mm", "colour": "Black \/ Oak", "colour_temperature": "3000K | 4000K | 6500K", "controller_type": "Remote", "dimmable": "Yes", "installation_location": "Indoor \u0026 Outdoor Undercover", "lumen_output": "2600lm", "max_airflow": "12,300m³\/hr", "max_ceiling_pitch": "14°", "motor_colour": "Black", "motor_type": "DC", "motor_wattage": "35W", "natural_wind_mode": "Yes", "number_of_blades": 3, "number_of_lights": 1, "number_of_speeds": "6 Speed", "smart_enabled": true, "summer_winder_mode": "Yes", "warranty": "6 Years (3 Year In-home + 3 Years Motor) Warranty", }, 51940423205145: { "blade_colour": "Walnut", "blade_material": "ABS Plastic", "blade_pitch": "14°", "blade_span": "48\"", "ceiling_to_blades": "280mm", "ceiling_to_bottom_of_fan": "335mm", "colour": "Black \/ Walnut", "colour_temperature": "3000K | 4000K | 6500K", "controller_type": "Remote", "dimmable": "Yes", "globe_included": "Built In", "installation_location": "Indoor \u0026 Outdoor Undercover", "lumen_output": "2600lm", "max_airflow": "12,300m³\/hr", "max_ceiling_pitch": "14°", "motor_colour": "Black", "motor_material": "Polymer", "motor_type": "DC", "motor_wattage": "35W", "natural_wind_mode": "Yes", "number_of_blades": 3, "number_of_lights": 1, "number_of_speeds": "6 Speed", "remote_control": "Included", "shade_material": "Polymer\/Plastic", "smart_enabled": true, "summer_winder_mode": "Yes", "warranty": "6 Years (3 Year In-home + 3 Years Motor) Warranty", }, 51940423237913: { "blade_colour": "Oak", "blade_material": "ABS Plastic", "blade_pitch": "14°", "blade_span": "48\"", "ceiling_to_blades": "280mm", "ceiling_to_bottom_of_fan": "335mm", "colour": "White \/ Oak", "colour_temperature": "3000K | 4000K | 6500K", "controller_type": "Remote", "dimmable": "Yes", "globe_included": "Built In", "installation_location": "Indoor \u0026 Outdoor Undercover", "lumen_output": "2600lm", "max_airflow": "12,300m³\/hr", "max_ceiling_pitch": "14°", "motor_colour": "White", "motor_material": "Polymer", "motor_type": "DC", "motor_wattage": "35W", "natural_wind_mode": "Yes", "number_of_blades": 3, "number_of_lights": 1, "number_of_speeds": "6 Speed", "remote_control": "Included", "shade_material": "Polymer\/Plastic", "smart_enabled": true, "summer_winder_mode": "Yes", "warranty": "6 Years (3 Year In-home + 3 Years Motor) Warranty", }, 51940423270681: { "blade_colour": "Walnut", "blade_material": "ABS Plastic", "blade_pitch": "14°", "blade_span": "48\"", "ceiling_to_blades": "280mm", "ceiling_to_bottom_of_fan": "335mm", "colour": "White \/ Walnut", "colour_temperature": "3000K | 4000K | 6500K", "controller_type": "Remote", "dimmable": "Yes", "globe_included": "Built In", "installation_location": "Indoor \u0026 Outdoor Undercover", "lumen_output": "2600lm", "max_airflow": "12,300m³\/hr", "max_ceiling_pitch": "14°", "motor_colour": "White", "motor_material": "Polymer", "motor_type": "DC", "motor_wattage": "35W", "natural_wind_mode": "Yes", "number_of_blades": 3, "number_of_lights": 1, "number_of_speeds": "6 Speed", "remote_control": "Included", "shade_material": "Polymer\/Plastic", "smart_enabled": true, "summer_winder_mode": "Yes", "warranty": "6 Years (3 Year In-home + 3 Years Motor) Warranty", }, 51940423303449: { "blade_colour": "White", "blade_material": "UV-Stabilized ABS", "blade_pitch": "14°", "blade_span": "48\"", "ceiling_to_blades": "280mm", "ceiling_to_bottom_of_fan": "335mm", "colour": "White \/ White", "colour_temperature": "3000K | 4000K | 6500K", "controller_type": "Remote", "dimmable": "Yes", "globe_included": "Built In", "installation_location": "Indoor \u0026 Outdoor Undercover", "lumen_output": "2600lm", "max_airflow": "12,300m³\/hr", "max_ceiling_pitch": "14°", "motor_colour": "White", "motor_material": "Polymer", "motor_type": "DC", "motor_wattage": "35W", "natural_wind_mode": "Yes", "number_of_blades": 3, "number_of_lights": 1, "number_of_speeds": "6 Speed", "remote_control": "Included", "shade_material": "Polymer\/Plastic", "smart_enabled": true, "summer_winder_mode": "Yes", "warranty": "2 Years Replacement Warranty", }, 51940423336217: { "blade_colour": "Oak", "blade_material": "ABS Plastic", "blade_pitch": "14°", "blade_span": "52\"", "ceiling_to_blades": "280mm", "ceiling_to_bottom_of_fan": "340mm", "colour": "White \/ Oak", "colour_temperature": "3000K | 4000K | 6500K", "controller_type": "Remote", "dimmable": "Yes", "globe_included": "Built In", "installation_location": "Indoor \u0026 Outdoor Undercover", "lumen_output": "2600lm", "max_airflow": "15,300m³\/hr", "max_ceiling_pitch": "14°", "motor_colour": "White", "motor_type": "DC", "motor_wattage": "35W", "natural_wind_mode": "Yes", "number_of_blades": 3, "number_of_lights": 1, "number_of_speeds": "6 Speed", "remote_control": "Included", "smart_enabled": true, "summer_winder_mode": "Yes", "warranty": "6 Years (3 Year In-home + 3 Years Motor) Warranty", }, 51940423368985: { "blade_colour": "Walnut", "blade_material": "ABS Plastic", "blade_pitch": "14°", "blade_span": "36\"", "ceiling_to_blades": "280mm", "ceiling_to_bottom_of_fan": "340mm", "colour": "Black \/ Walnut", "colour_temperature": "3000K | 4000K | 6500K", "controller_type": "Remote", "dimmable": "Yes", "installation_location": "Indoor \u0026 Outdoor Undercover", "lumen_output": "2600lm", "max_airflow": "7,480 m³\/hr", "max_ceiling_pitch": "14°", "motor_colour": "Black", "motor_type": "DC", "motor_wattage": "18W", "natural_wind_mode": "Yes", "number_of_blades": 3, "number_of_lights": 1, "number_of_speeds": "6 Speed", "smart_enabled": true, "summer_winder_mode": "Yes", "warranty": "6 Years (3 Year In-home + 3 Years Motor) Warranty", }, 51940423401753: { "blade_colour": "Teak", "blade_material": "ABS Plastic", "blade_pitch": "14°", "blade_span": "36\"", "ceiling_to_blades": "280mm", "ceiling_to_bottom_of_fan": "340mm", "colour": "Black \/ Teak", "colour_temperature": "3000K | 4000K | 6500K", "controller_type": "Remote", "dimmable": "Yes", "installation_location": "Indoor \u0026 Outdoor Undercover", "lumen_output": "2600lm", "max_airflow": "7,480 m³\/hr", "max_ceiling_pitch": "14°", "motor_colour": "Black", "motor_type": "DC", "motor_wattage": "18W", "natural_wind_mode": "Yes", "number_of_blades": 3, "number_of_lights": 1, "number_of_speeds": "6 Speed", "smart_enabled": true, "summer_winder_mode": "Yes", "warranty": "6 Years (3 Year In-home + 3 Years Motor) Warranty", }, 51940423434521: { "blade_colour": "Black", "blade_span": "36\"", "ceiling_to_blades": "280mm", "ceiling_to_bottom_of_fan": "340mm", "colour": "Black \/ Black", "controller_type": "Remote", "dimmable": "Yes", "installation_location": "Indoor \u0026 Outdoor Undercover", "lumen_output": "2600lm", "max_ceiling_pitch": "14°", "motor_colour": "Black", "motor_type": "DC", "motor_wattage": "18W", "natural_wind_mode": "Yes", "number_of_blades": 3, "number_of_lights": 1, "smart_enabled": true, "summer_winder_mode": "Yes", }, 51945760653593: { "blade_colour": "White", "blade_span": "36\"", "ceiling_to_blades": "280mm", "ceiling_to_bottom_of_fan": "340mm", "colour": "White \/ White", "controller_type": "Remote", "dimmable": "Yes", "installation_location": "Indoor \u0026 Outdoor Undercover", "lumen_output": "2600lm", "max_ceiling_pitch": "14°", "motor_colour": "White", "motor_type": "DC", "motor_wattage": "18W", "natural_wind_mode": "Yes", "number_of_blades": 3, "number_of_lights": 1, "smart_enabled": true, "summer_winder_mode": "Yes", }, 51940423467289: { "blade_colour": "Oak", "blade_material": "ABS Plastic", "blade_pitch": "14°", "blade_span": "36\"", "ceiling_to_blades": "280mm", "ceiling_to_bottom_of_fan": "340mm", "colour": "White \/ Oak", "colour_temperature": "3000K | 4000K | 6500K", "controller_type": "Remote", "dimmable": "Yes", "installation_location": "Indoor \u0026 Outdoor Undercover", "lumen_output": "2600lm", "max_airflow": "7,480 m³\/hr", "max_ceiling_pitch": "14°", "motor_colour": "White", "motor_type": "DC", "motor_wattage": "18W", "natural_wind_mode": "Yes", "number_of_blades": 3, "number_of_lights": 1, "number_of_speeds": "6 Speed", "smart_enabled": true, "summer_winder_mode": "Yes", "warranty": "6 Years (3 Year In-home + 3 Years Motor) Warranty", }, 51945760686361: { "blade_colour": "Teak", "blade_material": "ABS Plastic", "blade_pitch": "14°", "blade_span": "36\"", "ceiling_to_blades": "280mm", "ceiling_to_bottom_of_fan": "340mm", "colour": "White \/ Teak", "colour_temperature": "3000K | 4000K | 6500K", "controller_type": "Remote", "dimmable": "Yes", "installation_location": "Indoor \u0026 Outdoor Undercover", "lumen_output": "2600lm", "max_airflow": "7,480 m³\/hr", "max_ceiling_pitch": "14°", "motor_colour": "White", "motor_type": "DC", "motor_wattage": "18W", "natural_wind_mode": "Yes", "number_of_blades": 3, "number_of_lights": 1, "number_of_speeds": "6 Speed", "smart_enabled": true, "summer_winder_mode": "Yes", "warranty": "6 Years (3 Year In-home + 3 Years Motor) Warranty", }, 51940423500057: { "blade_colour": "Oak", "blade_material": "ABS Plastic", "blade_pitch": "14°", "blade_span": "52\"", "ceiling_to_blades": "280mm", "ceiling_to_bottom_of_fan": "340mm", "colour": "Black \/ Oak", "colour_temperature": "3000K | 4000K | 6500K", "controller_type": "Remote", "dimmable": "Yes", "globe_included": "Built In", "installation_location": "Indoor \u0026 Outdoor Undercover", "lumen_output": "2600lm", "max_airflow": "15,300m³\/hr", "max_ceiling_pitch": "14°", "motor_colour": "Black", "motor_type": "DC", "motor_wattage": "35W", "natural_wind_mode": "Yes", "number_of_blades": 3, "number_of_lights": 1, "number_of_speeds": "6 Speed", "remote_control": "Included", "smart_enabled": true, "summer_winder_mode": "Yes", "warranty": "6 Years (3 Year In-home + 3 Years Motor) Warranty", }, 51940423532825: { "blade_colour": "Teak", "blade_material": "ABS Plastic", "blade_pitch": "14°", "blade_span": "52\"", "ceiling_to_blades": "280mm", "ceiling_to_bottom_of_fan": "340mm", "colour": "Black \/ Teak", "colour_temperature": "3000K | 4000K | 6500K", "controller_type": "Remote", "dimmable": "Yes", "installation_location": "Indoor \u0026 Outdoor Undercover", "lumen_output": "2600lm", "max_airflow": "15,300m³\/hr", "max_ceiling_pitch": "14°", "motor_colour": "Black", "motor_type": "DC", "motor_wattage": "35W", "natural_wind_mode": "Yes", "number_of_blades": 3, "number_of_lights": 1, "number_of_speeds": "6 Speed", "smart_enabled": true, "summer_winder_mode": "Yes", "warranty": "6 Years (3 Year In-home + 3 Years Motor) Warranty", }, 51940423565593: { "blade_colour": "Walnut", "blade_material": "ABS Plastic", "blade_pitch": "14°", "blade_span": "52\"", "ceiling_to_blades": "280mm", "ceiling_to_bottom_of_fan": "340mm", "colour": "Black \/ Walnut", "colour_temperature": "3000K | 4000K | 6500K", "controller_type": "Remote", "dimmable": "Yes", "globe_included": "Built In", "installation_location": "Indoor \u0026 Outdoor Undercover", "lumen_output": "2600lm", "max_airflow": "15,300m³\/hr", "max_ceiling_pitch": "14°", "motor_colour": "Black", "motor_type": "DC", "motor_wattage": "35W", "natural_wind_mode": "Yes", "number_of_blades": 3, "number_of_lights": 1, "number_of_speeds": "6 Speed", "remote_control": "Included", "smart_enabled": true, "summer_winder_mode": "Yes", "warranty": "6 Years (3 Year In-home + 3 Years Motor) Warranty", }, 51940423598361: { "blade_colour": "Teak", "blade_material": "ABS Plastic", "blade_pitch": "14°", "blade_span": "52\"", "ceiling_to_blades": "280mm", "ceiling_to_bottom_of_fan": "340mm", "colour": "White \/ Teak", "colour_temperature": "3000K | 4000K | 6500K", "controller_type": "Remote", "dimmable": "Yes", "installation_location": "Indoor \u0026 Outdoor Undercover", "lumen_output": "2600lm", "max_airflow": "15,300m³\/hr", "max_ceiling_pitch": "14°", "motor_colour": "White", "motor_type": "DC", "motor_wattage": "35W", "natural_wind_mode": "Yes", "number_of_blades": 3, "number_of_lights": 1, "number_of_speeds": "6 Speed", "smart_enabled": true, "summer_winder_mode": "Yes", "warranty": "6 Years (3 Year In-home + 3 Years Motor) Warranty", }, 51940423631129: { "blade_colour": "Walnut", "blade_material": "ABS Plastic", "blade_pitch": "14°", "blade_span": "52\"", "ceiling_to_blades": "280mm", "ceiling_to_bottom_of_fan": "340mm", "colour": "White \/ Walnut", "colour_temperature": "3000K | 4000K | 6500K", "controller_type": "Remote", "dimmable": "Yes", "globe_included": "Built In", "installation_location": "Indoor \u0026 Outdoor Undercover", "lumen_output": "2600lm", "max_airflow": "15,300m³\/hr", "max_ceiling_pitch": "14°", "motor_colour": "White", "motor_type": "DC", "motor_wattage": "35W", "natural_wind_mode": "Yes", "number_of_blades": 3, "number_of_lights": 1, "number_of_speeds": "6 Speed", "remote_control": "Included", "smart_enabled": true, "summer_winder_mode": "Yes", "warranty": "6 Years (3 Year In-home + 3 Years Motor) Warranty", }, 51940423663897: { "blade_colour": "Black", "blade_material": "UV-Stabilized ABS", "blade_pitch": "14°", "blade_span": "48\"", "ceiling_to_blades": "280mm", "ceiling_to_bottom_of_fan": "335mm", "colour": "Black \/ Black", "colour_temperature": "3000K\/4000K\/6500K", "controller_type": "Remote", "dimmable": "Yes", "globe_included": "Built In", "installation_location": "Indoor \u0026 Outdoor Undercover", "lamp_type": "LED", "lumen_output": "2600lm", "max_airflow": "12,300m³\/hr", "max_ceiling_pitch": "14°", "motor_colour": "Black", "motor_material": "Polymer", "motor_type": "DC", "motor_wattage": "35W", "natural_wind_mode": "Yes", "number_of_blades": 3, "number_of_lights": 1, "number_of_speeds": "6 Speed", "remote_control": "Included", "shade_material": "Polymer\/Plastic", "smart_enabled": true, "summer_winder_mode": "Yes", "tri_colour": true, "warranty": "2 Years Replacement Warranty", }, 51940423696665: { "blade_colour": "Teak", "blade_material": "ABS Plastic", "blade_pitch": "14°", "blade_span": "48\"", "ceiling_to_blades": "280mm", "ceiling_to_bottom_of_fan": "335mm", "colour": "Black \/ Teak", "colour_temperature": "3000K | 4000K | 6500K", "controller_type": "Remote", "dimmable": "Yes", "installation_location": "Indoor \u0026 Outdoor Undercover", "lumen_output": "2600lm", "max_airflow": "12,300m³\/hr", "max_ceiling_pitch": "14°", "motor_colour": "Black", "motor_type": "DC", "motor_wattage": "35W", "natural_wind_mode": "Yes", "number_of_blades": 3, "number_of_lights": 1, "number_of_speeds": "6 Speed", "smart_enabled": true, "summer_winder_mode": "Yes", "warranty": "6 Years (3 Year In-home + 3 Years Motor) Warranty", }, 51940423729433: { "blade_colour": "Teak", "blade_material": "ABS Plastic", "blade_pitch": "14°", "blade_span": "48\"", "ceiling_to_blades": "280mm", "ceiling_to_bottom_of_fan": "335mm", "colour": "White \/ Teak", "colour_temperature": "3000K | 4000K | 6500K", "controller_type": "Remote", "dimmable": "Yes", "installation_location": "Indoor \u0026 Outdoor Undercover", "lumen_output": "2600lm", "max_airflow": "12,300m³\/hr", "max_ceiling_pitch": "14°", "motor_colour": "White", "motor_type": "DC", "motor_wattage": "35W", "natural_wind_mode": "Yes", "number_of_blades": 3, "number_of_lights": 1, "number_of_speeds": "6 Speed", "smart_enabled": true, "summer_winder_mode": "Yes", "warranty": "6 Years (3 Year In-home + 3 Years Motor) Warranty", }, 52181082571033: { "beam_angle": "14°", "blade_colour": "Oak", "blade_material": "ABS Plastic", "blade_pitch": "14°", "blade_span": "36\"", "ceiling_to_blades": "280mm", "ceiling_to_bottom_of_fan": "340mm", "colour": "Black \/ Oak", "colour_temperature": "3000K | 4000K | 6500K", "controller_type": "Remote", "dimmable": "Yes", "installation_location": "Indoor \u0026 Outdoor Undercover", "lumen_output": "2600lm", "max_airflow": "7,480 m³\/hr", "max_ceiling_pitch": "14°", "motor_colour": "Black", "motor_type": "DC", "motor_wattage": "18W", "natural_wind_mode": "Yes", "number_of_blades": 3, "number_of_lights": 1, "number_of_speeds": "6 Speed", "smart_enabled": true, "summer_winder_mode": "Yes", "warranty": "6 Years (3 Year In-home + 3 Years Motor) Warranty", }, 52181082603801: { "blade_colour": "Walnut", "blade_material": "ABS Plastic", "blade_pitch": "14°", "blade_span": "36\"", "ceiling_to_blades": "280mm", "ceiling_to_bottom_of_fan": "340mm", "colour": "White \/ Walnut", "colour_temperature": "3000K | 4000K | 6500K", "controller_type": "Remote", "dimmable": "Yes", "installation_location": "Indoor \u0026 Outdoor Undercover", "lumen_output": "2600lm", "max_airflow": "7,480 m³\/hr", "max_ceiling_pitch": "14°", "motor_colour": "White", "motor_type": "DC", "motor_wattage": "18W", "natural_wind_mode": "Yes", "number_of_blades": 3, "number_of_lights": 1, "number_of_speeds": "6 Speed", "smart_enabled": true, "summer_winder_mode": "Yes", "warranty": "6 Years (3 Year In-home + 3 Years Motor) Warranty", },

Revo Smart DC Ceiling Fan with LED Light & Remote

Revo Smart DC Ceiling Fan with LED Light & Remote

$218.95

$218.95 ~~$398.95~~

Revo Smart DC Ceiling Fan with LED Light & Remote

Explore the Revo Family

Experience a cool, comfortable atmosphere with the Revo Smart Ceiling Fan, crafted to deliver powerful airflow with energy efficiency. Featuring innovative Smart DC Motor Technology, it ensures effective cooling with minimal power consumption.

Operate the fan effortlessly using the included remote or connect via built-in Wi-Fi for smart, convenient control from your device. The aerodynamic, UV stabilised ABS blades provide quiet performance and resistance to sun exposure, making it suitable for indoor and outdoor spaces alike.

Enhanced by a flexible tri-colour LED light kit, this fan adapts to your lighting preferences with ease. Supported by a 6-year warranty, the Revo fan gives you confidence in its quality and performance. Transform your room with this sophisticated and practical ceiling fan today.

View the Revo Family

Download Datasheet

FanForce

FanForce Australia is a proudly Australian‑designed ceiling fan and ventilation brand focused on delivering stylish, high‑performance airflow solutions. Developed “Designed in Australia for Australia,” FanForce products are engineered to suit local living environments with powerful, quiet operation and modern aesthetics that complement today’s interiors.

The range includes a variety of DC and Smart Ceiling fans equipped with advanced motor technology, remote control and optional Wi‑Fi connectivity, offering energy‑efficient airflow and user‑friendly comfort for living spaces, bedrooms and alfresco areas. With quality construction and long‑lasting performance, FanForce stands out as a contemporary choice for reliable air circulation throughout the home.

Shop the Collection

Australian Owned & Operated
Stylish & Energy‑Efficient Airflow Solutions
Trusted by Homeowners & Trade Professionals Nationwide

Frequently Asked Questions

Does the Revo come with a light?

Yes — a 24W tri-colour LED light kit is included. The Revo Smart DC Ceiling Fan with Remote Control is the same fan supplied without it, and the Revo 24W LED Dimmable Light Kit is also sold separately.

What do the three light colours do?

They change the colour temperature of the light — warmer and softer for a bedroom, cooler and clearer for a study or work area. It is switched from the Remote Control, with nothing physical to change.

What warranty applies?

A 6 Year Warranty — 3 Year In-Home Warranty plus 3 Year Motor Warranty. The LED light kit is covered by a 2 Year Warranty.

Can the Revo be installed outdoors?

It is suitable for indoor and outdoor undercover areas where it is not exposed to rain or getting wet — suitable under a patio or alfresco roof, but not on an open deck.

Which Revo size is best for a smaller room?

The 36" is the most compact option and suits small bedrooms, studies and nurseries. It uses a smaller motor as well — 18W at 7,480m³/hr against 35W at 12,300m³/hr for the 48" — so for a standard bedroom the 48" is generally the better fit.

Does the motor change with blade size?

Yes. The 36" runs an 18W motor, while both the 48" and 52" run a 35W motor. Airflow rises across the three sizes from 7,480m³/hr up to 15,300m³/hr.

Live Chat

Mon-Fri, 9am-5pm AEST

Call Us

07 3800 4441

Email Us

Email Us

online@jdlighting.com.au

Call Us

(07) 3088 6266

Email Us

Email Us

trade@jdlighting.com.au

Visit Us

68 Precinct Street, Parkinson, QLD 4115
