TECHNICAL DATA SHEET _05/09/2026

Specifications

Beam angle	100°
Colour	White
Colour temperature	3000K/4000K/5700K
Cri rating	>90
Cut out size	235-260mm
Dimmable	Triac
Ip rating	IP54
Lumen output	5978lm
Overall width	270mm
Tri colour	true
Voltage	240V AC
Warranty	3 Year Warranty
Wattage	60W

Specifications

Beam angle	100°
Colour	White
Colour temperature	3000K/4000K/5700K
Cri rating	>90
Cut out size	235-260mm
Dimmable	Triac
Ip rating	IP54
Lumen output	5978lm
Overall width	270mm
Tri colour	true
Voltage	240V AC
Warranty	3 Year Warranty
Wattage	60W

Features

Choose between three colour temperatures for your specific needs.
Beam angle of 100° maximises light coverage in any room.
Constructed from die-cast aluminium and polycarbonate materials.
Installation process is straightforward and user-friendly.
IP54 rating makes it suitable for damp areas.
Dimensions: D270 x H50mm for an elegant profile.
Cut-out size range of D235-260mm for easy fitting.
High lumen output: 5978lm at 60W.
3-year warranty included for customer confidence.

Features

Choose between three colour temperatures for your specific needs.
Beam angle of 100° maximises light coverage in any room.
Constructed from die-cast aluminium and polycarbonate materials.
Installation process is straightforward and user-friendly.
IP54 rating makes it suitable for damp areas.
Dimensions: D270 x H50mm for an elegant profile.
Cut-out size range of D235-260mm for easy fitting.
High lumen output: 5978lm at 60W.
3-year warranty included for customer confidence.

Specifications

Beam angle	100°
Colour	White
Colour temperature	3000K/4000K/5700K
Cri rating	>90
Cut out size	235-260mm
Dimmable	Triac
Ip rating	IP54
Lumen output	5978lm
Overall width	270mm
Tri colour	true
Voltage	240V AC
Warranty	3 Year Warranty
Wattage	60W

Specifications

Beam angle	100°
Colour	White
Colour temperature	3000K/4000K/5700K
Cri rating	>90
Cut out size	235-260mm
Dimmable	Triac
Ip rating	IP54
Lumen output	5978lm
Overall width	270mm
Tri colour	true
Voltage	240V AC
Warranty	3 Year Warranty
Wattage	60W

Description

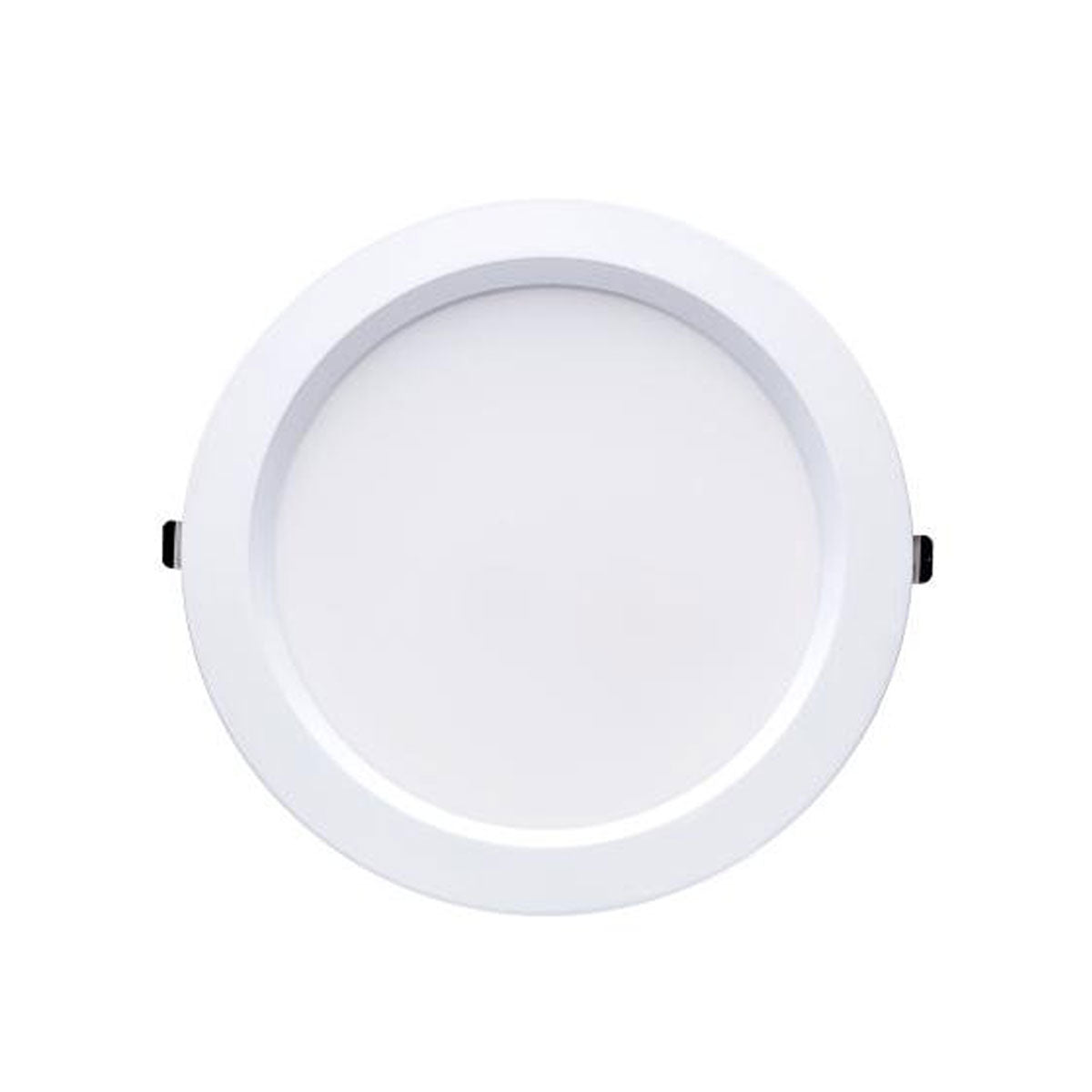

Recessed LED downlight provides flexible brightness and multiple colour temperatures to suit different lighting needs and environments.

Downloads

Download Datasheet

Recessed LED Downlight 60W

Vendor: 3A Lighting

$129.00

$129.00 ~~$144.00~~

Colour: White

What is an LED driver?

An LED driver converts mains electricity into a stable low-voltage DC power required by compatible lighting products. A driver is needed whenever a product requires an external DC power supply; usually location in areas with full weather exposure.

Common low-voltage products include spike lights, bollards, LED strip lighting and low-voltage wall lights. Always check the individual product specifications, as not every product within these categories requires an external driver.

The driver’s output voltage must match the product’s required voltage (eg. 12V DC), and its wattage must be sufficient for the total connected load. The calculator below recommends a suitable 12V or 24V driver and includes the required safety margin.

Find the Right LED Driver

Choose the product type and required voltage, then enter the installation details. We’ll recommend a suitable driver with the required safety margin.

Calculator type

Required voltage

Check the product specifications for its required voltage. The driver voltage must match the product. This calculator is only suitable for products marked 12V DC or 24V DC.

Wattage per fitting (W)

Quantity

All fittings connected to one driver must have the same voltage input. For fittings with different wattages, add their individual wattages together and contact us if you need help confirming the correct driver.

View driver capacity chart

Max Connected Load	12V Driver	24V Driver
25W	30W	30W
50W	60W	60W
83W	100W	100W
125W	150W	150W
166W	200W	200W
250W	300W	300W

✔ Available to Order: In-Stock at 3A Lighting

SKU: DL5001/WH/TC

Want a better price? Ask for a JD Deal.

Call us (07) 3809 2011 or chat with us below

Need Help? Got a Question? Contact your Account Manager

Alternatively, contact our Trade experts:
(07) 3088 6266 - trade@jdlighting.com.au

Specifications

Beam angle	100°
Colour	White
Colour temperature	3000K/4000K/5700K
Cri rating	>90
Cut out size	235-260mm
Dimmable	Triac
Ip rating	IP54
Lumen output	5978lm
Overall width	270mm
Tri colour	true
Voltage	240V AC
Warranty	3 Year Warranty
Wattage	60W

Specifications

Beam angle	100°
Colour	White
Colour temperature	3000K/4000K/5700K
Cri rating	>90
Cut out size	235-260mm
Dimmable	Triac
Ip rating	IP54
Lumen output	5978lm
Overall width	270mm
Tri colour	true
Voltage	240V AC
Warranty	3 Year Warranty
Wattage	60W

Features

Choose between three colour temperatures for your specific needs.
Beam angle of 100° maximises light coverage in any room.
Constructed from die-cast aluminium and polycarbonate materials.
Installation process is straightforward and user-friendly.
IP54 rating makes it suitable for damp areas.
Dimensions: D270 x H50mm for an elegant profile.
Cut-out size range of D235-260mm for easy fitting.
High lumen output: 5978lm at 60W.
3-year warranty included for customer confidence.

Features

Choose between three colour temperatures for your specific needs.
Beam angle of 100° maximises light coverage in any room.
Constructed from die-cast aluminium and polycarbonate materials.
Installation process is straightforward and user-friendly.
IP54 rating makes it suitable for damp areas.
Dimensions: D270 x H50mm for an elegant profile.
Cut-out size range of D235-260mm for easy fitting.
High lumen output: 5978lm at 60W.
3-year warranty included for customer confidence.

Specifications

Beam angle	100°
Colour	White
Colour temperature	3000K/4000K/5700K
Cri rating	>90
Cut out size	235-260mm
Dimmable	Triac
Ip rating	IP54
Lumen output	5978lm
Overall width	270mm
Tri colour	true
Voltage	240V AC
Warranty	3 Year Warranty
Wattage	60W

Specifications

Beam angle	100°
Colour	White
Colour temperature	3000K/4000K/5700K
Cri rating	>90
Cut out size	235-260mm
Dimmable	Triac
Ip rating	IP54
Lumen output	5978lm
Overall width	270mm
Tri colour	true
Voltage	240V AC
Warranty	3 Year Warranty
Wattage	60W

Description

Recessed LED downlight provides flexible brightness and multiple colour temperatures to suit different lighting needs and environments.

Downloads

Download Datasheet

Recessed LED Downlight 60W

$129.00

$129.00 ~~$144.00~~

Explore the Family

Improve your lighting with the Tri-Colour LED Downlight. It's three colour temperatures 3000K, 4000K, and 5700K enable you to set the perfect mood for any space. Made with die-cast aluminium and a polycarbonate diffuser, this downlight provides a wide 100° beam angle for extensive room coverage.

The IP54 rating allows safe use in damp locations, making it versatile for different areas. Designed for easy installation, this stylish downlight comes with a 3-year warranty, making it a reliable addition to your lighting setup.

Download Datasheet

3A Lighting

3A Lighting is an established Australian lighting brand with a strong reputation for delivering practical, high-quality lighting solutions for both residential and commercial spaces. Based in Sydney, the brand has been supplying the Australian market since 2004, working closely with electricians, builders, lighting retailers and trade professionals across the country.

With a focus on reliable performance and energy-efficient LED technology, 3A Lighting offers a broad range of interior and exterior lighting products designed to suit everyday applications. Their collections balance modern design with durability and value, making them a dependable choice for projects where quality, consistency and long-term performance matter.
