TECHNICAL DATA SHEET _24/03/2026

Linkable Led Slim 9W Tri 3K (855Lm)/4K (945Lm)/5.7K (900Lm) 570Mm

Specifications

Beam angle	150Â°
Colour temperature	3000K/4000K/5700K
Dimmable	No
Frame colour	No
Globe included	Built In
Ip rating	IP20
Lamp type	LED
Lumen output	380lm (3000K) / 420lm (4000K) / 400lm (5700K)

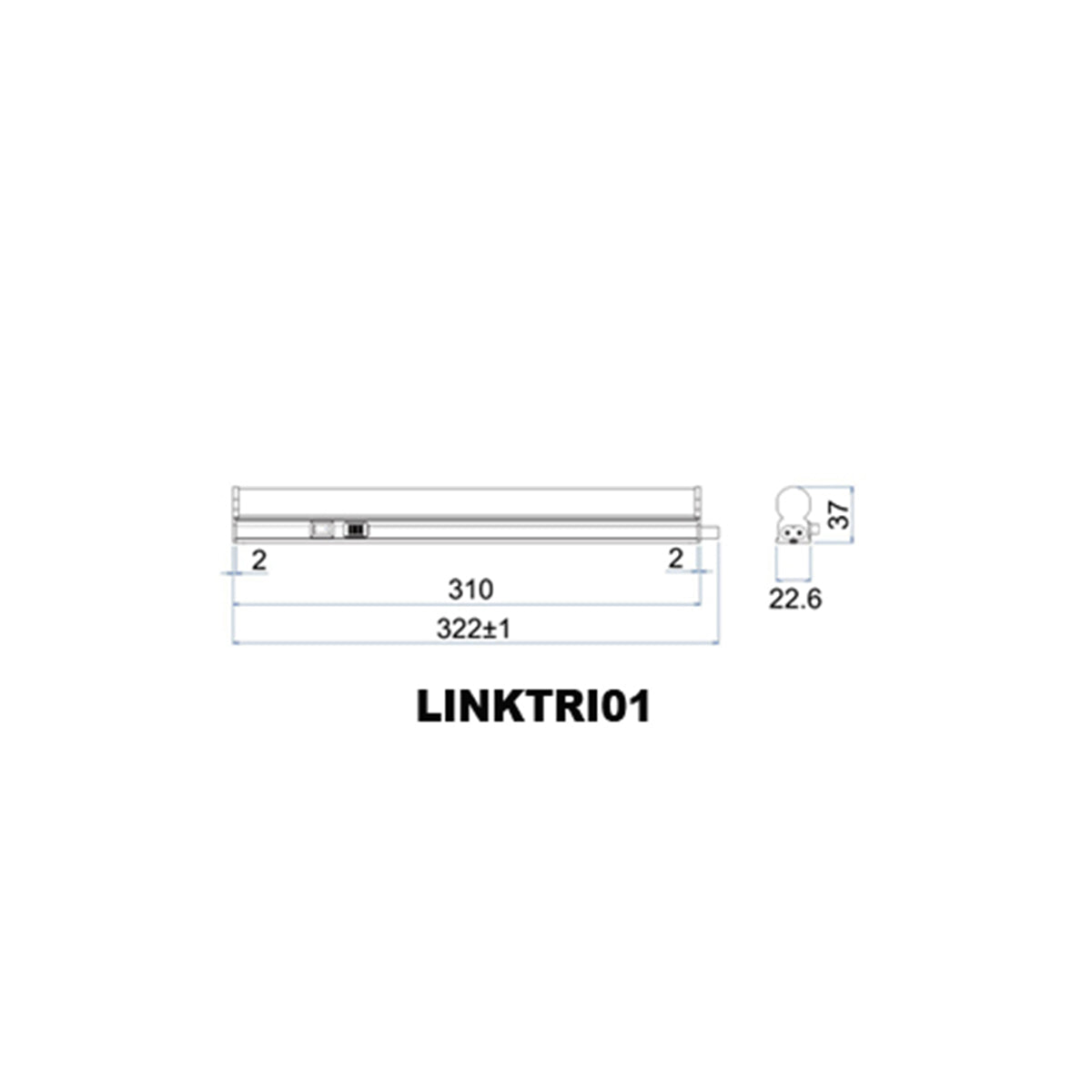

Overall height	37mm
Overall width	22.6mm
Shade material	Plastic

Specifications

Beam angle	150Â°
Colour temperature	3000K/4000K/5700K
Dimmable	No
Frame colour	No
Globe included	Built In
Ip rating	IP20
Lamp type	LED
Lumen output	380lm (3000K) / 420lm (4000K) / 400lm (5700K)
Overall height	37mm
Overall width	22.6mm
Shade material	Plastic

Features

Interior Tri-CCT linkable slimline LED lights
Input voltage range: 220-240V AC 50/60Hz
Inbuilt driver
Housing: PC
Mounting bracket: aluminium
LED chips: SMD2835
4W Max.
Tri-CCT in one fitting: 3000K (380lm) / 4000K (420lm) / 5700K (400lm)
Beam: 150Â°
Slide switch on side
CRI: Â°Â¥80
Power factor: >0.9
Flex & plug and connecting cables sold separately

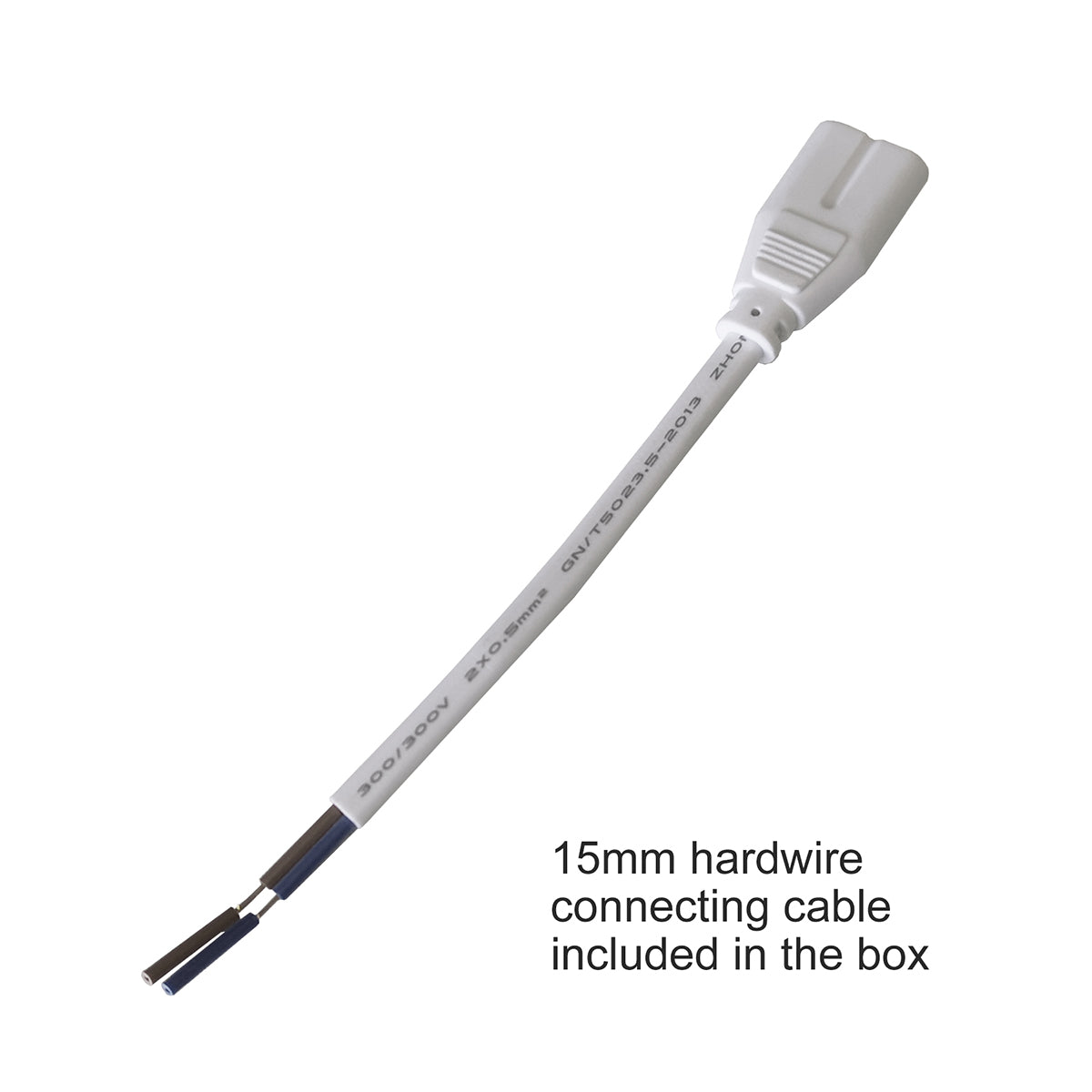

Hardwire connecting cable and mounting bracket included in the box
Not suitable for dimming
Ambient temperature: -15 to 40Â°C
IP20
Double insulated
Note: All LINKTRI models can be used together. Maximum connection wattage: 150W
3 Year Replacement Warranty

Features

Interior Tri-CCT linkable slimline LED lights
Input voltage range: 220-240V AC 50/60Hz
Inbuilt driver
Housing: PC
Mounting bracket: aluminium
LED chips: SMD2835
4W Max.
Tri-CCT in one fitting: 3000K (380lm) / 4000K (420lm) / 5700K (400lm)
Beam: 150Â°
Slide switch on side
CRI: Â°Â¥80
Power factor: >0.9
Flex & plug and connecting cables sold separately
Hardwire connecting cable and mounting bracket included in the box
Not suitable for dimming
Ambient temperature: -15 to 40Â°C
IP20
Double insulated
Note: All LINKTRI models can be used together. Maximum connection wattage: 150W
3 Year Replacement Warranty

Description

Specifications

Beam angle	150Â°
Colour temperature	3000K/4000K/5700K
Dimmable	No
Frame colour	No
Globe included	Built In
Ip rating	IP20
Lamp type	LED
Lumen output	380lm (3000K) / 420lm (4000K) / 400lm (5700K)
Overall height	37mm
Overall width	22.6mm
Shade material	Plastic

Specifications

Beam angle	150Â°
Colour temperature	3000K/4000K/5700K
Dimmable	No
Frame colour	No
Globe included	Built In
Ip rating	IP20
Lamp type	LED
Lumen output	380lm (3000K) / 420lm (4000K) / 400lm (5700K)
Overall height	37mm
Overall width	22.6mm
Shade material	Plastic

Downloads

Download the Spec Sheet

Linkable Led Slim 9W Tri 3K (855Lm)/4K (945Lm)/5.7K (900Lm) 570Mm

Name: Linkable Led Slim 9W Tri 3K (855Lm)/4K (945Lm)/5.7K (900Lm) 570Mm
Brand: CLA Lighting
SKU: LINKTRI01
Price: 21.68 AUD
Availability: InStock

Vendor: CLA Lighting

$21.68

$21.68 ~~$25.95~~

Tax included. Shipping calculated at checkout.

✔ In stock

SKU: LINKTRI01

Want a better price? Ask for a JD Deal.

Call us (07) 3809 2011 or chat with us below

Need Help? Got a Question? Contact our Trade experts.
