TECHNICAL DATA SHEET _05/06/2026

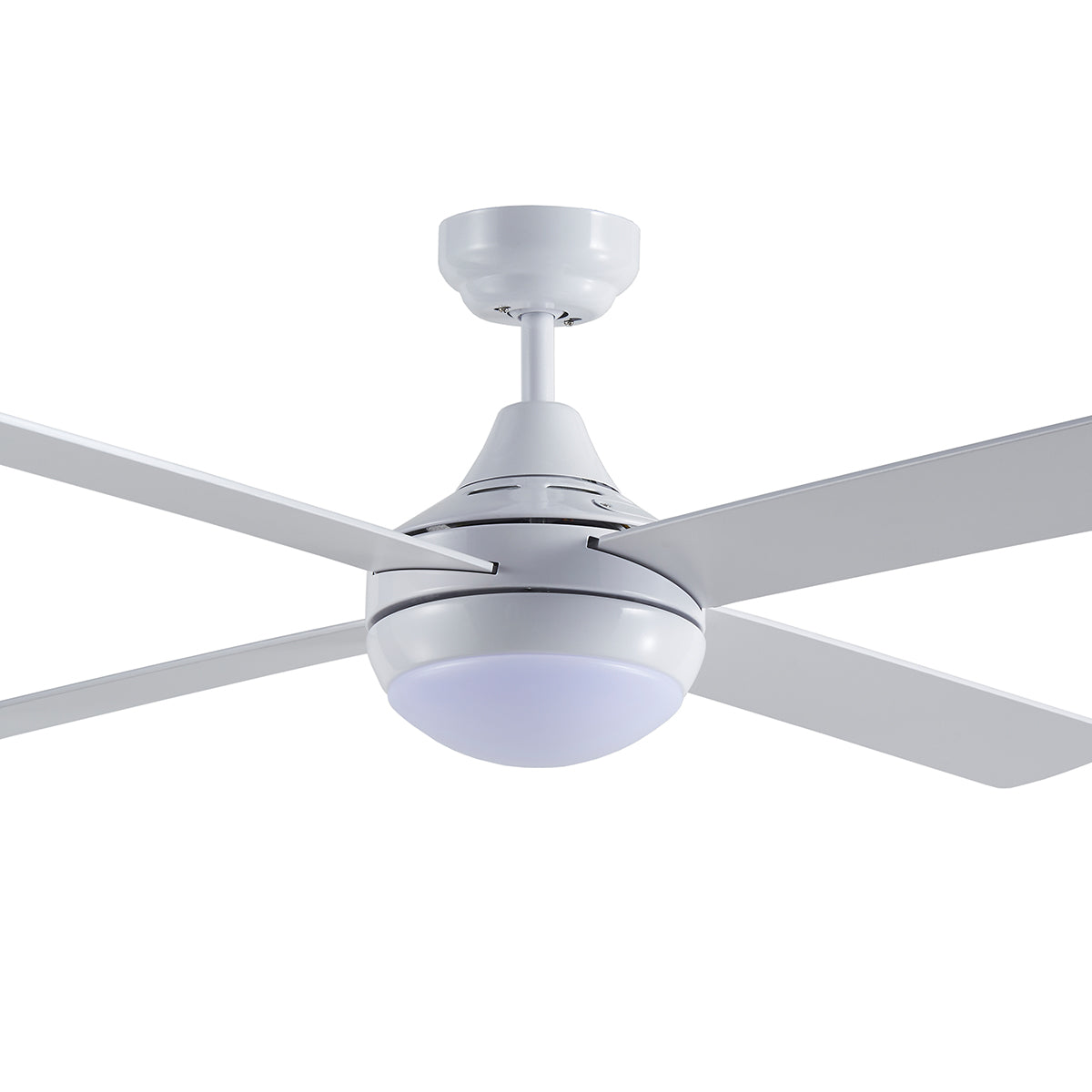

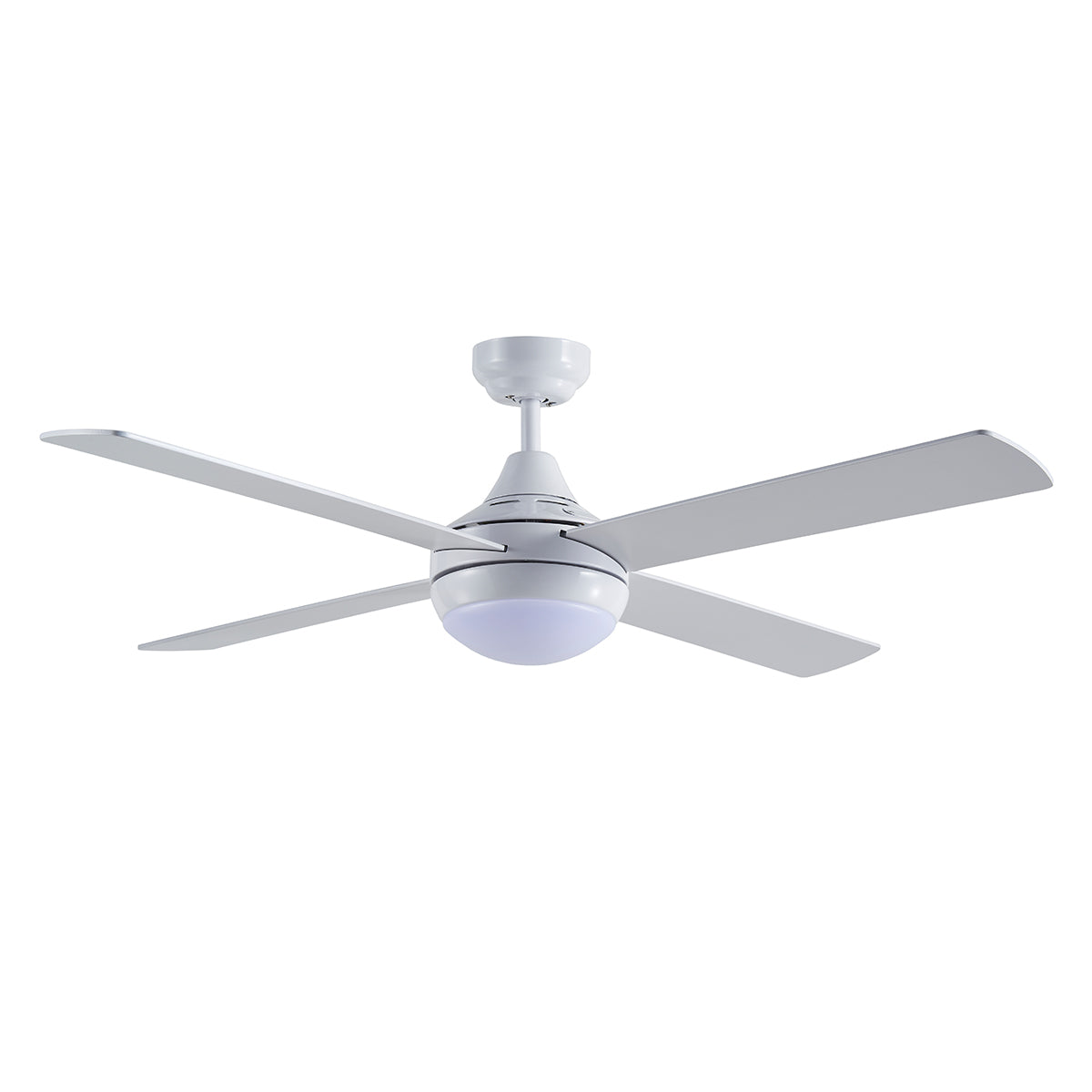

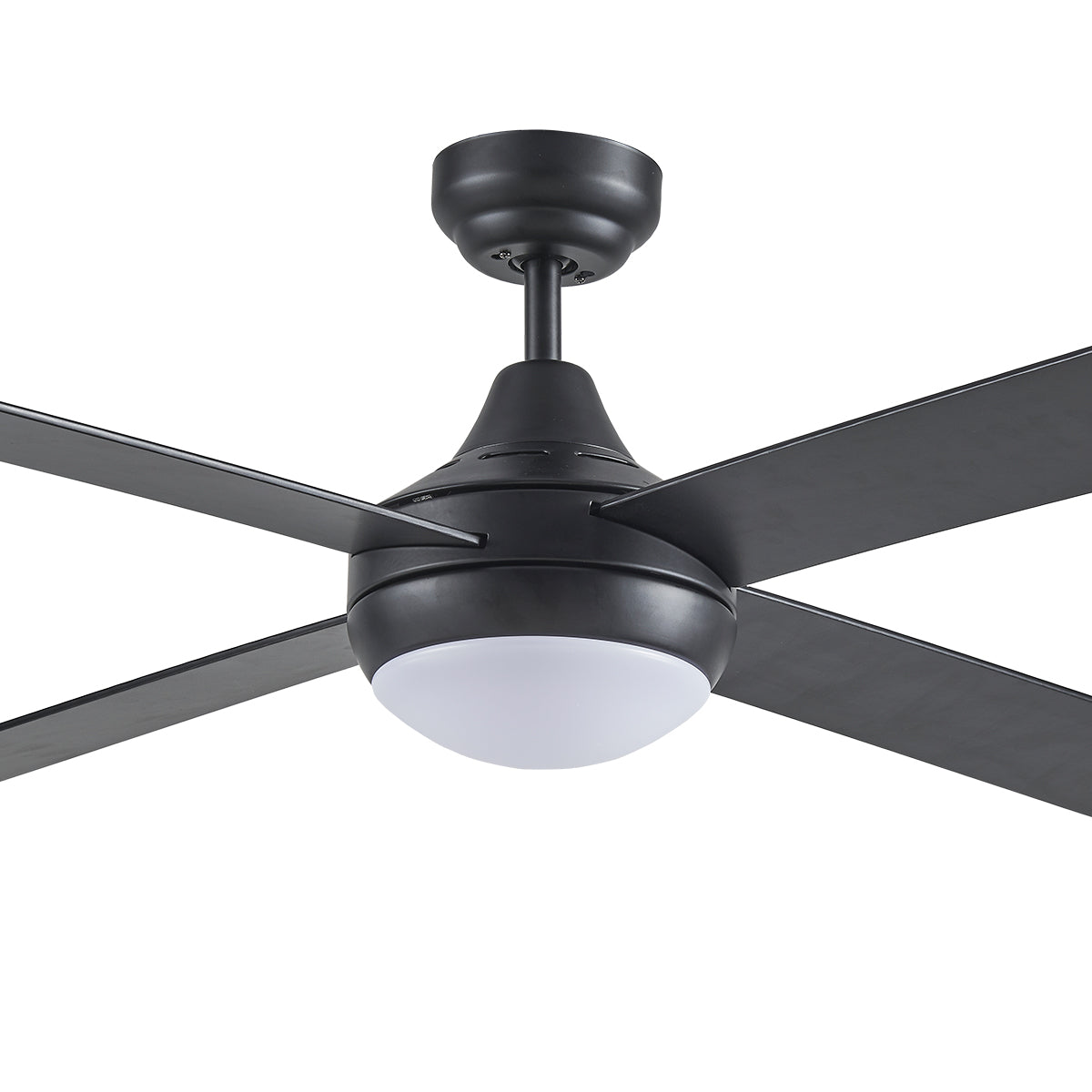

Link 48" AC Ceiling Fan with LED Light & Wall Control

Specifications

Blade material	Plywood
Blade pitch	11â€¹Â¡
Blade span	48"
Ceiling to bottom of fan	352mm
Colour	Matt Black
Colour temperature	3000K/4000K/5000K
Globe included	Built In
Installation location	Indoor & Outdoor Undercover
Lumen output	1450lm, 1650lm, 1600lm
Max airflow	7,600m/hr
Max ceiling pitch	Up to 15
Motor material	Metal
Motor type	AC
Motor wattage	55W
Number of blades	4
Remote control	Not Included
Sloped ceiling compatible	true
Summer winder mode	Yes

Specifications

Blade material	Plywood
Blade pitch	11â€¹Â¡
Blade span	48"
Ceiling to bottom of fan	352mm
Colour	Matt Black
Colour temperature	3000K/4000K/5000K
Globe included	Built In
Installation location	Indoor & Outdoor Undercover
Lumen output	1450lm, 1650lm, 1600lm
Max airflow	7,600m/hr
Max ceiling pitch	Up to 15
Motor material	Metal
Motor type	AC
Motor wattage	55W
Number of blades	4
Remote control	Not Included
Sloped ceiling compatible	true
Summer winder mode	Yes

Features

Powerful and efficient 55W AC motor
Air movement up to 7,600mÂ³/hr
Low profile designed ideal for indoor and covered outdoor applications
Metal body and canopy with 4 plywood blades
Fully reversible for summer and winter mode
15W Tri-colour LED (switchable 3000K, 4000K or 5000K)
Supplied with 3 speed wall controller
Compatible with Martec ceiling fan remote control MPREMS, MPLCDS and MPAPP (sold separately)
6 Year (3 year In Home + 3 year motor replacement warranty)

Features

Powerful and efficient 55W AC motor
Air movement up to 7,600mÂ³/hr
Low profile designed ideal for indoor and covered outdoor applications
Metal body and canopy with 4 plywood blades
Fully reversible for summer and winter mode
15W Tri-colour LED (switchable 3000K, 4000K or 5000K)
Supplied with 3 speed wall controller
Compatible with Martec ceiling fan remote control MPREMS, MPLCDS and MPAPP (sold separately)
6 Year (3 year In Home + 3 year motor replacement warranty)

Description

The Link series is powerful and efficient, featuring four sealed plywood blades and a 55W AC motor. This fan can move air up to a maximum of 7,600mÂ³/hr, making it perfect for indoor and covered outdoor applications. The metal body and canopy provide a durable and stable base, ensuring long-lasting performance. It also features a 15W tricolour LED with 3 step switch dimming, allowing you to adjust the brightness and color temperature (3000K, 4000K & 5000K) to suit your needs. Plus, it's fully reversible for summer and winter mode and comes with a 6 year warranty for added peace of mind.

Description

Specifications

Blade material	Plywood
Blade pitch	11â€¹Â¡
Blade span	48"
Ceiling to bottom of fan	352mm
Colour	Matt Black
Colour temperature	3000K/4000K/5000K
Globe included	Built In
Installation location	Indoor & Outdoor Undercover
Lumen output	1450lm, 1650lm, 1600lm
Max airflow	7,600m/hr
Max ceiling pitch	Up to 15
Motor material	Metal
Motor type	AC
Motor wattage	55W
Number of blades	4
Remote control	Not Included
Sloped ceiling compatible	true
Summer winder mode	Yes

Specifications

Blade material	Plywood
Blade pitch	11â€¹Â¡
Blade span	48"
Ceiling to bottom of fan	352mm
Colour	Matt Black
Colour temperature	3000K/4000K/5000K
Globe included	Built In
Installation location	Indoor & Outdoor Undercover
Lumen output	1450lm, 1650lm, 1600lm
Max airflow	7,600m/hr
Max ceiling pitch	Up to 15
Motor material	Metal
Motor type	AC
Motor wattage	55W
Number of blades	4
Remote control	Not Included
Sloped ceiling compatible	true
Summer winder mode	Yes
