TECHNICAL DATA SHEET _04/06/2026

Hercules Max 120" Aluminium 6 Blade DC Ceiling Fan with Remote

Specifications

Blade material	Aluminium
Blade pitch	12Â°
Blade span	120"
Ceiling to bottom of fan	436mm
Colour	Satin Nickel
Installation location	Indoor & Outdoor Undercover
Max airflow	31,500 mÂ³/hr
Max ceiling pitch	17Â°
Motor colour	Silver
Motor material	Metal
Motor type	DC
Motor wattage	65W
Number of blades	6
Remote control	Included
Sloped ceiling compatible	true
Summer winder mode	Yes
Warranty	6 Year Motor Warranty & 3 Year In-Home Warranty

Specifications

Blade material	Aluminium
Blade pitch	12Â°
Blade span	120"
Ceiling to bottom of fan	436mm
Colour	Satin Nickel
Installation location	Indoor & Outdoor Undercover
Max airflow	31,500 mÂ³/hr
Max ceiling pitch	17Â°
Motor colour	Silver
Motor material	Metal
Motor type	DC
Motor wattage	65W
Number of blades	6
Remote control	Included
Sloped ceiling compatible	true
Summer winder mode	Yes
Warranty	6 Year Motor Warranty & 3 Year In-Home Warranty

Features

High volume airflow for large areas with a smooth & quiet operation
Durable Steel body and canopy construction
Maximum airflow: 31,500 m³/hr

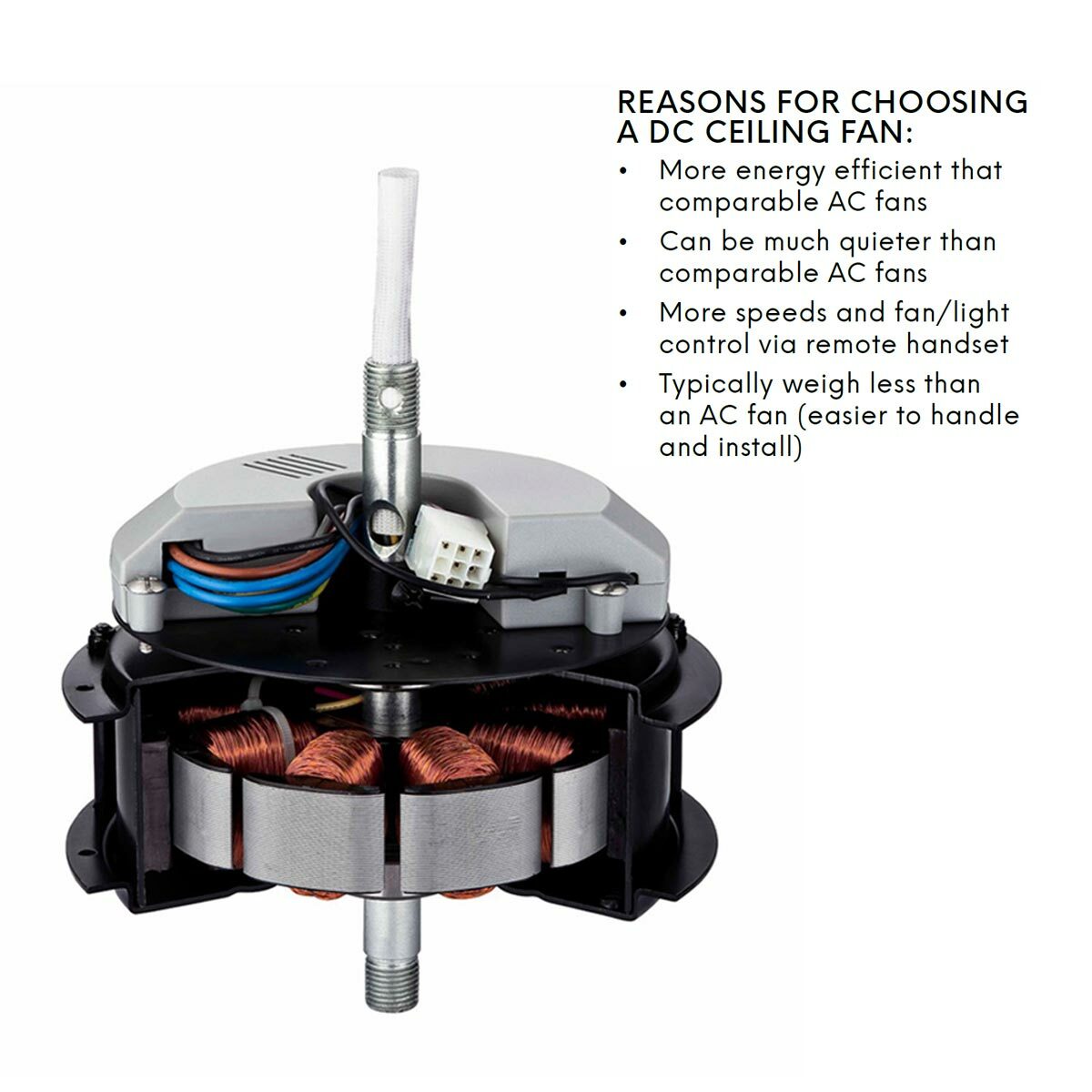

Powerful 65W DC motor
120" blade diameter
All-seasons Technology for use all year round
Suitable for raked ceiling up to 30° max
For indoors or enclosed alfresco areas not exposed to the weather
8° blade pitch
Optional Light Kit available
6 Year Motor Warranty & 3 Year In-Home Warranty

Features

High volume airflow for large areas with a smooth & quiet operation
Durable Steel body and canopy construction
Maximum airflow: 31,500 m³/hr
Powerful 65W DC motor
120" blade diameter
All-seasons Technology for use all year round
Suitable for raked ceiling up to 30° max
For indoors or enclosed alfresco areas not exposed to the weather
8° blade pitch
Optional Light Kit available
6 Year Motor Warranty & 3 Year In-Home Warranty

Description

At 3m in diameter, the Hercules Max ceiling fan is designed specifically to cool down large commercial spaces, indoors or out. With a powerful 65W DC motor that provides quiet, comforting air movement, Hercules Max is ideal for any space from foyers, pavillions and music venues to seaside dining and open-air theatres.

Tropically rated with Brilliantâ„¢s All-Seasons technology for use all year round.

Speed	Power	RPM	Airflow (mÂ²/hr)
5	65W	76	31500
4	45W	63	26112
3	24W	51	21138
2	19W	40	16579
1	14W	33	13678

*As per manufacturer's claimed airflow.

Description

Tropically rated with Brilliantâ„¢s All-Seasons technology for use all year round.

Speed	Power	RPM	Airflow (mÂ²/hr)
5	65W	76	31500
4	45W	63	26112
3	24W	51	21138
2	19W	40	16579
1	14W	33	13678

*As per manufacturer's claimed airflow.

Specifications

Blade material	Aluminium
Blade pitch	12Â°
Blade span	120"
Ceiling to bottom of fan	436mm
Colour	Satin Nickel
Installation location	Indoor & Outdoor Undercover
Max airflow	31,500 mÂ³/hr
Max ceiling pitch	17Â°
Motor colour	Silver
Motor material	Metal
Motor type	DC
Motor wattage	65W
Number of blades	6
Remote control	Included
Sloped ceiling compatible	true
Summer winder mode	Yes
Warranty	6 Year Motor Warranty & 3 Year In-Home Warranty

Specifications

Blade material	Aluminium
Blade pitch	12Â°
Blade span	120"
Ceiling to bottom of fan	436mm
Colour	Satin Nickel
Installation location	Indoor & Outdoor Undercover
Max airflow	31,500 mÂ³/hr
Max ceiling pitch	17Â°
Motor colour	Silver
Motor material	Metal
Motor type	DC
Motor wattage	65W
Number of blades	6
Remote control	Included
Sloped ceiling compatible	true
Summer winder mode	Yes
Warranty	6 Year Motor Warranty & 3 Year In-Home Warranty

Downloads

Download the Spec Sheet

Hercules Max 120" Aluminium 6 Blade DC Ceiling Fan with Remote

Vendor: Brilliant Lighting

$948.00

$948.00 ~~$949.00~~

Blade Size: 120"

Colour: Satin Nickel

Out of stock

SKU: 20899/13

Want a better price? Ask for a JD Deal.

Call us (07) 3809 2011 or chat with us below

Need Help? Got a Question? Contact our Trade experts.

(07) 3088 6266 - trade@jdlighting.com.au

Specifications

Blade material	Aluminium
Blade pitch	12Â°
Blade span	120"
Ceiling to bottom of fan	436mm
Colour	Satin Nickel
Installation location	Indoor & Outdoor Undercover
Max airflow	31,500 mÂ³/hr
Max ceiling pitch	17Â°
Motor colour	Silver
Motor material	Metal
Motor type	DC
Motor wattage	65W
Number of blades	6
Remote control	Included
Sloped ceiling compatible	true
Summer winder mode	Yes
Warranty	6 Year Motor Warranty & 3 Year In-Home Warranty

Specifications

Blade material	Aluminium
Blade pitch	12Â°
Blade span	120"
Ceiling to bottom of fan	436mm
Colour	Satin Nickel
Installation location	Indoor & Outdoor Undercover
Max airflow	31,500 mÂ³/hr
Max ceiling pitch	17Â°
Motor colour	Silver
Motor material	Metal
Motor type	DC
Motor wattage	65W
Number of blades	6
Remote control	Included
Sloped ceiling compatible	true
Summer winder mode	Yes
Warranty	6 Year Motor Warranty & 3 Year In-Home Warranty

Features

High volume airflow for large areas with a smooth & quiet operation
Durable Steel body and canopy construction
Maximum airflow: 31,500 m³/hr
Powerful 65W DC motor
120" blade diameter
All-seasons Technology for use all year round
Suitable for raked ceiling up to 30° max
For indoors or enclosed alfresco areas not exposed to the weather
8° blade pitch
Optional Light Kit available
6 Year Motor Warranty & 3 Year In-Home Warranty

Features

High volume airflow for large areas with a smooth & quiet operation
Durable Steel body and canopy construction
Maximum airflow: 31,500 m³/hr
Powerful 65W DC motor
120" blade diameter
All-seasons Technology for use all year round
Suitable for raked ceiling up to 30° max
For indoors or enclosed alfresco areas not exposed to the weather
8° blade pitch
Optional Light Kit available
6 Year Motor Warranty & 3 Year In-Home Warranty

Description

Tropically rated with Brilliantâ„¢s All-Seasons technology for use all year round.

Speed	Power	RPM	Airflow (mÂ²/hr)
5	65W	76	31500
4	45W	63	26112
3	24W	51	21138
2	19W	40	16579
1	14W	33	13678

*As per manufacturer's claimed airflow.

Description

Tropically rated with Brilliantâ„¢s All-Seasons technology for use all year round.

Speed	Power	RPM	Airflow (mÂ²/hr)
5	65W	76	31500
4	45W	63	26112
3	24W	51	21138
2	19W	40	16579
1	14W	33	13678

*As per manufacturer's claimed airflow.

Specifications

Blade material	Aluminium
Blade pitch	12Â°
Blade span	120"
Ceiling to bottom of fan	436mm
Colour	Satin Nickel
Installation location	Indoor & Outdoor Undercover
Max airflow	31,500 mÂ³/hr
Max ceiling pitch	17Â°
Motor colour	Silver
Motor material	Metal
Motor type	DC
Motor wattage	65W
Number of blades	6
Remote control	Included
Sloped ceiling compatible	true
Summer winder mode	Yes
Warranty	6 Year Motor Warranty & 3 Year In-Home Warranty

Specifications

Blade material	Aluminium
Blade pitch	12Â°
Blade span	120"
Ceiling to bottom of fan	436mm
Colour	Satin Nickel
Installation location	Indoor & Outdoor Undercover
Max airflow	31,500 mÂ³/hr
Max ceiling pitch	17Â°
Motor colour	Silver
Motor material	Metal
Motor type	DC
Motor wattage	65W
Number of blades	6
Remote control	Included
Sloped ceiling compatible	true
Summer winder mode	Yes
Warranty	6 Year Motor Warranty & 3 Year In-Home Warranty

Downloads

Download the Spec Sheet

Hercules Max 120" Aluminium 6 Blade DC Ceiling Fan with Remote

$948.00

$948.00 ~~$949.00~~

Explore the Family

Hercules Max ceiling fan delivers powerful, quiet airflow with a large 3m diameter and energy-efficient DC motor, designed to enhance comfort in expansive indoor or outdoor commercial spaces.

Download Datasheet

Brilliant Lighting

With more than three decades of expertise in lighting, electrical, air movement, and smart products, Brilliant has established itself as a prominent leader in the industry. Their comprehensive range of solutions caters to residential, commercial, and architectural markets, reaching customers through various channels such as retail, DIY, and trade across Australia and New Zealand.

Brilliant's core focus lies in providing lighting solutions that are both efficient and sustainable. They are dedicated to minimizing their carbon footprint and integrating sustainability practices into every facet of their operations. By prioritizing environmental responsibility, Brilliant aims to contribute to a greener future.

The satisfaction and needs of their customers remain paramount to Brilliant's endeavors. They offer an extensive selection of products to accommodate diverse requirements. With a steadfast commitment to quality, Brilliant ensures that their lighting and smart products are of the highest standard, instilling confidence in their customers.
