TECHNICAL DATA SHEET _01/09/2026

Specifications

Beam angle	45°
Colour	Black
Colour temperature	3000K/4000K/5500K
Cri rating	>80
Dimmable	No
Globe included	Built In
Installation location	Outdoor
Ip rating	IP54
Lumen output	600lm

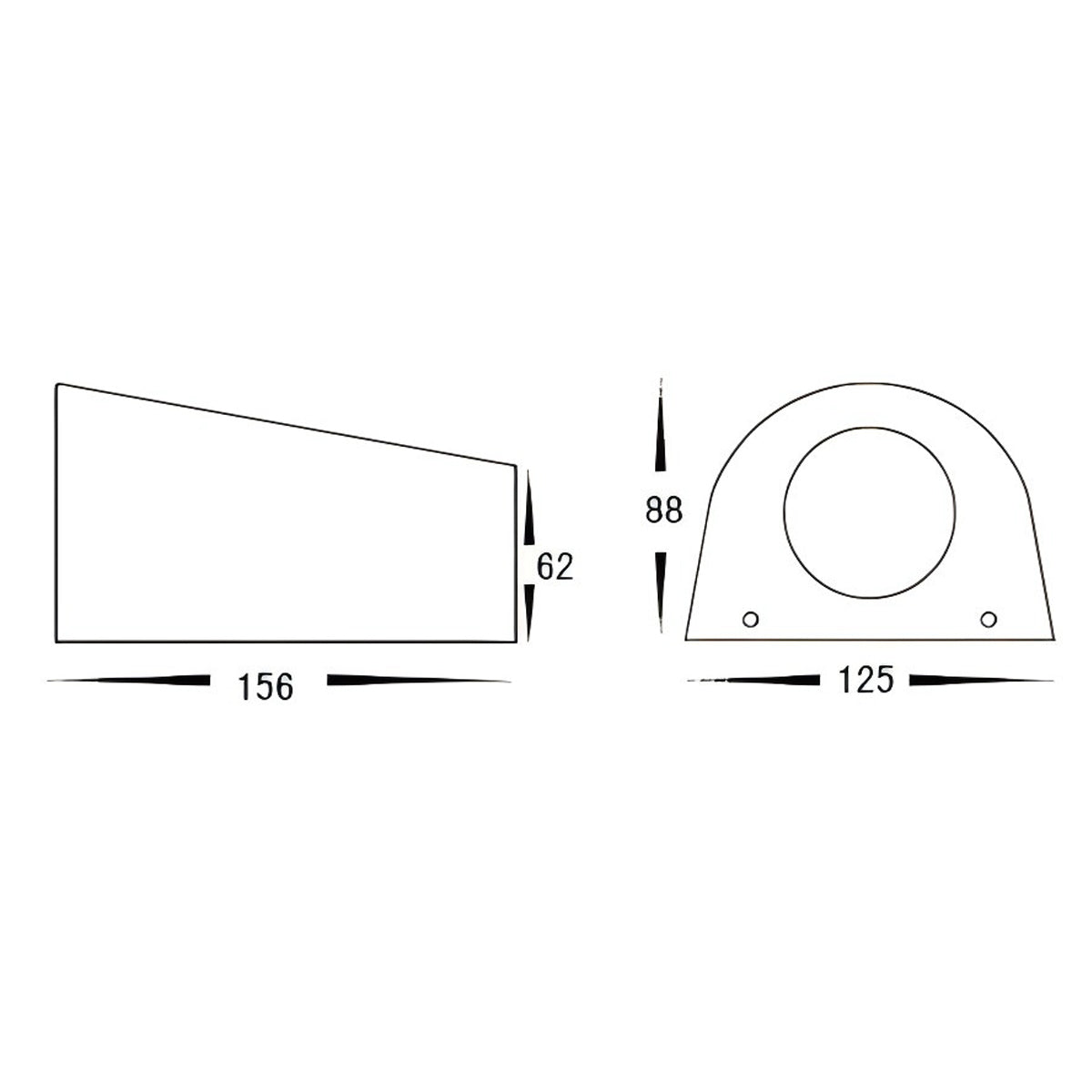

Overall height	156mm
Overall width	125mm
Tri colour	true
Voltage	240V AC
Warranty	3 Year Warranty
Wattage	10W

Specifications

Beam angle	45°
Colour	Black
Colour temperature	3000K/4000K/5500K
Cri rating	>80
Dimmable	No
Globe included	Built In
Installation location	Outdoor
Ip rating	IP54
Lumen output	600lm
Overall height	156mm
Overall width	125mm
Tri colour	true
Voltage	240V AC
Warranty	3 Year Warranty
Wattage	10W

Features

10W LED system produces bright and efficient outdoor lighting.
600 lumens brightness illuminates spaces clearly and effectively.
45° beam angle focuses light precisely where needed.
Aluminium body designed for solid outdoor use.
IP54 rating shields light from water and dust entry.
Colour temperatures include 3000K, 4000K, and 5500K options.
Compact design measures 156mm length for versatile installation.
Non-dimmable feature ensures simple operation and reliability.
Up and down lighting style enhances architectural features.
3-year warranty offers confidence in product quality.

Features

10W LED system produces bright and efficient outdoor lighting.
600 lumens brightness illuminates spaces clearly and effectively.
45° beam angle focuses light precisely where needed.
Aluminium body designed for solid outdoor use.
IP54 rating shields light from water and dust entry.
Colour temperatures include 3000K, 4000K, and 5500K options.
Compact design measures 156mm length for versatile installation.
Non-dimmable feature ensures simple operation and reliability.
Up and down lighting style enhances architectural features.
3-year warranty offers confidence in product quality.

Specifications

Beam angle	45°
Colour	Black
Colour temperature	3000K/4000K/5500K
Cri rating	>80
Dimmable	No
Globe included	Built In
Installation location	Outdoor
Ip rating	IP54
Lumen output	600lm
Overall height	156mm
Overall width	125mm
Tri colour	true
Voltage	240V AC
Warranty	3 Year Warranty
Wattage	10W

Specifications

Beam angle	45°
Colour	Black
Colour temperature	3000K/4000K/5500K
Cri rating	>80
Dimmable	No
Globe included	Built In
Installation location	Outdoor
Ip rating	IP54
Lumen output	600lm
Overall height	156mm
Overall width	125mm
Tri colour	true
Voltage	240V AC
Warranty	3 Year Warranty
Wattage	10W

Description

Outdoor LED wall light providing bright illumination with weather resistant design for enhanced exterior spaces.

Downloads

Download Datasheet

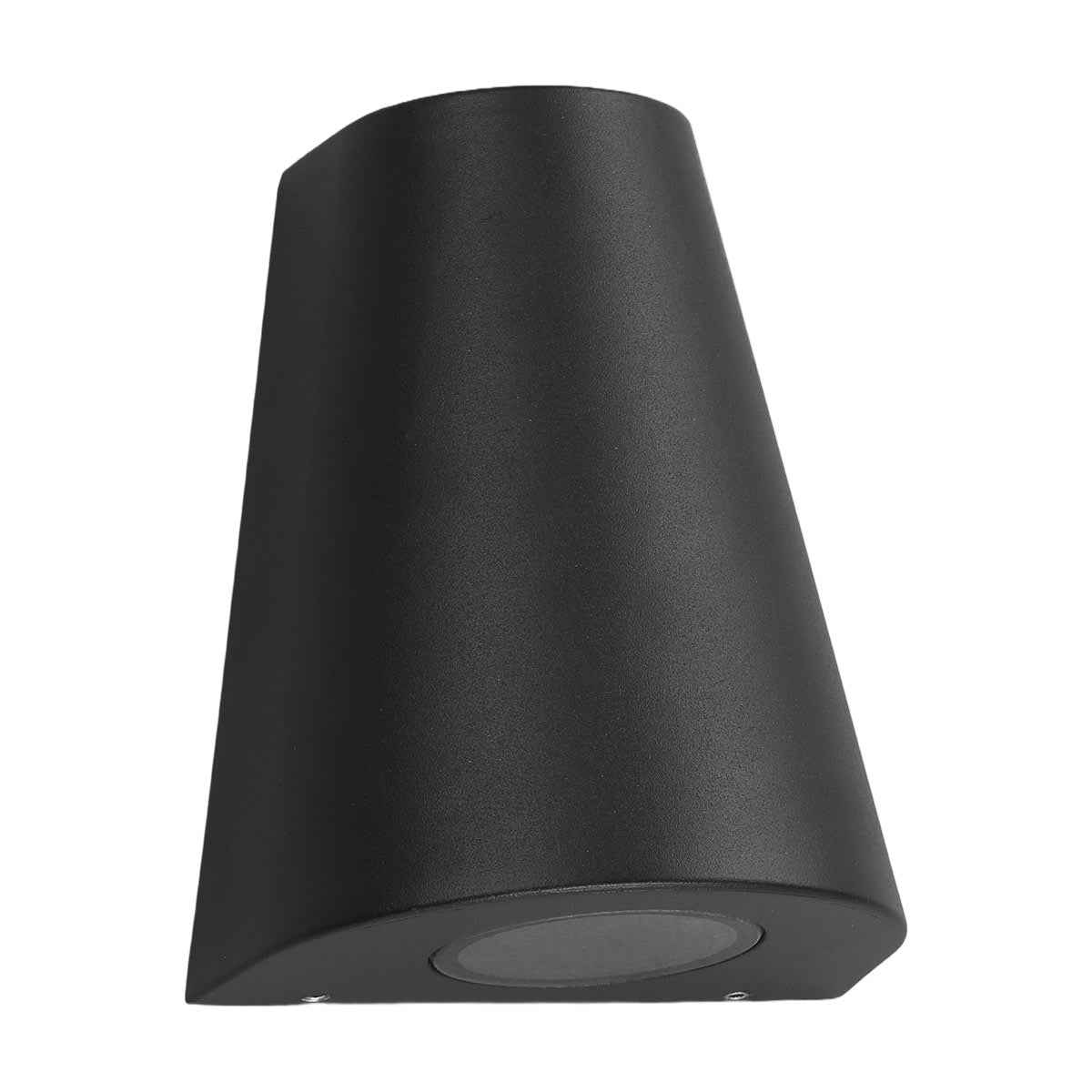

Estella Curve LED Outdoor Wall Light

Vendor: Delessi

$89.95

$89.95 ~~$106.00~~

Colour: Black

What is an LED driver?

An LED driver converts mains electricity into a stable low-voltage DC power required by compatible lighting products. A driver is needed whenever a product requires an external DC power supply; usually location in areas with full weather exposure.

Common low-voltage products include spike lights, bollards, LED strip lighting and low-voltage wall lights. Always check the individual product specifications, as not every product within these categories requires an external driver.

The driver’s output voltage must match the product’s required voltage (eg. 12V DC), and its wattage must be sufficient for the total connected load. The calculator below recommends a suitable 12V or 24V driver and includes the required safety margin.

Find the Right LED Driver

Choose the product type and required voltage, then enter the installation details. We’ll recommend a suitable driver with the required safety margin.

Calculator type

Required voltage

Check the product specifications for its required voltage. The driver voltage must match the product. This calculator is only suitable for products marked 12V DC or 24V DC.

Wattage per fitting (W)

Quantity

All fittings connected to one driver must have the same voltage input. For fittings with different wattages, add their individual wattages together and contact us if you need help confirming the correct driver.

View driver capacity chart

Max Connected Load	12V Driver	24V Driver
25W	30W	30W
50W	60W	60W
83W	100W	100W
125W	150W	150W
166W	200W	200W
250W	300W	300W

✔ In stock

SKU: DL30015-BK

Want a better price? Ask for a JD Deal.

Call us (07) 3809 2011 or chat with us below

Need Help? Got a Question? Contact your Account Manager

Alternatively, contact our Trade experts:
(07) 3088 6266 - trade@jdlighting.com.au

Specifications

Beam angle	45°
Colour	Black
Colour temperature	3000K/4000K/5500K
Cri rating	>80
Dimmable	No
Globe included	Built In
Installation location	Outdoor
Ip rating	IP54
Lumen output	600lm
Overall height	156mm
Overall width	125mm
Tri colour	true
Voltage	240V AC
Warranty	3 Year Warranty
Wattage	10W

Specifications

Beam angle	45°
Colour	Black
Colour temperature	3000K/4000K/5500K
Cri rating	>80
Dimmable	No
Globe included	Built In
Installation location	Outdoor
Ip rating	IP54
Lumen output	600lm
Overall height	156mm
Overall width	125mm
Tri colour	true
Voltage	240V AC
Warranty	3 Year Warranty
Wattage	10W

Features

10W LED system produces bright and efficient outdoor lighting.
600 lumens brightness illuminates spaces clearly and effectively.
45° beam angle focuses light precisely where needed.
Aluminium body designed for solid outdoor use.
IP54 rating shields light from water and dust entry.
Colour temperatures include 3000K, 4000K, and 5500K options.
Compact design measures 156mm length for versatile installation.
Non-dimmable feature ensures simple operation and reliability.
Up and down lighting style enhances architectural features.
3-year warranty offers confidence in product quality.

Features

10W LED system produces bright and efficient outdoor lighting.
600 lumens brightness illuminates spaces clearly and effectively.
45° beam angle focuses light precisely where needed.
Aluminium body designed for solid outdoor use.
IP54 rating shields light from water and dust entry.
Colour temperatures include 3000K, 4000K, and 5500K options.
Compact design measures 156mm length for versatile installation.
Non-dimmable feature ensures simple operation and reliability.
Up and down lighting style enhances architectural features.
3-year warranty offers confidence in product quality.

Specifications

Beam angle	45°
Colour	Black
Colour temperature	3000K/4000K/5500K
Cri rating	>80
Dimmable	No
Globe included	Built In
Installation location	Outdoor
Ip rating	IP54
Lumen output	600lm
Overall height	156mm
Overall width	125mm
Tri colour	true
Voltage	240V AC
Warranty	3 Year Warranty
Wattage	10W

Specifications

Beam angle	45°
Colour	Black
Colour temperature	3000K/4000K/5500K
Cri rating	>80
Dimmable	No
Globe included	Built In
Installation location	Outdoor
Ip rating	IP54
Lumen output	600lm
Overall height	156mm
Overall width	125mm
Tri colour	true
Voltage	240V AC
Warranty	3 Year Warranty
Wattage	10W

Description

Outdoor LED wall light providing bright illumination with weather resistant design for enhanced exterior spaces.

Downloads

Download Datasheet

52500415381785: { "beam_angle": "45°", "colour": "Black", "colour_temperature": "3000K\/4000K\/5500K", "cri_rating": "\u0026gt;80", "dimmable": "No", "globe_included": "Built In", "installation_location": "Outdoor", "ip_rating": "IP54", "lumen_output": "600lm", "overall_height": "156mm", "overall_width": "125mm", "tri_colour": true, "voltage": "240V AC", "warranty": "3 Year Warranty", "wattage": "10W", }, 52500415414553: { "beam_angle": "45°", "colour": "White", "colour_temperature": "3000K\/4000K\/5500K", "cri_rating": "\u0026gt;80", "dimmable": "No", "globe_included": "Built In", "installation_location": "Outdoor", "ip_rating": "IP54", "lumen_output": "600lm", "overall_height": "156mm", "overall_width": "125mm", "tri_colour": true, "voltage": "240V AC", "warranty": "3 Year Warranty", "wattage": "10W", },

Estella Curve LED Outdoor Wall Light

$89.95

$89.95 ~~$106.00~~

Explore the Family

Brighten outdoor spaces with the Estella Curve Wall Light featuring a 10W LED that emits 600 lumens for clear illumination. Its aluminium structure offers reliable protection with an IP54 rating against water and dust. Choose from three colour temperatures—3000K, 4000K, or 5500K—to match your lighting preference.

The 45° beam angle directs light effectively, highlighting exterior details. Compact dimensions allow easy installation in various outdoor locations. Backed by a 3-year warranty, this up and down wall light combines practical function with consistent performance.

Download Datasheet
