TECHNICAL DATA SHEET _01/07/2026

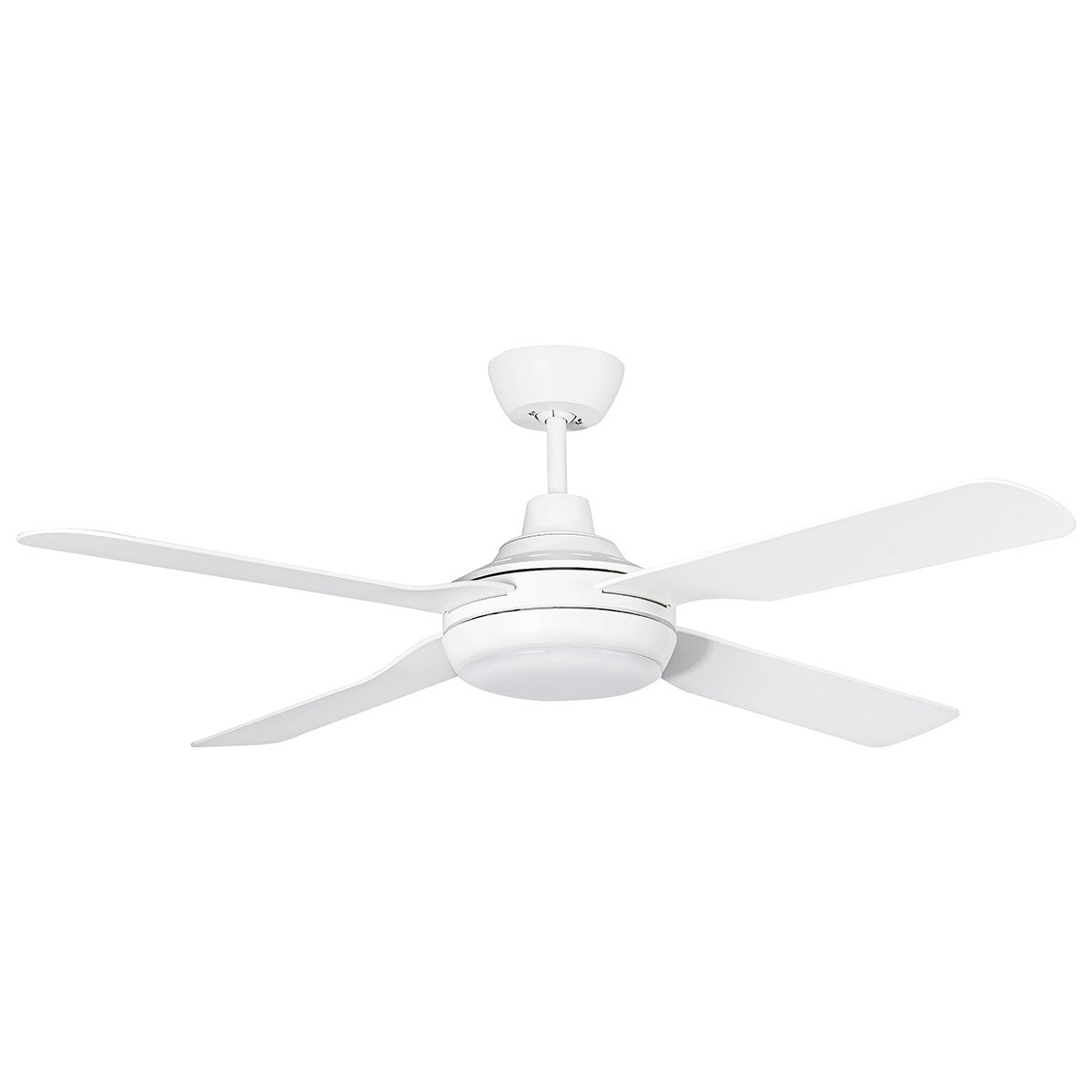

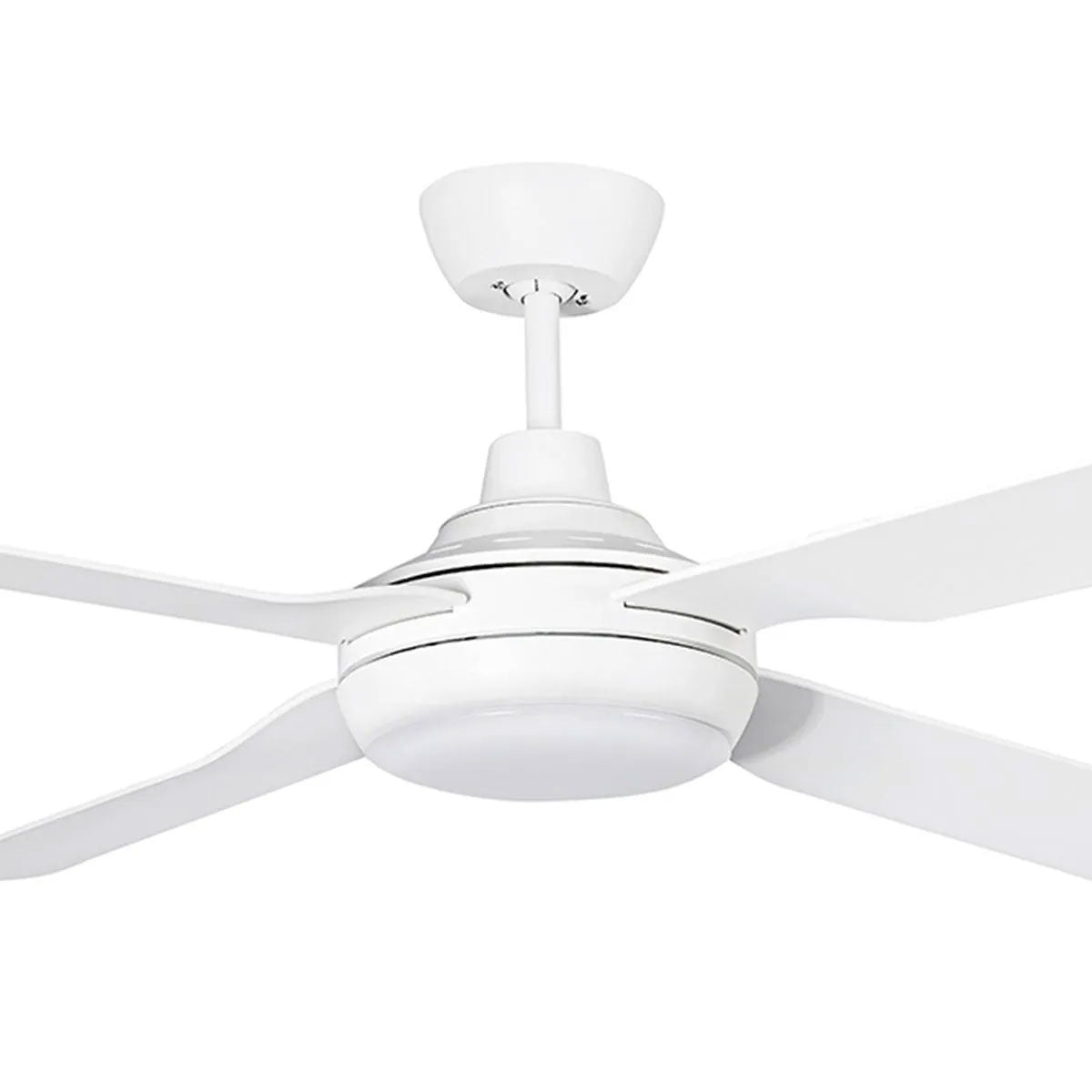

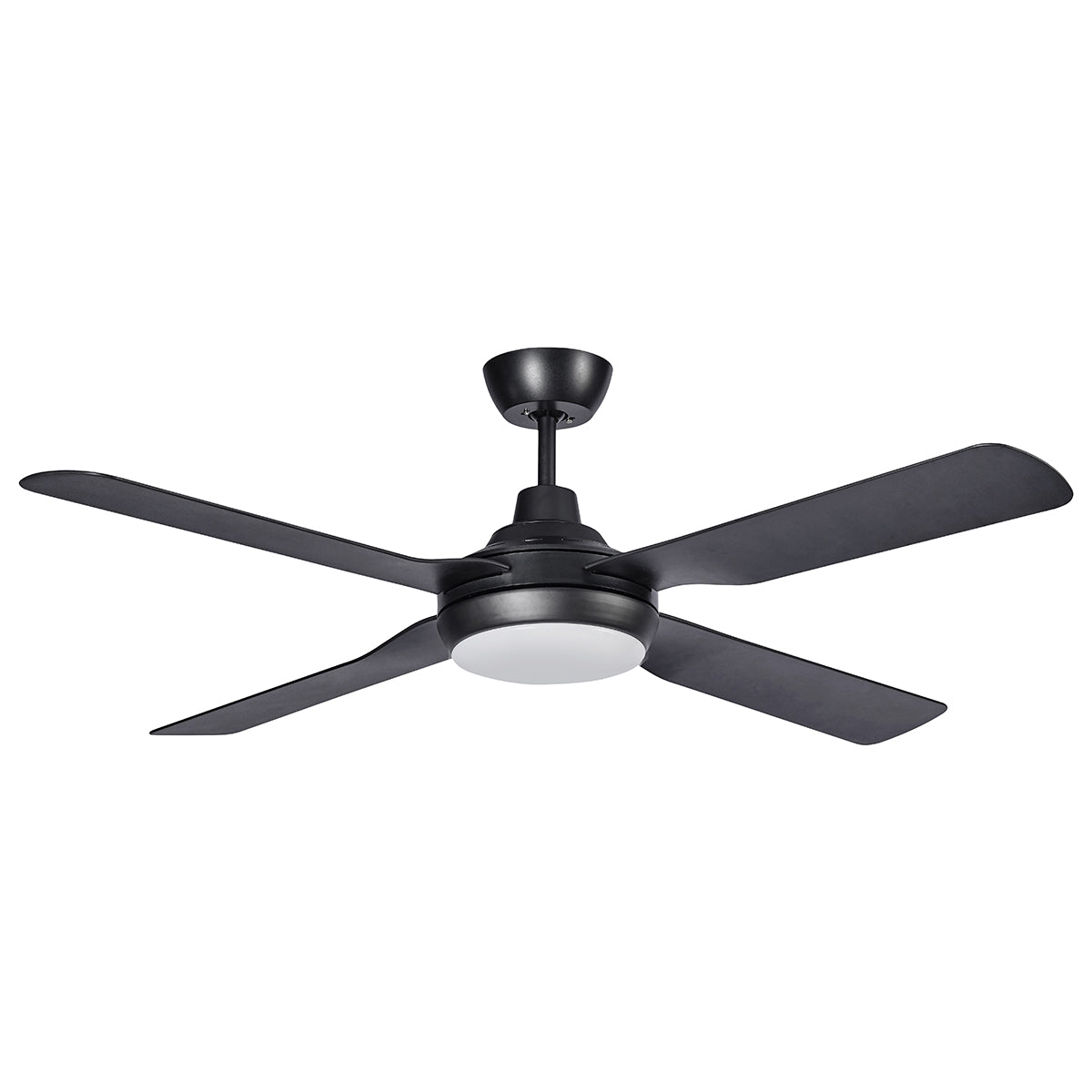

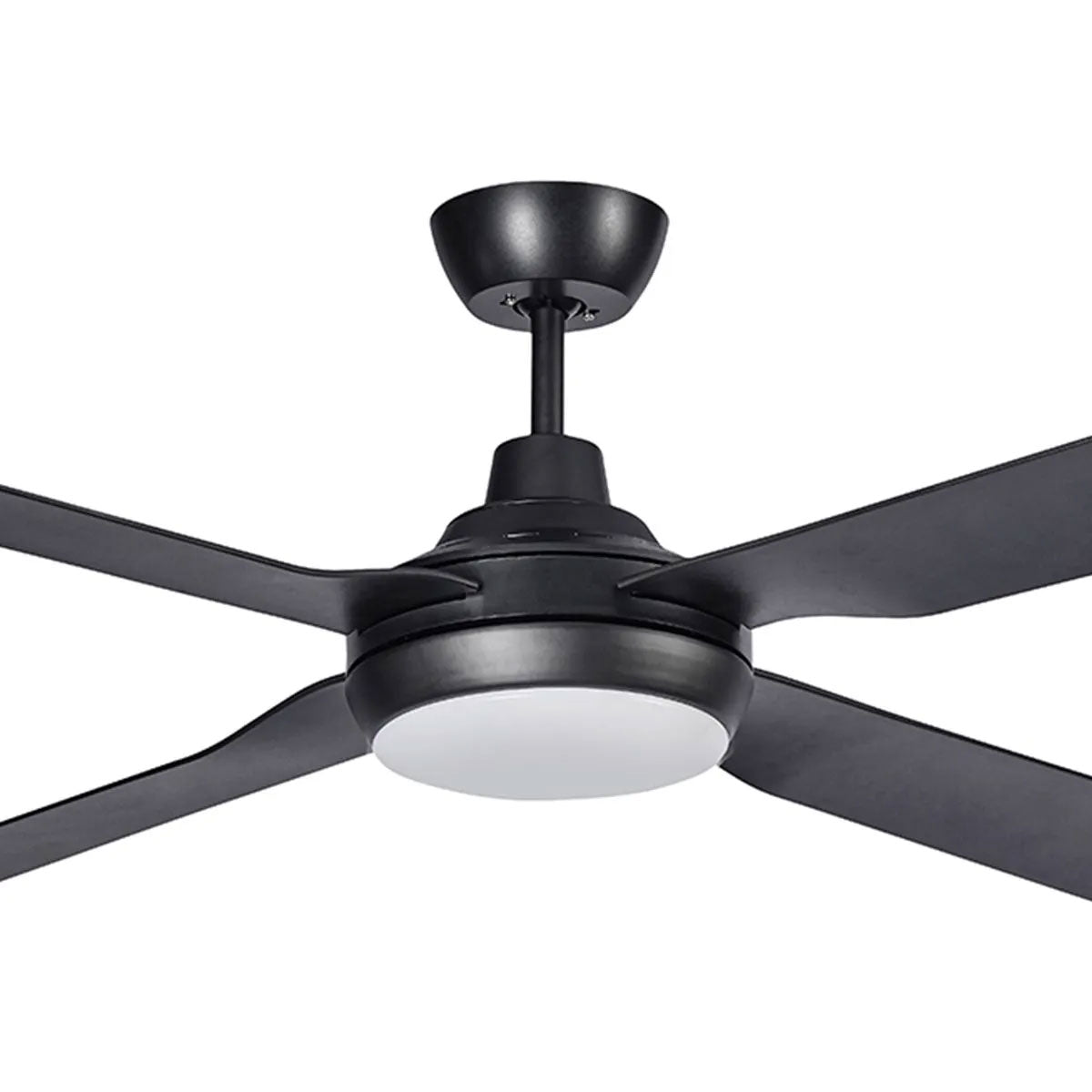

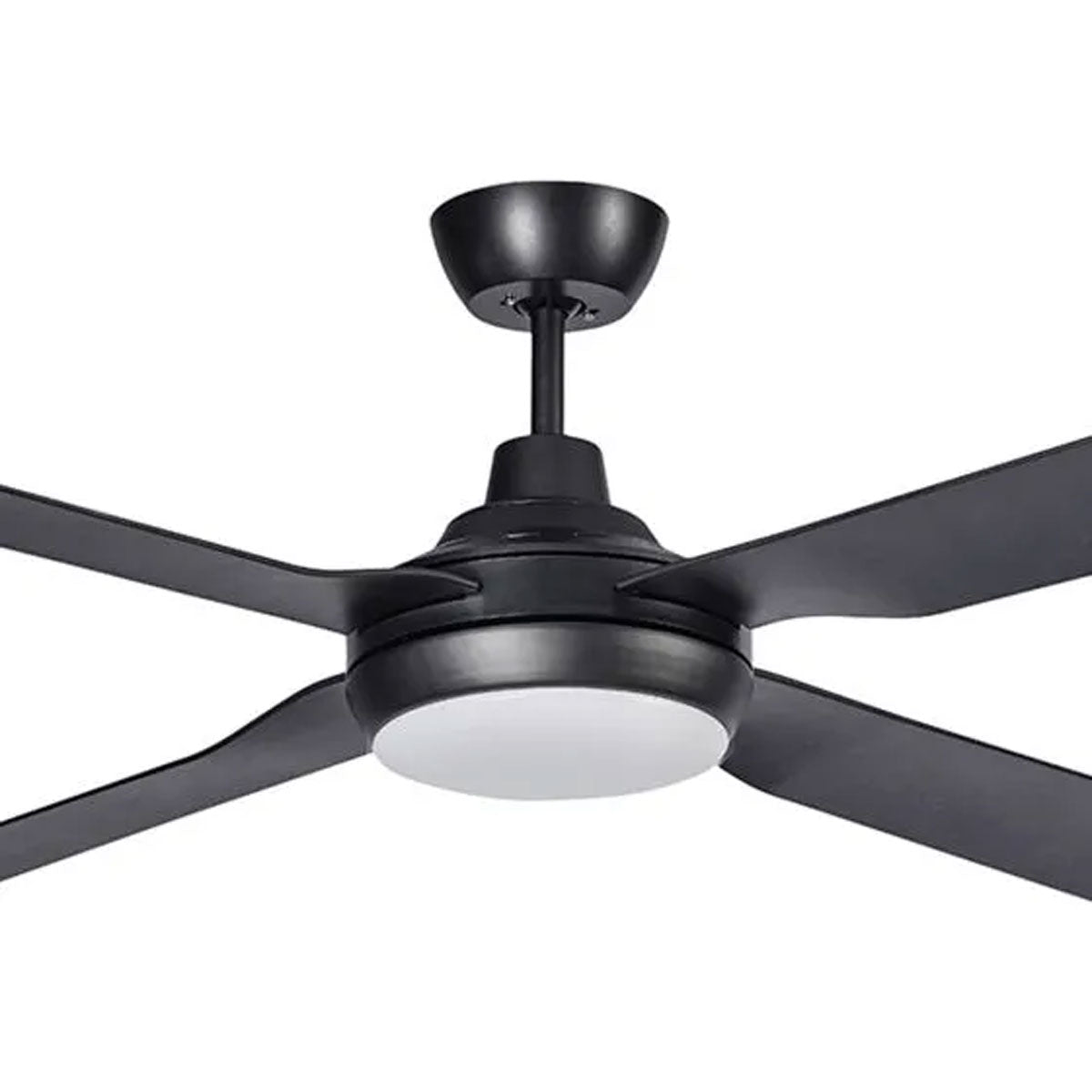

Discovery II AC Ceiling Fan with LED Light

Specifications

Blade material	ABS Moulded Plastic
Blade pitch	13â€¹Â¡
Blade span	48"
Ceiling to bottom of fan	350mm
Colour	White
Colour temperature	3000K/4000K/5000K
Globe included	Built In
Installation location	Indoor & Outdoor Undercover
Lumen output	1580lm / 1745lm / 1690lm
Max airflow	11,835m/hr
Max ceiling pitch	15°
Motor material	ABS Plastic
Motor type	AC
Motor wattage	65W
Number of blades	4
Number of lights	1
Remote control	Not Included
Sloped ceiling compatible	true
Summer winder mode	Yes
Wattage	15W

Specifications

Blade material	ABS Moulded Plastic
Blade pitch	13â€¹Â¡
Blade span	48"
Ceiling to bottom of fan	350mm
Colour	White
Colour temperature	3000K/4000K/5000K
Globe included	Built In
Installation location	Indoor & Outdoor Undercover
Lumen output	1580lm / 1745lm / 1690lm
Max airflow	11,835m/hr
Max ceiling pitch	15°
Motor material	ABS Plastic
Motor type	AC
Motor wattage	65W
Number of blades	4
Number of lights	1
Remote control	Not Included
Sloped ceiling compatible	true
Summer winder mode	Yes
Wattage	15W

Features

Powerful and efficient 65W AC motor
Air movement up to 11,835mÂ³/hr
Slimline design ideal for indoor and outdoor covered application
ABS body and canopy with 4 ABS blades
Fully reversible for summer and winter mode
15W tricolour LED with 3 step switch dimming
Switchable colour temperature between 3000K, 4000K & 5000K
Compatible with Martec ceiling fan remote control MPREMS, MPLCDS and MPAPP (sold separately)
6 Year (3 year In Home + 3 year motor replacement warranty)

Features

Powerful and efficient 65W AC motor
Air movement up to 11,835mÂ³/hr
Slimline design ideal for indoor and outdoor covered application
ABS body and canopy with 4 ABS blades
Fully reversible for summer and winter mode
15W tricolour LED with 3 step switch dimming
Switchable colour temperature between 3000K, 4000K & 5000K
Compatible with Martec ceiling fan remote control MPREMS, MPLCDS and MPAPP (sold separately)
6 Year (3 year In Home + 3 year motor replacement warranty)

Description

Experience the ultimate balance in cooling and lighting with the Martec Discovery II LED Tri-Colour ceiling fan. With a powerful and efficient 65W AC motor, this fan can move air up to a maximum of 11,835mÂ³/hr, making it perfect for indoor and covered outdoor applications. It also features a 15W tricolour LED with 3 step switch dimming, allowing you to adjust the brightness and color temperature (3000K, 4000K & 5000K) to suit your needs. The introduction of ABS blades keeps maintenance and cleaning to a minimum. Plus, it's fully reversible for summer and winter mode, and comes with a 6 year warranty for added peace of mind.

Description

Specifications

Blade material	ABS Moulded Plastic
Blade pitch	13â€¹Â¡
Blade span	48"
Ceiling to bottom of fan	350mm
Colour	White
Colour temperature	3000K/4000K/5000K
Globe included	Built In
Installation location	Indoor & Outdoor Undercover
Lumen output	1580lm / 1745lm / 1690lm
Max airflow	11,835m/hr
Max ceiling pitch	15°
Motor material	ABS Plastic
Motor type	AC
Motor wattage	65W
Number of blades	4
Number of lights	1
Remote control	Not Included
Sloped ceiling compatible	true
Summer winder mode	Yes
Wattage	15W

Specifications

Blade material	ABS Moulded Plastic
Blade pitch	13â€¹Â¡
Blade span	48"
Ceiling to bottom of fan	350mm
Colour	White
Colour temperature	3000K/4000K/5000K
Globe included	Built In
Installation location	Indoor & Outdoor Undercover
Lumen output	1580lm / 1745lm / 1690lm
Max airflow	11,835m/hr
Max ceiling pitch	15°
Motor material	ABS Plastic
Motor type	AC
Motor wattage	65W
Number of blades	4
Number of lights	1
Remote control	Not Included
Sloped ceiling compatible	true
Summer winder mode	Yes
Wattage	15W

Downloads

Download Datasheet

Discovery II AC Ceiling Fan with LED Light

Vendor: Martec

$215.00

$215.00 ~~$269.50~~

Blade Size: 48"

48" 52"

Colour: White

✔ Available to Order: In-Stock at Supplier

SKU: MDF1243W

Want a better price? Ask for a JD Deal.

Call us (07) 3809 2011 or chat with us below
