TECHNICAL DATA SHEET _29/10/2026

Specifications

Blade colour	White
Blade material	ABS Plastic
Blade pitch	14°
Blade span	48"

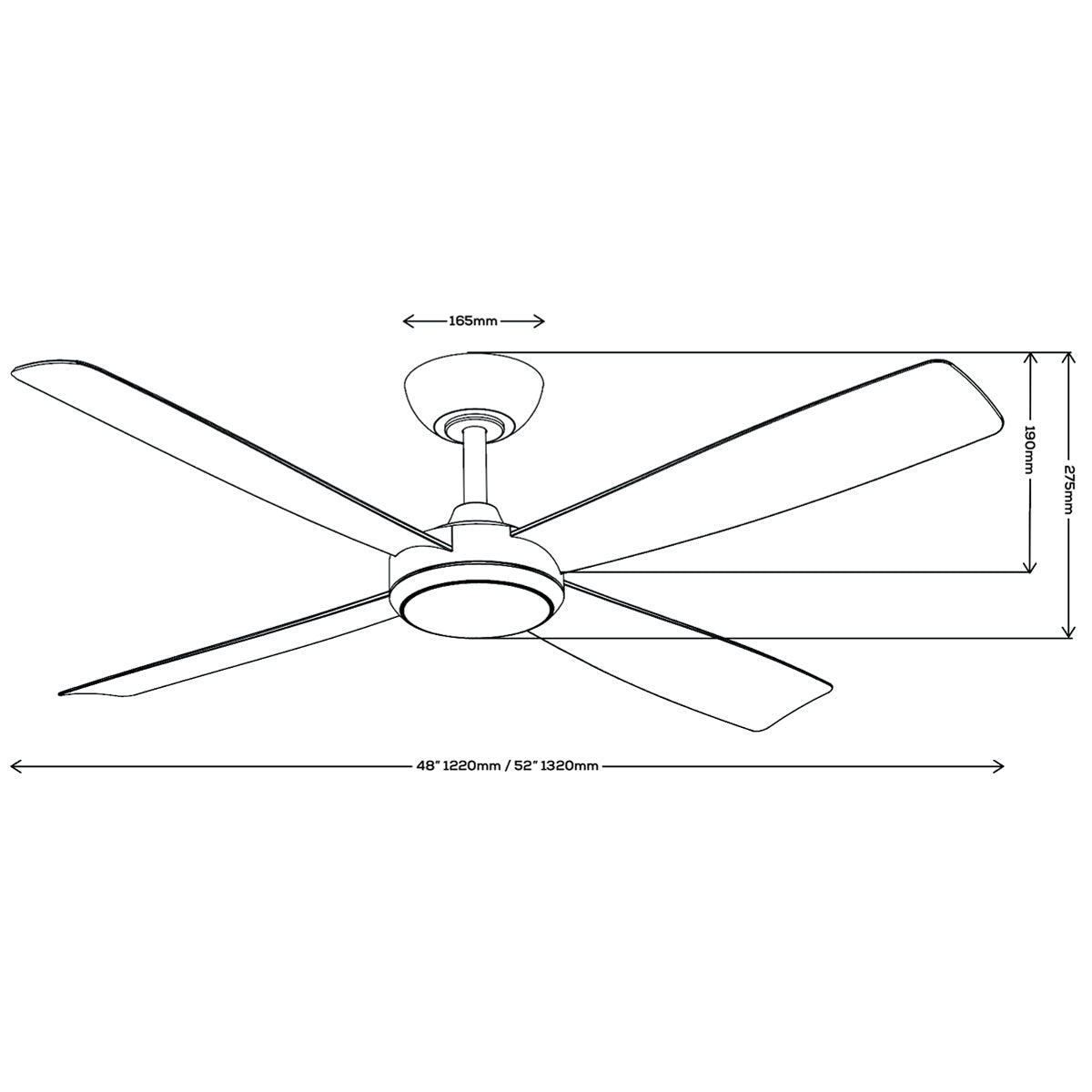

Ceiling to blades	190mm
Ceiling to bottom of fan	275mm
Colour	White
Installation location	Indoor & Outdoor Undercover
Max airflow	12,078 m³/h
Max ceiling pitch	14°
Motor colour	White
Motor type	DC
Motor wattage	35W
Natural wind mode	Yes
Number of blades	4
Number of speeds	6 Speed
Remote control	Not Included
Summer winder mode	Yes
Voltage	240V AC
Warranty	6 Year (3 Year In-home + 3 Year Motor) Warranty

Specifications

Blade colour	White
Blade material	ABS Plastic
Blade pitch	14°
Blade span	48"
Ceiling to blades	190mm
Ceiling to bottom of fan	275mm
Colour	White
Installation location	Indoor & Outdoor Undercover
Max airflow	12,078 m³/h
Max ceiling pitch	14°
Motor colour	White
Motor type	DC
Motor wattage	35W
Natural wind mode	Yes
Number of blades	4
Number of speeds	6 Speed
Remote control	Not Included
Summer winder mode	Yes
Voltage	240V AC
Warranty	6 Year (3 Year In-home + 3 Year Motor) Warranty

Features

48" or 52" blade span provides effective air circulation for a variety of room sizes.

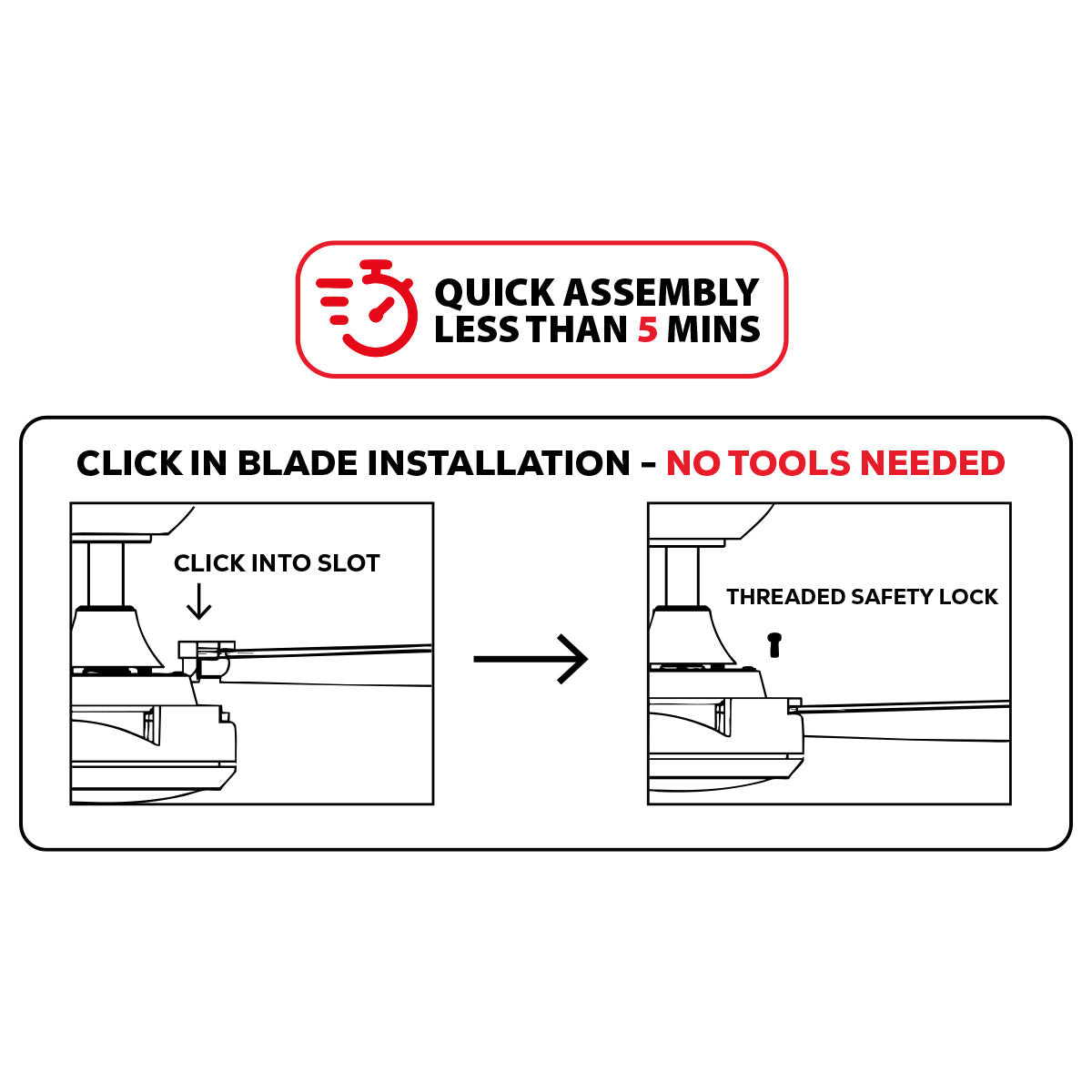

Four click-in blades allow quick assembly without the need for tools.
35W DC motor delivers smooth and efficient fan operation.
Provides maximum air movement of up to 12,078m³/h (48") or 12,173m³/h (52").
Includes a 3-speed wall control with no neutral wire required at the wall.
Standard rotary fan switch mechanism with detachable control box allows compatibility with most suitable fan rotary dials.
UV-stabilised ABS blades provide a durable and lightweight construction.
Optional remote control and compatible 24W LED light kit are available separately.
Suitable for ceilings with a maximum rake of approximately 14°.
Backed by a 6-year warranty, including 3 years in-home and an additional 3 years on the motor.

Features

48" or 52" blade span provides effective air circulation for a variety of room sizes.
Four click-in blades allow quick assembly without the need for tools.
35W DC motor delivers smooth and efficient fan operation.
Provides maximum air movement of up to 12,078m³/h (48") or 12,173m³/h (52").
Includes a 3-speed wall control with no neutral wire required at the wall.
Standard rotary fan switch mechanism with detachable control box allows compatibility with most suitable fan rotary dials.
UV-stabilised ABS blades provide a durable and lightweight construction.
Optional remote control and compatible 24W LED light kit are available separately.
Suitable for ceilings with a maximum rake of approximately 14°.
Backed by a 6-year warranty, including 3 years in-home and an additional 3 years on the motor.

Specifications

Blade colour	White
Blade material	ABS Plastic
Blade pitch	14°
Blade span	48"
Ceiling to blades	190mm
Ceiling to bottom of fan	275mm
Colour	White
Installation location	Indoor & Outdoor Undercover
Max airflow	12,078 m³/h
Max ceiling pitch	14°
Motor colour	White
Motor type	DC
Motor wattage	35W
Natural wind mode	Yes
Number of blades	4
Number of speeds	6 Speed
Remote control	Not Included
Summer winder mode	Yes
Voltage	240V AC
Warranty	6 Year (3 Year In-home + 3 Year Motor) Warranty

Specifications

Blade colour	White
Blade material	ABS Plastic
Blade pitch	14°
Blade span	48"
Ceiling to blades	190mm
Ceiling to bottom of fan	275mm
Colour	White
Installation location	Indoor & Outdoor Undercover
Max airflow	12,078 m³/h
Max ceiling pitch	14°
Motor colour	White
Motor type	DC
Motor wattage	35W
Natural wind mode	Yes
Number of blades	4
Number of speeds	6 Speed
Remote control	Not Included
Summer winder mode	Yes
Voltage	240V AC
Warranty	6 Year (3 Year In-home + 3 Year Motor) Warranty

Description

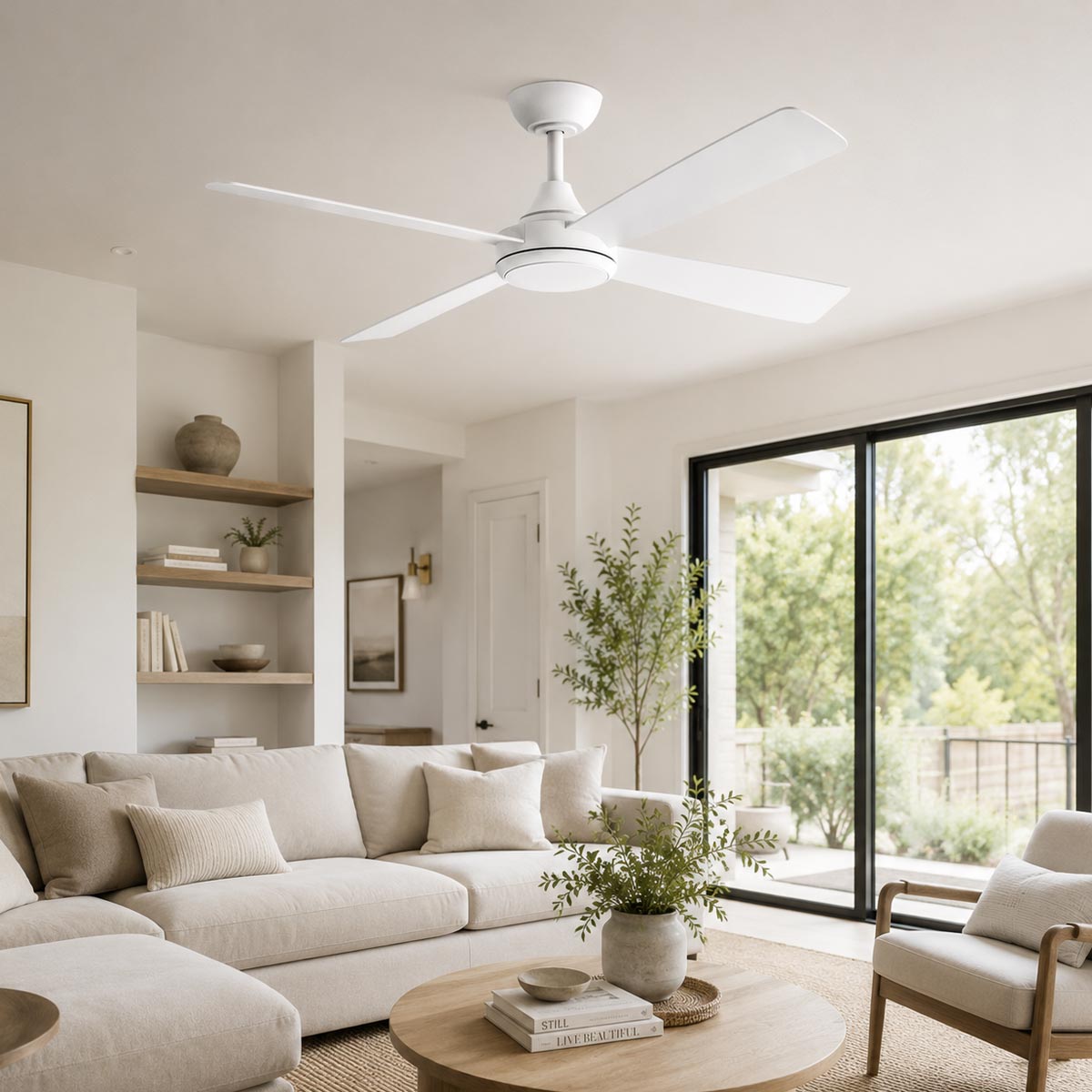

Modern DC ceiling fan with quick-install click-in blades, strong airflow and convenient wall control for comfortable everyday cooling.

Downloads

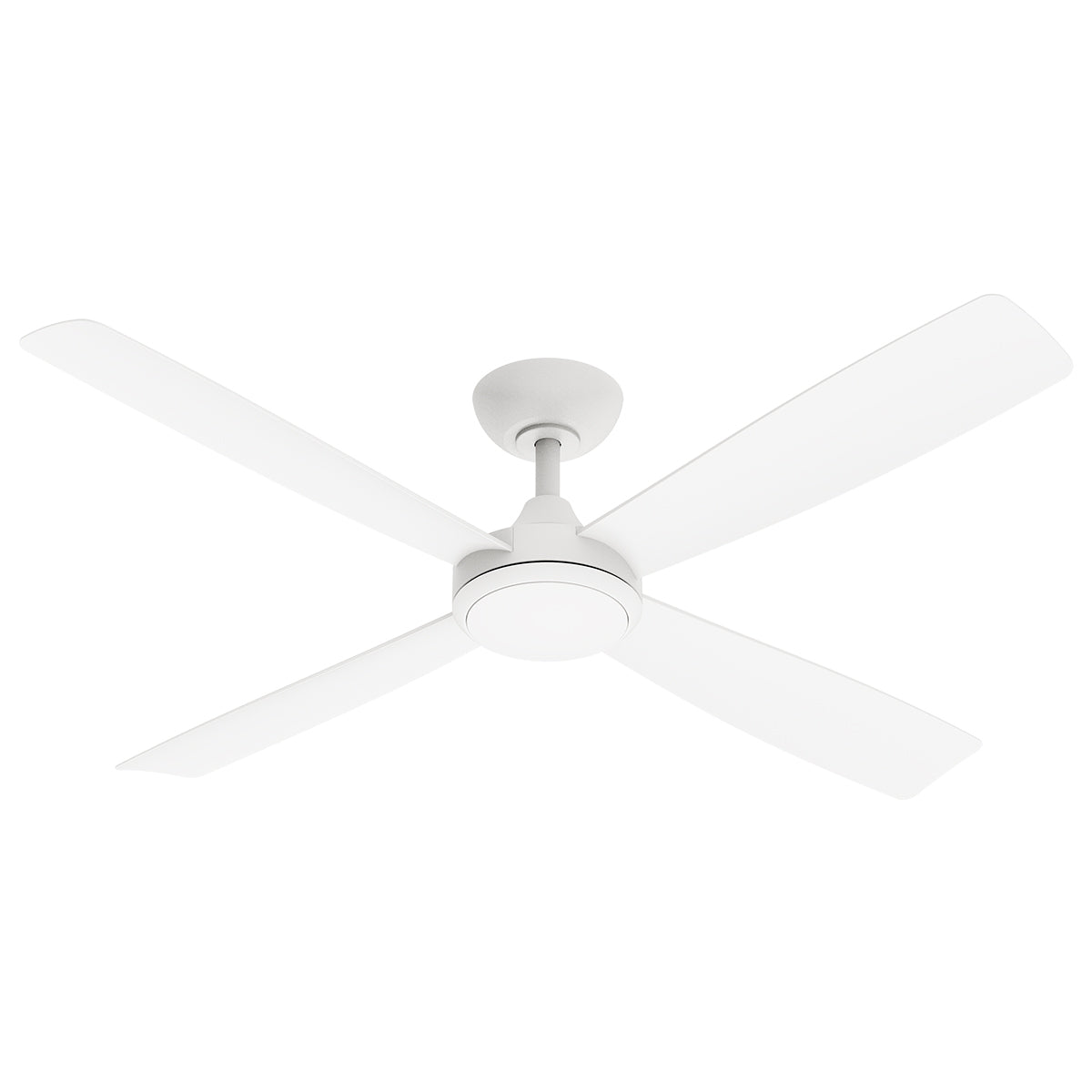

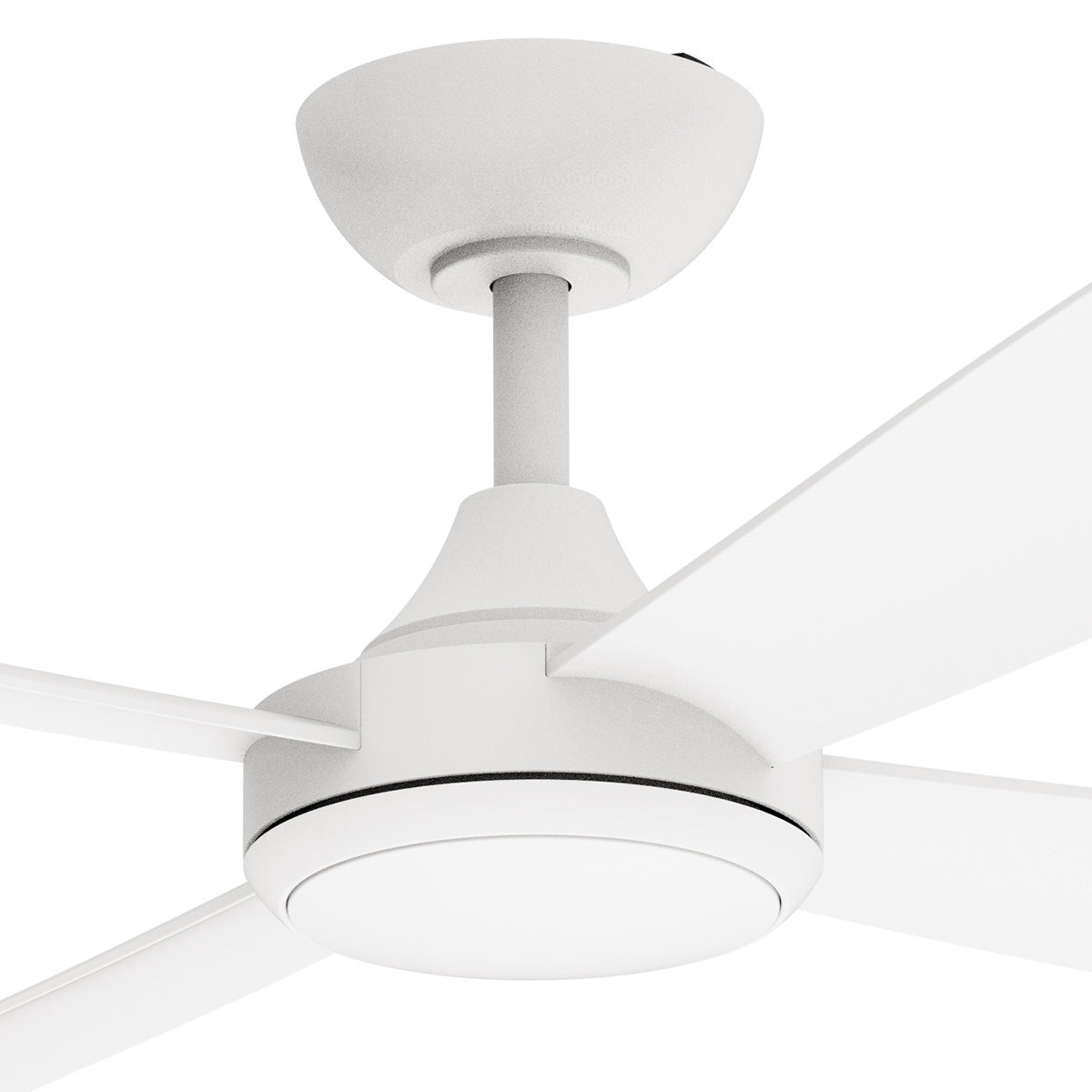

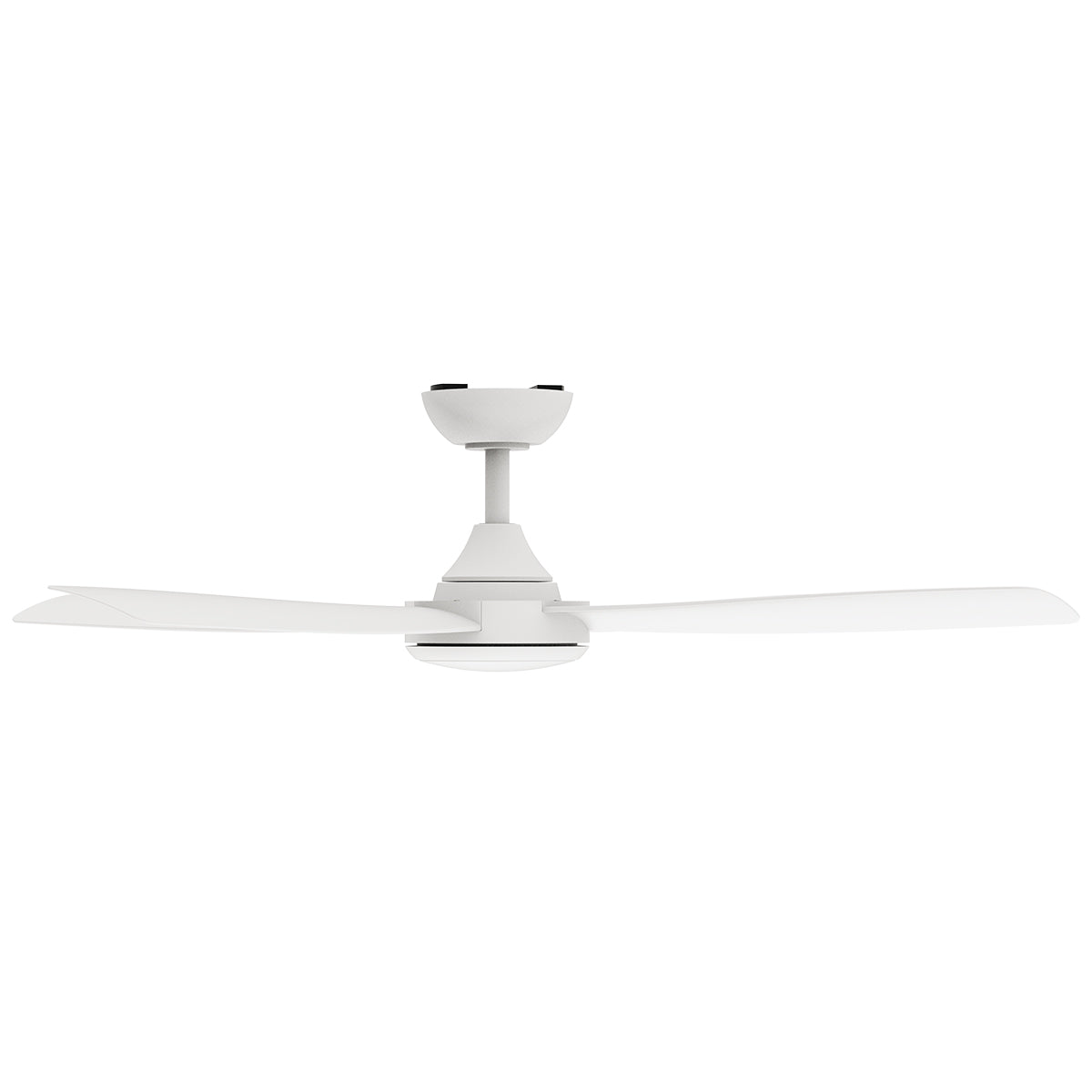

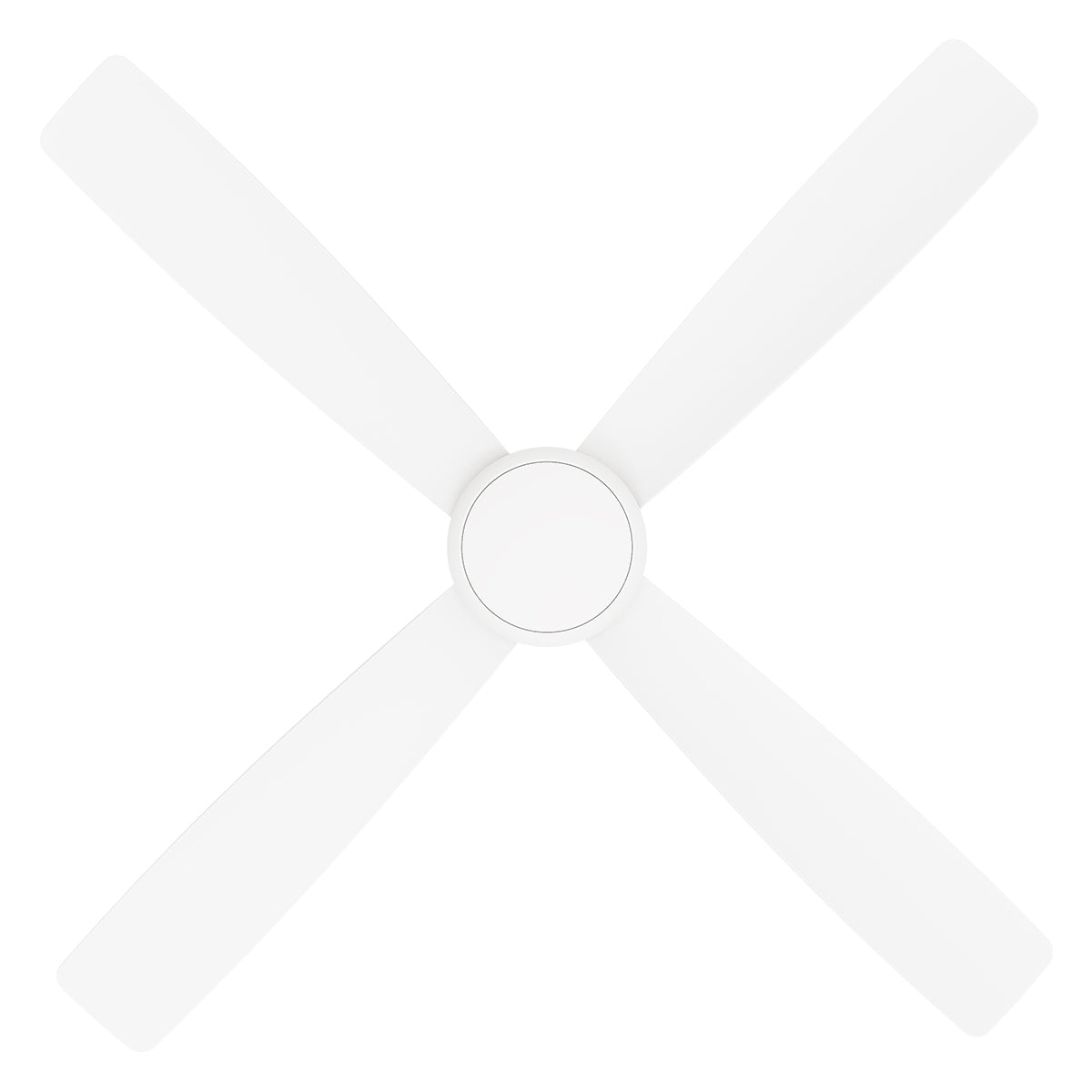

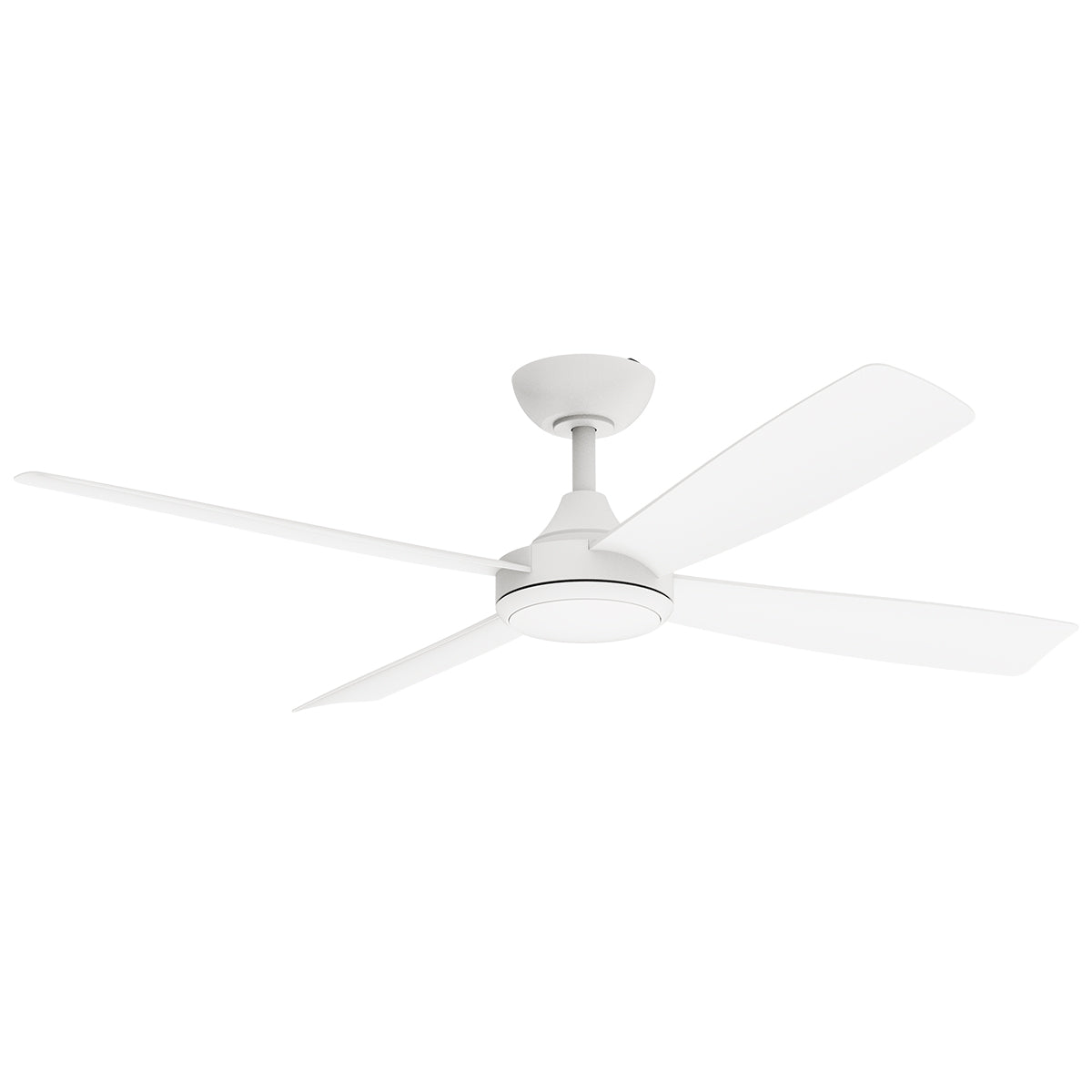

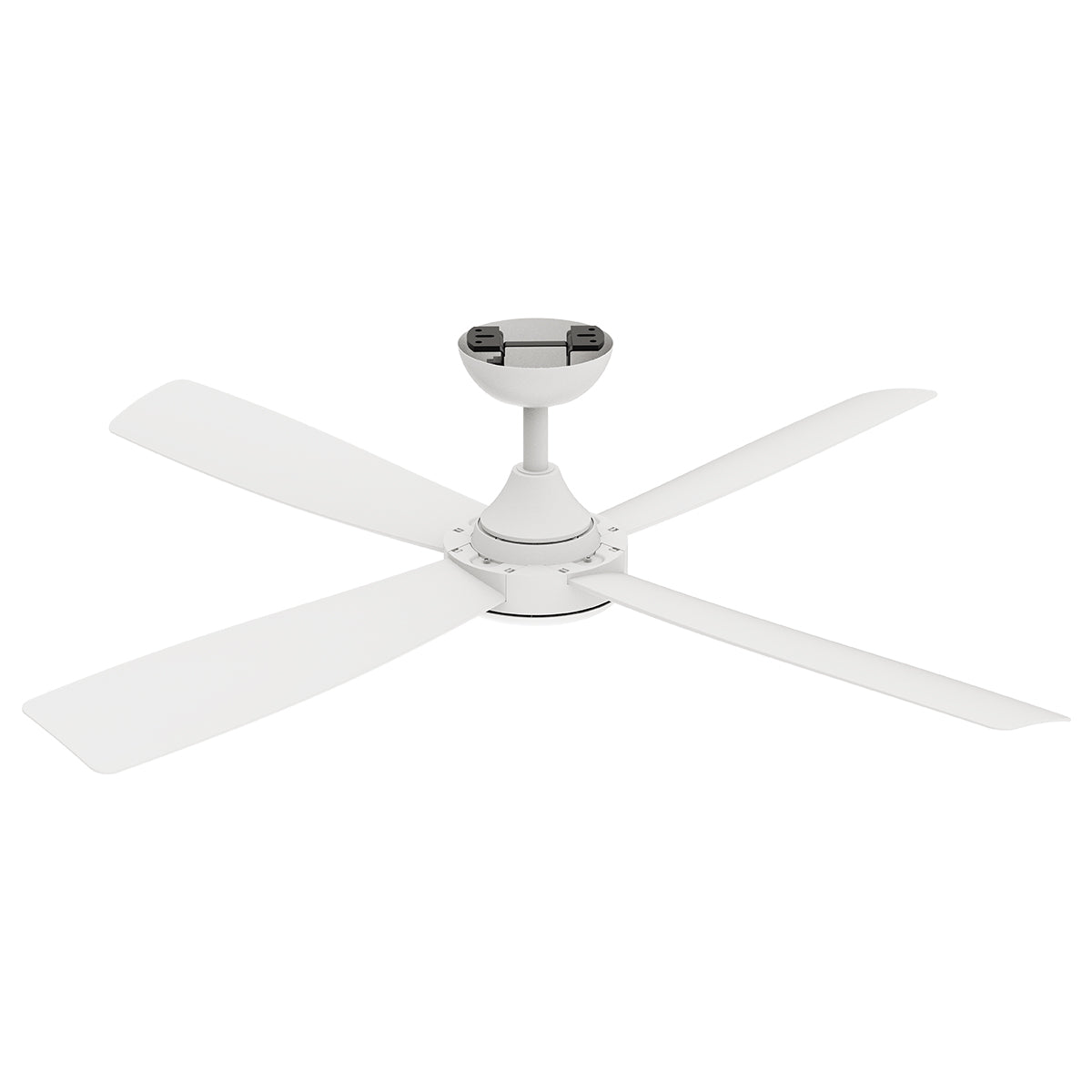

Dash Click-In 4 Blade DC Ceiling Fan

Vendor: FanForce

$139.00

$139.00 ~~$164.00~~

Blade Size: 48"

48" 52"

What is an LED driver?

An LED driver converts mains electricity into a stable low-voltage DC power required by compatible lighting products. A driver is needed whenever a product requires an external DC power supply; usually location in areas with full weather exposure.

Common low-voltage products include spike lights, bollards, LED strip lighting and low-voltage wall lights. Always check the individual product specifications, as not every product within these categories requires an external driver.

The driver’s output voltage must match the product’s required voltage (eg. 12V DC), and its wattage must be sufficient for the total connected load. The calculator below recommends a suitable 12V or 24V driver and includes the required safety margin.

Find the Right LED Driver

Choose the product type and required voltage, then enter the installation details. We’ll recommend a suitable driver with the required safety margin.

Calculator type

Required voltage

Check the product specifications for its required voltage. The driver voltage must match the product. This calculator is only suitable for products marked 12V DC or 24V DC.

Wattage per fitting (W)

Quantity

All fittings connected to one driver must have the same voltage input. For fittings with different wattages, add their individual wattages together and contact us if you need help confirming the correct driver.

View driver capacity chart

Max Connected Load	12V Driver	24V Driver
25W	30W	30W
50W	60W	60W
83W	100W	100W
125W	150W	150W
166W	200W	200W
250W	300W	300W

✔ In stock

SKU: FF10434-WH

Want a better price? Ask for a JD Deal.

Call us (07) 3809 2011 or chat with us below

Need Help? Got a Question? Contact your Account Manager

Alternatively, contact our Trade experts:
(07) 3088 6266 - trade@jdlighting.com.au

Specifications

Blade colour	White
Blade material	ABS Plastic
Blade pitch	14°
Blade span	48"
Ceiling to blades	190mm
Ceiling to bottom of fan	275mm
Colour	White
Installation location	Indoor & Outdoor Undercover
Max airflow	12,078 m³/h
Max ceiling pitch	14°
Motor colour	White
Motor type	DC
Motor wattage	35W
Natural wind mode	Yes
Number of blades	4
Number of speeds	6 Speed
Remote control	Not Included
Summer winder mode	Yes
Voltage	240V AC
Warranty	6 Year (3 Year In-home + 3 Year Motor) Warranty

Specifications

Blade colour	White
Blade material	ABS Plastic
Blade pitch	14°
Blade span	48"
Ceiling to blades	190mm
Ceiling to bottom of fan	275mm
Colour	White
Installation location	Indoor & Outdoor Undercover
Max airflow	12,078 m³/h
Max ceiling pitch	14°
Motor colour	White
Motor type	DC
Motor wattage	35W
Natural wind mode	Yes
Number of blades	4
Number of speeds	6 Speed
Remote control	Not Included
Summer winder mode	Yes
Voltage	240V AC
Warranty	6 Year (3 Year In-home + 3 Year Motor) Warranty

Features

48" or 52" blade span provides effective air circulation for a variety of room sizes.
Four click-in blades allow quick assembly without the need for tools.
35W DC motor delivers smooth and efficient fan operation.
Provides maximum air movement of up to 12,078m³/h (48") or 12,173m³/h (52").
Includes a 3-speed wall control with no neutral wire required at the wall.
Standard rotary fan switch mechanism with detachable control box allows compatibility with most suitable fan rotary dials.
UV-stabilised ABS blades provide a durable and lightweight construction.
Optional remote control and compatible 24W LED light kit are available separately.
Suitable for ceilings with a maximum rake of approximately 14°.
Backed by a 6-year warranty, including 3 years in-home and an additional 3 years on the motor.

Features

48" or 52" blade span provides effective air circulation for a variety of room sizes.
Four click-in blades allow quick assembly without the need for tools.
35W DC motor delivers smooth and efficient fan operation.
Provides maximum air movement of up to 12,078m³/h (48") or 12,173m³/h (52").
Includes a 3-speed wall control with no neutral wire required at the wall.
Standard rotary fan switch mechanism with detachable control box allows compatibility with most suitable fan rotary dials.
UV-stabilised ABS blades provide a durable and lightweight construction.
Optional remote control and compatible 24W LED light kit are available separately.
Suitable for ceilings with a maximum rake of approximately 14°.
Backed by a 6-year warranty, including 3 years in-home and an additional 3 years on the motor.

Specifications

Blade colour	White
Blade material	ABS Plastic
Blade pitch	14°
Blade span	48"
Ceiling to blades	190mm
Ceiling to bottom of fan	275mm
Colour	White
Installation location	Indoor & Outdoor Undercover
Max airflow	12,078 m³/h
Max ceiling pitch	14°
Motor colour	White
Motor type	DC
Motor wattage	35W
Natural wind mode	Yes
Number of blades	4
Number of speeds	6 Speed
Remote control	Not Included
Summer winder mode	Yes
Voltage	240V AC
Warranty	6 Year (3 Year In-home + 3 Year Motor) Warranty

Specifications

Blade colour	White
Blade material	ABS Plastic
Blade pitch	14°
Blade span	48"
Ceiling to blades	190mm
Ceiling to bottom of fan	275mm
Colour	White
Installation location	Indoor & Outdoor Undercover
Max airflow	12,078 m³/h
Max ceiling pitch	14°
Motor colour	White
Motor type	DC
Motor wattage	35W
Natural wind mode	Yes
Number of blades	4
Number of speeds	6 Speed
Remote control	Not Included
Summer winder mode	Yes
Voltage	240V AC
Warranty	6 Year (3 Year In-home + 3 Year Motor) Warranty

Description

Modern DC ceiling fan with quick-install click-in blades, strong airflow and convenient wall control for comfortable everyday cooling.

Downloads

68103560331545: { "back_draft_stopper": "F", "blade_colour": "White", "blade_material": "ABS Plastic", "blade_pitch": "14°", "blade_span": "48\"", "ceiling_to_blades": "190mm", "ceiling_to_bottom_of_fan": "275mm", "colour": "White", "installation_location": "Indoor \u0026 Outdoor Undercover", "max_airflow": "12,078 m³\/h", "max_ceiling_pitch": "14°", "motor_colour": "White", "motor_type": "DC", "motor_wattage": "35W", "natural_wind_mode": "Yes", "number_of_blades": 4, "number_of_speeds": "6 Speed", "remote_control": "Not Included", "summer_winder_mode": "Yes", "voltage": "240V AC", "wall_control": "F", "warranty": "6 Year (3 Year In-home + 3 Year Motor) Warranty", }, 68103560364313: { "back_draft_stopper": "F", "blade_colour": "White", "blade_material": "ABS Plastic", "blade_pitch": "14°", "blade_span": "52\"", "ceiling_to_blades": "190mm", "ceiling_to_bottom_of_fan": "275mm", "colour": "White", "installation_location": "Indoor \u0026 Outdoor Undercover", "max_airflow": "12,173 m³\/h", "max_ceiling_pitch": "14°", "motor_colour": "White", "motor_type": "DC", "motor_wattage": "35W", "natural_wind_mode": "Yes", "number_of_blades": 4, "number_of_speeds": "6 Speed", "remote_control": "Not Included", "summer_winder_mode": "Yes", "voltage": "240V AC", "wall_control": "F", "warranty": "6 Year (3 Year In-home + 3 Year Motor) Warranty", },

Dash Click-In 4 Blade DC Ceiling Fan

$139.00

$139.00 ~~$164.00~~

Explore the Family

The Dash DC Ceiling Fan combines a clean contemporary design with quick and simple installation, featuring four click-in ABS blades that can be assembled without tools. Its 35W DC motor delivers strong airflow while maintaining smooth and quiet operation for comfortable everyday use.

Designed with UV-stabilised ABS blades, a 3-speed wall control and optional remote control compatibility, Dash offers practical versatility for a wide range of spaces.

The included wall control requires no neutral wire at the wall, making it suitable for both new installations and many older Australian homes. It also uses a standard rotary fan switch mechanism with a detachable control box, allowing it to be adapted to most compatible fan rotary dials.
