TECHNICAL DATA SHEET _04/06/2026

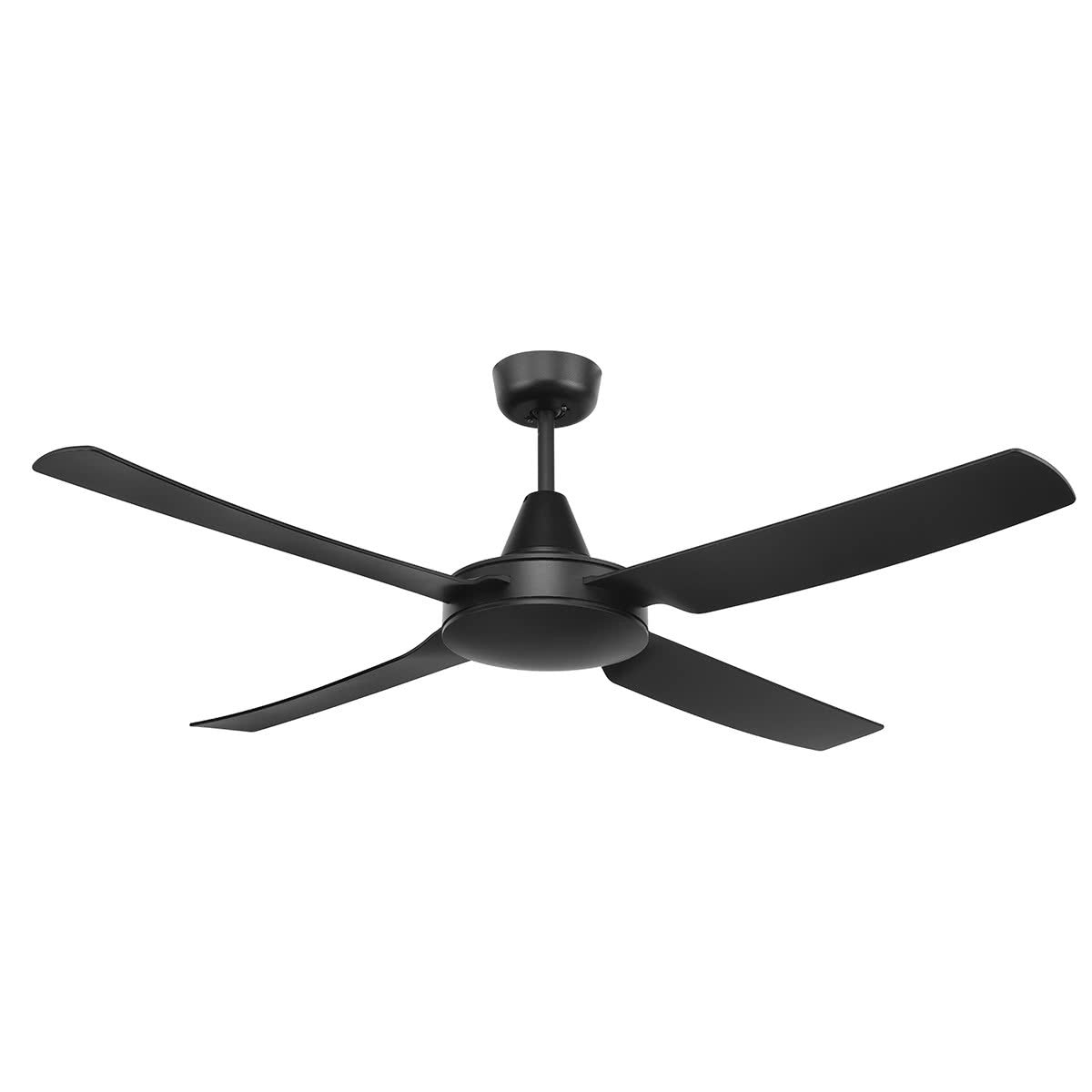

Cruze 52" Ezy-Fit 4 Blade AC Ceiling Fan

Specifications

Blade material	ABS Moulded Plastic
Blade pitch	11Â°
Blade span	52"
Ceiling to bottom of fan	350mm
Colour	Black
Installation location	Indoor & Outdoor Undercover
Max airflow	11,230 mÂ³/hr
Max ceiling pitch	30Â°
Motor material	ABS Plastic
Motor type	AC
Motor wattage	50W
Number of blades	4
Remote control	Not Included
Sloped ceiling compatible	true
Summer winder mode	Yes
Warranty	6 Year Motor Warranty & 3 Year In-Home Warranty

Specifications

Blade material	ABS Moulded Plastic
Blade pitch	11Â°
Blade span	52"
Ceiling to bottom of fan	350mm
Colour	Black
Installation location	Indoor & Outdoor Undercover
Max airflow	11,230 mÂ³/hr
Max ceiling pitch	30Â°
Motor material	ABS Plastic
Motor type	AC
Motor wattage	50W
Number of blades	4
Remote control	Not Included
Sloped ceiling compatible	true
Summer winder mode	Yes
Warranty	6 Year Motor Warranty & 3 Year In-Home Warranty

Features

Maximum airflow: 11,230 m³/hr
Quiet and powerful 50W AC motor
52" (1300mm) blade diameter
Durable full ABS plastic construction (except down rod) means no corrosion issues
Ezi-Fit blades reduce fan assembly and installation time
Blades assembled in 20 seconds, not 10 minutes (Saving time & money)
Contoured ABS blade makes air flow more uniform across length of blade
Pre-assembled motor and down-rod assembly
Raked ceiling installation up to 30°
11° blade pitch
3 speed wall control with light switch included
Suitable for indoor and enclosed alfresco areas
6 Year Motor Warranty & 3 Year In-Home Warranty

Features

Maximum airflow: 11,230 m³/hr
Quiet and powerful 50W AC motor
52" (1300mm) blade diameter
Durable full ABS plastic construction (except down rod) means no corrosion issues
Ezi-Fit blades reduce fan assembly and installation time
Blades assembled in 20 seconds, not 10 minutes (Saving time & money)
Contoured ABS blade makes air flow more uniform across length of blade
Pre-assembled motor and down-rod assembly
Raked ceiling installation up to 30°
11° blade pitch
3 speed wall control with light switch included
Suitable for indoor and enclosed alfresco areas
6 Year Motor Warranty & 3 Year In-Home Warranty

Description

The Cruze ceiling fan from Brilliant Lighting is the latest 52" ceiling fan to feature a full ABS construction (except downrod) with a slimline modern design. The Cruze is powered by a quiet and powerful 50W AC motor. The contoured ABS blades is designed to make airflow more uniform across the length of the blade. The Cruze is the part of the range of ceiling fans to feature Brilliant Lighting's patented Ezi-Fit technology, a revolutionary quick connect feature that will significantly reduce installation time and thus installation cost. The Cruze can be installed in any indoor locations or under cover outdoor areas not exposed to the weather around the home.

Speed	Power	RPM	Airflow (mÂ³/hr)
3	50W	215	11230
2	27W	157	8290
1	15W	113	5724

*As per manufacturer's claimed airflow.

Description

Speed	Power	RPM	Airflow (mÂ³/hr)
3	50W	215	11230
2	27W	157	8290
1	15W	113	5724

*As per manufacturer's claimed airflow.

Specifications

Blade material	ABS Moulded Plastic
Blade pitch	11Â°
Blade span	52"
Ceiling to bottom of fan	350mm
Colour	Black
Installation location	Indoor & Outdoor Undercover
Max airflow	11,230 mÂ³/hr
Max ceiling pitch	30Â°
Motor material	ABS Plastic
Motor type	AC
Motor wattage	50W
Number of blades	4
Remote control	Not Included
Sloped ceiling compatible	true
Summer winder mode	Yes
Warranty	6 Year Motor Warranty & 3 Year In-Home Warranty

Specifications

Blade material	ABS Moulded Plastic
Blade pitch	11Â°
Blade span	52"
Ceiling to bottom of fan	350mm
Colour	Black
Installation location	Indoor & Outdoor Undercover
Max airflow	11,230 mÂ³/hr
Max ceiling pitch	30Â°
Motor material	ABS Plastic
Motor type	AC
Motor wattage	50W
Number of blades	4
Remote control	Not Included
Sloped ceiling compatible	true
Summer winder mode	Yes
Warranty	6 Year Motor Warranty & 3 Year In-Home Warranty

Downloads

Download the Spec Sheet

Cruze 52" Ezy-Fit 4 Blade AC Ceiling Fan

Vendor: Brilliant Lighting

$206.00

$206.00 ~~$229.00~~

Blade Size: 52"

52"

Colour: Black

✔ Available to Order: In-Stock at Supplier

SKU: 20530/06

Want a better price? Ask for a JD Deal.

Call us (07) 3809 2011 or chat with us below

Need Help? Got a Question? Contact our Trade experts.

(07) 3088 6266 - trade@jdlighting.com.au

Specifications

Blade material	ABS Moulded Plastic
Blade pitch	11Â°
Blade span	52"
Ceiling to bottom of fan	350mm
Colour	Black
Installation location	Indoor & Outdoor Undercover
Max airflow	11,230 mÂ³/hr
Max ceiling pitch	30Â°
Motor material	ABS Plastic
Motor type	AC
Motor wattage	50W
Number of blades	4
Remote control	Not Included
Sloped ceiling compatible	true
Summer winder mode	Yes
Warranty	6 Year Motor Warranty & 3 Year In-Home Warranty

Specifications

Blade material	ABS Moulded Plastic
Blade pitch	11Â°
Blade span	52"
Ceiling to bottom of fan	350mm
Colour	Black
Installation location	Indoor & Outdoor Undercover
Max airflow	11,230 mÂ³/hr
Max ceiling pitch	30Â°
Motor material	ABS Plastic
Motor type	AC
Motor wattage	50W
Number of blades	4
Remote control	Not Included
Sloped ceiling compatible	true
Summer winder mode	Yes
Warranty	6 Year Motor Warranty & 3 Year In-Home Warranty

Features

Maximum airflow: 11,230 m³/hr
Quiet and powerful 50W AC motor
52" (1300mm) blade diameter
Durable full ABS plastic construction (except down rod) means no corrosion issues
Ezi-Fit blades reduce fan assembly and installation time
Blades assembled in 20 seconds, not 10 minutes (Saving time & money)
Contoured ABS blade makes air flow more uniform across length of blade
Pre-assembled motor and down-rod assembly
Raked ceiling installation up to 30°
11° blade pitch
3 speed wall control with light switch included
Suitable for indoor and enclosed alfresco areas
6 Year Motor Warranty & 3 Year In-Home Warranty

Features

Maximum airflow: 11,230 m³/hr
Quiet and powerful 50W AC motor
52" (1300mm) blade diameter
Durable full ABS plastic construction (except down rod) means no corrosion issues
Ezi-Fit blades reduce fan assembly and installation time
Blades assembled in 20 seconds, not 10 minutes (Saving time & money)
Contoured ABS blade makes air flow more uniform across length of blade
Pre-assembled motor and down-rod assembly
Raked ceiling installation up to 30°
11° blade pitch
3 speed wall control with light switch included
Suitable for indoor and enclosed alfresco areas
6 Year Motor Warranty & 3 Year In-Home Warranty

Description

Speed	Power	RPM	Airflow (mÂ³/hr)
3	50W	215	11230
2	27W	157	8290
1	15W	113	5724

*As per manufacturer's claimed airflow.

Description

Speed	Power	RPM	Airflow (mÂ³/hr)
3	50W	215	11230
2	27W	157	8290
1	15W	113	5724

*As per manufacturer's claimed airflow.

Specifications

Blade material	ABS Moulded Plastic
Blade pitch	11Â°
Blade span	52"
Ceiling to bottom of fan	350mm
Colour	Black
Installation location	Indoor & Outdoor Undercover
Max airflow	11,230 mÂ³/hr
Max ceiling pitch	30Â°
Motor material	ABS Plastic
Motor type	AC
Motor wattage	50W
Number of blades	4
Remote control	Not Included
Sloped ceiling compatible	true
Summer winder mode	Yes
Warranty	6 Year Motor Warranty & 3 Year In-Home Warranty

Specifications

Blade material	ABS Moulded Plastic
Blade pitch	11Â°
Blade span	52"
Ceiling to bottom of fan	350mm
Colour	Black
Installation location	Indoor & Outdoor Undercover
Max airflow	11,230 mÂ³/hr
Max ceiling pitch	30Â°
Motor material	ABS Plastic
Motor type	AC
Motor wattage	50W
Number of blades	4
Remote control	Not Included
Sloped ceiling compatible	true
Summer winder mode	Yes
Warranty	6 Year Motor Warranty & 3 Year In-Home Warranty

Downloads

Download the Spec Sheet

Cruze 52" Ezy-Fit 4 Blade AC Ceiling Fan

$206.00

$206.00 ~~$229.00~~

Explore the Family

Download Datasheet

Brilliant Lighting

With more than three decades of expertise in lighting, electrical, air movement, and smart products, Brilliant has established itself as a prominent leader in the industry. Their comprehensive range of solutions caters to residential, commercial, and architectural markets, reaching customers through various channels such as retail, DIY, and trade across Australia and New Zealand.
