TECHNICAL DATA SHEET _28/02/2026

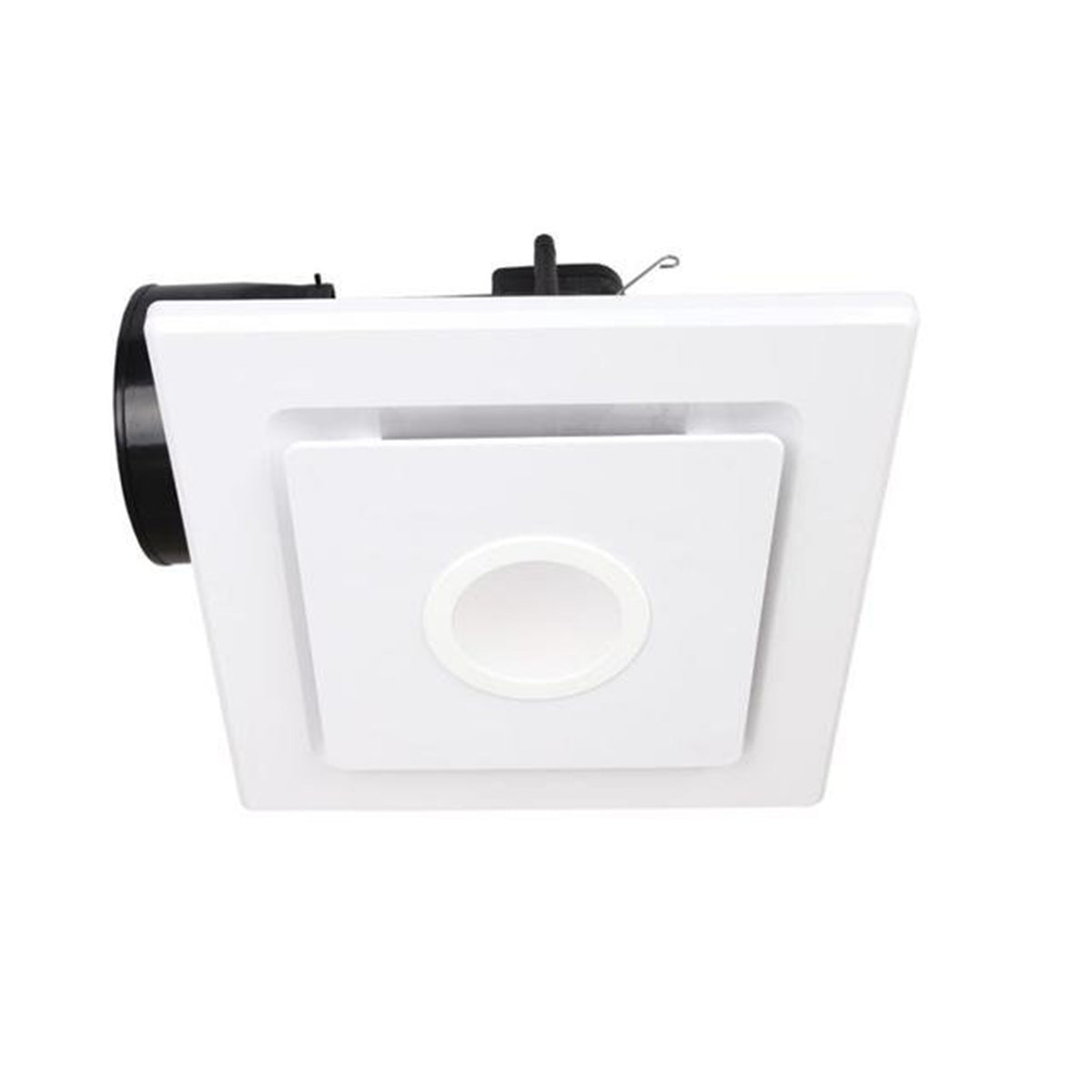

Ceiling Exhaust Fan with 10W LED Light - Square

Specifications

Air extraction capacity	270m/hr
Back draft stopper	T
Colour temperature	3000K
Ducting location	Side Ducting
Ducting size	100mm
Exhaust type	Ball Bearing
Fan noise	45dB
Globe included	Built In
Motor wattage	30W
Rgb function	F
Sloped ceiling compatible	F
Wall control	F

Specifications

Air extraction capacity	270m/hr
Back draft stopper	T
Colour temperature	3000K
Ducting location	Side Ducting
Ducting size	100mm
Exhaust type	Ball Bearing
Fan noise	45dB
Globe included	Built In
Motor wattage	30W
Rgb function	F
Sloped ceiling compatible	F
Wall control	F

Features

High power 30W motor enhances air circulation effectively.
Warm white 10W LED light illuminates spaces beautifully.

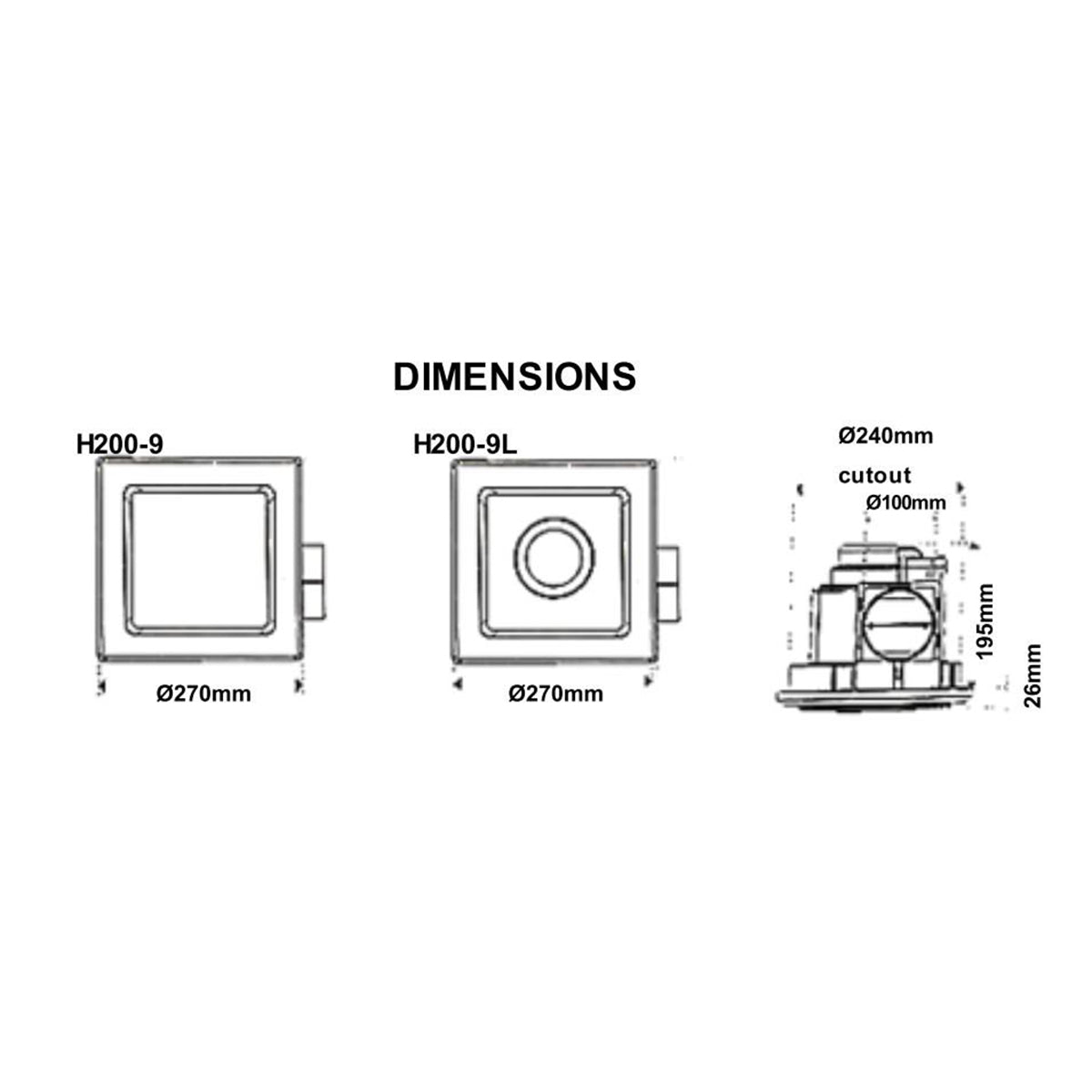

Fitted with a 240mm cut-out for easy installation.
Comes with a handy flex and plug for convenience.
Features a 100mm duct outlet for efficient air flow.
Equipped with side ducting and draught stopper for performance.
Achieves air extraction of up to 270mÂ³/hr for freshness.
Exhaust type uses ball bearing for quiet operation.
Noise level maintained at a maximum of 45dB for comfort.
Backed by a 12 Month Replacement Warranty for reliability.

Features

High power 30W motor enhances air circulation effectively.
Warm white 10W LED light illuminates spaces beautifully.
Fitted with a 240mm cut-out for easy installation.
Comes with a handy flex and plug for convenience.
Features a 100mm duct outlet for efficient air flow.
Equipped with side ducting and draught stopper for performance.
Achieves air extraction of up to 270mÂ³/hr for freshness.
Exhaust type uses ball bearing for quiet operation.
Noise level maintained at a maximum of 45dB for comfort.
Backed by a 12 Month Replacement Warranty for reliability.

Description

Experience efficient ventilation with the Delessi Small Square Exhaust Fan featuring a high-performance 30W motor. It rapidly clears stale air, promoting a healthier indoor atmosphere in bathrooms, kitchens, or toilets. The integrated 10W warm white LED light (3000K) provides soft, inviting illumination, perfectly balancing functionality and ambiance. Designed with a 240mm cut-out and side ducting including a draught stopper, installation is simple and air flow is optimised. Complete with a flex and plug for immediate use and a 12-Month Replacement Warranty for peace of mind, this exhaust fan is a practical addition to your home ventilation needs. Upgrade your space with reliable performance today.

Description

Specifications

Air extraction capacity	270m/hr
Back draft stopper	T
Colour temperature	3000K
Ducting location	Side Ducting
Ducting size	100mm
Exhaust type	Ball Bearing
Fan noise	45dB
Globe included	Built In
Motor wattage	30W
Rgb function	F
Sloped ceiling compatible	F
Wall control	F

Specifications

Air extraction capacity	270m/hr
Back draft stopper	T
Colour temperature	3000K
Ducting location	Side Ducting
Ducting size	100mm
Exhaust type	Ball Bearing
Fan noise	45dB
Globe included	Built In
Motor wattage	30W
Rgb function	F
Sloped ceiling compatible	F
Wall control	F

Downloads

Download the Spec Sheet

Ceiling Exhaust Fan with 10W LED Light - Square

Name: Ceiling Exhaust Fan with 10W LED Light - Square
Brand: 3A Lighting
SKU: H200-9L
Price: 74.95 AUD
Availability: InStock

Vendor: 3A Lighting

$74.95

$74.95 ~~$82.49~~

Tax included. Shipping calculated at checkout.
