TECHNICAL DATA SHEET _11/11/2026

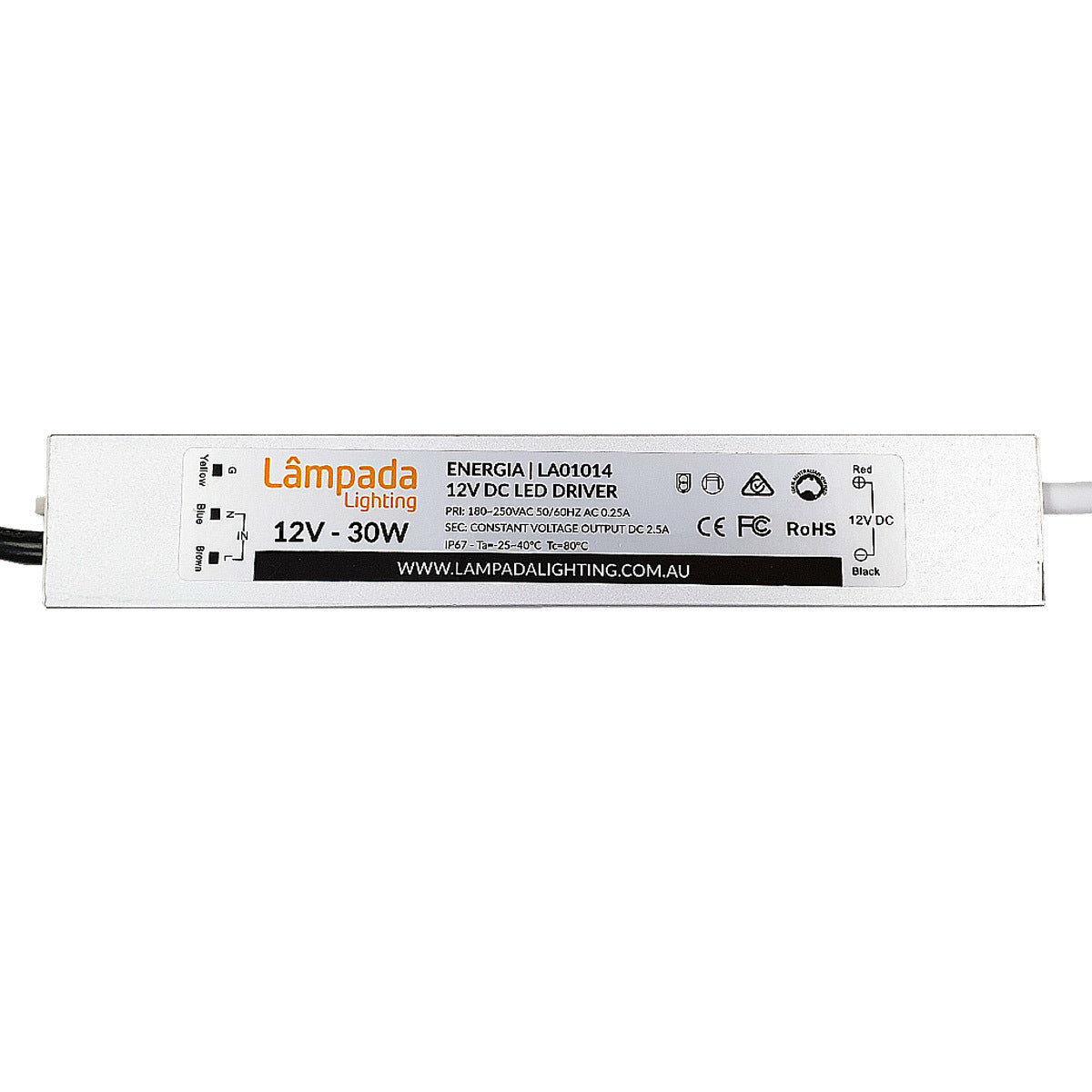

Energia 30W 12V DC IP67 weatherproof LED driver

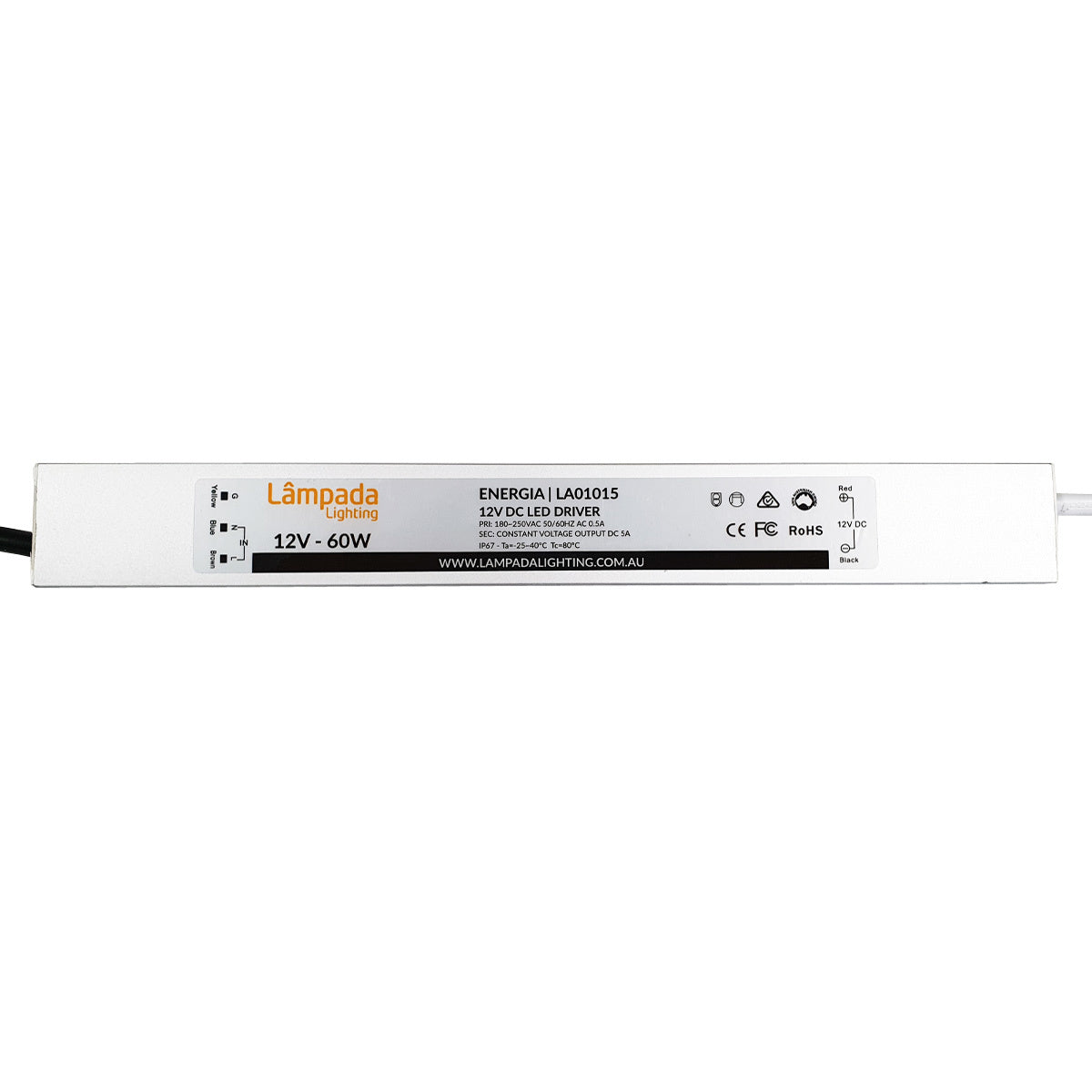

Energia 60W 12V DC IP67 weatherproof LED driver

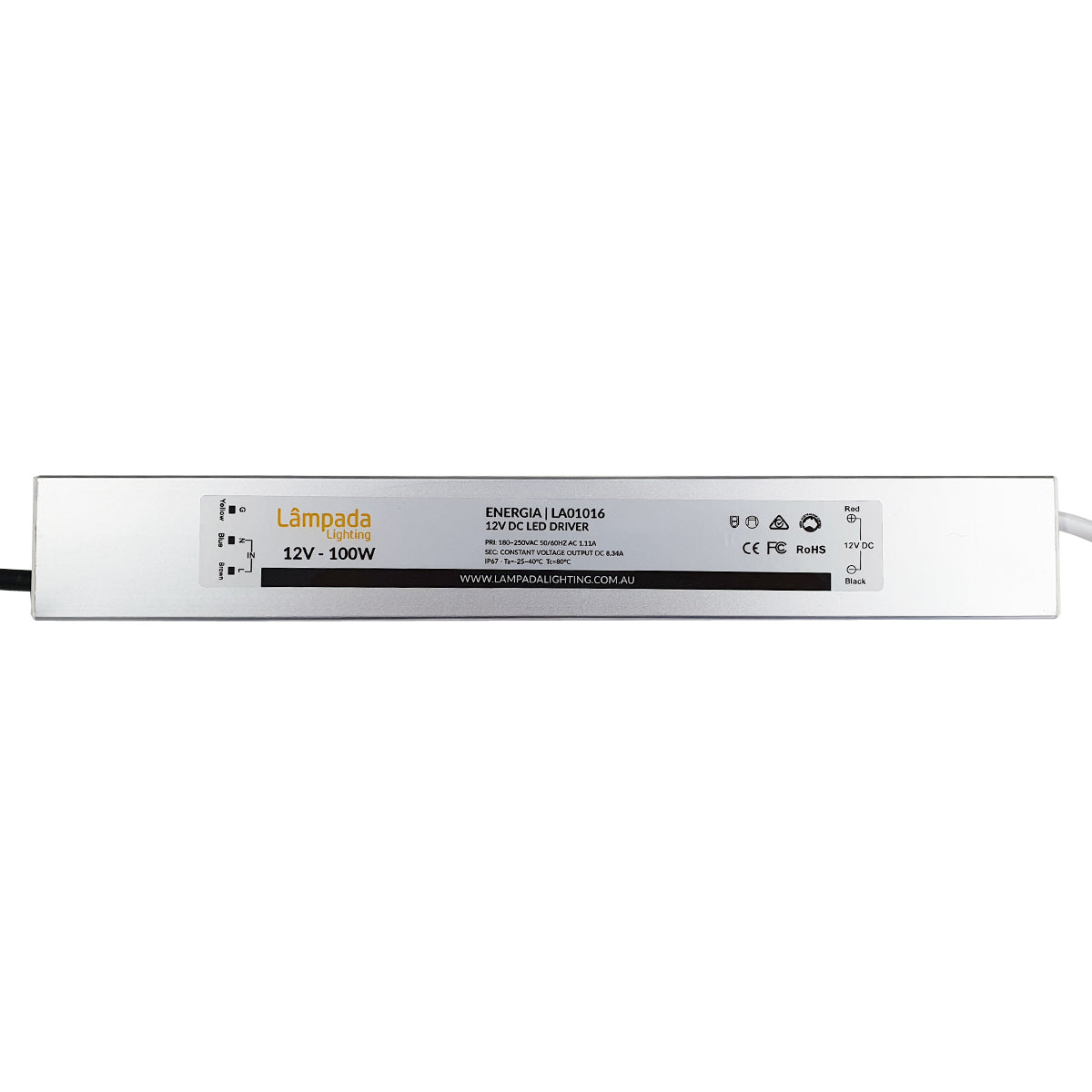

Energia 100W 12V DC IP67 weatherproof LED driver

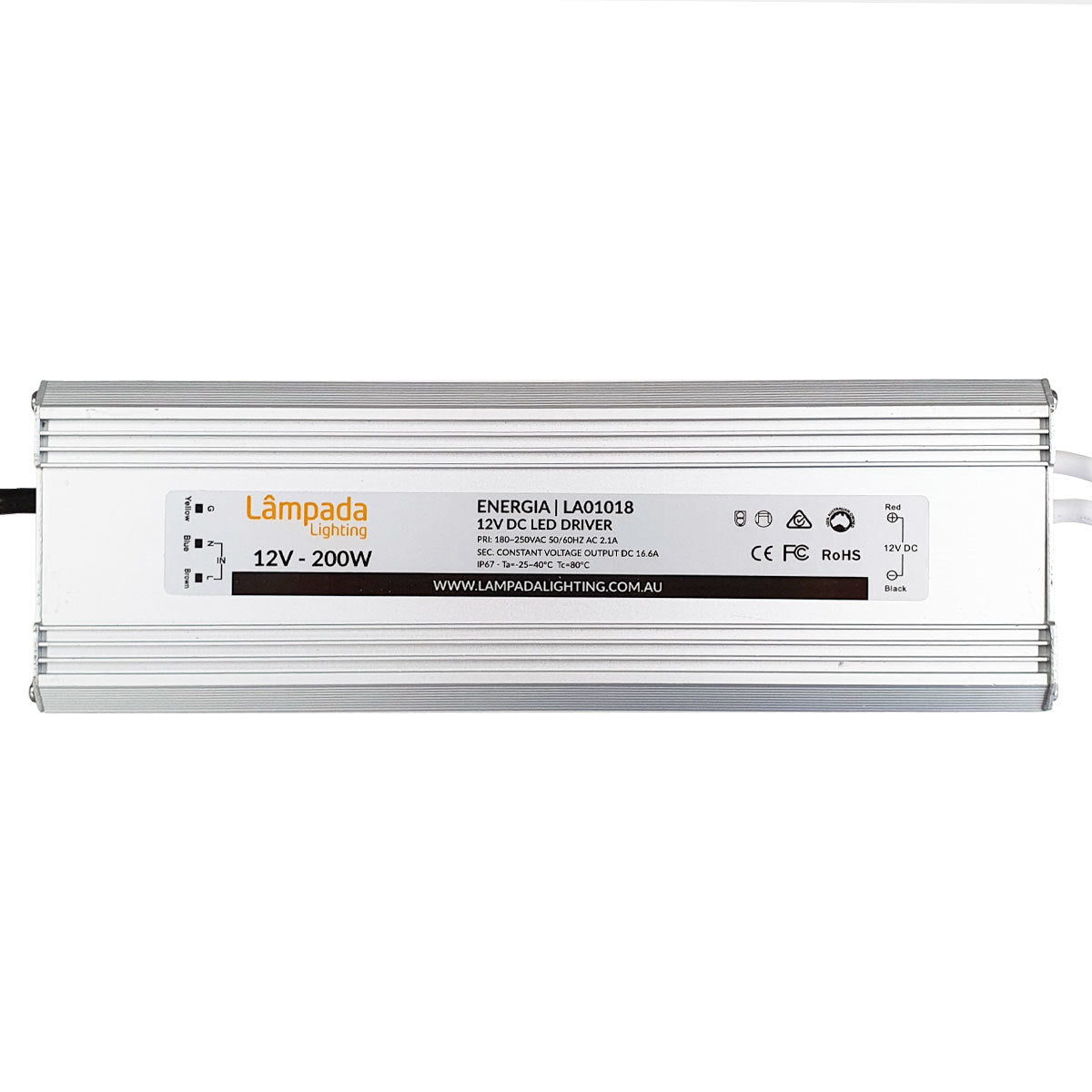

Energia 200W 12V DC IP67 weatherproof LED driver

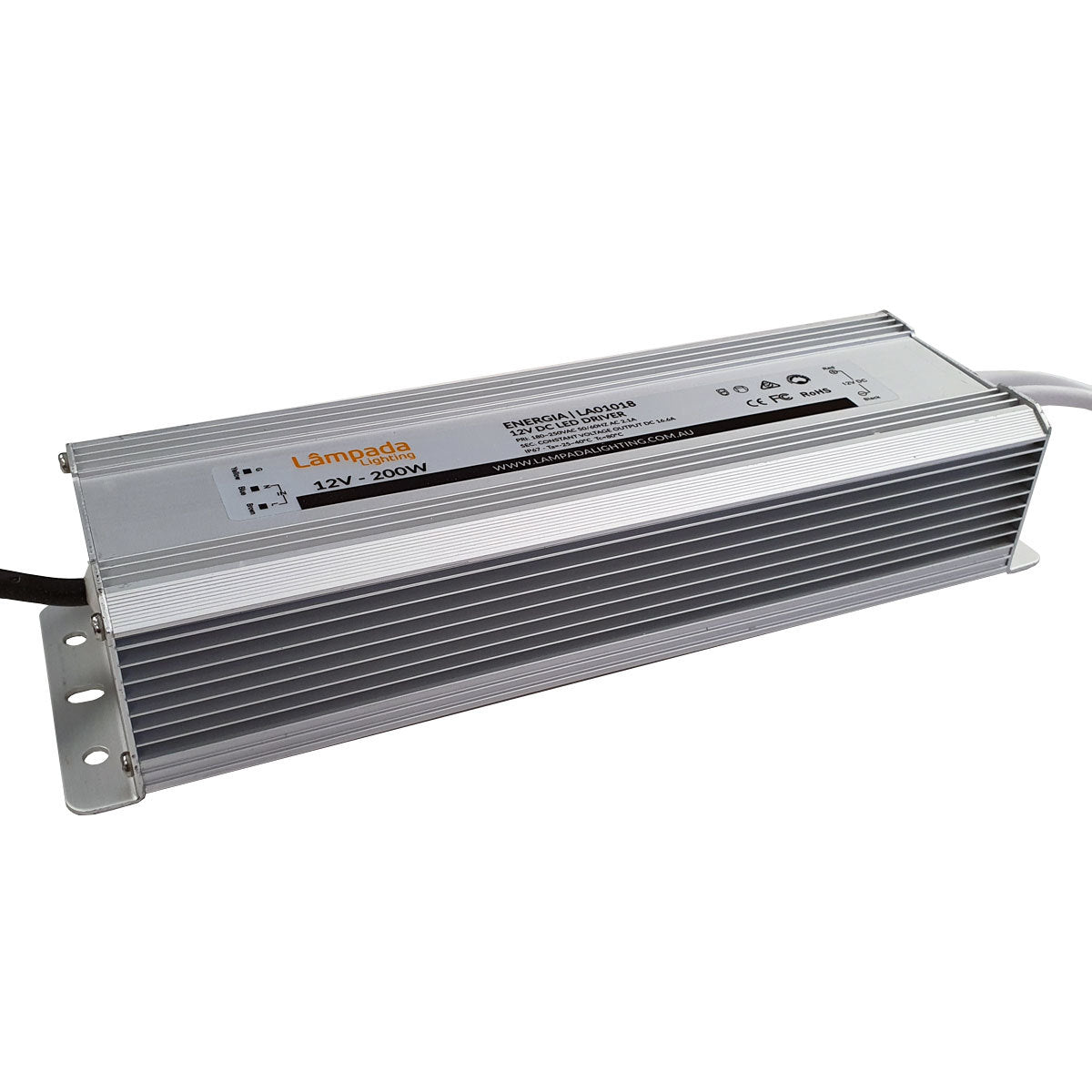

Energia 200W 12V DC IP67 weatherproof LED driver, installed lifestyle shot

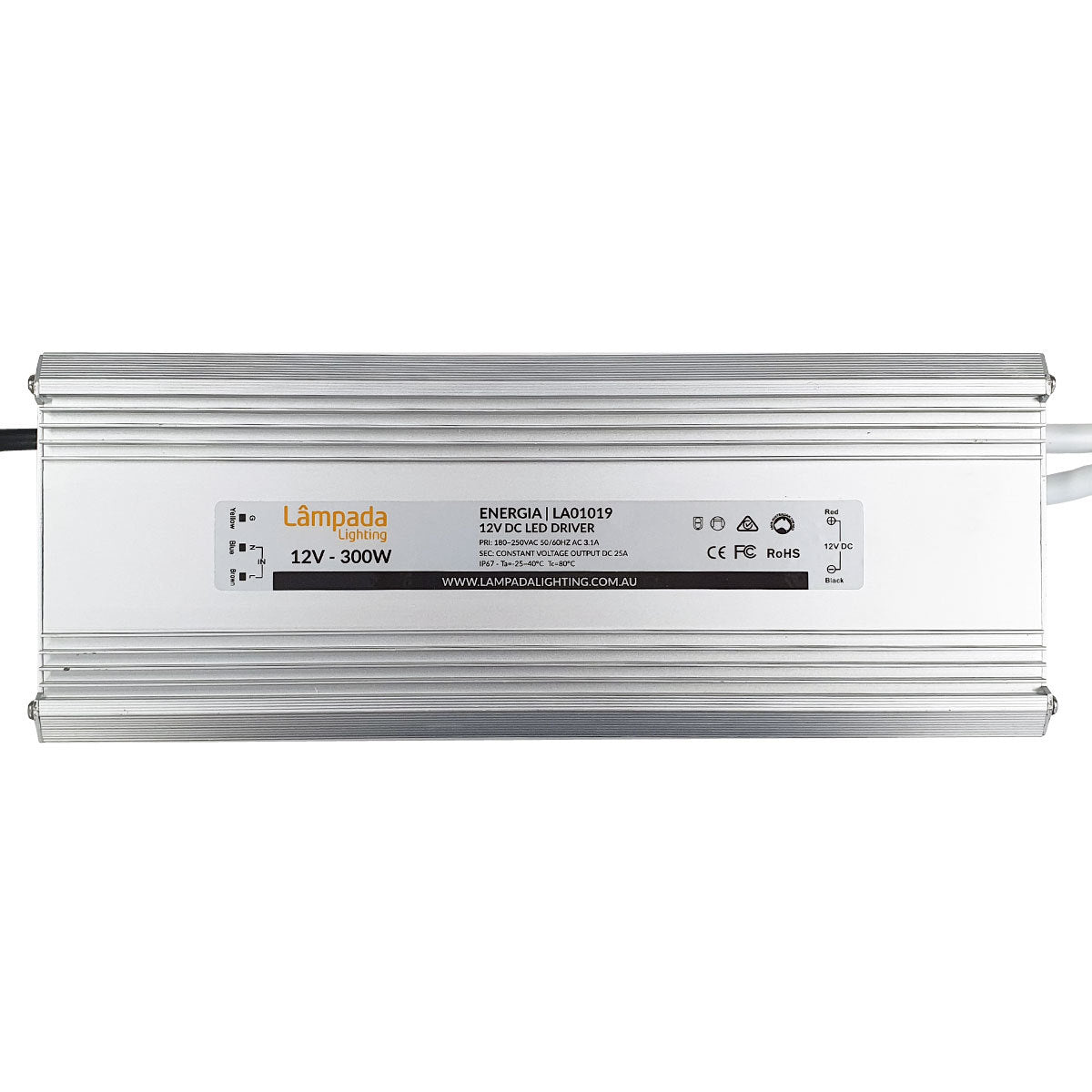

Energia 300W 12V DC IP67 weatherproof LED driver

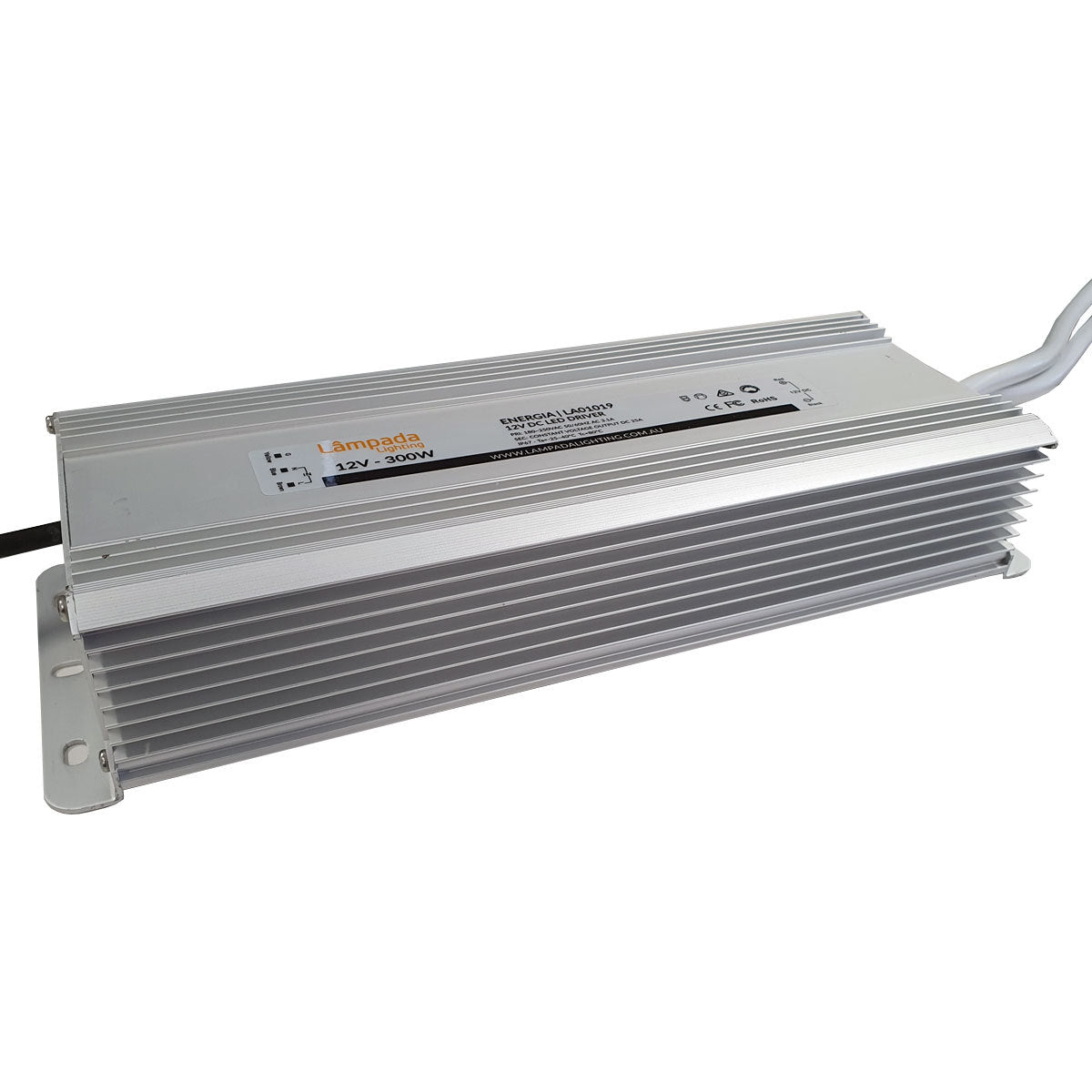

Energia 300W 12V DC IP67 weatherproof LED driver, installed lifestyle shot

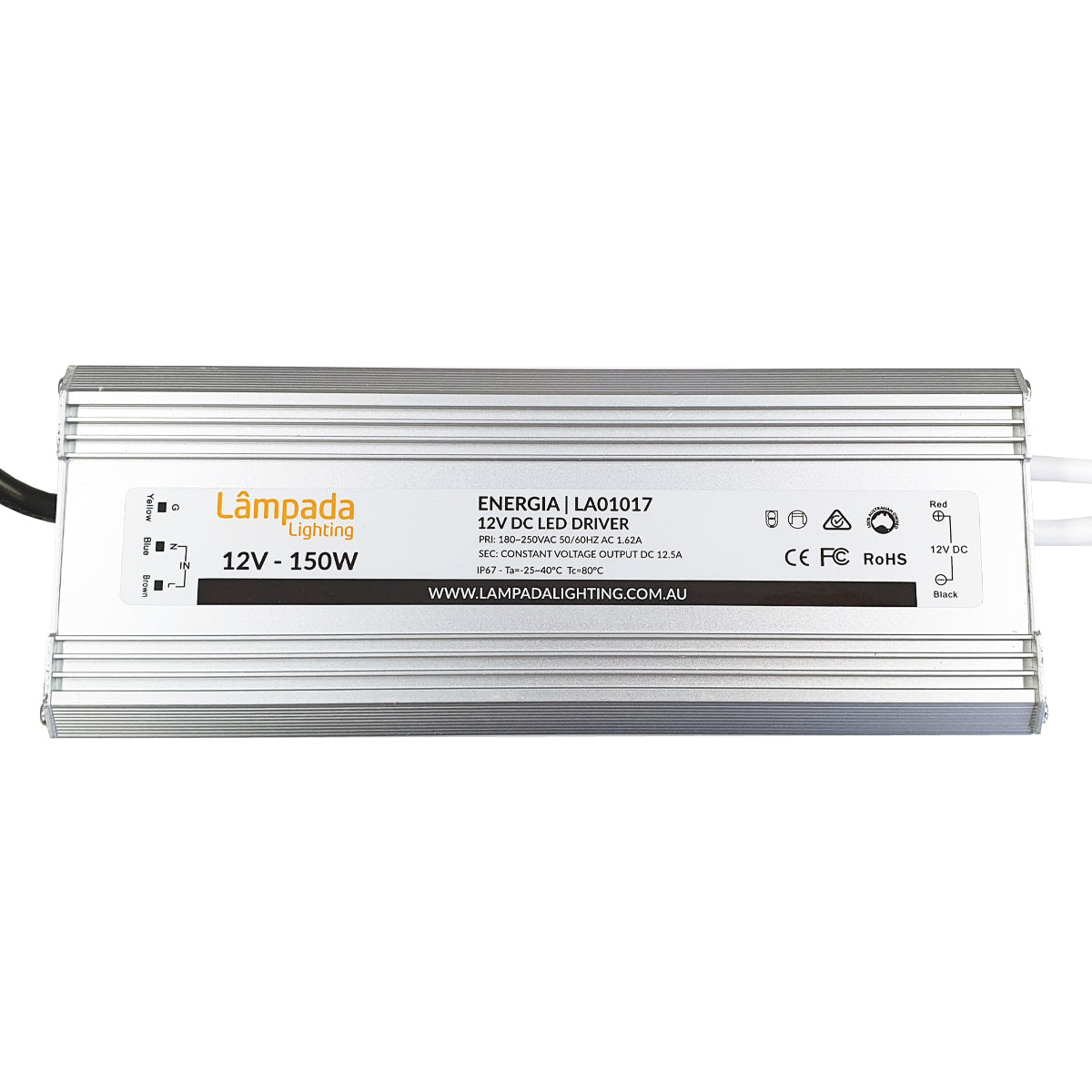

Energia 150W 12V DC IP67 weatherproof LED driver

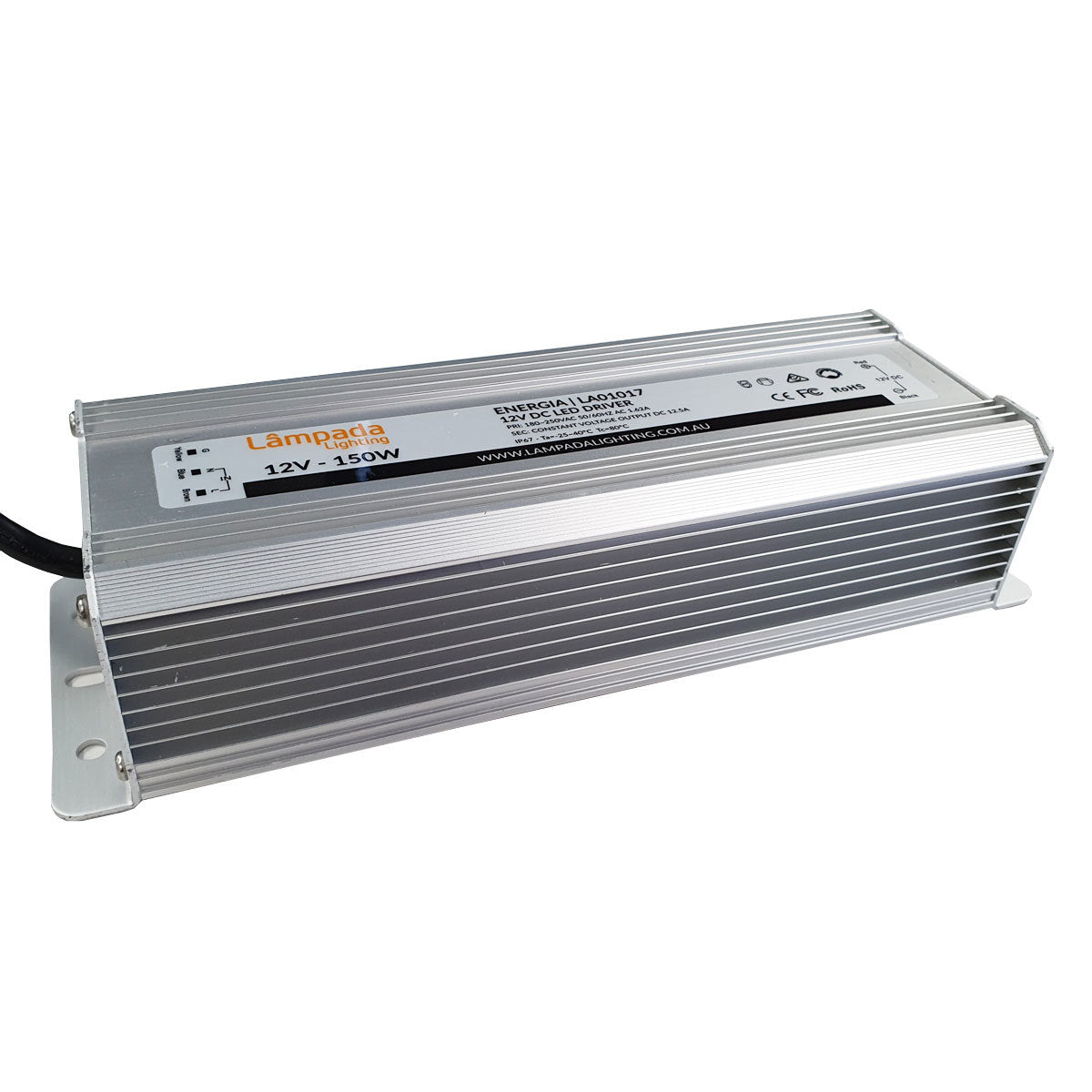

Energia 150W 12V DC IP67 weatherproof LED driver, installed lifestyle shot

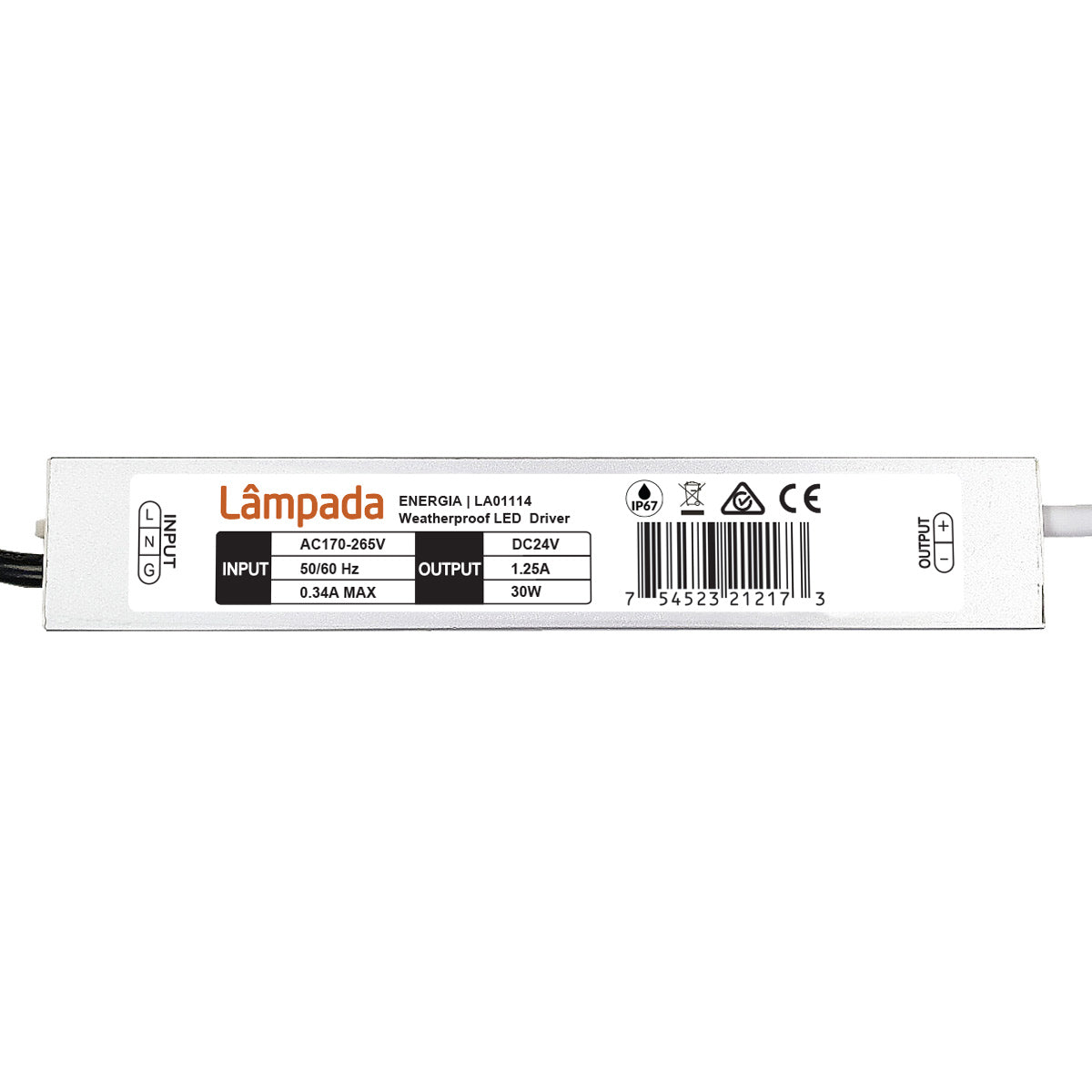

Energia 30W 24V DC IP67 weatherproof LED driver

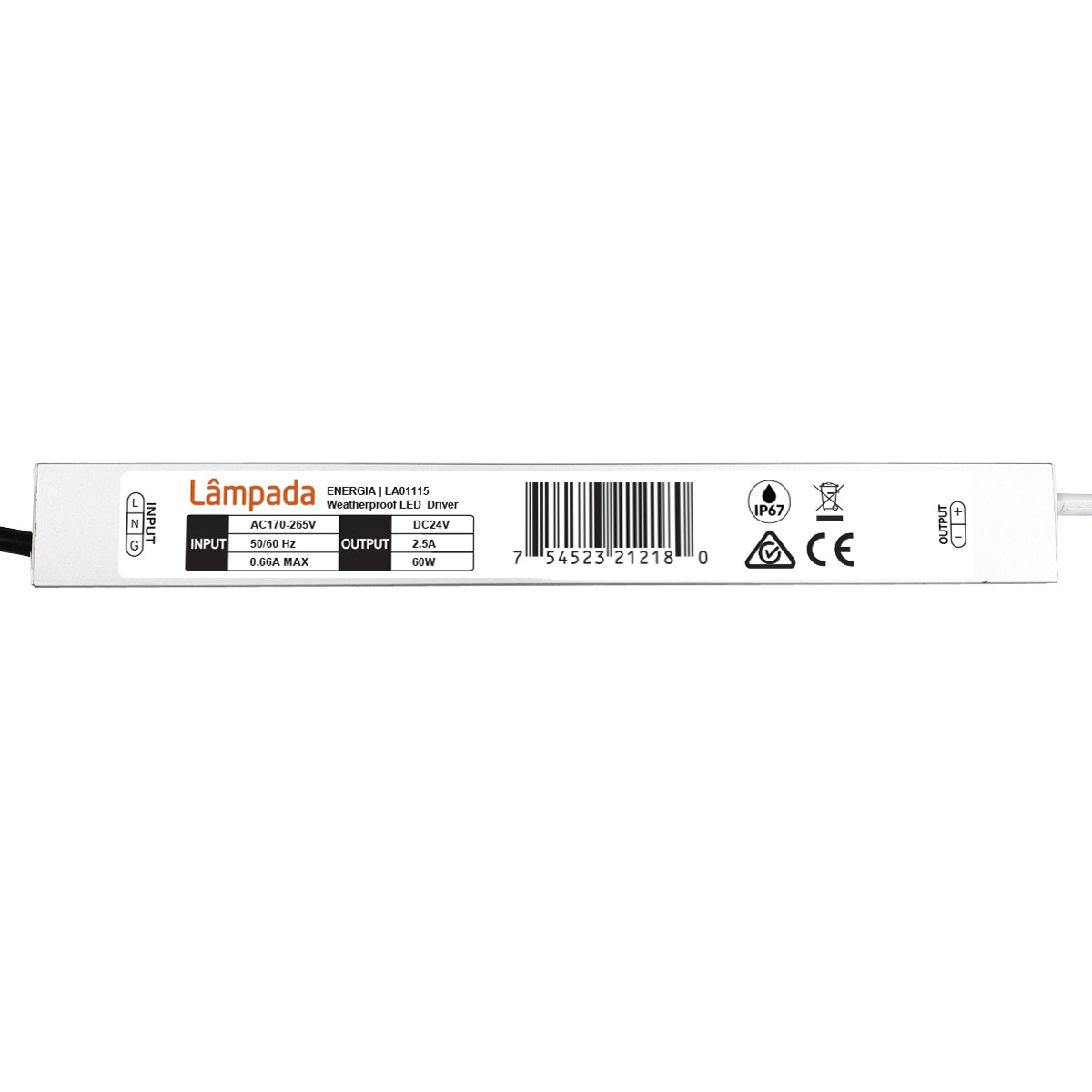

Energia 60W 24V DC IP67 weatherproof LED driver

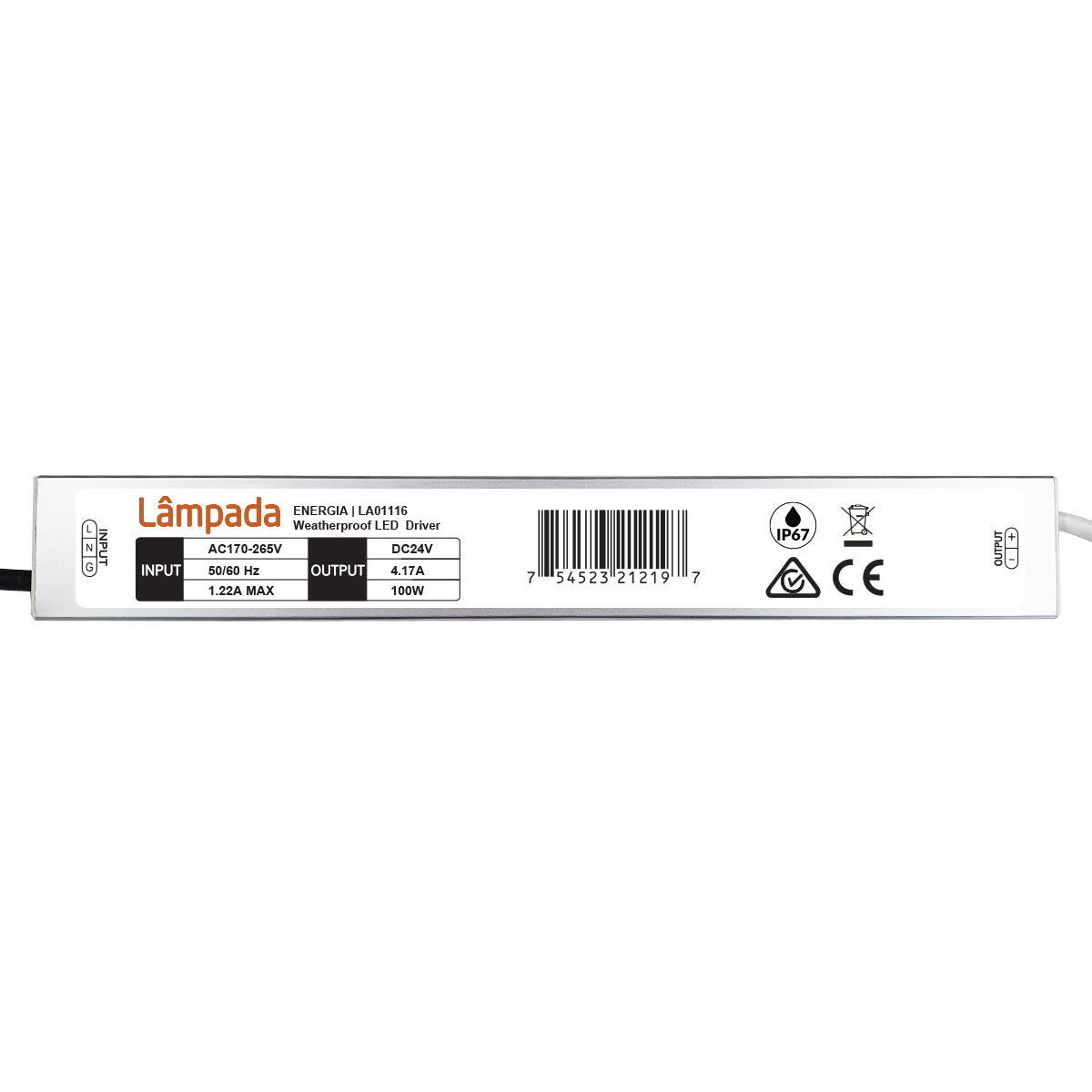

Energia 100W 24V DC IP67 weatherproof LED driver

Energia 150W 24V DC IP67 weatherproof LED driver

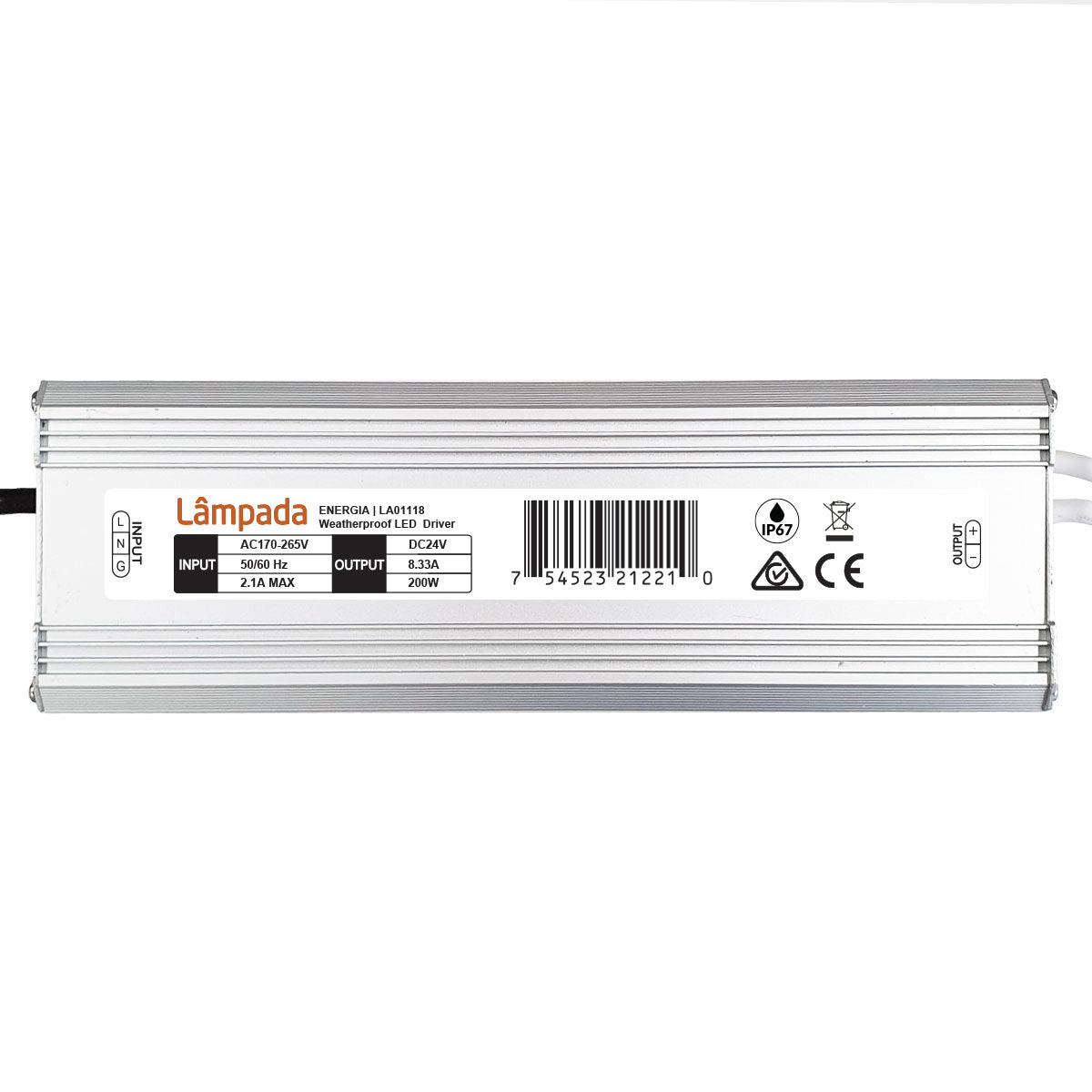

Energia 200W 24V DC IP67 weatherproof LED driver

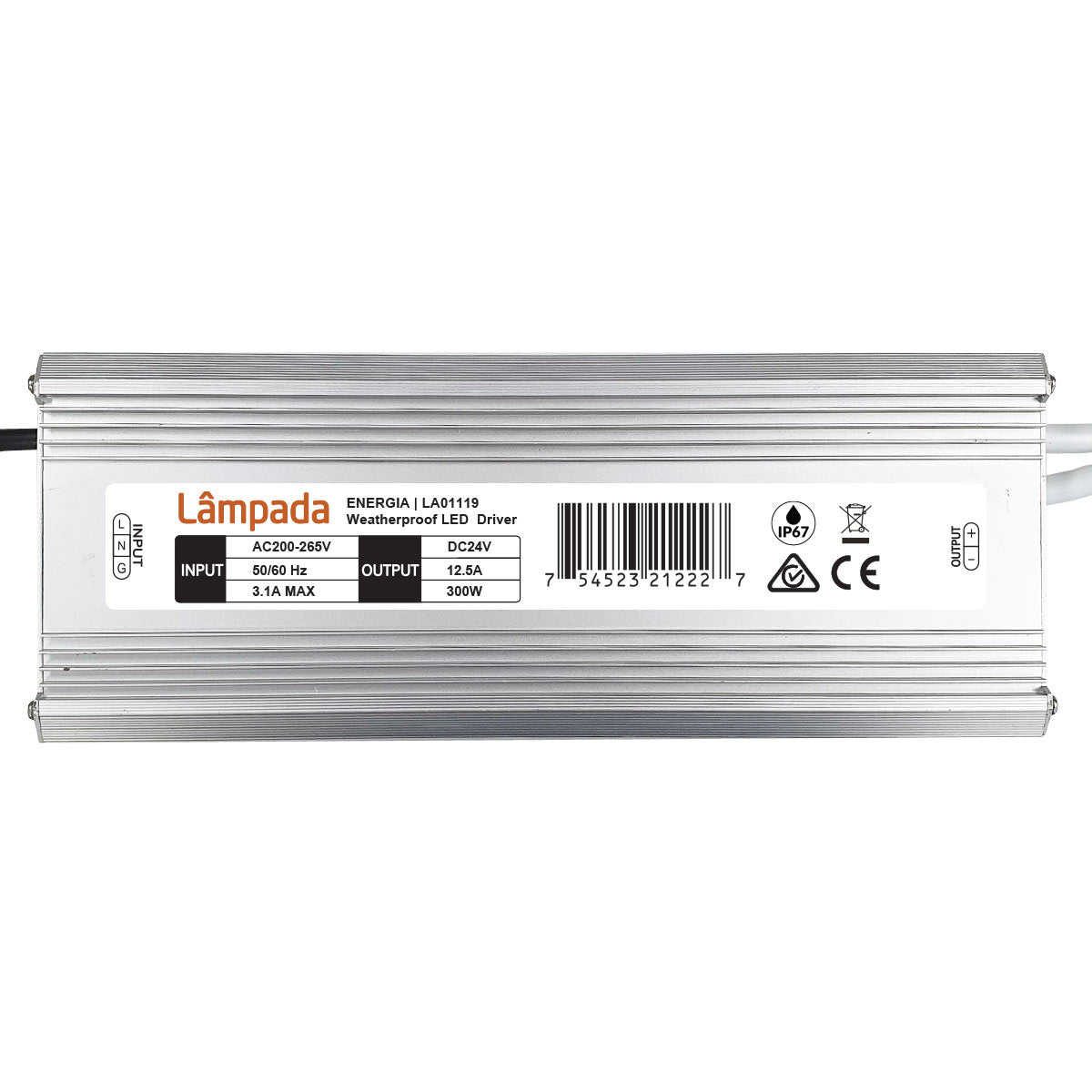

Energia 300W 24V DC IP67 weatherproof LED driver

Specifications

Cabling	1.2m flex & 10A plug
Dimmable	No
Input voltage	180-250V AC, 50/60Hz
Ip rating	IP67
Material	Aluminium Housing
Output current	1.25A
Overall width	28mm
Protections	Short circuit & over-current
Supply method	Constant Voltage
Voltage	24V DC
Warranty	3 Year
Wattage	30W

Specifications

Cabling	1.2m flex & 10A plug
Dimmable	No
Input voltage	180-250V AC, 50/60Hz
Ip rating	IP67
Material	Aluminium Housing
Output current	1.25A
Overall width	28mm
Protections	Short circuit & over-current
Supply method	Constant Voltage
Voltage	24V DC
Warranty	3 Year
Wattage	30W

Features

IP67 rated — suitable for outdoor and damp-location installs
Available in 12V DC or 24V DC output
Six output sizes: 30W, 60W, 100W, 150W, 200W, 300W
Short-circuit and over-current protection
Constant voltage supply
Aluminium housing
1.2m flex cable with 10A plug included
3 year warranty

Specifications

Cabling	1.2m flex & 10A plug
Dimmable	No
Input voltage	180-250V AC, 50/60Hz
Ip rating	IP67
Material	Aluminium Housing
Output current	1.25A
Overall width	28mm
Protections	Short circuit & over-current
Supply method	Constant Voltage
Voltage	24V DC
Warranty	3 Year
Wattage	30W

Specifications

Cabling	1.2m flex & 10A plug
Dimmable	No
Input voltage	180-250V AC, 50/60Hz
Ip rating	IP67
Material	Aluminium Housing
Output current	1.25A
Overall width	28mm
Protections	Short circuit & over-current
Supply method	Constant Voltage
Voltage	24V DC
Warranty	3 Year
Wattage	30W

Description

The Energia is a weatherproof, IP67-rated constant voltage LED driver built for low-voltage lighting applications that need to handle the elements — garden lighting, LED strip runs, and other outdoor or damp-location installs. It's available in 12V DC and 24V DC output, across six output sizes from 30W up to 300W, so you can match the driver to your total connected load. Every Energia includes short-circuit and over-current protection, an aluminium housing, and ships with a 1.2m flex cable terminated in a 10A plug.

This is a fixed-output driver (not dimmable) — if you need a dimmable low-voltage driver, see the Elettrica II 24V DC Slimline LED Driver instead. Pair the Energia with any of JD Lighting's 12V or 24V LED strips, such as the Cobra or Neos ranges, sizing the driver's wattage to your total run length with headroom to spare.

Features:

IP67 rated — suitable for outdoor and damp-location installs
Available in 12V DC or 24V DC output
Six output sizes: 30W, 60W, 100W, 150W, 200W, 300W
Short-circuit and over-current protection
Constant voltage supply
Aluminium housing
1.2m flex cable with 10A plug included
3 year warranty

Specifications:

Type	IP67 Weatherproof Constant Voltage LED Driver
Output Voltage	12V DC or 24V DC
Output Power	30W, 60W, 100W, 150W, 200W or 300W
Input Voltage	180-250V AC, 50/60Hz
Ingress Rating	IP67
Protections	Short circuit & over-current
Supply Method	Constant Voltage
Material	Aluminium Housing
Cabling	1.2m flex & 10A plug
Dimmable	No
Warranty	3 Year

Not dimmable. Choose the Elettrica II if you need a dimmable driver.

Description

Features:

IP67 rated — suitable for outdoor and damp-location installs
Available in 12V DC or 24V DC output
Six output sizes: 30W, 60W, 100W, 150W, 200W, 300W
Short-circuit and over-current protection
Constant voltage supply
Aluminium housing
1.2m flex cable with 10A plug included
3 year warranty

Specifications:

Type	IP67 Weatherproof Constant Voltage LED Driver
Output Voltage	12V DC or 24V DC
Output Power	30W, 60W, 100W, 150W, 200W or 300W
Input Voltage	180-250V AC, 50/60Hz
Ingress Rating	IP67
Protections	Short circuit & over-current
Supply Method	Constant Voltage
Material	Aluminium Housing
Cabling	1.2m flex & 10A plug
Dimmable	No
Warranty	3 Year

Not dimmable. Choose the Elettrica II if you need a dimmable driver.

Downloads

Download Datasheet

Energia Weatherproof IP67 DC LED Driver

Vendor: Lampada

$64.95

$64.95 ~~$89.99~~

Voltage: 24V DC

24V DC 12V DC

Wattage: 30W

30W 60W 100W 150W 200W 300W

What is an LED driver?

An LED driver converts mains electricity into a stable low-voltage DC power required by compatible lighting products. A driver is needed whenever a product requires an external DC power supply; usually location in areas with full weather exposure.

Common low-voltage products include spike lights, bollards, LED strip lighting and low-voltage wall lights. Always check the individual product specifications, as not every product within these categories requires an external driver.

The driver’s output voltage must match the product’s required voltage (eg. 12V DC), and its wattage must be sufficient for the total connected load. The calculator below recommends a suitable 12V or 24V driver and includes the required safety margin.

Find the Right LED Driver

Choose the product type and required voltage, then enter the installation details. We’ll recommend a suitable driver with the required safety margin.

Calculator type

Required voltage

Check the product specifications for its required voltage. The driver voltage must match the product. This calculator is only suitable for products marked 12V DC or 24V DC.

Wattage per fitting (W)

Quantity

All fittings connected to one driver must have the same voltage input. For fittings with different wattages, add their individual wattages together and contact us if you need help confirming the correct driver.

View driver capacity chart

Max Connected Load	12V Driver	24V Driver
25W	30W	30W
50W	60W	60W
83W	100W	100W
125W	150W	150W
166W	200W	200W
250W	300W	300W

✔ In stock

SKU: LA01114

Want a better price? Ask for a JD Deal.

Call us (07) 3809 2011 or chat with us below

Need Help? Got a Question? Contact your Account Manager

Alternatively, contact our Trade experts:
(07) 3088 6266 - trade@jdlighting.com.au

Specifications

Cabling	1.2m flex & 10A plug
Dimmable	No
Input voltage	180-250V AC, 50/60Hz
Ip rating	IP67
Material	Aluminium Housing
Output current	1.25A
Overall width	28mm
Protections	Short circuit & over-current
Supply method	Constant Voltage
Voltage	24V DC
Warranty	3 Year
Wattage	30W

Specifications

Cabling	1.2m flex & 10A plug
Dimmable	No
Input voltage	180-250V AC, 50/60Hz
Ip rating	IP67
Material	Aluminium Housing
Output current	1.25A
Overall width	28mm
Protections	Short circuit & over-current
Supply method	Constant Voltage
Voltage	24V DC
Warranty	3 Year
Wattage	30W

Features

IP67 rated — suitable for outdoor and damp-location installs
Available in 12V DC or 24V DC output
Six output sizes: 30W, 60W, 100W, 150W, 200W, 300W
Short-circuit and over-current protection
Constant voltage supply
Aluminium housing
1.2m flex cable with 10A plug included
3 year warranty

Specifications

Cabling	1.2m flex & 10A plug
Dimmable	No
Input voltage	180-250V AC, 50/60Hz
Ip rating	IP67
Material	Aluminium Housing
Output current	1.25A
Overall width	28mm
Protections	Short circuit & over-current
Supply method	Constant Voltage
Voltage	24V DC
Warranty	3 Year
Wattage	30W

Specifications

Cabling	1.2m flex & 10A plug
Dimmable	No
Input voltage	180-250V AC, 50/60Hz
Ip rating	IP67
Material	Aluminium Housing
Output current	1.25A
Overall width	28mm
Protections	Short circuit & over-current
Supply method	Constant Voltage
Voltage	24V DC
Warranty	3 Year
Wattage	30W

Description

Features:

IP67 rated — suitable for outdoor and damp-location installs
Available in 12V DC or 24V DC output
Six output sizes: 30W, 60W, 100W, 150W, 200W, 300W
Short-circuit and over-current protection
Constant voltage supply
Aluminium housing
1.2m flex cable with 10A plug included
3 year warranty

Specifications:

Type	IP67 Weatherproof Constant Voltage LED Driver
Output Voltage	12V DC or 24V DC
Output Power	30W, 60W, 100W, 150W, 200W or 300W
Input Voltage	180-250V AC, 50/60Hz
Ingress Rating	IP67
Protections	Short circuit & over-current
Supply Method	Constant Voltage
Material	Aluminium Housing
Cabling	1.2m flex & 10A plug
Dimmable	No
Warranty	3 Year

Not dimmable. Choose the Elettrica II if you need a dimmable driver.

Description

Features:

IP67 rated — suitable for outdoor and damp-location installs
Available in 12V DC or 24V DC output
Six output sizes: 30W, 60W, 100W, 150W, 200W, 300W
Short-circuit and over-current protection
Constant voltage supply
Aluminium housing
1.2m flex cable with 10A plug included
3 year warranty

Specifications:

Type	IP67 Weatherproof Constant Voltage LED Driver
Output Voltage	12V DC or 24V DC
Output Power	30W, 60W, 100W, 150W, 200W or 300W
Input Voltage	180-250V AC, 50/60Hz
Ingress Rating	IP67
Protections	Short circuit & over-current
Supply Method	Constant Voltage
Material	Aluminium Housing
Cabling	1.2m flex & 10A plug
Dimmable	No
Warranty	3 Year

Not dimmable. Choose the Elettrica II if you need a dimmable driver.

Downloads

Download Datasheet

52054173876505: { "cabling": "1.2m flex \u0026 10A plug", "dimmable": "No", "input_voltage": "180-250V AC, 50\/60Hz", "ip_rating": "IP67", "material": "Aluminium Housing", "output_current": "1.25A", "overall_width": "28mm", "protections": "Short circuit \u0026 over-current", "supply_method": "Constant Voltage", "voltage": "24V DC", "warranty": "3 Year", "wattage": "30W", }, 52054173909273: { "cabling": "1.2m flex \u0026 10A plug", "dimmable": "No", "input_voltage": "180-250V AC, 50\/60Hz", "ip_rating": "IP67", "material": "Aluminium Housing", "output_current": "2.5A", "overall_width": "28mm", "protections": "Short circuit \u0026 over-current", "supply_method": "Constant Voltage", "voltage": "24V DC", "warranty": "3 Year", "wattage": "60W", }, 52054173942041: { "cabling": "1.2m flex \u0026 10A plug", "dimmable": "No", "input_voltage": "180-250V AC, 50\/60Hz", "ip_rating": "IP67", "material": "Aluminium Housing", "output_current": "4.17A", "overall_width": "38mm", "protections": "Short circuit \u0026 over-current", "supply_method": "Constant Voltage", "voltage": "24V DC", "warranty": "3 Year", "wattage": "100W", }, 52054173974809: { "cabling": "1.2m flex \u0026 10A plug", "dimmable": "No", "input_voltage": "180-250V AC, 50\/60Hz", "ip_rating": "IP67", "material": "Aluminium Housing", "output_current": "6.25A", "overall_width": "69mm", "protections": "Short circuit \u0026 over-current", "supply_method": "Constant Voltage", "voltage": "24V DC", "warranty": "3 Year", "wattage": "150W", }, 52054174007577: { "cabling": "1.2m flex \u0026 10A plug", "dimmable": "No", "input_voltage": "180-250V AC, 50\/60Hz", "ip_rating": "IP67", "material": "Aluminium Housing", "output_current": "8.33A", "overall_width": "70mm", "protections": "Short circuit \u0026 over-current", "supply_method": "Constant Voltage", "voltage": "24V DC", "warranty": "3 Year", "wattage": "200W", }, 52054174040345: { "cabling": "1.2m flex \u0026 10A plug", "dimmable": "No", "input_voltage": "180-250V AC, 50\/60Hz", "ip_rating": "IP67", "material": "Aluminium Housing", "output_current": "12.5A", "overall_width": "95mm", "protections": "Short circuit \u0026 over-current", "supply_method": "Constant Voltage", "voltage": "24V DC", "warranty": "3 Year", "wattage": "300W", }, 52054173679897: { "cabling": "1.2m flex \u0026 10A plug", "dimmable": "No", "input_voltage": "180-250V AC, 50\/60Hz", "ip_rating": "IP67", "material": "Aluminium Housing", "output_current": "2.5A", "overall_width": "28mm", "protections": "Short circuit \u0026 over-current", "supply_method": "Constant Voltage", "voltage": "12V DC", "warranty": "3 Year", "wattage": "30W", }, 52054173712665: { "cabling": "1.2m flex \u0026 10A plug", "dimmable": "No", "input_voltage": "180-250V AC, 50\/60Hz", "ip_rating": "IP67", "material": "Aluminium Housing", "output_current": "5A", "overall_width": "28mm", "protections": "Short circuit \u0026 over-current", "supply_method": "Constant Voltage", "voltage": "12V DC", "warranty": "3 Year", "wattage": "60W", }, 52054173745433: { "cabling": "1.2m flex \u0026 10A plug", "dimmable": "No", "input_voltage": "180-250V AC, 50\/60Hz", "ip_rating": "IP67", "material": "Aluminium Housing", "output_current": "8.33A", "overall_width": "38mm", "protections": "Short circuit \u0026 over-current", "supply_method": "Constant Voltage", "voltage": "12V DC", "warranty": "3 Year", "wattage": "100W", }, 52054173843737: { "cabling": "1.2m flex \u0026 10A plug", "dimmable": "No", "input_voltage": "180-250V AC, 50\/60Hz", "ip_rating": "IP67", "material": "Aluminium Housing", "output_current": "12.5A", "overall_width": "69mm", "protections": "Short circuit \u0026 over-current", "supply_method": "Constant Voltage", "voltage": "12V DC", "warranty": "3 Year", "wattage": "150W", }, 52054173778201: { "cabling": "1.2m flex \u0026 10A plug", "dimmable": "No", "input_voltage": "180-250V AC, 50\/60Hz", "ip_rating": "IP67", "material": "Aluminium Housing", "output_current": "16.67A", "overall_width": "70mm", "protections": "Short circuit \u0026 over-current", "supply_method": "Constant Voltage", "voltage": "12V DC", "warranty": "3 Year", "wattage": "200W", }, 52054173810969: { "cabling": "1.2m flex \u0026 10A plug", "dimmable": "No", "input_voltage": "180-250V AC, 50\/60Hz", "ip_rating": "IP67", "material": "Aluminium Housing", "output_current": "25A", "overall_width": "95mm", "protections": "Short circuit \u0026 over-current", "supply_method": "Constant Voltage", "voltage": "12V DC", "warranty": "3 Year", "wattage": "300W", },

Energia Weatherproof IP67 DC LED Driver

$64.95

$64.95 ~~$89.99~~

Explore the Family

Download Datasheet

Lampada

Lampada Lighting is a 100% Australian owned and operated lighting design company created to provide high quality and innovative lighting fixtures to the Australian market. Their sole mission is to create unique lighting pieces that will look superb in every customer's home.

Lampada Lighting encapsulates all the qualities to make an interior space "shine". Elegance, sophistication and smooth operation are the key features of every Lampada product. Go simple and elegant with their Scandinavian style pendants, industrial cool with the Industrial style pendants or add a touch of glamour with the modern crystal lighting. They also offer an excellent downlight series.

Shop the Collection

100% Australian-Owned & Operated
Elegant, Industrial & Crystal Lighting
Premium Warranty

Frequently Asked Questions

How do I choose the right wattage?

Add up the total wattage of everything the driver will power (per metre wattage × total metres for LED strip, for example), then choose an Energia size with some headroom above that total — running a driver at its absolute maximum load shortens its life.

Can I dim lights connected to this driver?

No — the Energia is a fixed-output driver, not dimmable. If you need to dim your lighting, JD Lighting's Elettrica II 24V DC Slimline LED Driver is a dimmable alternative.

Can I install this outdoors?

Yes — the Energia is IP67 rated, making it suitable for outdoor and damp-location installs such as garden lighting, as long as the cable connections themselves are also properly weatherproofed.
