TECHNICAL DATA SHEET _12/09/2026

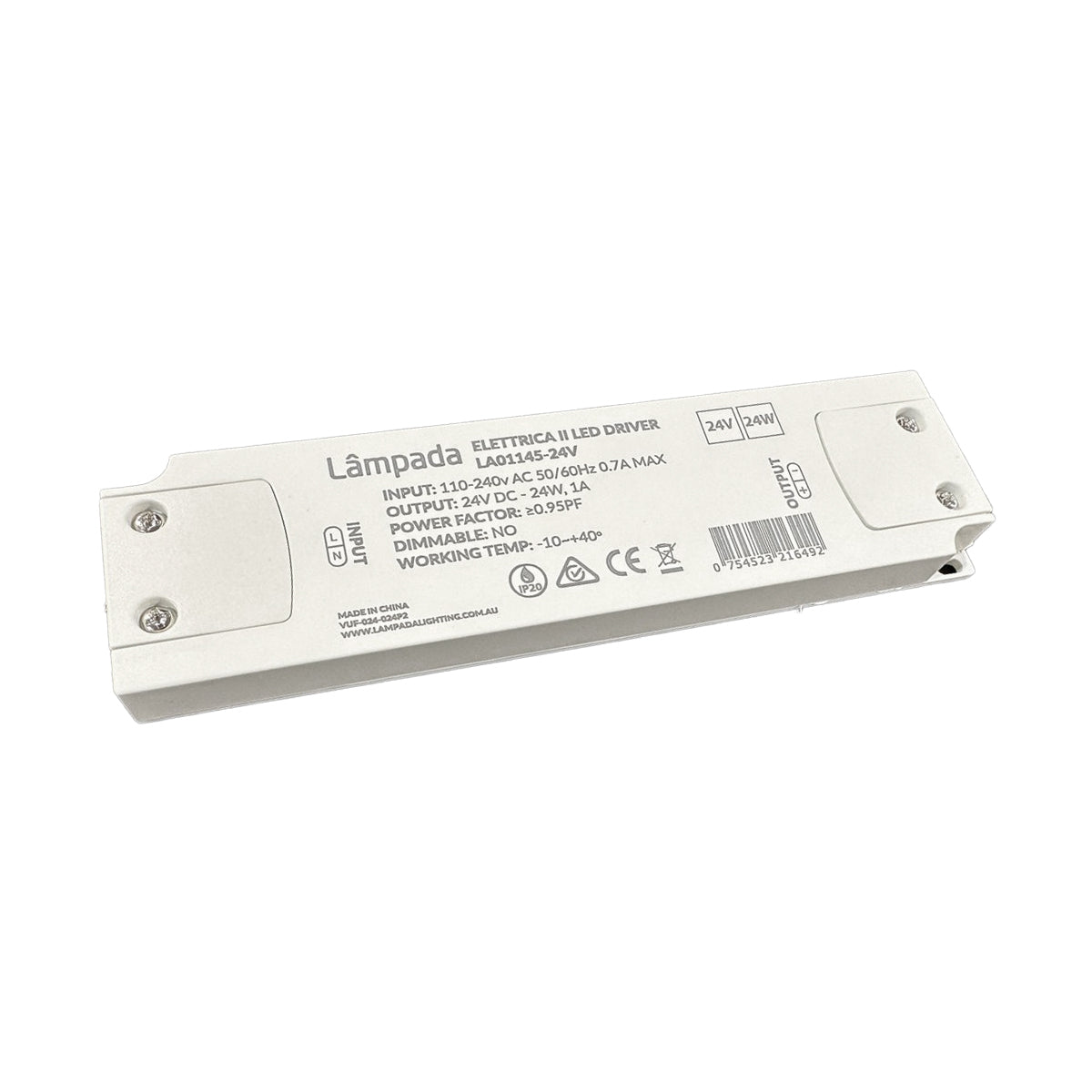

Elettrica II 24W 24V DC LED driver – product photo

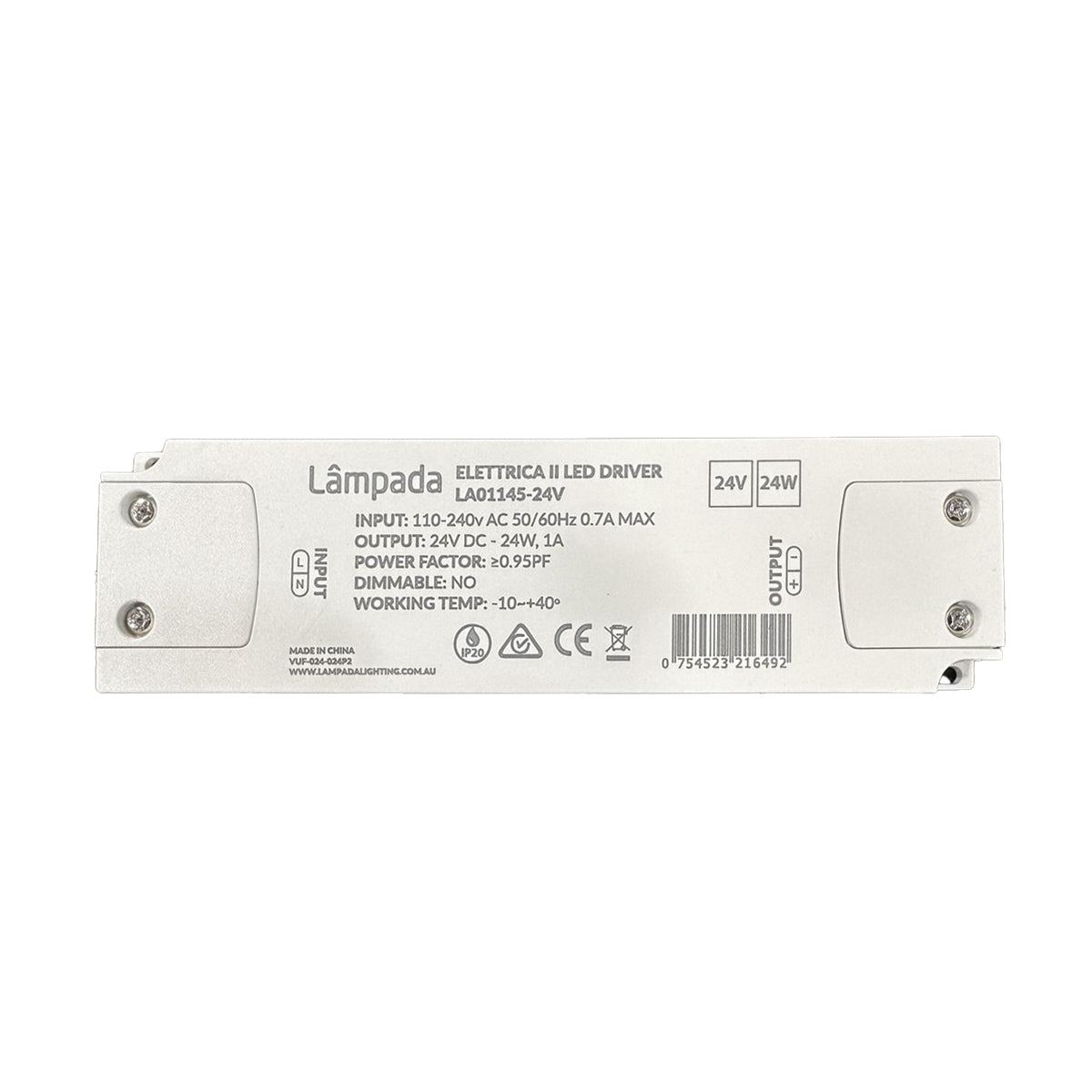

Elettrica II 24W 24V DC LED driver – lifestyle photo

Elettrica II 24W 24V DC LED driver – detail photo

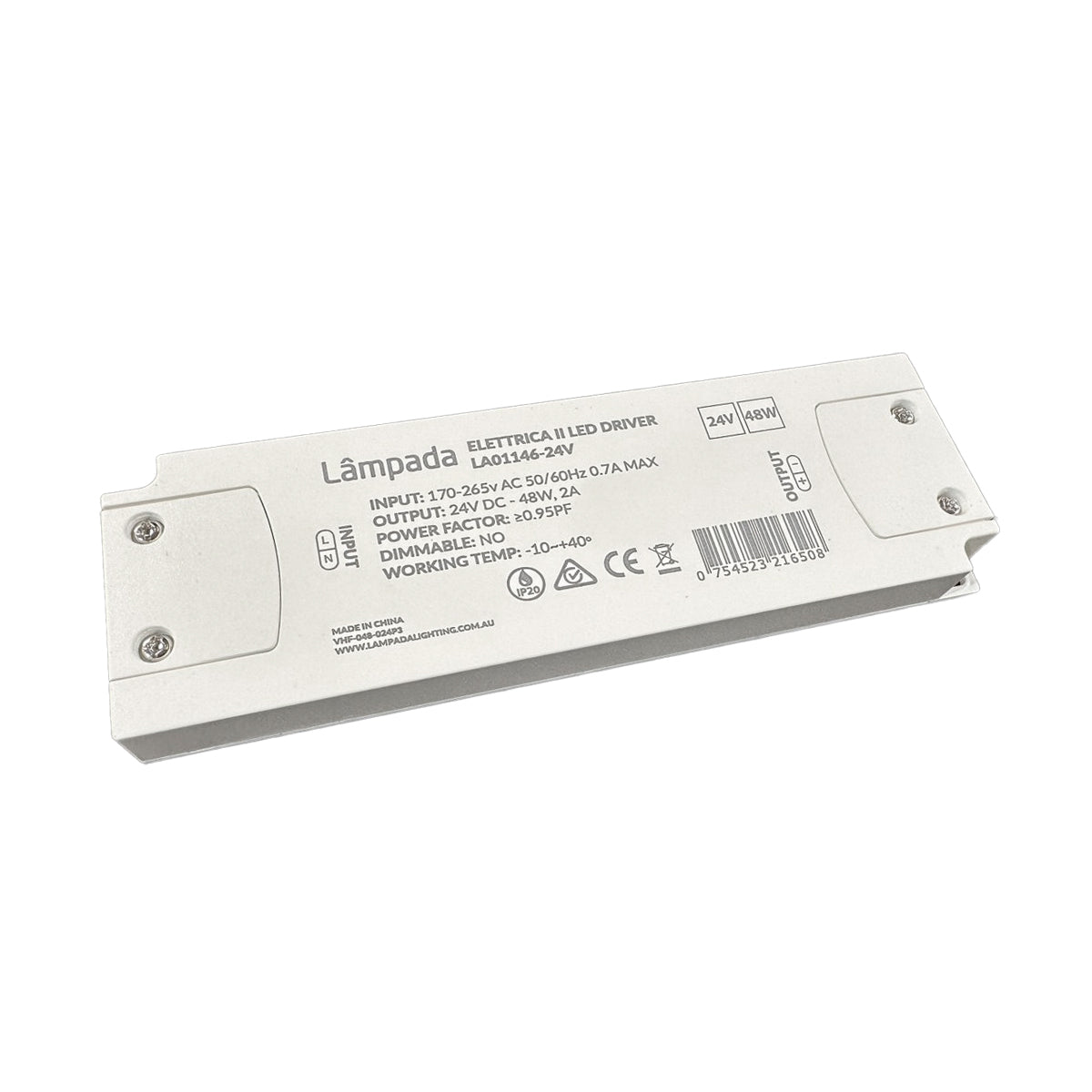

Elettrica II 48W 24V DC LED driver – product photo

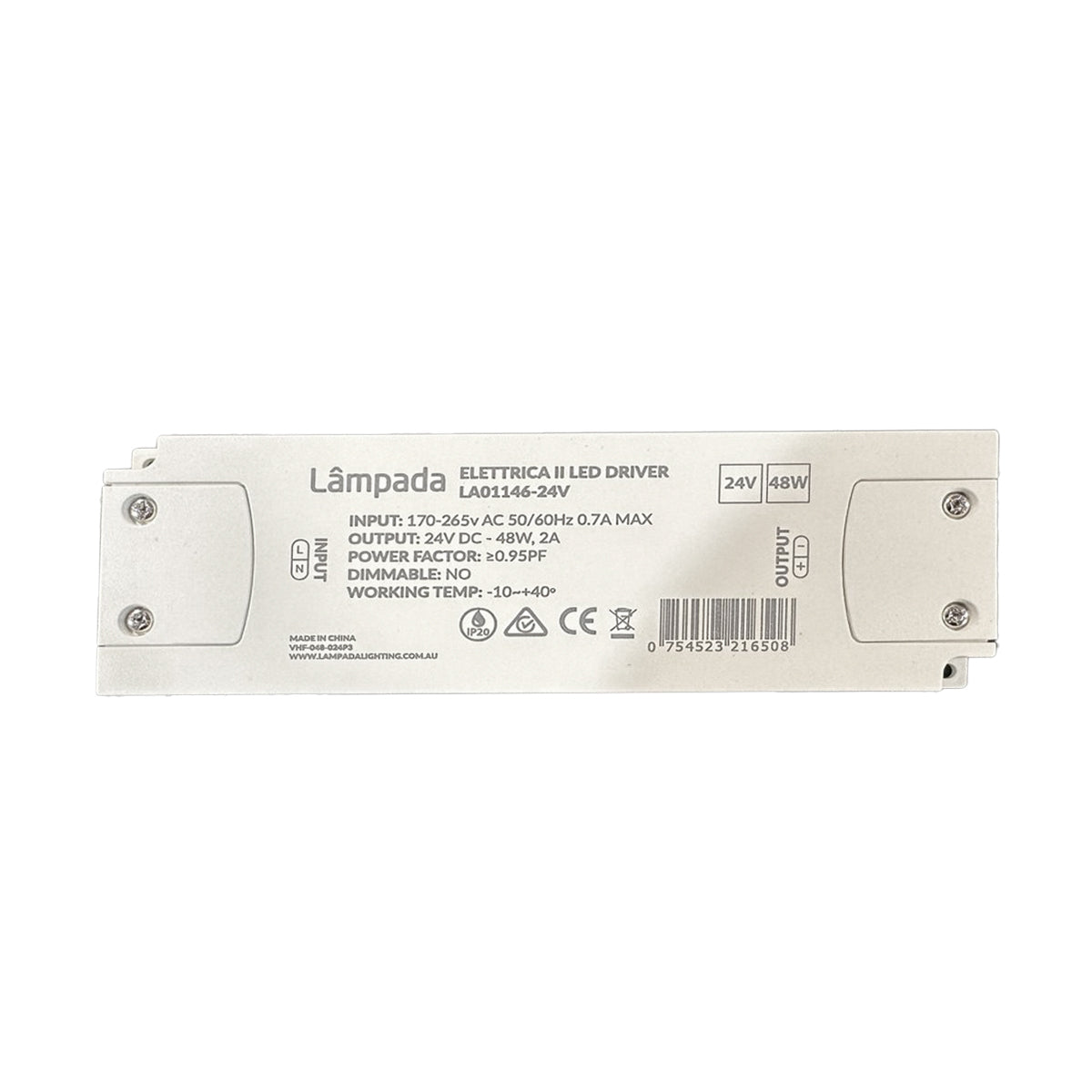

Elettrica II 48W 24V DC LED driver – lifestyle photo

Elettrica II 48W 24V DC LED driver – detail photo

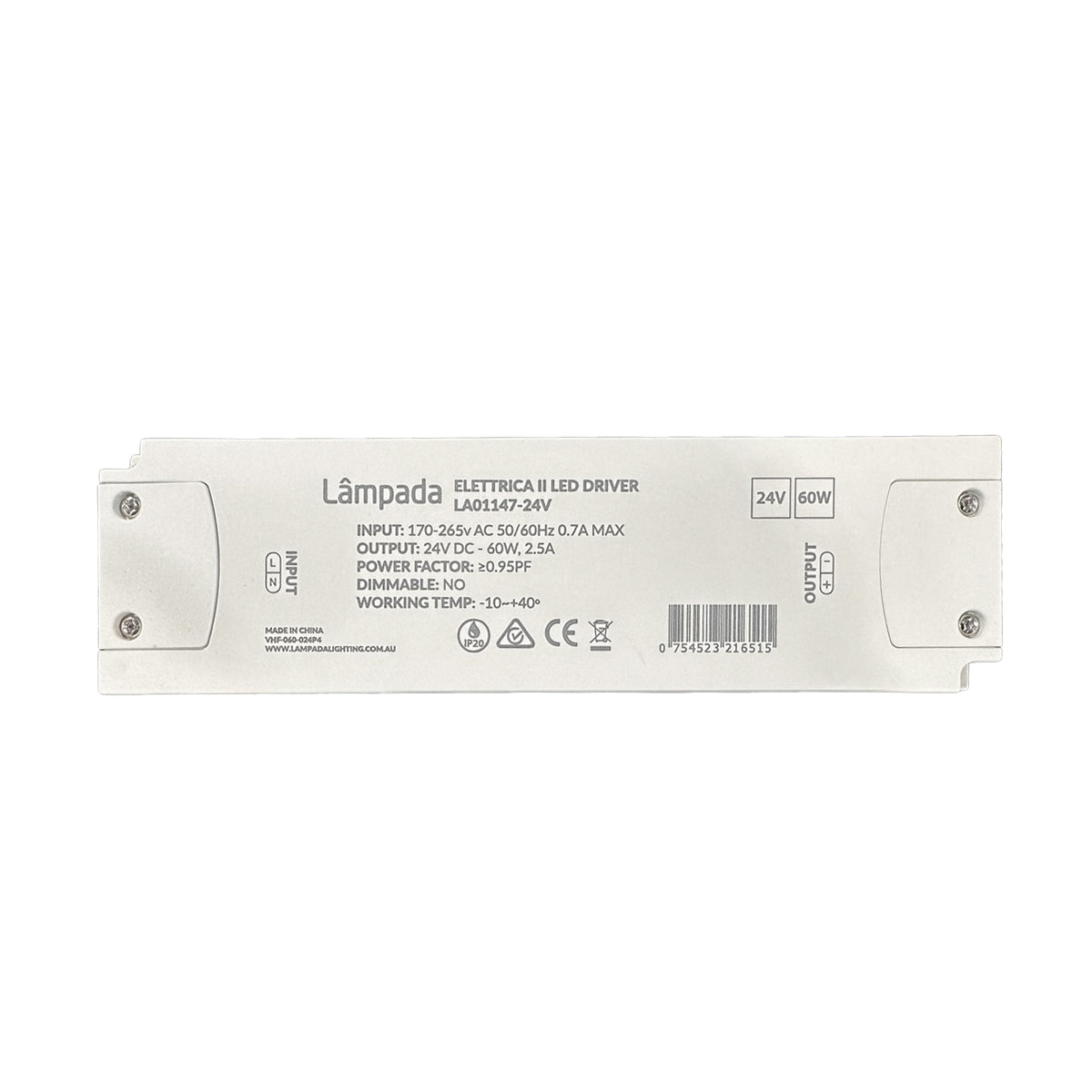

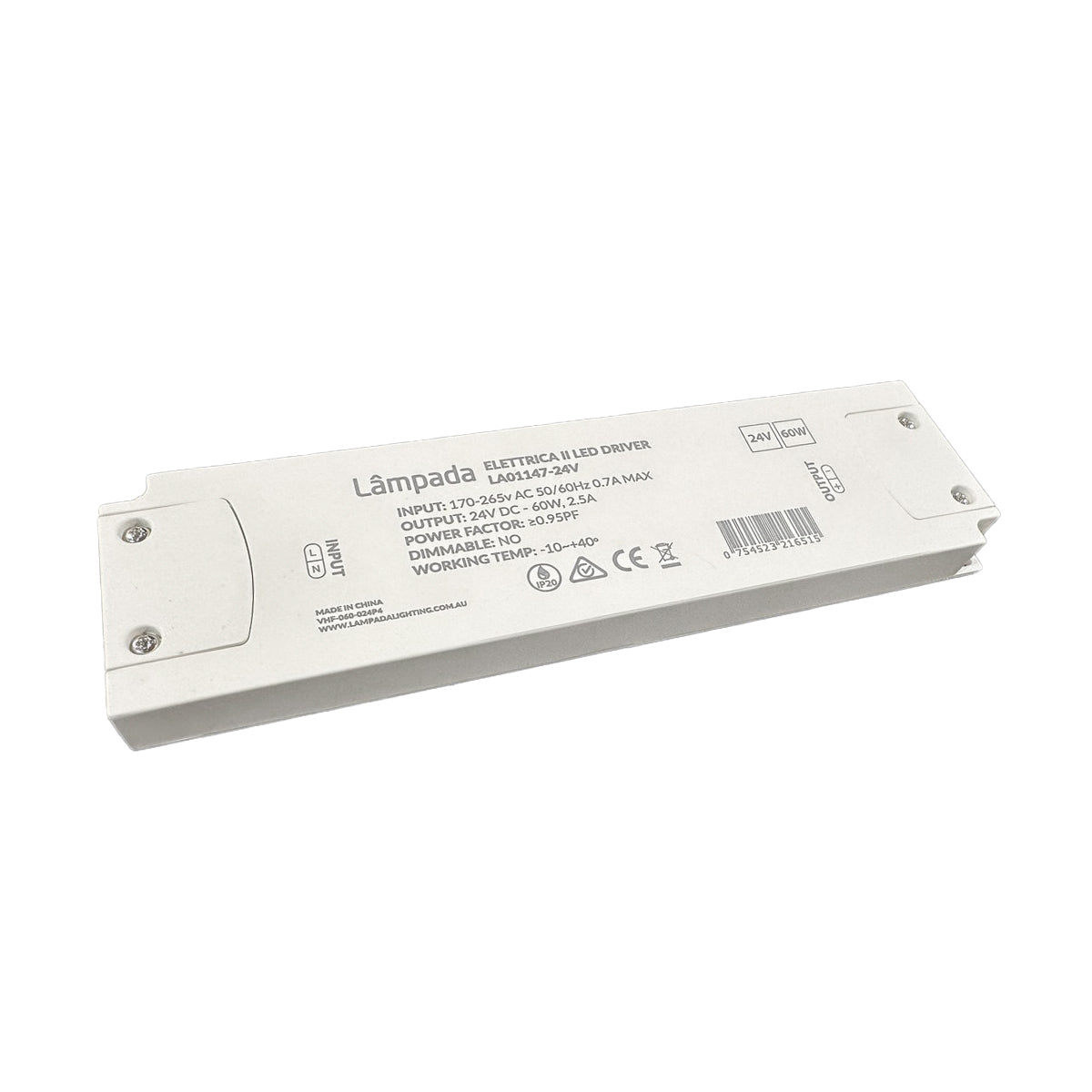

Elettrica II 60W 24V DC LED driver – product photo

Elettrica II 60W 24V DC LED driver – lifestyle photo

Elettrica II 60W 24V DC LED driver – detail photo

Specifications

Certification	RCM, CE
Dimmable	No
Flame retardant	Yes
Input voltage	110-240V AC, 50/60Hz
Ip rating	IP20
Material	PC (Polycarbonate)
Output current	1A

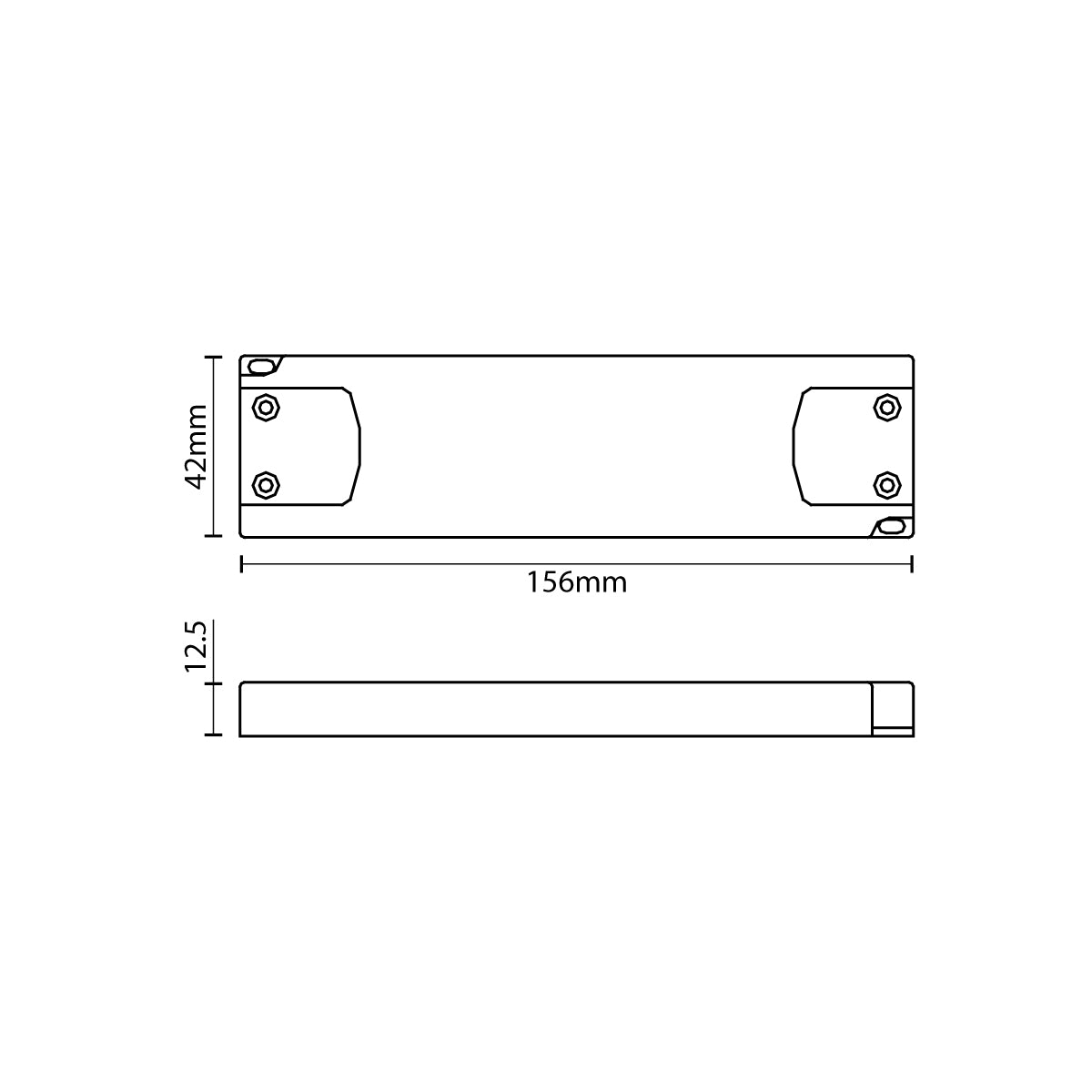

Overall height	12.5mm
Overall length	156mm
Overall width	42mm
Power factor	>0.95
Voltage	24V DC
Warranty	5 Year Warranty
Wattage	24W
Working temperature	-30°C to 60°C

Specifications

Certification	RCM, CE
Dimmable	No
Flame retardant	Yes
Input voltage	110-240V AC, 50/60Hz
Ip rating	IP20
Material	PC (Polycarbonate)
Output current	1A
Overall height	12.5mm
Overall length	156mm
Overall width	42mm
Power factor	>0.95
Voltage	24V DC
Warranty	5 Year Warranty
Wattage	24W
Working temperature	-30°C to 60°C

Features

Ultra-slim profile for tight installation spaces
Constant voltage 24V DC output, wide 110-240V AC input
Flicker-free performance
Short circuit, overload and over-temperature protection
Flame retardant PC housing, -30°C to 60°C operating range
IP20 rated for indoor use, RCM & CE certified
5 year warranty

Specifications

Certification	RCM, CE
Dimmable	No
Flame retardant	Yes
Input voltage	110-240V AC, 50/60Hz
Ip rating	IP20
Material	PC (Polycarbonate)
Output current	1A
Overall height	12.5mm
Overall length	156mm
Overall width	42mm
Power factor	>0.95
Voltage	24V DC
Warranty	5 Year Warranty
Wattage	24W
Working temperature	-30°C to 60°C

Specifications

Certification	RCM, CE
Dimmable	No
Flame retardant	Yes
Input voltage	110-240V AC, 50/60Hz
Ip rating	IP20
Material	PC (Polycarbonate)
Output current	1A
Overall height	12.5mm
Overall length	156mm
Overall width	42mm
Power factor	>0.95
Voltage	24V DC
Warranty	5 Year Warranty
Wattage	24W
Working temperature	-30°C to 60°C

Description

The Elettrica II is a slimline 24V DC constant voltage LED driver, built for LED strip lighting and other 24V DC fittings that need a compact, reliable power supply. It takes a wide 110-240V AC, 50/60Hz input and runs flicker-free, and is available in three outputs — 24W, 48W and 60W — so you can match the driver to the load of your LED strip or fitting.

With an IP20 rating, this driver is suited to indoor, dry installations such as cabinetry, joinery and indoor display lighting. For outdoor or undercover locations, the weatherproof Energia IP67 DC LED Driver range is the better fit. If you need a 12V DC output instead, the Elettrica DC Slimline LED Driver covers both 12V and 24V.

Features:

Ultra-slim profile for tight installation spaces
Constant voltage 24V DC output, wide 110-240V AC input
Flicker-free performance
Short circuit, overload and over-temperature protection
Flame retardant PC housing, -30°C to 60°C operating range
IP20 rated for indoor use, RCM & CE certified
5 year warranty

Specifications:

Type	LED Driver
Output Voltage	24V DC
Wattage Options	24W / 48W / 60W
Input Voltage	110-240V AC, 50/60Hz
Dimmable	No
IP Rating	IP20
Protection	Short circuit, overload, over-temperature
Operating Temperature	-30°C to 60°C
Material	Flame retardant PC
Power Factor	>0.95
Certification	RCM, CE
Power Supply	Flex and plug included
Warranty	5 Year Warranty

Output current and exact dimensions vary by wattage — select 24W, 48W or 60W above to see the figures for that option.

Description

Features:

Ultra-slim profile for tight installation spaces
Constant voltage 24V DC output, wide 110-240V AC input
Flicker-free performance
Short circuit, overload and over-temperature protection
Flame retardant PC housing, -30°C to 60°C operating range
IP20 rated for indoor use, RCM & CE certified
5 year warranty

Specifications:

Type	LED Driver
Output Voltage	24V DC
Wattage Options	24W / 48W / 60W
Input Voltage	110-240V AC, 50/60Hz
Dimmable	No
IP Rating	IP20
Protection	Short circuit, overload, over-temperature
Operating Temperature	-30°C to 60°C
Material	Flame retardant PC
Power Factor	>0.95
Certification	RCM, CE
Power Supply	Flex and plug included
Warranty	5 Year Warranty

Output current and exact dimensions vary by wattage — select 24W, 48W or 60W above to see the figures for that option.

Downloads

Download Datasheet

Elettrica II 24V DC Slimline LED Driver

Vendor: Lampada

$49.99

$49.99 ~~$69.95~~

Wattage: 24W

24W 48W 60W

What is an LED driver?

An LED driver converts mains electricity into a stable low-voltage DC power required by compatible lighting products. A driver is needed whenever a product requires an external DC power supply; usually location in areas with full weather exposure.

Common low-voltage products include spike lights, bollards, LED strip lighting and low-voltage wall lights. Always check the individual product specifications, as not every product within these categories requires an external driver.

The driver’s output voltage must match the product’s required voltage (eg. 12V DC), and its wattage must be sufficient for the total connected load. The calculator below recommends a suitable 12V or 24V driver and includes the required safety margin.

Find the Right LED Driver

Choose the product type and required voltage, then enter the installation details. We’ll recommend a suitable driver with the required safety margin.

Calculator type

Required voltage

Check the product specifications for its required voltage. The driver voltage must match the product. This calculator is only suitable for products marked 12V DC or 24V DC.

Wattage per fitting (W)

Quantity

All fittings connected to one driver must have the same voltage input. For fittings with different wattages, add their individual wattages together and contact us if you need help confirming the correct driver.

View driver capacity chart

Max Connected Load	12V Driver	24V Driver
25W	30W	30W
50W	60W	60W
83W	100W	100W
125W	150W	150W
166W	200W	200W
250W	300W	300W

✔ In stock

SKU: LA01145-24

Want a better price? Ask for a JD Deal.

Call us (07) 3809 2011 or chat with us below

Need Help? Got a Question? Contact your Account Manager

Alternatively, contact our Trade experts:
(07) 3088 6266 - trade@jdlighting.com.au

Specifications

Certification	RCM, CE
Dimmable	No
Flame retardant	Yes
Input voltage	110-240V AC, 50/60Hz
Ip rating	IP20
Material	PC (Polycarbonate)
Output current	1A
Overall height	12.5mm
Overall length	156mm
Overall width	42mm
Power factor	>0.95
Voltage	24V DC
Warranty	5 Year Warranty
Wattage	24W
Working temperature	-30°C to 60°C

Specifications

Certification	RCM, CE
Dimmable	No
Flame retardant	Yes
Input voltage	110-240V AC, 50/60Hz
Ip rating	IP20
Material	PC (Polycarbonate)
Output current	1A
Overall height	12.5mm
Overall length	156mm
Overall width	42mm
Power factor	>0.95
Voltage	24V DC
Warranty	5 Year Warranty
Wattage	24W
Working temperature	-30°C to 60°C

Features

Ultra-slim profile for tight installation spaces
Constant voltage 24V DC output, wide 110-240V AC input
Flicker-free performance
Short circuit, overload and over-temperature protection
Flame retardant PC housing, -30°C to 60°C operating range
IP20 rated for indoor use, RCM & CE certified
5 year warranty

Specifications

Certification	RCM, CE
Dimmable	No
Flame retardant	Yes
Input voltage	110-240V AC, 50/60Hz
Ip rating	IP20
Material	PC (Polycarbonate)
Output current	1A
Overall height	12.5mm
Overall length	156mm
Overall width	42mm
Power factor	>0.95
Voltage	24V DC
Warranty	5 Year Warranty
Wattage	24W
Working temperature	-30°C to 60°C

Specifications

Certification	RCM, CE
Dimmable	No
Flame retardant	Yes
Input voltage	110-240V AC, 50/60Hz
Ip rating	IP20
Material	PC (Polycarbonate)
Output current	1A
Overall height	12.5mm
Overall length	156mm
Overall width	42mm
Power factor	>0.95
Voltage	24V DC
Warranty	5 Year Warranty
Wattage	24W
Working temperature	-30°C to 60°C

Description

Features:

Ultra-slim profile for tight installation spaces
Constant voltage 24V DC output, wide 110-240V AC input
Flicker-free performance
Short circuit, overload and over-temperature protection
Flame retardant PC housing, -30°C to 60°C operating range
IP20 rated for indoor use, RCM & CE certified
5 year warranty

Specifications:

Type	LED Driver
Output Voltage	24V DC
Wattage Options	24W / 48W / 60W
Input Voltage	110-240V AC, 50/60Hz
Dimmable	No
IP Rating	IP20
Protection	Short circuit, overload, over-temperature
Operating Temperature	-30°C to 60°C
Material	Flame retardant PC
Power Factor	>0.95
Certification	RCM, CE
Power Supply	Flex and plug included
Warranty	5 Year Warranty

Output current and exact dimensions vary by wattage — select 24W, 48W or 60W above to see the figures for that option.

Description

Features:

Ultra-slim profile for tight installation spaces
Constant voltage 24V DC output, wide 110-240V AC input
Flicker-free performance
Short circuit, overload and over-temperature protection
Flame retardant PC housing, -30°C to 60°C operating range
IP20 rated for indoor use, RCM & CE certified
5 year warranty

Specifications:

Type	LED Driver
Output Voltage	24V DC
Wattage Options	24W / 48W / 60W
Input Voltage	110-240V AC, 50/60Hz
Dimmable	No
IP Rating	IP20
Protection	Short circuit, overload, over-temperature
Operating Temperature	-30°C to 60°C
Material	Flame retardant PC
Power Factor	>0.95
Certification	RCM, CE
Power Supply	Flex and plug included
Warranty	5 Year Warranty

Output current and exact dimensions vary by wattage — select 24W, 48W or 60W above to see the figures for that option.

Downloads

Download Datasheet

52053281538329: { "certification": "RCM, CE", "dimmable": "No", "flame_retardant": "Yes", "input_voltage": "110-240V AC, 50\/60Hz", "ip_rating": "IP20", "material": "PC (Polycarbonate)", "output_current": "1A", "overall_height": "12.5mm", "overall_length": "156mm", "overall_width": "42mm", "power_factor": "\u003e0.95", "voltage": "24V DC", "warranty": "5 Year Warranty", "wattage": "24W", "working_temperature": "-30°C to 60°C", }, 52053281571097: { "certification": "RCM, CE", "dimmable": "No", "flame_retardant": "Yes", "input_voltage": "110-240V AC, 50\/60Hz", "ip_rating": "IP20", "material": "PC (Polycarbonate)", "output_current": "2A", "overall_height": "14.5mm", "overall_length": "163mm", "overall_width": "52mm", "power_factor": "\u003e0.95", "voltage": "24V DC", "warranty": "5 Year Warranty", "wattage": "48W", "working_temperature": "-30°C to 60°C", }, 52053281603865: { "certification": "RCM, CE", "dimmable": "No", "flame_retardant": "Yes", "input_voltage": "110-240V AC, 50\/60Hz", "ip_rating": "IP20", "material": "PC (Polycarbonate)", "output_current": "2.5A", "overall_height": "16.5mm", "overall_length": "207mm", "overall_width": "56mm", "power_factor": "\u003e0.95", "voltage": "24V DC", "warranty": "5 Year Warranty", "wattage": "60W", "working_temperature": "-30°C to 60°C", },

Elettrica II 24V DC Slimline LED Driver

$49.99

$49.99 ~~$69.95~~

Explore the Family

Download Datasheet

Lampada

Lampada Lighting is a 100% Australian owned and operated lighting design company created to provide high quality and innovative lighting fixtures to the Australian market. Their sole mission is to create unique lighting pieces that will look superb in every customer's home.

Lampada Lighting encapsulates all the qualities to make an interior space "shine". Elegance, sophistication and smooth operation are the key features of every Lampada product. Go simple and elegant with their Scandinavian style pendants, industrial cool with the Industrial style pendants or add a touch of glamour with the modern crystal lighting. They also offer an excellent downlight series.

Shop the Collection

100% Australian-Owned & Operated
Elegant, Industrial & Crystal Lighting
Premium Warranty

Frequently Asked Questions

Can the Elettrica II LED driver be used outdoors?

No — it has an IP20 rating, so it's designed for indoor, dry installations only. For outdoor or undercover locations, use the weatherproof Energia IP67 DC LED Driver instead.

Which wattage should I choose — 24W, 48W or 60W?

Choose the wattage that covers the total wattage of the LED strip or fitting you're powering, with some headroom rather than running the driver at its maximum rated load. The 24W suits shorter runs, 48W mid-length runs, and 60W longer runs or multiple strips.

Is the Elettrica II LED driver dimmable?

No, this driver is not dimmable. It delivers a constant 24V DC output at a fixed wattage.
