TECHNICAL DATA SHEET _14/03/2026

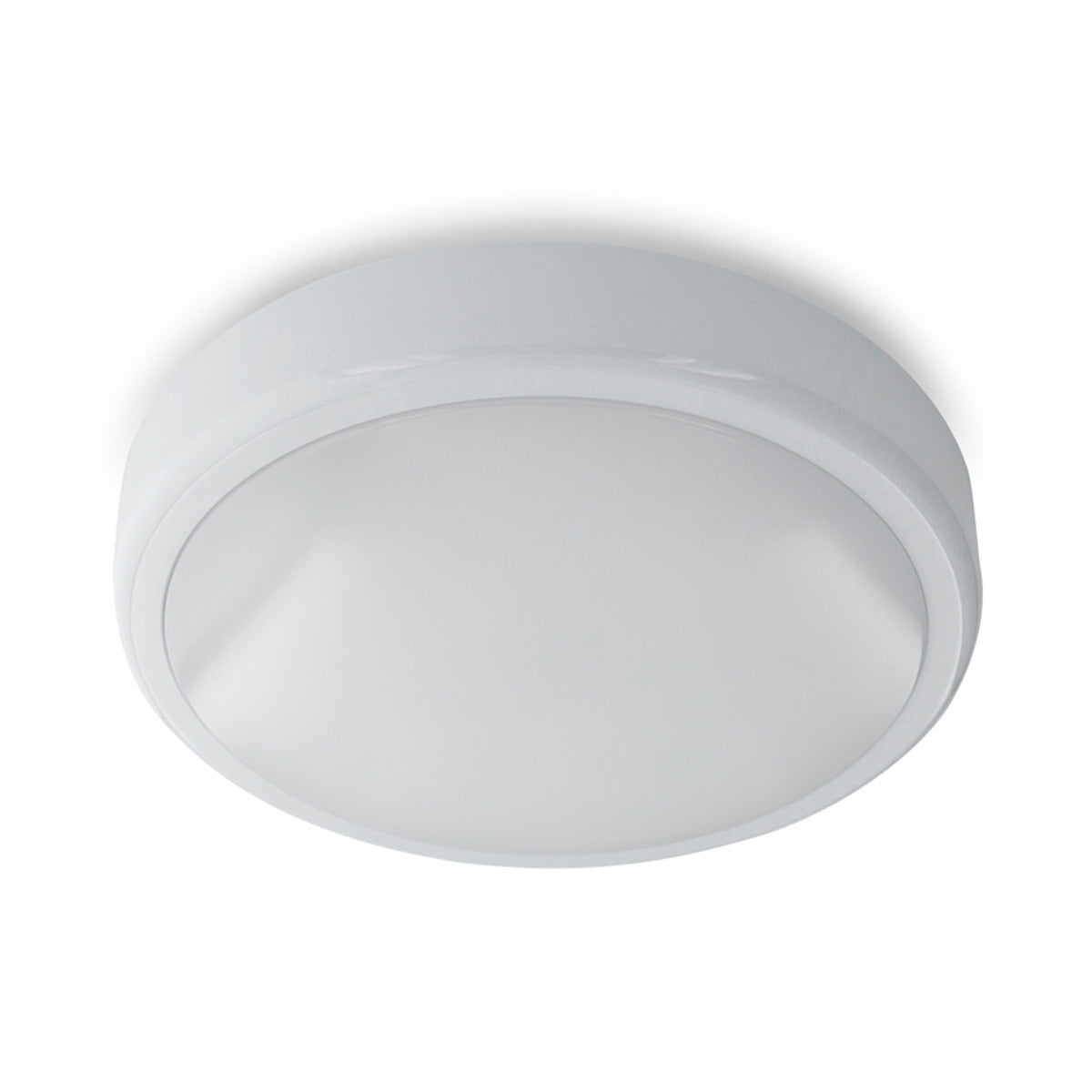

Outdoor Bunker LED Light with Corridor Sensor Function

Specifications

Colour temperature	3000K/4000K/5000K

Features

Polycarbonate construction
Insect resistant seal
14W LED
Brightness output: 1305lm (Warm White) / 1390lm (Cool White) / 1395lm (Daylight)
Colour changing technology: 3000K / 4000K / 5000K
Corridor function with PIR motion sensor

On-Off function - When insufficient ambient light, the sensor switches on the lamp when motion is detected.
3 step dimming function - When there is insufficient light the sensor switches on the lamp when motion is detected. After hold time, the sensor dims the lamp at a low light level if no new motion trigger. After stand-by period, the sensor switches off the lamp if no motion is detected in its detection zone.
Setting sensor - By selecting the combination on the DIP switch, sensor data can be precisely set for each specific application.

CRI > 80
120° beam angle
Non-dimmable
IP65 protection rating
3 Year Warranty

Features

Polycarbonate construction
Insect resistant seal
14W LED
Brightness output: 1305lm (Warm White) / 1390lm (Cool White) / 1395lm (Daylight)
Colour changing technology: 3000K / 4000K / 5000K
Corridor function with PIR motion sensor

On-Off function - When insufficient ambient light, the sensor switches on the lamp when motion is detected.
3 step dimming function - When there is insufficient light the sensor switches on the lamp when motion is detected. After hold time, the sensor dims the lamp at a low light level if no new motion trigger. After stand-by period, the sensor switches off the lamp if no motion is detected in its detection zone.
Setting sensor - By selecting the combination on the DIP switch, sensor data can be precisely set for each specific application.

CRI > 80
120° beam angle
Non-dimmable
IP65 protection rating
3 Year Warranty

Description

Specifications

Colour temperature	3000K/4000K/5000K

Downloads

Download the Spec Sheet

Outdoor Bunker LED Light with Corridor Sensor Function

Vendor: Atom Lighting

$109.00

$109.00 ~~$109.95~~

Tax included. Shipping calculated at checkout.

Colour: Black

Max Strip Wattage	Driver Wattage
25W	30W
50W	60W
83W	100W
125W	150W
166W	200W
250W	300W

Out of stock

SKU: AT5709/BLK/TRI/CF
