TECHNICAL DATA SHEET _20/03/2026

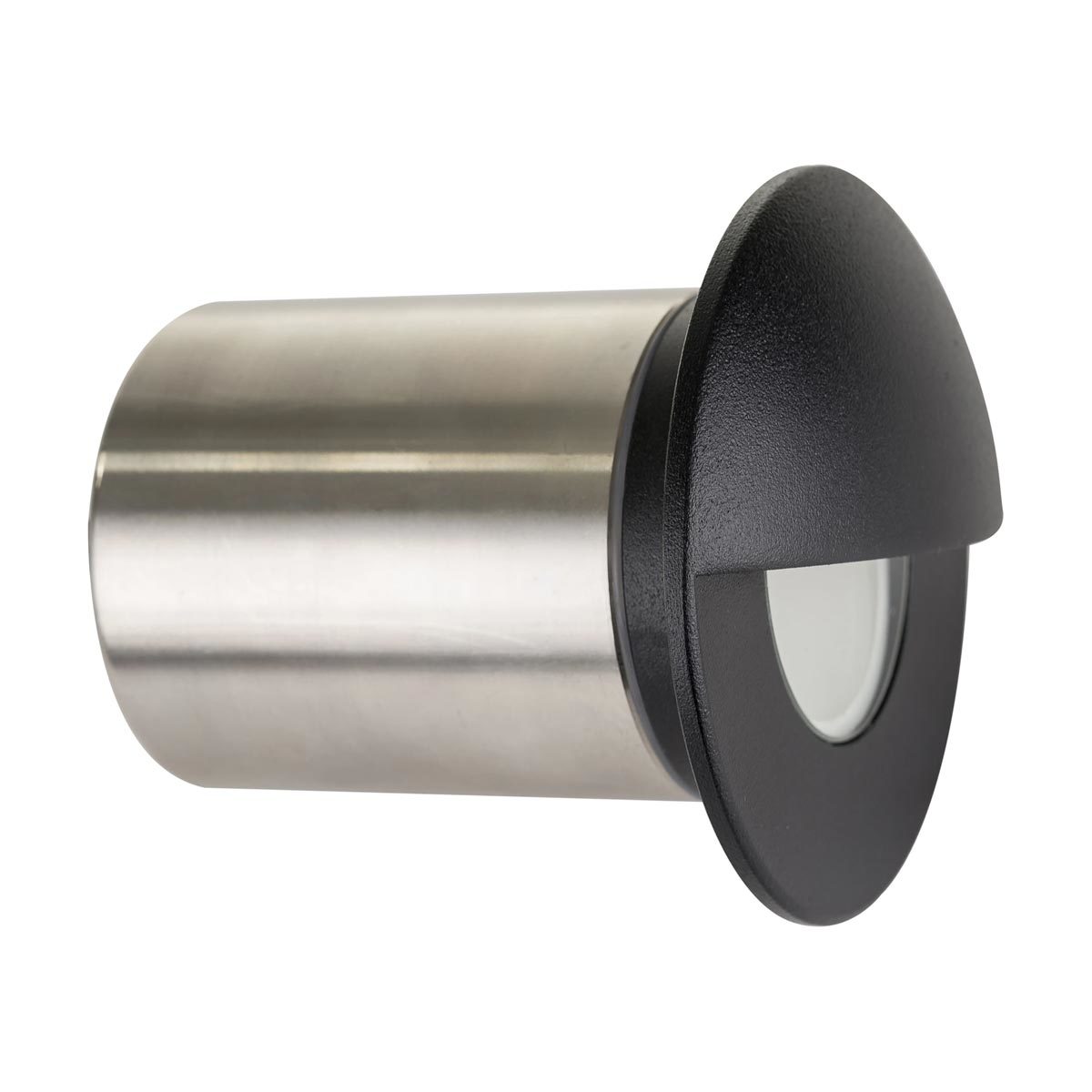

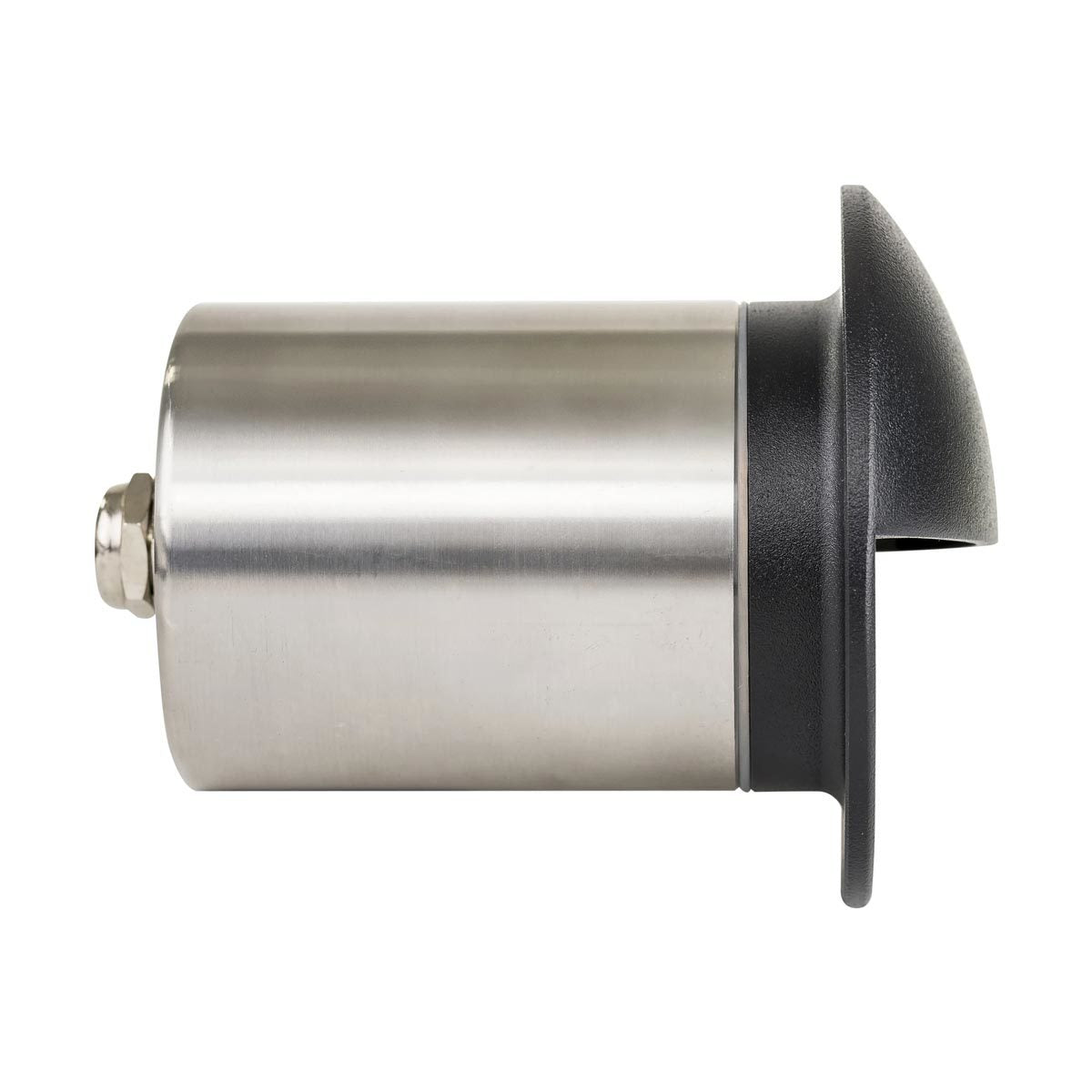

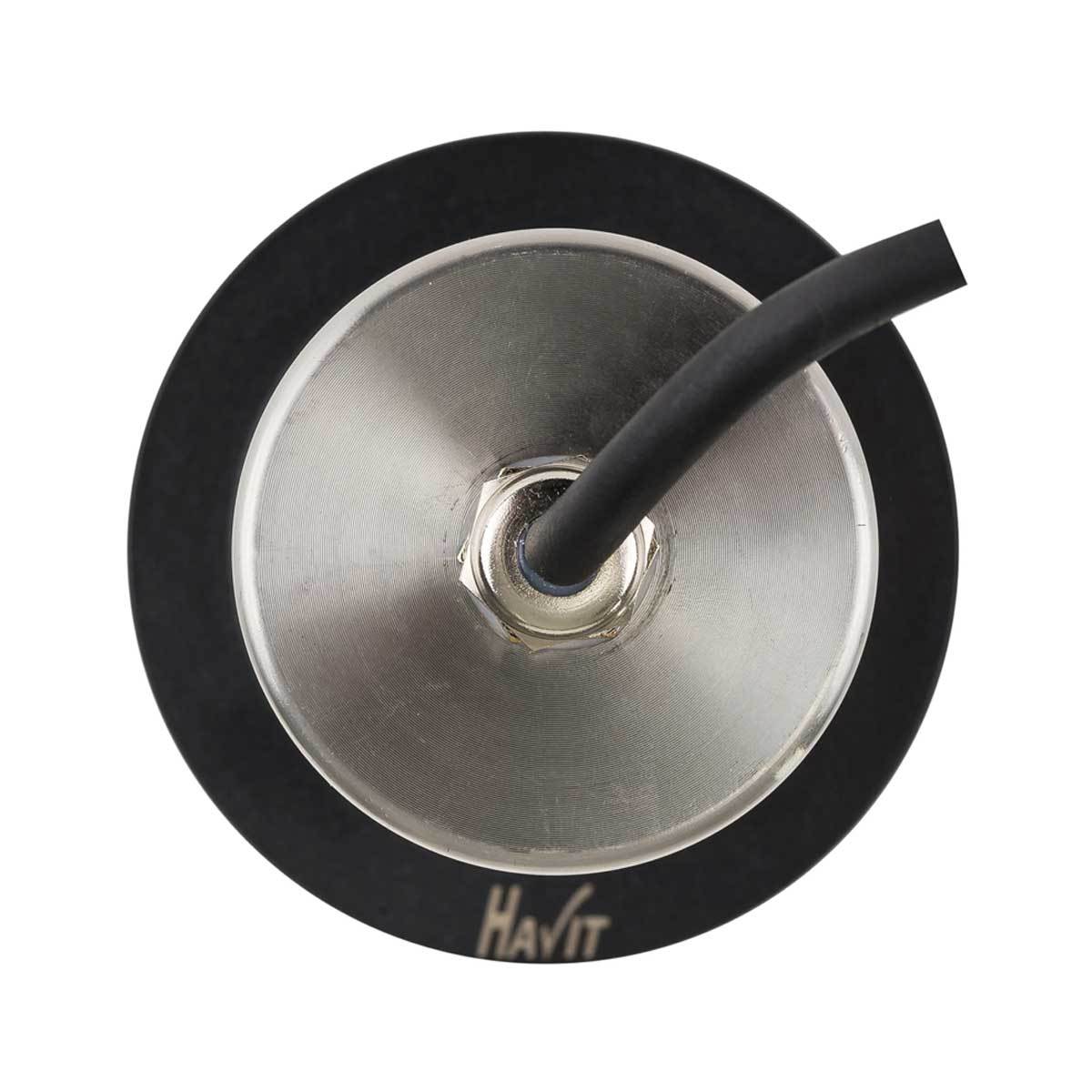

Ollo Outdoor LED Step Light with Eyelide - 5W

Specifications

Beam angle	120Â°
Colour	316 Stainless Steel
Colour temperature	3000K/4000K/5500K
Globe included	Yes
Insulation rating	Fixed
Ip rating	IP65
Lamp type	MR16
Lumen output	270lm / 285lm / 300lm
Number of lights	1

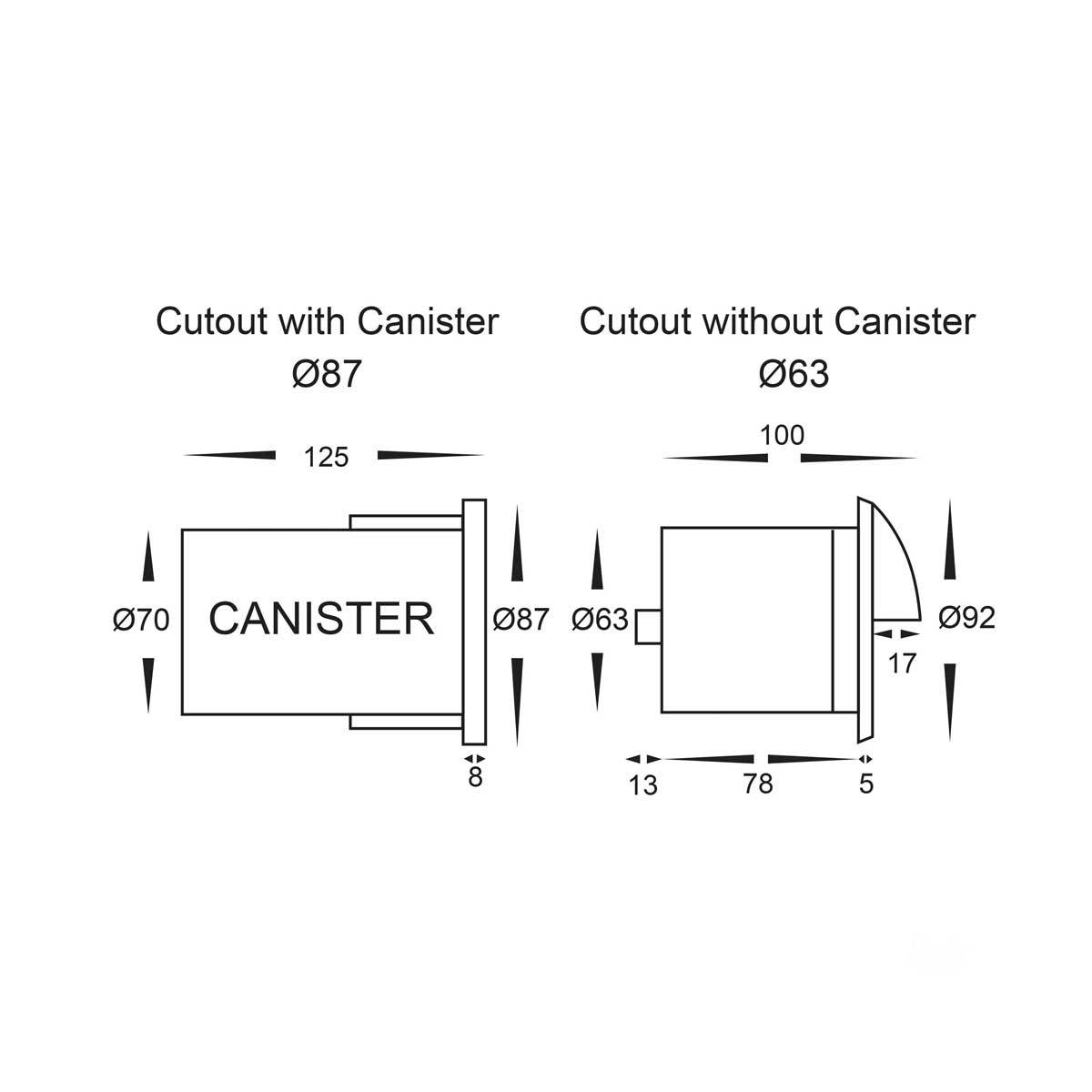

Overall height	125mm (with Canister) / 100mm (without Canister)
Overall width	87mm (with Canister) / 92mm (without Canister)
Voltage	12V DC
Warranty	3 Year Replacement Warranty
Wattage	5W

Specifications

Beam angle	120Â°
Colour	316 Stainless Steel
Colour temperature	3000K/4000K/5500K
Globe included	Yes
Insulation rating	Fixed
Ip rating	IP65
Lamp type	MR16
Lumen output	270lm / 285lm / 300lm
Number of lights	1
Overall height	125mm (with Canister) / 100mm (without Canister)
Overall width	87mm (with Canister) / 92mm (without Canister)
Voltage	12V DC
Warranty	3 Year Replacement Warranty
Wattage	5W

Features

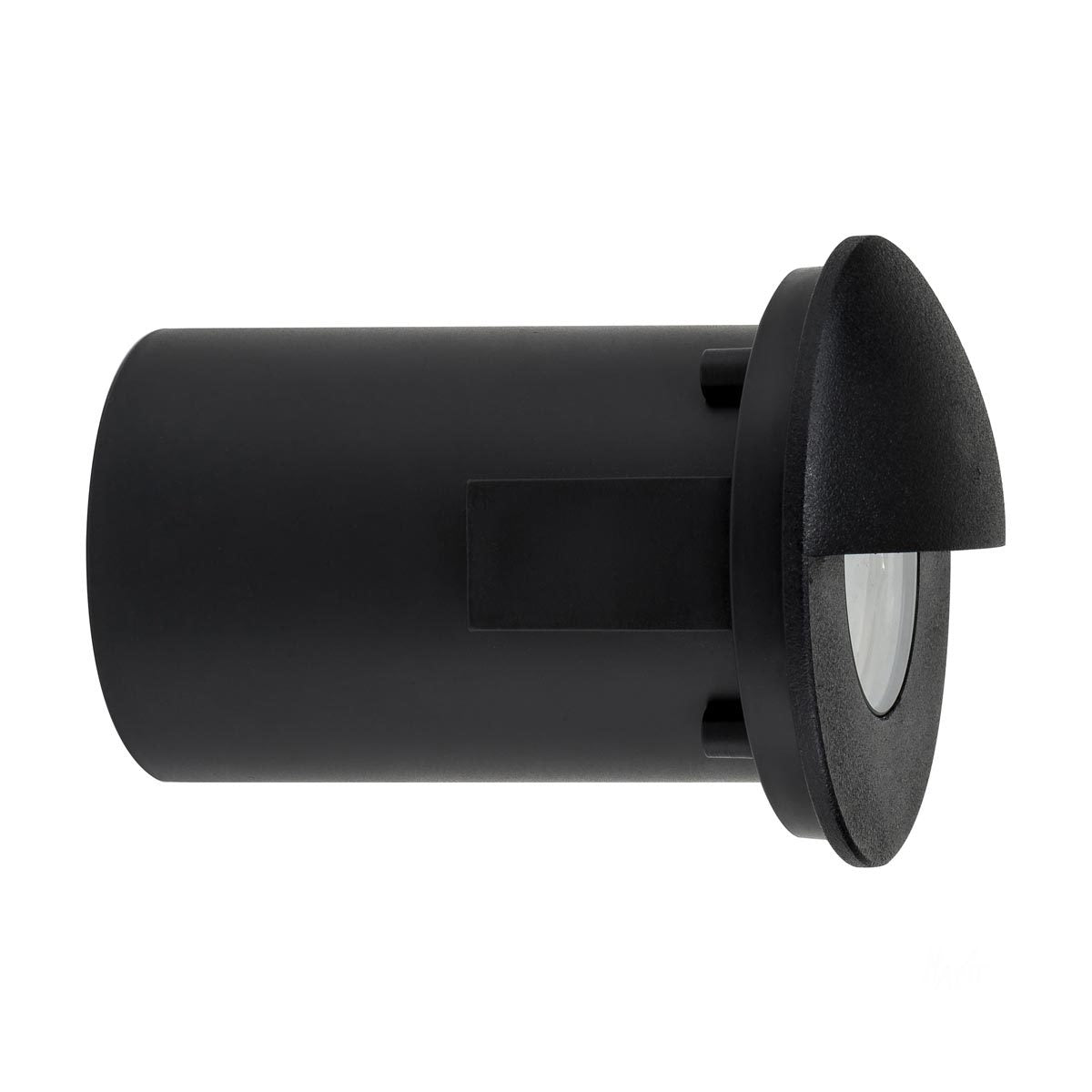

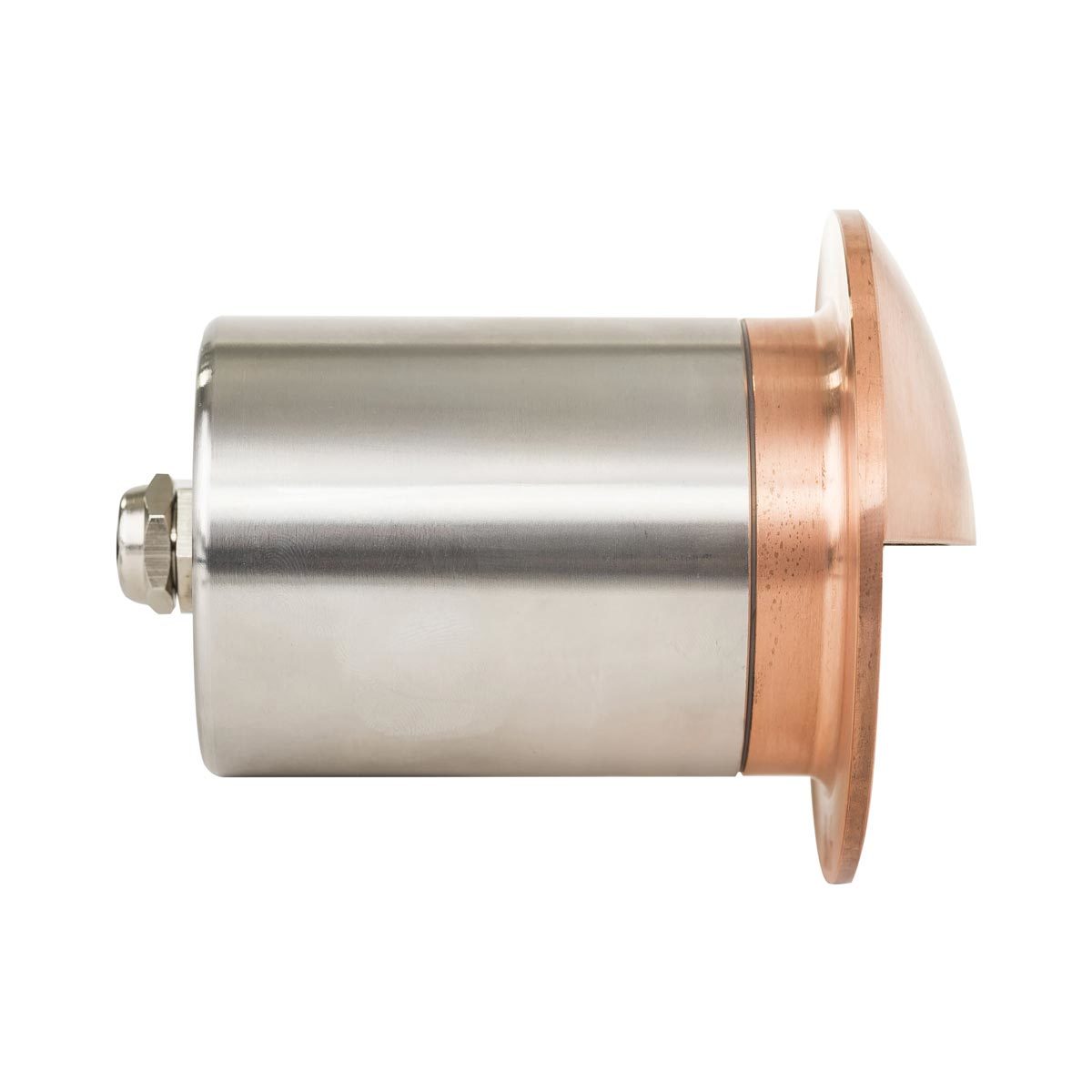

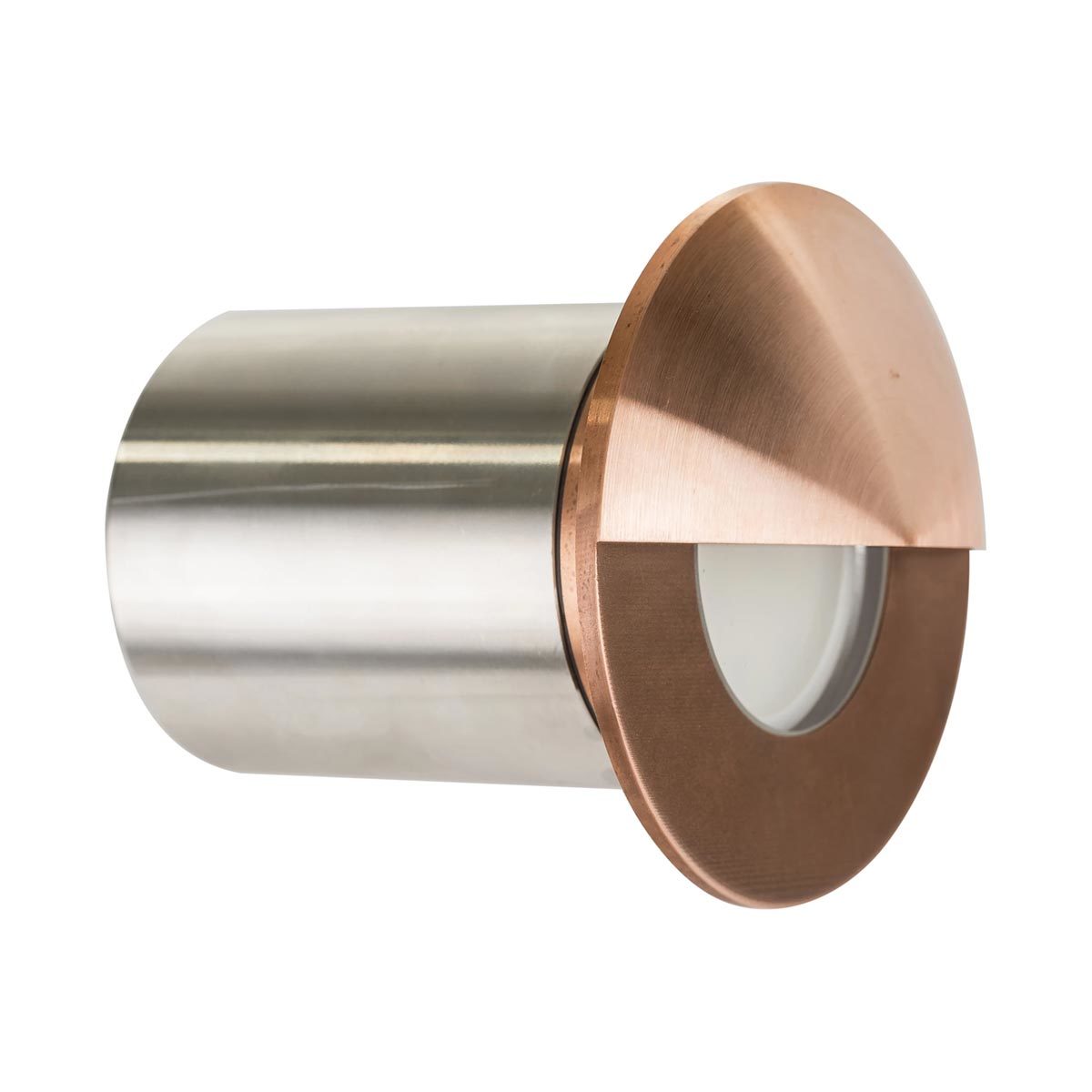

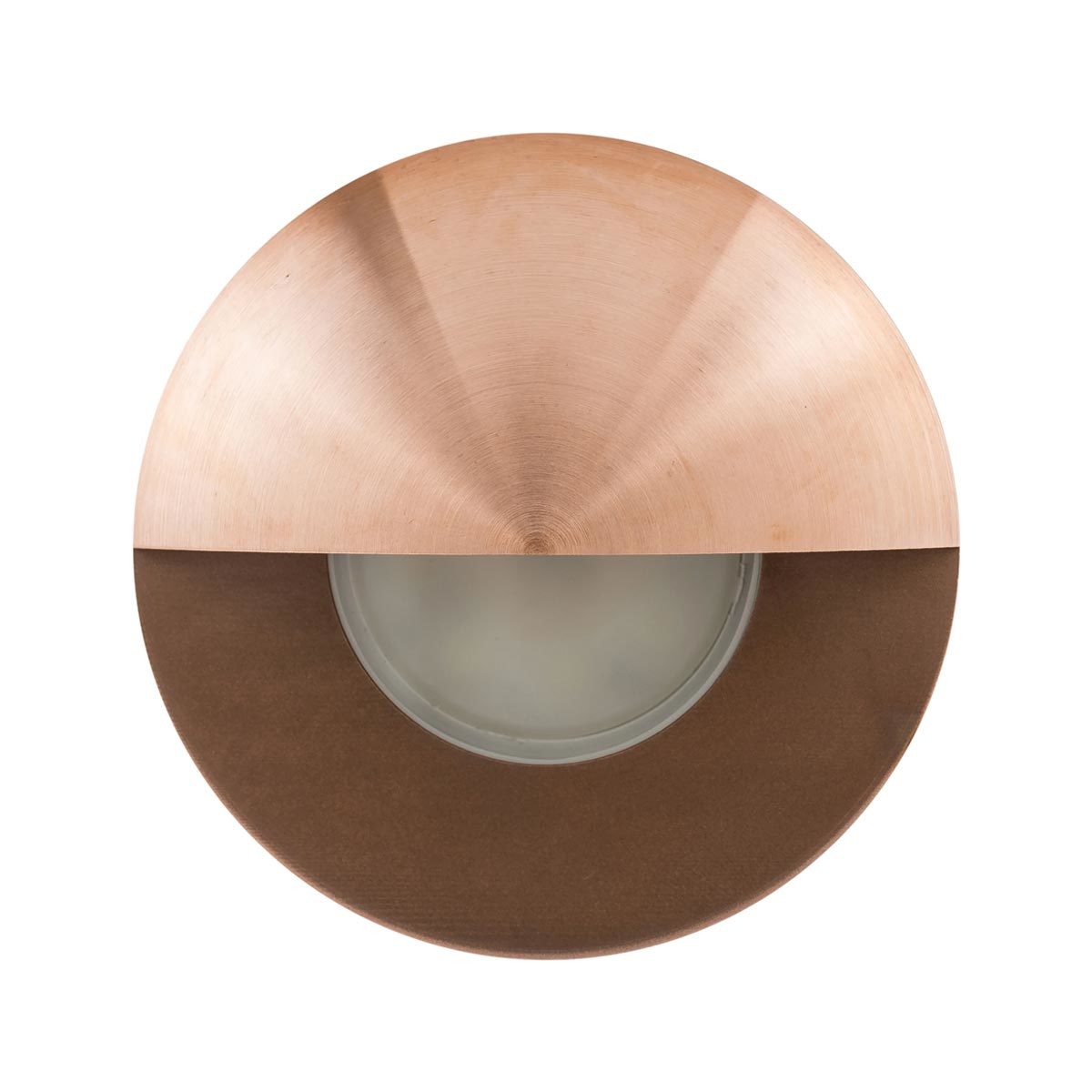

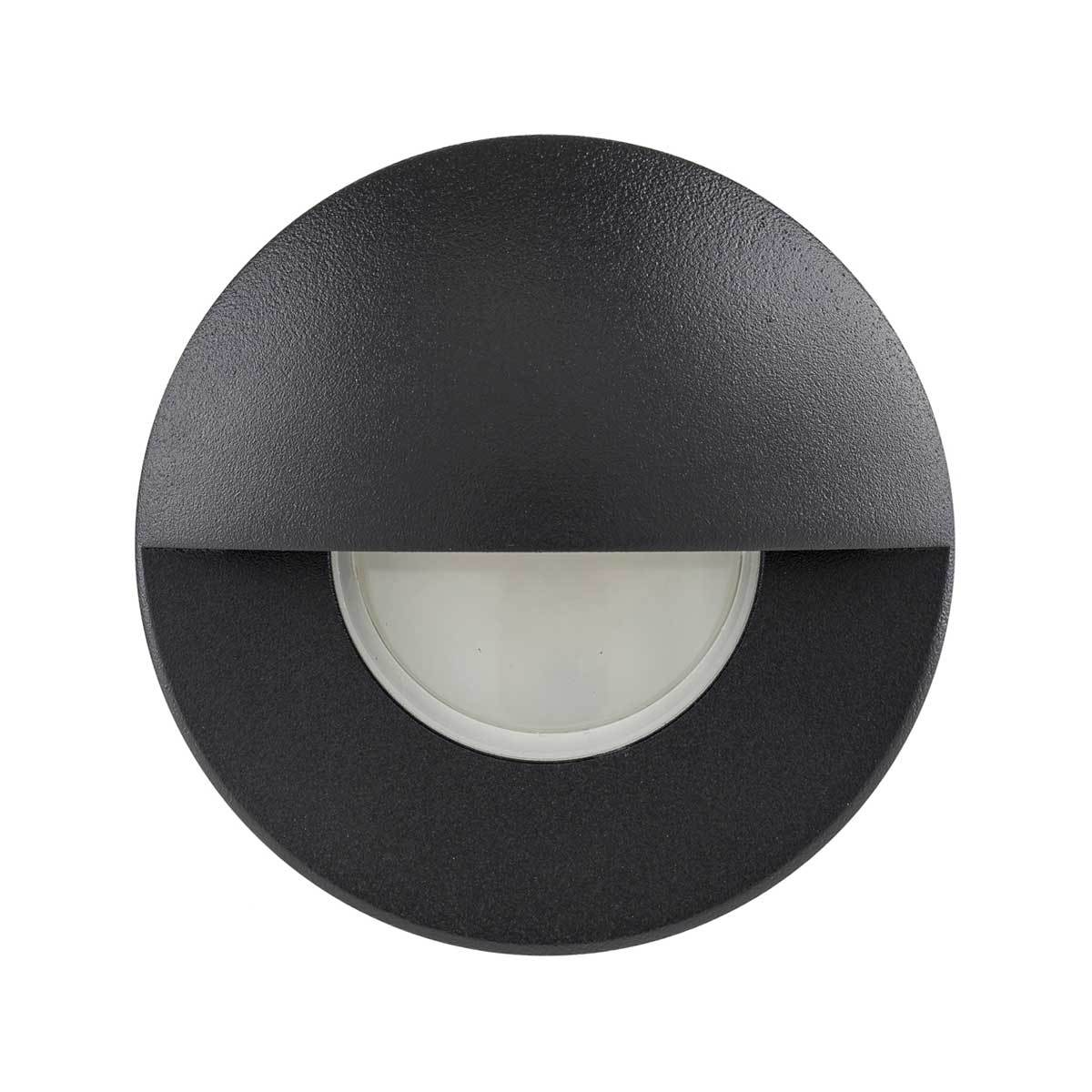

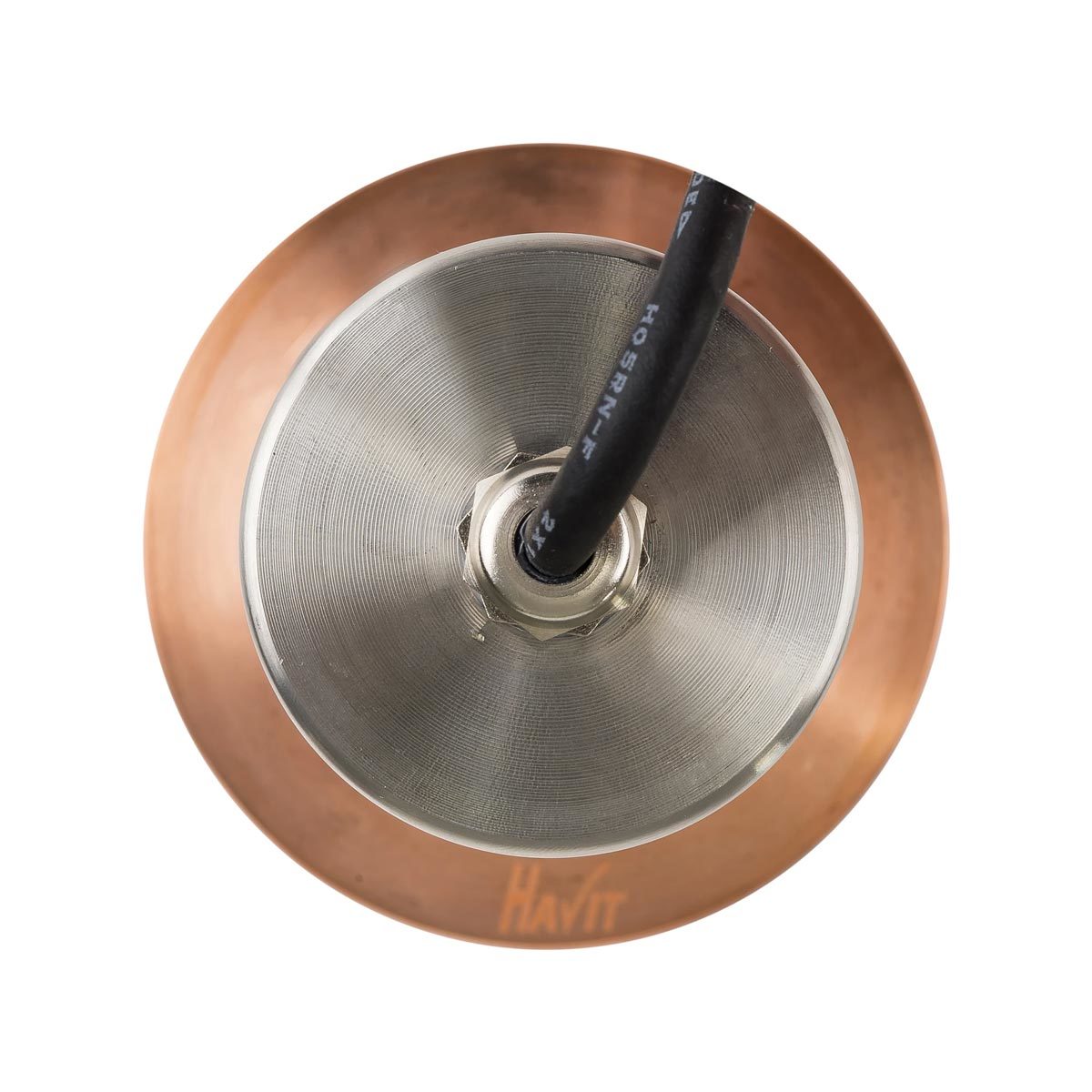

Recessed step light with eyelid

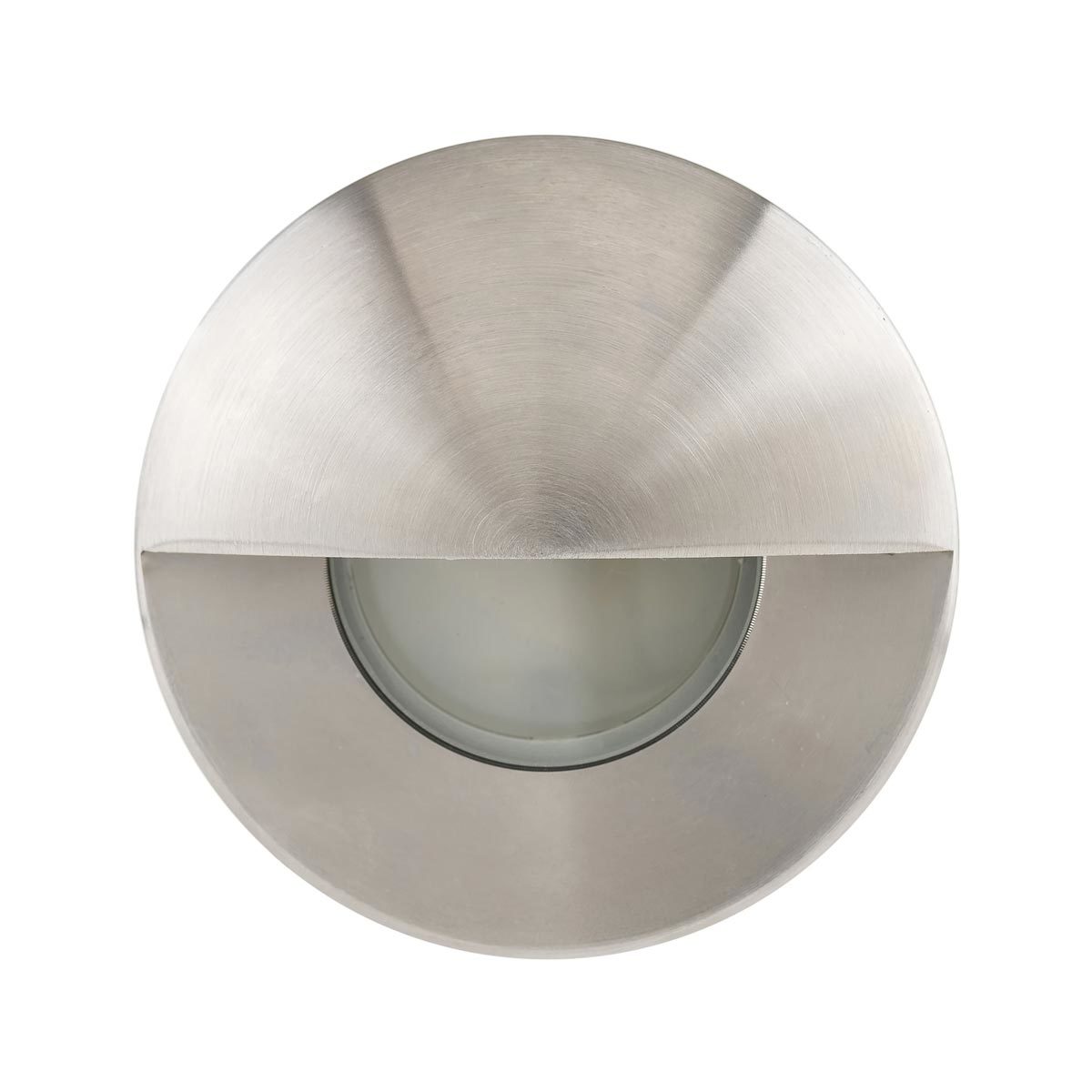

Full body 316 marine grade stainless steel
Tempered glass
1 x 5W MR16 LED globe (Replaceable)
Tri-colour technology: 3000K Warm White / 4000K Cool White / 5500K Daylight
Brightness output: 270lm / 285lm / 300lm
120° beam angle
Voltage input: 12V DC
NB: Must be used with suitable 12V DC LED driver (Sold separately)
IP65 protection rating
3 Year Replacement Warranty

Features

Recessed step light with eyelid
Full body 316 marine grade stainless steel
Tempered glass
1 x 5W MR16 LED globe (Replaceable)
Tri-colour technology: 3000K Warm White / 4000K Cool White / 5500K Daylight
Brightness output: 270lm / 285lm / 300lm
120° beam angle
Voltage input: 12V DC
NB: Must be used with suitable 12V DC LED driver (Sold separately)
IP65 protection rating
3 Year Replacement Warranty

Description

The Ollo Outdoor Step Light by Havit features a premium full body 316 stainless steel with tri-colour technology, allowing users to choose between 3000K Warm White, 4000K Cool White and 5500K Daylight.

Specifications

Beam angle	120Â°
Colour	316 Stainless Steel
Colour temperature	3000K/4000K/5500K
Globe included	Yes
Insulation rating	Fixed
Ip rating	IP65
Lamp type	MR16
Lumen output	270lm / 285lm / 300lm
Number of lights	1
Overall height	125mm (with Canister) / 100mm (without Canister)
Overall width	87mm (with Canister) / 92mm (without Canister)
Voltage	12V DC
Warranty	3 Year Replacement Warranty
Wattage	5W

Specifications

Beam angle	120Â°
Colour	316 Stainless Steel
Colour temperature	3000K/4000K/5500K
Globe included	Yes
Insulation rating	Fixed
Ip rating	IP65
Lamp type	MR16
Lumen output	270lm / 285lm / 300lm
Number of lights	1
Overall height	125mm (with Canister) / 100mm (without Canister)
Overall width	87mm (with Canister) / 92mm (without Canister)
Voltage	12V DC
Warranty	3 Year Replacement Warranty
Wattage	5W

Downloads

Download the Spec Sheet

Ollo Outdoor LED Step Light with Eyelide - 5W

Vendor: Havit Lighting

$206.87

$206.87 ~~$206.87~~

Tax included. Shipping calculated at checkout.

Colour: 316 Stainless Steel

Max Strip Wattage	Driver Wattage
25W	30W
50W	60W
83W	100W
125W	150W
166W	200W
250W	300W

✔ Available to Order

SKU: HV19012T-SS316

Want a better price? Ask for a JD Deal.

Call us (07) 3809 2011 or chat with us below

Need Help? Got a Question? Contact our Trade experts.

(07) 3088 6266 - trade@jdlighting.com.au

Specifications

Beam angle	120Â°
Colour	316 Stainless Steel
Colour temperature	3000K/4000K/5500K
Globe included	Yes
Insulation rating	Fixed
Ip rating	IP65
Lamp type	MR16
Lumen output	270lm / 285lm / 300lm
Number of lights	1
Overall height	125mm (with Canister) / 100mm (without Canister)
Overall width	87mm (with Canister) / 92mm (without Canister)
Voltage	12V DC
Warranty	3 Year Replacement Warranty
Wattage	5W

Specifications

Beam angle	120Â°
Colour	316 Stainless Steel
Colour temperature	3000K/4000K/5500K
Globe included	Yes
Insulation rating	Fixed
Ip rating	IP65
Lamp type	MR16
Lumen output	270lm / 285lm / 300lm
Number of lights	1
Overall height	125mm (with Canister) / 100mm (without Canister)
Overall width	87mm (with Canister) / 92mm (without Canister)
Voltage	12V DC
Warranty	3 Year Replacement Warranty
Wattage	5W

Features

Recessed step light with eyelid
Full body 316 marine grade stainless steel
Tempered glass
1 x 5W MR16 LED globe (Replaceable)
Tri-colour technology: 3000K Warm White / 4000K Cool White / 5500K Daylight
Brightness output: 270lm / 285lm / 300lm
120° beam angle
Voltage input: 12V DC
NB: Must be used with suitable 12V DC LED driver (Sold separately)
IP65 protection rating
3 Year Replacement Warranty

Features

Recessed step light with eyelid
Full body 316 marine grade stainless steel
Tempered glass
1 x 5W MR16 LED globe (Replaceable)
Tri-colour technology: 3000K Warm White / 4000K Cool White / 5500K Daylight
Brightness output: 270lm / 285lm / 300lm
120° beam angle
Voltage input: 12V DC
NB: Must be used with suitable 12V DC LED driver (Sold separately)
IP65 protection rating
3 Year Replacement Warranty

Description

Specifications

Beam angle	120Â°
Colour	316 Stainless Steel
Colour temperature	3000K/4000K/5500K
Globe included	Yes
Insulation rating	Fixed
Ip rating	IP65
Lamp type	MR16
Lumen output	270lm / 285lm / 300lm
Number of lights	1
Overall height	125mm (with Canister) / 100mm (without Canister)
Overall width	87mm (with Canister) / 92mm (without Canister)
Voltage	12V DC
Warranty	3 Year Replacement Warranty
Wattage	5W

Specifications

Beam angle	120Â°
Colour	316 Stainless Steel
Colour temperature	3000K/4000K/5500K
Globe included	Yes
Insulation rating	Fixed
Ip rating	IP65
Lamp type	MR16
Lumen output	270lm / 285lm / 300lm
Number of lights	1
Overall height	125mm (with Canister) / 100mm (without Canister)
Overall width	87mm (with Canister) / 92mm (without Canister)
Voltage	12V DC
Warranty	3 Year Replacement Warranty
Wattage	5W

Downloads

Download the Spec Sheet

Explore the Family

The Ollo Outdoor Step Light offers versatile tri-colour LED lighting with a durable 316 stainless steel design, ideal for enhancing outdoor steps with adjustable warmth and brightness.
