TECHNICAL DATA SHEET _14/03/2026

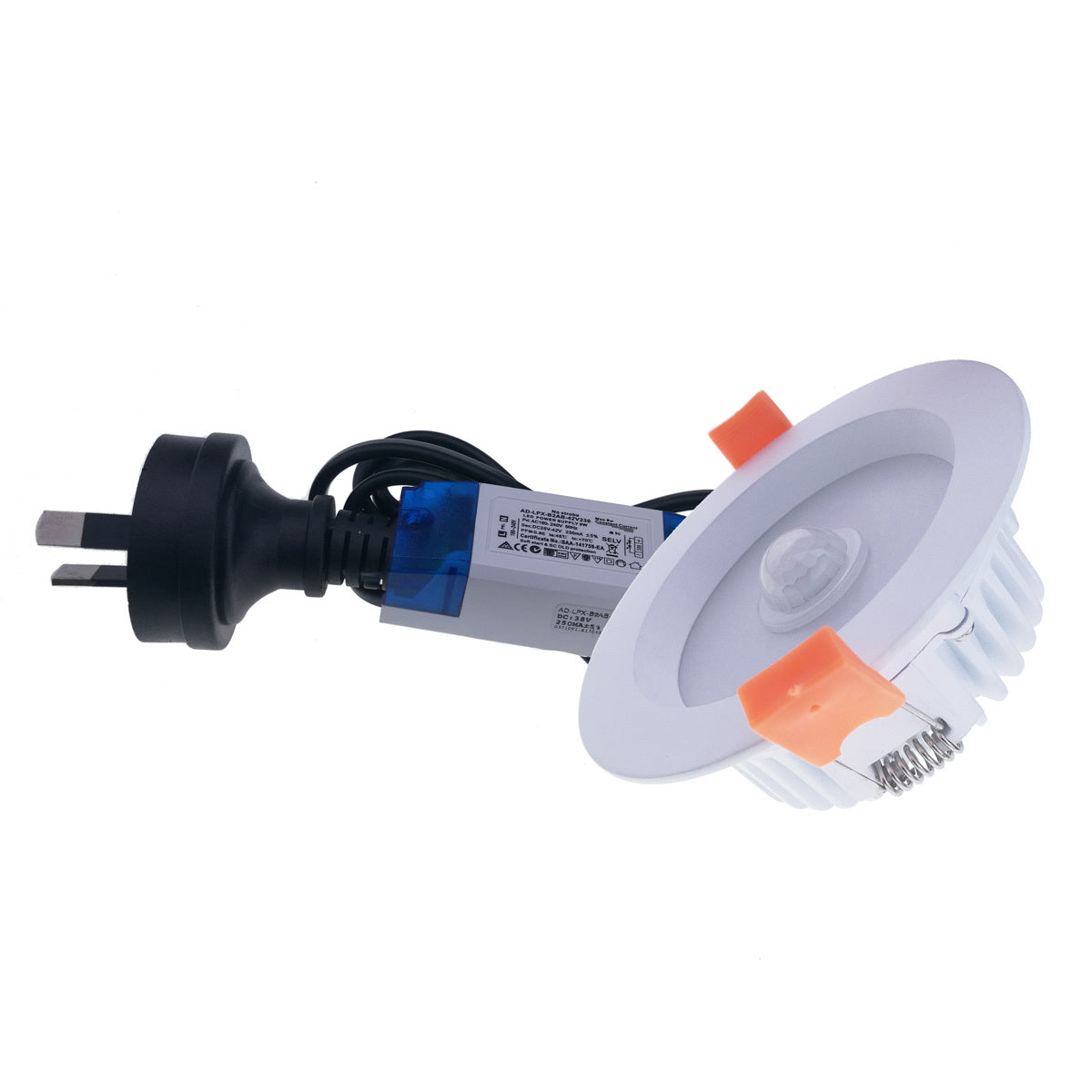

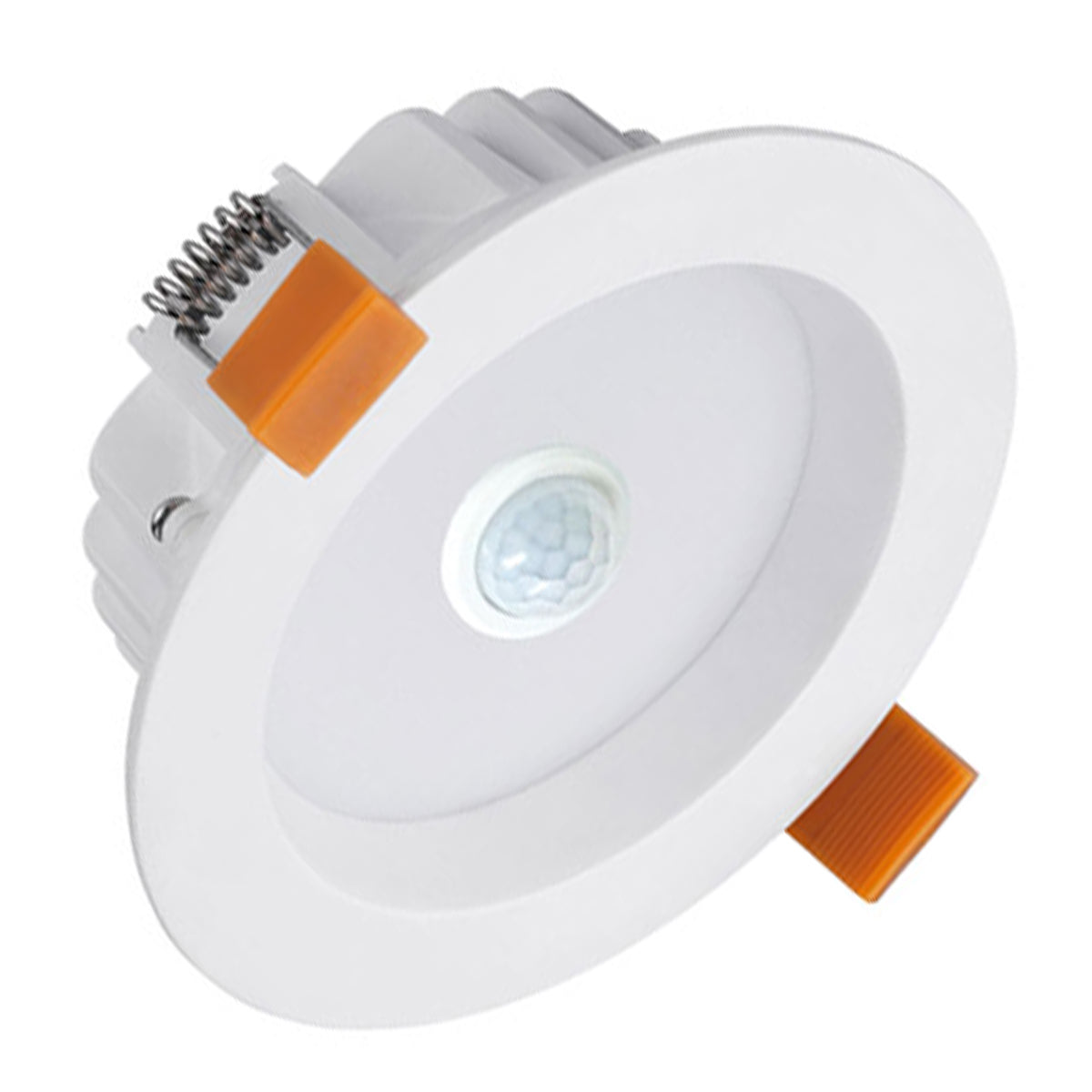

Motion 10W LED PIR Motion Sensor Downlight

Specifications

Frame colour	White

Features

10W SMD LEDÂ
PIR infrared motion sensor
Brightness output: 800lm (3000K) / 850lm (5000K)
Detection angle: 140Â°
Max detection radius of 5m
Time delay 90 seconds
Beam angle of 80Â°

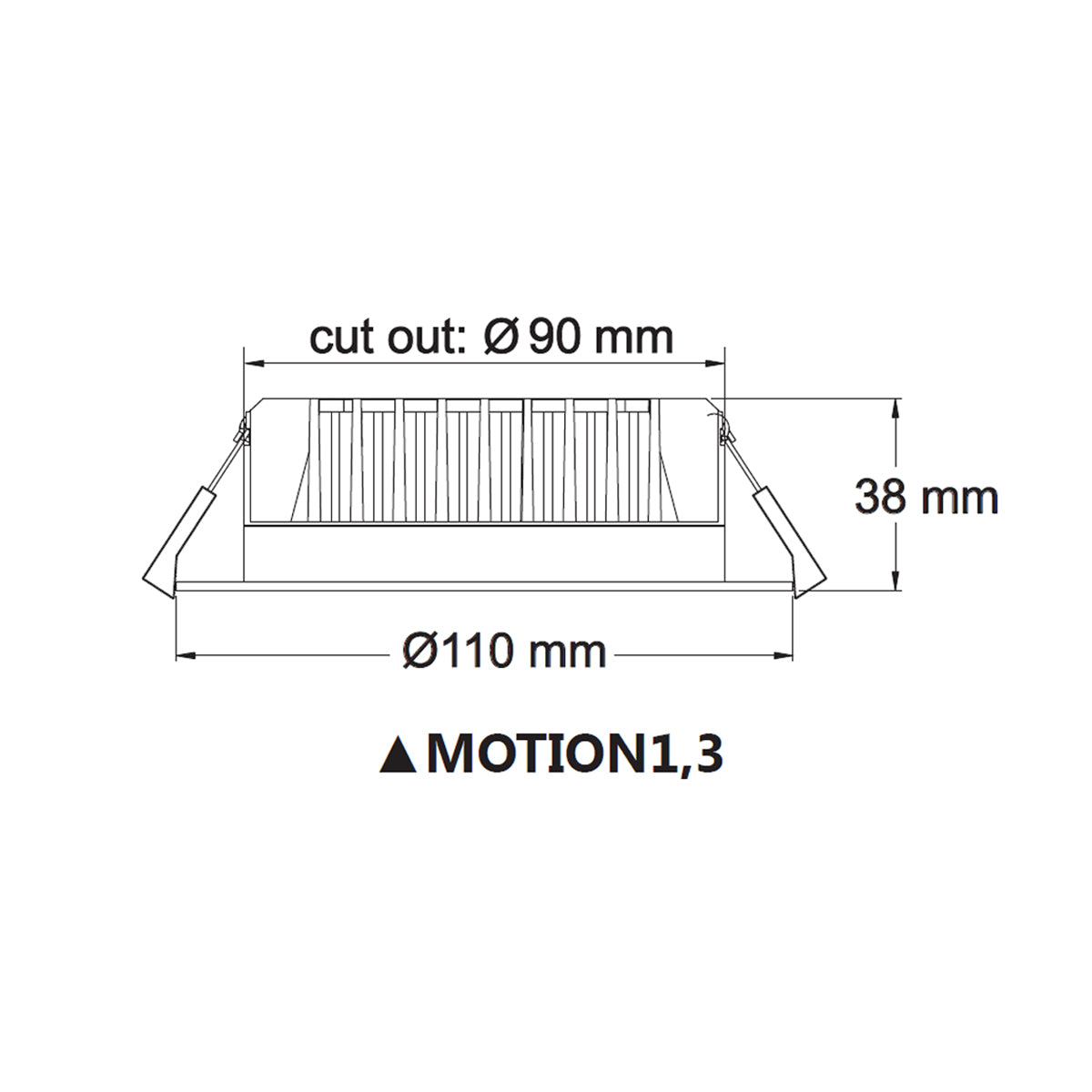

90mm cutout size
IC-F rated for installation abutted & directly covered with insulation
Average lifespan: 30,000 hours
Flex & plug included
Non-dimmable
Not suitable for 2-way switching
Sensor operates Day and Night (No manual override)
Great way hallway, laundry room, living room, & most indoor locations
3 Year Replacement Warranty

Features

10W SMD LEDÂ
PIR infrared motion sensor
Brightness output: 800lm (3000K) / 850lm (5000K)
Detection angle: 140Â°
Max detection radius of 5m
Time delay 90 seconds
Beam angle of 80Â°
90mm cutout size
IC-F rated for installation abutted & directly covered with insulation
Average lifespan: 30,000 hours
Flex & plug included
Non-dimmable
Not suitable for 2-way switching
Sensor operates Day and Night (No manual override)
Great way hallway, laundry room, living room, & most indoor locations
3 Year Replacement Warranty

Description

The CLA Motion Series of LED Downlights are high output LED downlights with a built-in PIR motion sensor. The downlight will be turned on the moment the PIR motion sensor detects any movement within its range of sight. It is perfect for hallways, under-staircase storage rooms, and any other area where lighting is turned on only when its needed, thereby greatly reducing electricity usage.

The Motion Series comes in either 10W or 15W model. This particular model is the 10W model.

Description

The Motion Series comes in either 10W or 15W model. This particular model is the 10W model.

Specifications

Frame colour	White

Downloads

Download the Spec Sheet

Motion 10W LED PIR Motion Sensor Downlight

Vendor: CLA Lighting

$61.88

$61.88 ~~$74.95~~

Tax included. Shipping calculated at checkout.

Colour: White

Colour Temperature: 3000K

3000K 5000K

Max Strip Wattage	Driver Wattage
25W	30W
50W	60W
83W	100W
125W	150W
166W	200W
250W	300W

✔ Available to Order

SKU: MOTION1

Want a better price? Ask for a JD Deal.

Call us (07) 3809 2011 or chat with us below

Need Help? Got a Question? Contact our Trade experts.

(07) 3088 6266 - trade@jdlighting.com.au

Specifications

Frame colour	White

Features

10W SMD LEDÂ
PIR infrared motion sensor
Brightness output: 800lm (3000K) / 850lm (5000K)
Detection angle: 140Â°
Max detection radius of 5m
Time delay 90 seconds
Beam angle of 80Â°
90mm cutout size
IC-F rated for installation abutted & directly covered with insulation
Average lifespan: 30,000 hours
Flex & plug included
Non-dimmable
Not suitable for 2-way switching
Sensor operates Day and Night (No manual override)
Great way hallway, laundry room, living room, & most indoor locations
3 Year Replacement Warranty

Features

10W SMD LEDÂ
PIR infrared motion sensor
Brightness output: 800lm (3000K) / 850lm (5000K)
Detection angle: 140Â°
Max detection radius of 5m
Time delay 90 seconds
Beam angle of 80Â°
90mm cutout size
IC-F rated for installation abutted & directly covered with insulation
Average lifespan: 30,000 hours
Flex & plug included
Non-dimmable
Not suitable for 2-way switching
Sensor operates Day and Night (No manual override)
Great way hallway, laundry room, living room, & most indoor locations
3 Year Replacement Warranty

Description

The Motion Series comes in either 10W or 15W model. This particular model is the 10W model.

Description

The Motion Series comes in either 10W or 15W model. This particular model is the 10W model.

Specifications

Frame colour	White

Downloads

Download the Spec Sheet

Explore the Family

The Motion 10W LED PIR Sensor Downlight provides efficient lighting activated by movement, ideal for areas requiring automatic illumination. Its integrated sensor helps reduce energy consumption by lighting only when needed.

Download the Spec Sheet
