TECHNICAL DATA SHEET _20/04/2026

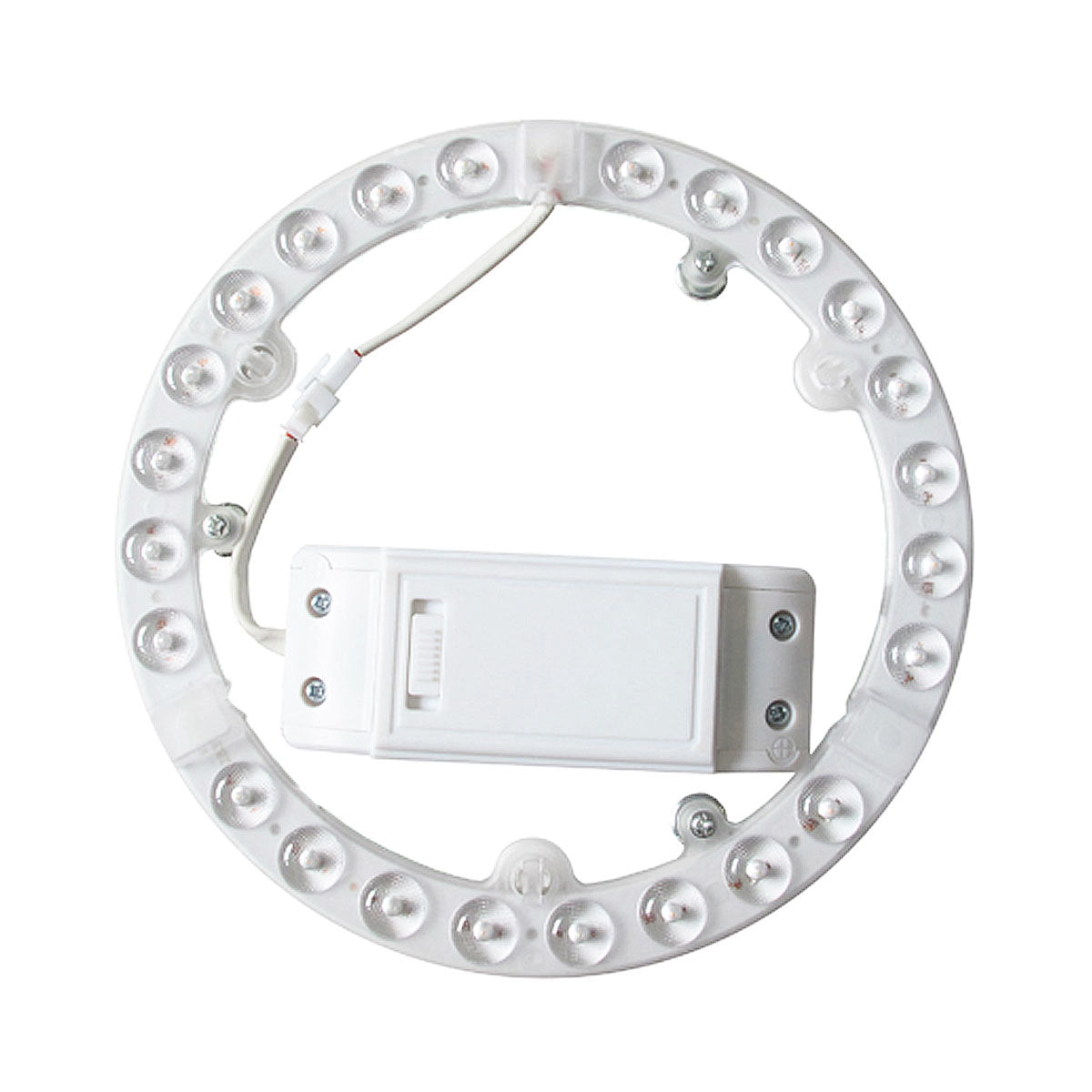

LED Conversion Kit for Fluorescent Oyster Fixtures with Tri-CCT Switch

Specifications

Base type	T5
Beam angle	120°
Colour temperature	3000K/4000K/5000K
Dimmable	No
Lamp type	LED
Lumen output	2150lm (3000K) / 2400lm (4000K) / 2250lm (5000K)

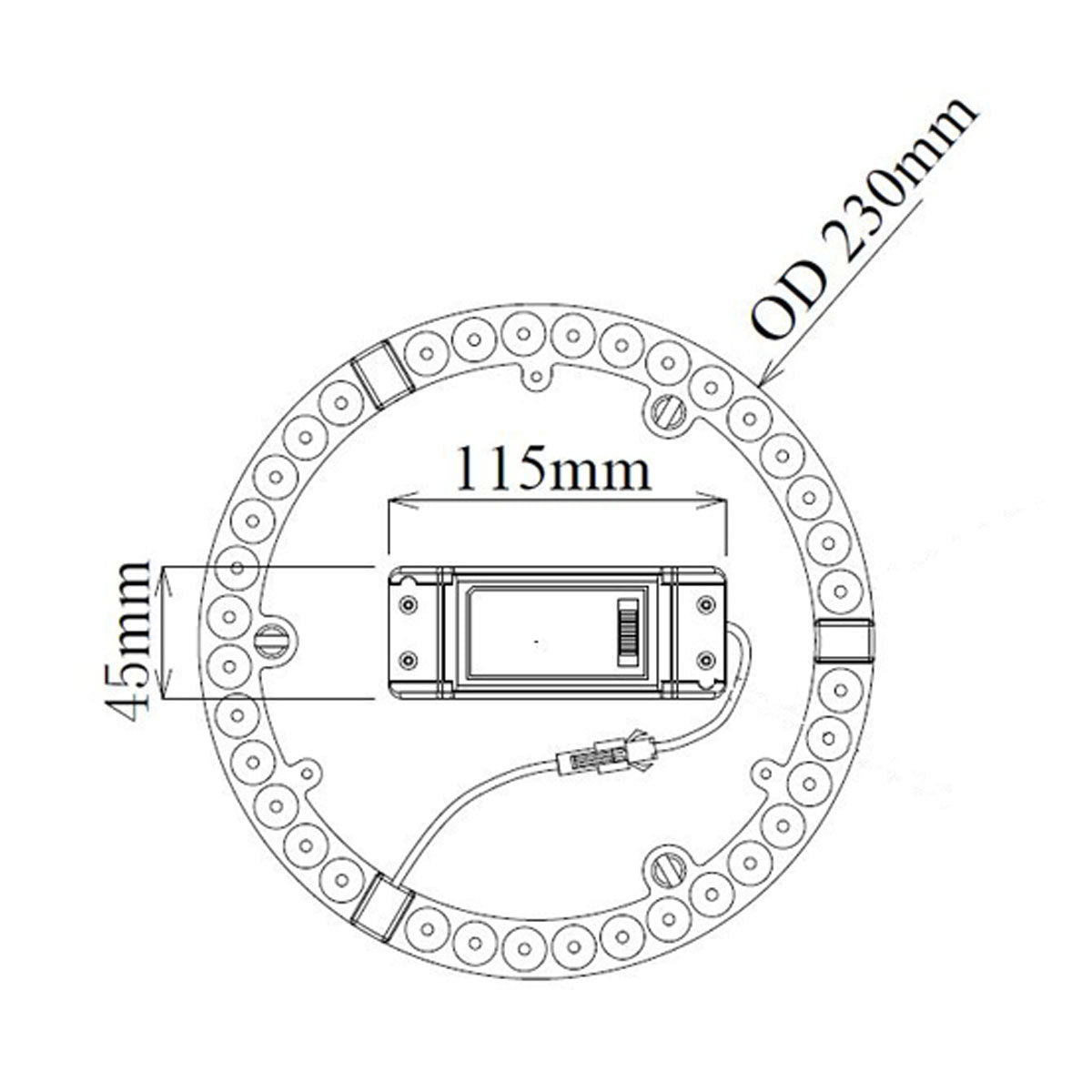

Overall width	230mm
Voltage	240V AC
Warranty	2 Year Replacement Warranty
Wattage	24W

Specifications

Base type	T5
Beam angle	120°
Colour temperature	3000K/4000K/5000K
Dimmable	No
Lamp type	LED
Lumen output	2150lm (3000K) / 2400lm (4000K) / 2250lm (5000K)
Overall width	230mm
Voltage	240V AC
Warranty	2 Year Replacement Warranty
Wattage	24W

Features

Offers tri-CCT switch for 3000K, 4000K, and 5000K light settings.
Includes constant current LED driver for steady, reliable performance.
Uses SMD2835 LED chips for efficient and clear illumination.
Features a clear PC diffuser to ensure uniform light distribution.
Aluminium and PCB heatsinks provide effective thermal management.
Supports a 2-wire input for easy and flexible installation.
Compatible with PIR and microwave sensors for automation.
Designed for two-way switching to increase control options.
Power factor greater than 0.8 promotes energy efficiency.
IP20 rating with double insulation ensures safe commercial use.

Features

Offers tri-CCT switch for 3000K, 4000K, and 5000K light settings.
Includes constant current LED driver for steady, reliable performance.
Uses SMD2835 LED chips for efficient and clear illumination.
Features a clear PC diffuser to ensure uniform light distribution.
Aluminium and PCB heatsinks provide effective thermal management.
Supports a 2-wire input for easy and flexible installation.
Compatible with PIR and microwave sensors for automation.
Designed for two-way switching to increase control options.
Power factor greater than 0.8 promotes energy efficiency.
IP20 rating with double insulation ensures safe commercial use.

Description

This LED conversion kit enhances fluorescent oyster fixtures with adjustable colour temperatures of 3000K, 4000K, and 5000K for tailored ambiance. Featuring a constant current LED driver and clear PC diffuser, it ensures efficient light output and clarity in commercial environments.

Equipped with aluminium and PCB heatsinks to manage heat effectively, this kit works with PIR and microwave sensors for automated operation. It supports two-way switching and provides safe double insulation with an IP20 rating. Suitable for use between -20 to 45°C, it comes with a 2-year replacement warranty for added confidence.

Description

Specifications

Base type	T5
Beam angle	120°
Colour temperature	3000K/4000K/5000K
Dimmable	No
Lamp type	LED
Lumen output	2150lm (3000K) / 2400lm (4000K) / 2250lm (5000K)
Overall width	230mm
Voltage	240V AC
Warranty	2 Year Replacement Warranty
Wattage	24W

Specifications

Base type	T5
Beam angle	120°
Colour temperature	3000K/4000K/5000K
Dimmable	No
Lamp type	LED
Lumen output	2150lm (3000K) / 2400lm (4000K) / 2250lm (5000K)
Overall width	230mm
Voltage	240V AC
Warranty	2 Year Replacement Warranty
Wattage	24W

Downloads

Download the Spec Sheet

LED Conversion Kit for Fluorescent Oyster Fixtures with Tri-CCT Switch

Vendor: CLA Lighting

$54.20

$54.20 ~~$74.53~~

Tax included. Shipping calculated at checkout.

Wattage: 24W

24W

✔ Available to Order

SKU: CKTRI03

Want a better price? Ask for a JD Deal.

Call us (07) 3809 2011 or chat with us below
