TECHNICAL DATA SHEET _11/07/2026

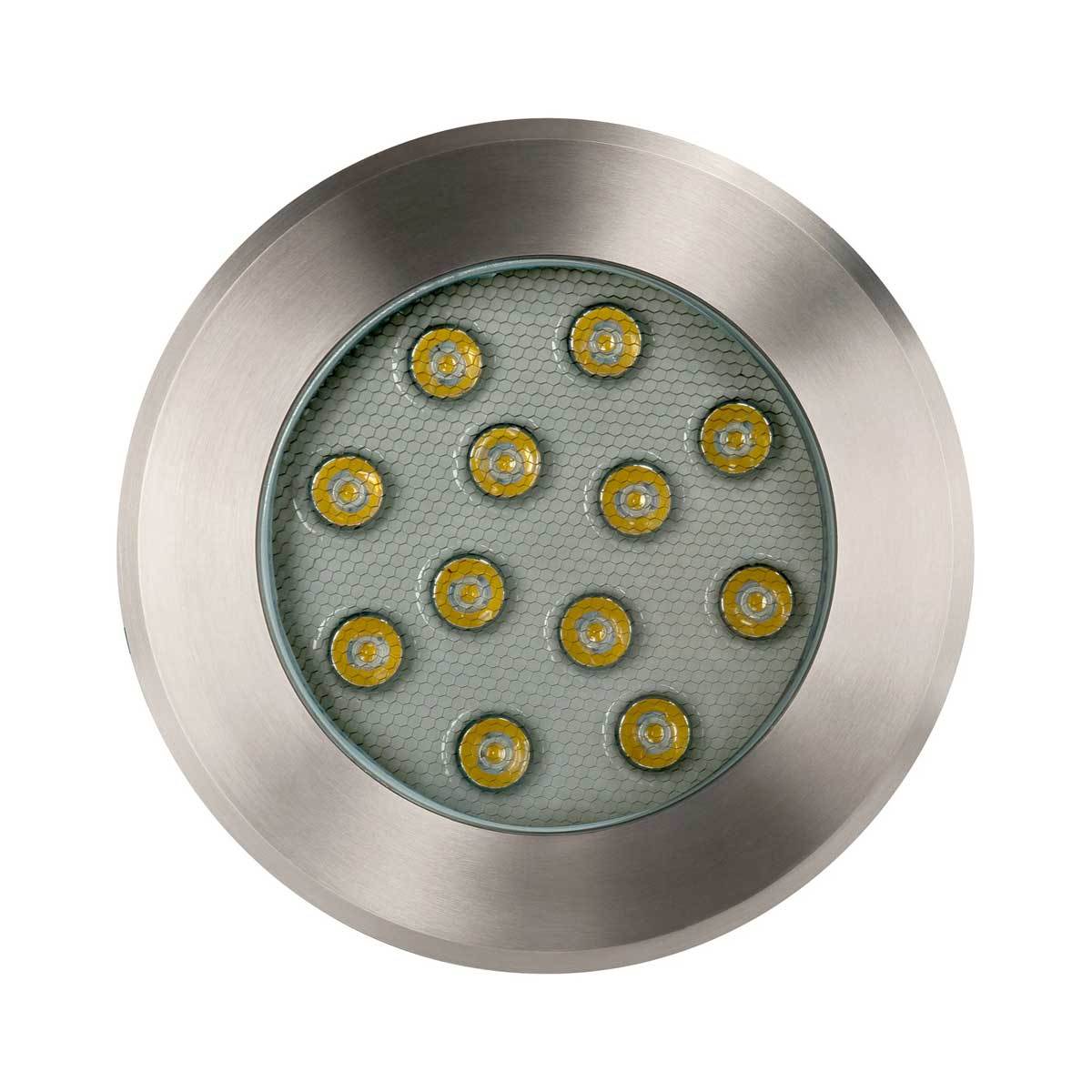

Split Inground LED Light - 316 Stainless Steel

Specifications

Beam angle	60Â°
Colour	Steel
Colour temperature	5500K
Cut out size	138mm (with Canister) / 135mm (without Canister)
Globe included	Integrated
Ip rating	IP67
Lamp type	LED
Lumen output	400lm (3000K) / 450lm (5500K)
Number of lights	1
Overall width	150mm
Tri colour	N
Voltage	12V DC
Warranty	2 Year Replacement Warranty
Wattage	5W

Specifications

Beam angle	60Â°
Colour	Steel
Colour temperature	5500K
Cut out size	138mm (with Canister) / 135mm (without Canister)
Globe included	Integrated
Ip rating	IP67
Lamp type	LED
Lumen output	400lm (3000K) / 450lm (5500K)
Number of lights	1
Overall width	150mm
Tri colour	N
Voltage	12V DC
Warranty	2 Year Replacement Warranty
Wattage	5W

Features

FullÂ 316 stainless steel frame
Anti-glare honeycomb louvre
Flush tempered glass
Trafficable up to 1000kg
3W LED
Brightness output:Â 250lm (3000K) / 300lm (5500K)
3000K Warm White or 5500K Cool White colour temperature
60Â° beam angle
Installation with or without canister
IP67 protection rating
IK10 impact rating
Input voltage: 12V DC
PS: Must be used with a suitable 12V DC LED driver
3 Year Replacement Warranty

Features

FullÂ 316 stainless steel frame
Anti-glare honeycomb louvre
Flush tempered glass
Trafficable up to 1000kg
3W LED
Brightness output:Â 250lm (3000K) / 300lm (5500K)
3000K Warm White or 5500K Cool White colour temperature
60Â° beam angle
Installation with or without canister
IP67 protection rating
IK10 impact rating
Input voltage: 12V DC
PS: Must be used with a suitable 12V DC LED driver
3 Year Replacement Warranty

Description

The Havit Split Inground Uplighter is made from premium 316 stainless steel frame that is extremely resistant to corrossion and is trafficable up to 1000kg. The included 5W LED generates up to 250 lumen in a 60Â° beam angle.

Perfect for lighting up trees, pathways, pontoons and feature walls.

Specifications

Beam angle	60Â°
Colour	Steel
Colour temperature	5500K
Cut out size	138mm (with Canister) / 135mm (without Canister)
Globe included	Integrated
Ip rating	IP67
Lamp type	LED
Lumen output	400lm (3000K) / 450lm (5500K)
Number of lights	1
Overall width	150mm
Tri colour	N
Voltage	12V DC
Warranty	2 Year Replacement Warranty
Wattage	5W

Specifications

Beam angle	60Â°
Colour	Steel
Colour temperature	5500K
Cut out size	138mm (with Canister) / 135mm (without Canister)
Globe included	Integrated
Ip rating	IP67
Lamp type	LED
Lumen output	400lm (3000K) / 450lm (5500K)
Number of lights	1
Overall width	150mm
Tri colour	N
Voltage	12V DC
Warranty	2 Year Replacement Warranty
Wattage	5W

Downloads

Download Datasheet

Split Inground LED Light - 316 Stainless Steel

Vendor: Havit Lighting

$184.95

$184.95 ~~$184.95~~

Wattage: 5W

5W 12W 3W

Colour: Steel

Colour Temperature: 5500K

5500K

✔ Available to Order: In-Stock at Supplier

SKU: HV1842C
