TECHNICAL DATA SHEET _19/04/2026

Marvel Bathroom Exhaust Fan 3 in 1 Heater

Specifications

Back draft stopper	true
Colour	Black
Colour temperature	3000K/4200K/6000K

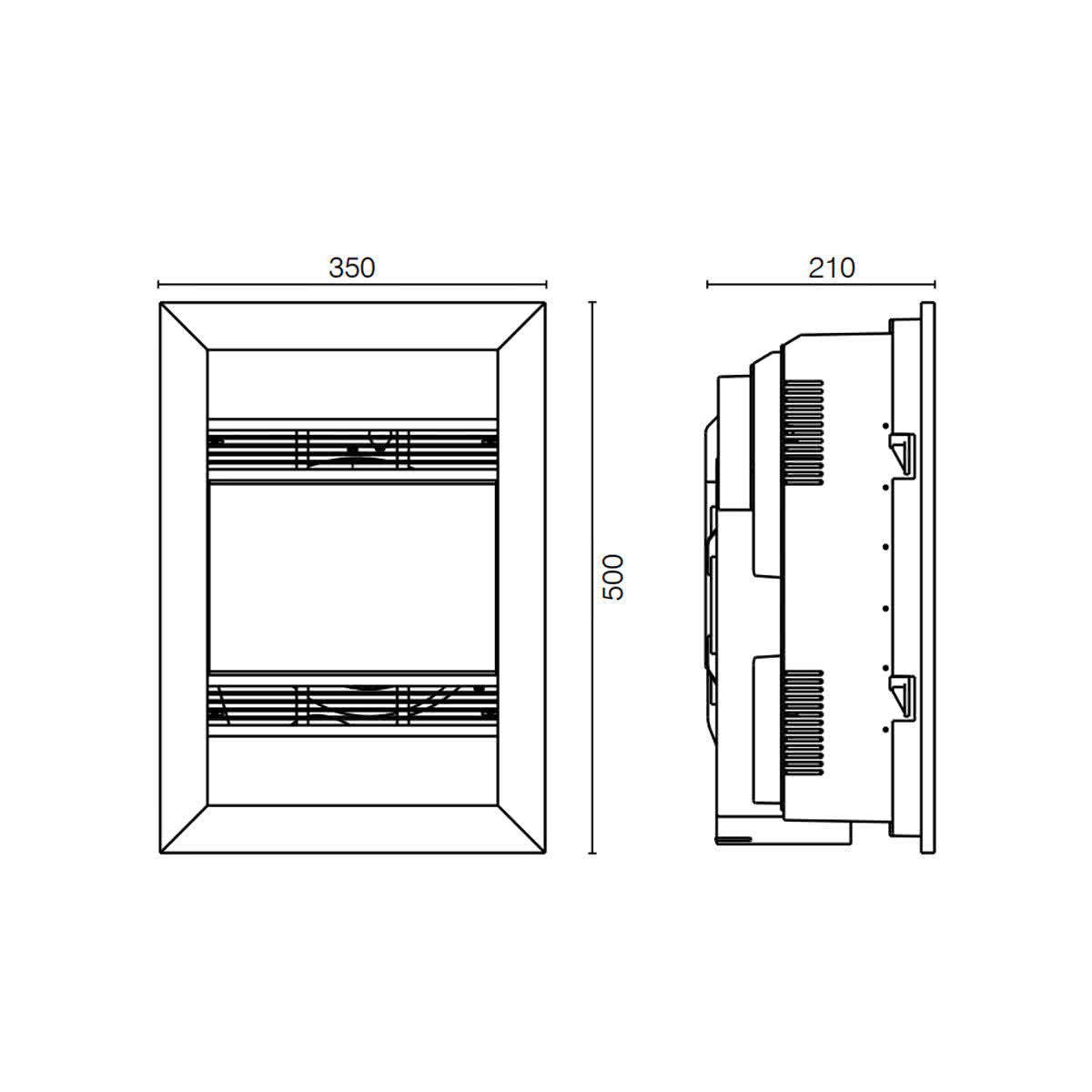

Cut out size	475mm x 325mm
Ducting included	Yes
Ducting size	150mm
Exhaust type	Ball bearing
Lumen output	Up to 1200lm
Wall control	true
Warranty	3 Year Replacement Warranty

Specifications

Back draft stopper	true
Colour	Black
Colour temperature	3000K/4200K/6000K
Cut out size	475mm x 325mm
Ducting included	Yes
Ducting size	150mm
Exhaust type	Ball bearing
Lumen output	Up to 1200lm
Wall control	true
Warranty	3 Year Replacement Warranty

Features

Maximum airflow: 500 m³/hr
Modern slimline design
High performance exhaust fan
Cut Out size: 475mm x 325mm
2 x 8W LED panels
Tri-colour technology: 3000K Warm White / 4200K Cool White / 6000K Daylight
Brightness output: 1000lm (3000K) / 1100lm (4200K) / 1200lm (6000K)
1 x 1100W infrared heat lamp for instant heating
Powerful 55W long life ball bearing motor

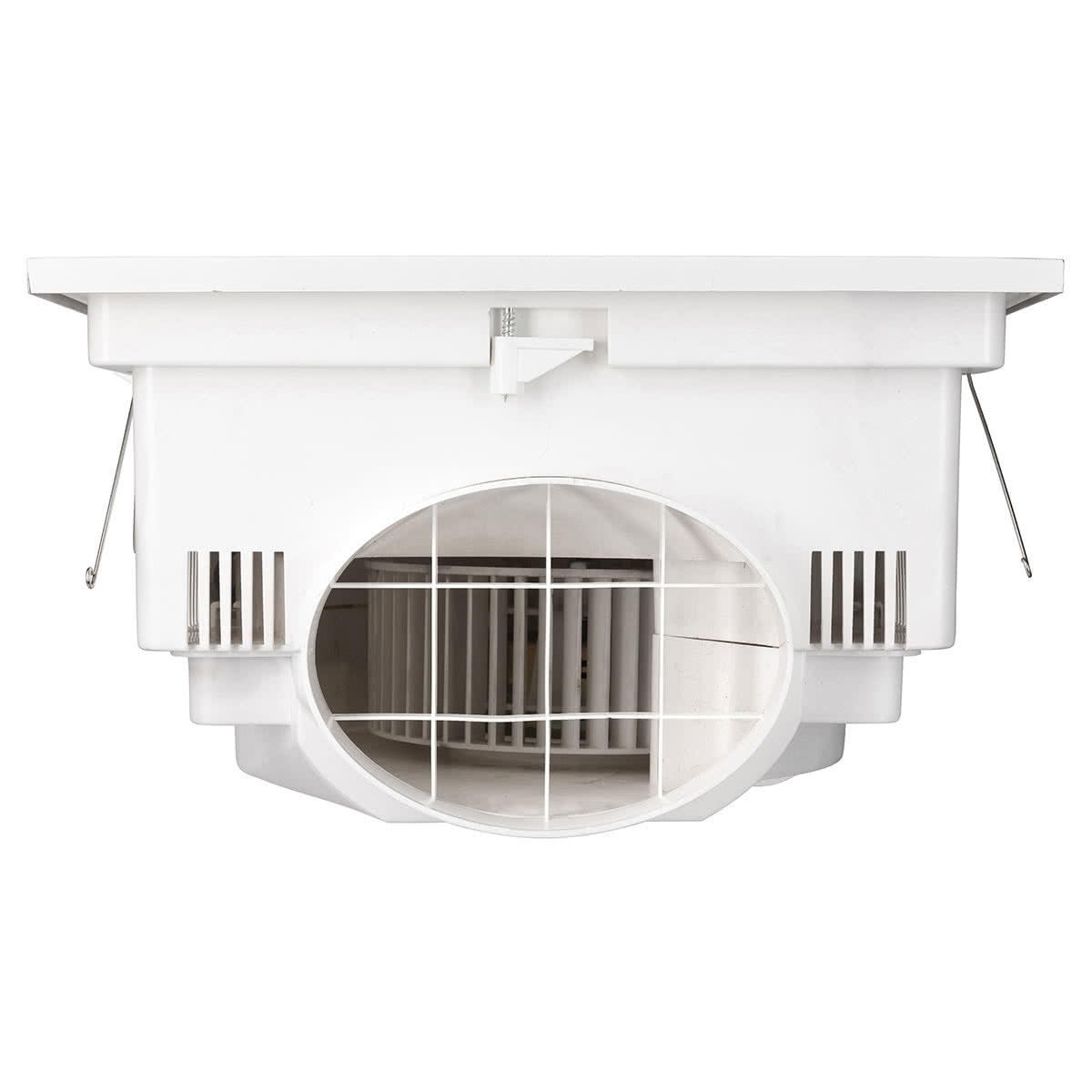

Side duct (150mm duct compatible)
Thermal cutout and overheating protection
Includes wall switch, 1.5m flexible ducting and exterior grille
Must be installed by a licensed electrician
3 Year Replacement Warranty

Features

Maximum airflow: 500 m³/hr
Modern slimline design
High performance exhaust fan
Cut Out size: 475mm x 325mm
2 x 8W LED panels
Tri-colour technology: 3000K Warm White / 4200K Cool White / 6000K Daylight
Brightness output: 1000lm (3000K) / 1100lm (4200K) / 1200lm (6000K)
1 x 1100W infrared heat lamp for instant heating
Powerful 55W long life ball bearing motor
Side duct (150mm duct compatible)
Thermal cutout and overheating protection
Includes wall switch, 1.5m flexible ducting and exterior grille
Must be installed by a licensed electrician
3 Year Replacement Warranty

Description

Experience top-tier ventilation with the Marvel Exhaust Fan, designed to efficiently circulate air while complementing your homeâ€™s modern aesthetics. Featuring advanced tri-colour LED technology, this fan allows you to adjust the brightness to suit your preferences, ensuring comfort and convenience in any setting. With an impressive airflow of 500 mÂ³/hr and an instant heating option, it provides both efficient ventilation and warmth.

Description

Specifications

Back draft stopper	true
Colour	Black
Colour temperature	3000K/4200K/6000K
Cut out size	475mm x 325mm
Ducting included	Yes
Ducting size	150mm
Exhaust type	Ball bearing
Lumen output	Up to 1200lm
Wall control	true
Warranty	3 Year Replacement Warranty

Specifications

Back draft stopper	true
Colour	Black
Colour temperature	3000K/4200K/6000K
Cut out size	475mm x 325mm
Ducting included	Yes
Ducting size	150mm
Exhaust type	Ball bearing
Lumen output	Up to 1200lm
Wall control	true
Warranty	3 Year Replacement Warranty

Downloads

Download the Spec Sheet

Marvel Bathroom Exhaust Fan 3 in 1 Heater

Vendor: Brilliant Lighting

$376.00

$376.00 ~~$429.00~~

Tax included. Shipping calculated at checkout.

Colour: Black

✔ Available to Order

SKU: 21478/06

Want a better price? Ask for a JD Deal.

Call us (07) 3809 2011 or chat with us below

Need Help? Got a Question? Contact our Trade experts.

(07) 3088 6266 - trade@jdlighting.com.au

Specifications

Back draft stopper	true
Colour	Black
Colour temperature	3000K/4200K/6000K
Cut out size	475mm x 325mm
Ducting included	Yes
Ducting size	150mm
Exhaust type	Ball bearing
Lumen output	Up to 1200lm
Wall control	true
Warranty	3 Year Replacement Warranty

Specifications

Back draft stopper	true
Colour	Black
Colour temperature	3000K/4200K/6000K
Cut out size	475mm x 325mm
Ducting included	Yes
Ducting size	150mm
Exhaust type	Ball bearing
Lumen output	Up to 1200lm
Wall control	true
Warranty	3 Year Replacement Warranty

Features

Maximum airflow: 500 m³/hr
Modern slimline design
High performance exhaust fan
Cut Out size: 475mm x 325mm
2 x 8W LED panels
Tri-colour technology: 3000K Warm White / 4200K Cool White / 6000K Daylight
Brightness output: 1000lm (3000K) / 1100lm (4200K) / 1200lm (6000K)
1 x 1100W infrared heat lamp for instant heating
Powerful 55W long life ball bearing motor
Side duct (150mm duct compatible)
Thermal cutout and overheating protection
Includes wall switch, 1.5m flexible ducting and exterior grille
Must be installed by a licensed electrician
3 Year Replacement Warranty

Features

Maximum airflow: 500 m³/hr
Modern slimline design
High performance exhaust fan
Cut Out size: 475mm x 325mm
2 x 8W LED panels
Tri-colour technology: 3000K Warm White / 4200K Cool White / 6000K Daylight
Brightness output: 1000lm (3000K) / 1100lm (4200K) / 1200lm (6000K)
1 x 1100W infrared heat lamp for instant heating
Powerful 55W long life ball bearing motor
Side duct (150mm duct compatible)
Thermal cutout and overheating protection
Includes wall switch, 1.5m flexible ducting and exterior grille
Must be installed by a licensed electrician
3 Year Replacement Warranty

Description

Specifications

Back draft stopper	true
Colour	Black
Colour temperature	3000K/4200K/6000K
Cut out size	475mm x 325mm
Ducting included	Yes
Ducting size	150mm
Exhaust type	Ball bearing
Lumen output	Up to 1200lm
Wall control	true
Warranty	3 Year Replacement Warranty

Specifications

Back draft stopper	true
Colour	Black
Colour temperature	3000K/4200K/6000K
Cut out size	475mm x 325mm
Ducting included	Yes
Ducting size	150mm
Exhaust type	Ball bearing
Lumen output	Up to 1200lm
Wall control	true
Warranty	3 Year Replacement Warranty

Downloads

Download the Spec Sheet

Explore the Family

The Marvel Bathroom Exhaust Fan 3 in 1 Heater offers effective ventilation with integrated heating and adjustable tri-colour LED lighting for enhanced comfort and ambience.

Download the Spec Sheet

Brilliant Lighting

With more than three decades of expertise in lighting, electrical, air movement, and smart products, Brilliant has established itself as a prominent leader in the industry. Their comprehensive range of solutions caters to residential, commercial, and architectural markets, reaching customers through various channels such as retail, DIY, and trade across Australia and New Zealand.

Brilliant's core focus lies in providing lighting solutions that are both efficient and sustainable. They are dedicated to minimizing their carbon footprint and integrating sustainability practices into every facet of their operations. By prioritizing environmental responsibility, Brilliant aims to contribute to a greener future.

The satisfaction and needs of their customers remain paramount to Brilliant's endeavors. They offer an extensive selection of products to accommodate diverse requirements. With a steadfast commitment to quality, Brilliant ensures that their lighting and smart products are of the highest standard, instilling confidence in their customers.
